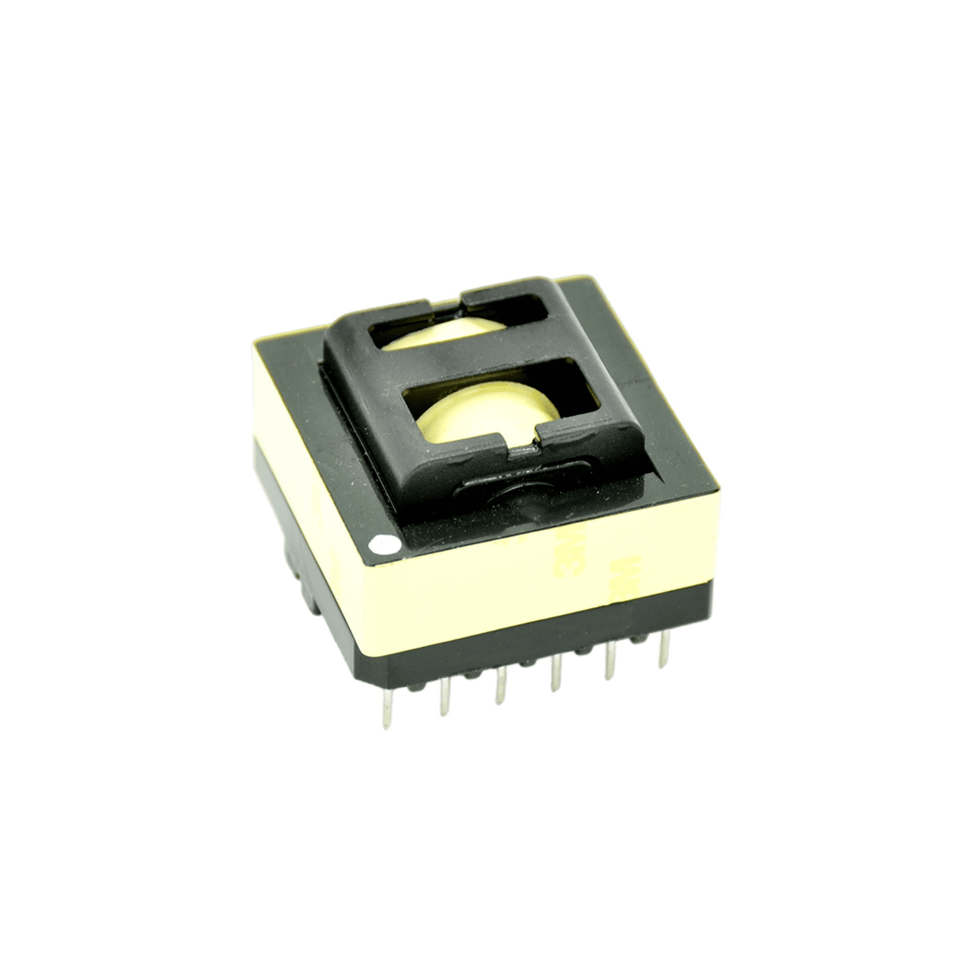

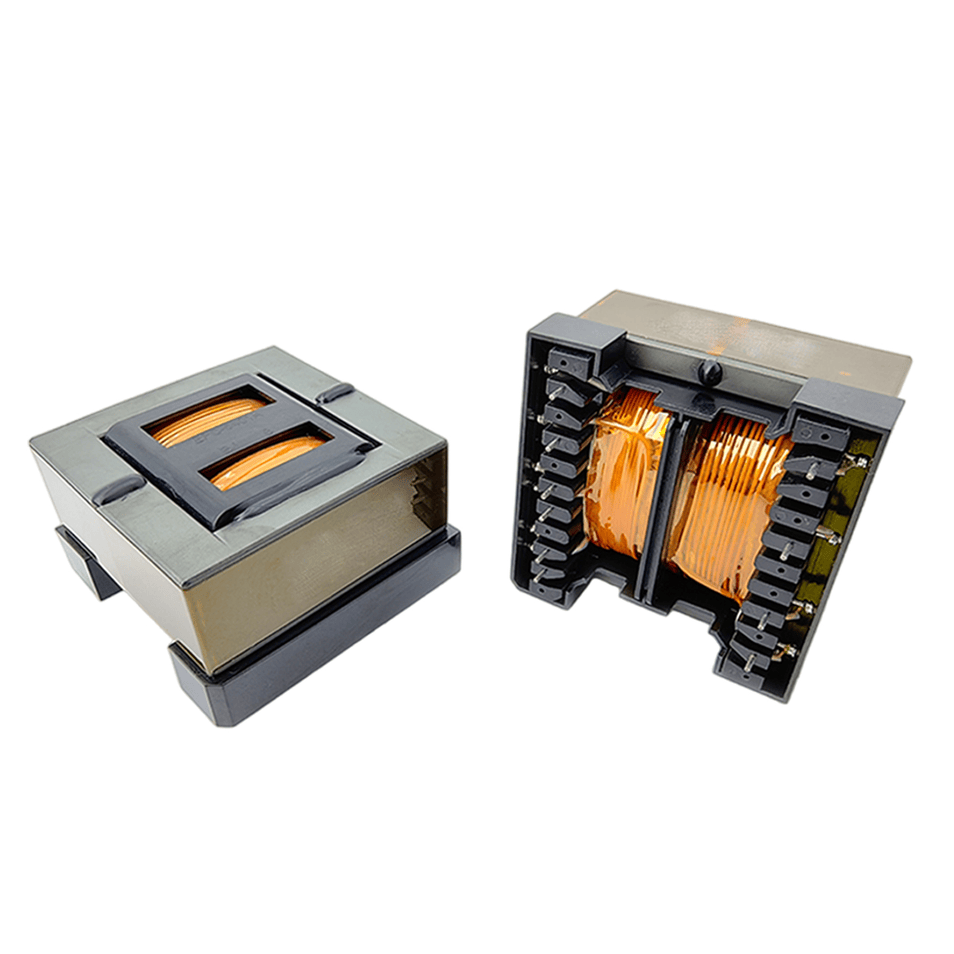

  Our ETD Series High-Frequency Switch Mode Transformer is engineered for superior performance and reliability in demanding power supply applications. Featuring a robust horizontal double bobbin (ETD) core structure, this transformer is ideal for SMPS, UPS, inverters, and industrial power systems. Manufactured with precision using high-grade materials, it ensures low loss, high efficiency, and excellent thermal stability. Whether you need a standard model or a fully customized solution, our ETD transformer is designed to meet your specific voltage, power, and safety requirements, providing stable power conversion for your critical equipment. Optimized Core Design for High Efficiency : Adopts high-purity Mn-Zn ferrite cores (high permeability at high frequencies) and oxygen-free copper windings (low resistance), extending product lifespan to over 10,000 hours Horizontal Dual-Slot Structure: Horizontal dual-slot design saves 30% installation space compared to vertical transformers. Reinforced bobbin ensures easy winding and stable assembly, fitting compact power supply enclosures.
  High-Efficiency & Low-Loss Performance :  Boasts ≥95% conversion efficiency and low power loss, reducing energy waste for long-term operation. Low leakage inductance (≤100μH) minimizes EMI interference, ideal for precision equipment. Wide-Temperature Stable Operation :  Operates reliably in -40℃ (low-temperature startup) to +125℃ (high-temperature load) environments, with Class H insulation (180℃) preventing overheating damage.


Flexible Customization: Offers customization for rated power (30W~6000W), output voltage (12V~48V), lead length (100mm~500mm), and pin type (PCB mount/terminal), with 7-day sample delivery.


Comprehensive International Compliance: Complies with UL 60950-1, CE EN 61558, and RoHS 2.0 standards, meeting safety and environmental requirements for global markets (Europe, North America, Southeast Asia).
 Dimensions & Parameters

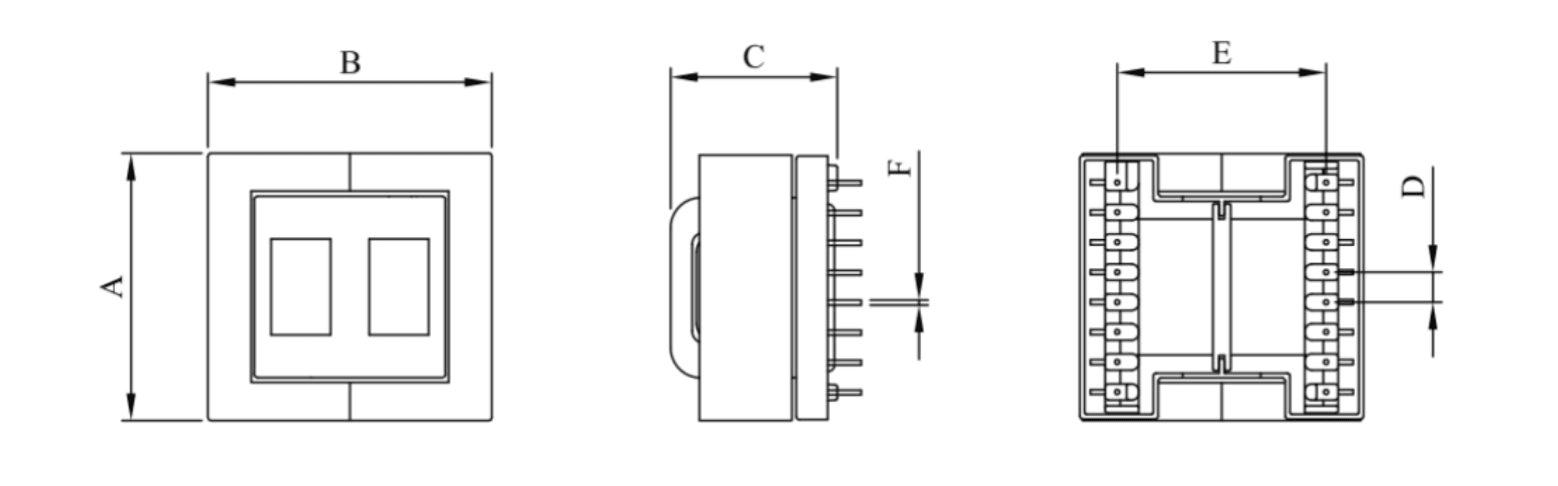

Size	A (Max)	B (Max)	C (Max)	D (Max)	E (Max)	F (Max)	Pins (Optional)	fsw (kHz)	Power (W)2
ETD29	36.5	36.5	26.0	5.0	25.5	Φ0.8	7+7	100	30~60
ETD34	44.0	37.5	25.5	2.5	25.5	Φ0.8	16+16	100	80~150
ETD39	45.5	45.0	37.0	5.0	30.2	Φ1.0	8+8	100	150~300
ETD44	51.0	52.5	41.0	5.0	35.8	Φ1.0	9+9	100	300~1000
ETD49	56.0	58.0	42.0	5.0	41.0	Φ1.0	10+10	100	800~2000
ETD54	62.5	62.5	46.0	5.08	46.0	Φ1.0	11+11	100	2000~4000
ETD59	68.0	67.5	50.0	5.08	50.8	Φ1.0	13+13	100	3000~6000

1. Operating Temperature: -40°C~+125°C(Includes temperature when the coil is heated). 2. Output power is only for reference at switching frequency 100kHz. ApplicationsPower  SupplierElectric  VehicleAerospace


Communication  EquipmentMedical  DeviceRenewable Energy


Marine Electric PowerInstruments & MetersIndustrial Automation

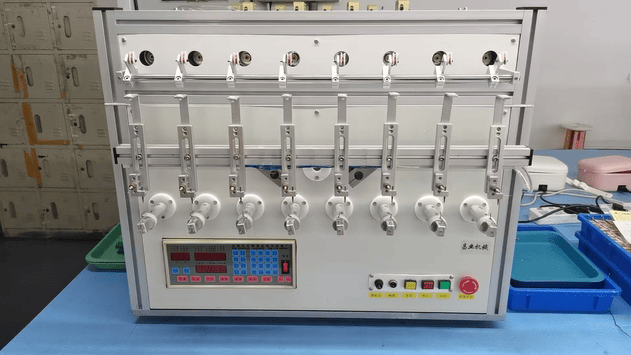

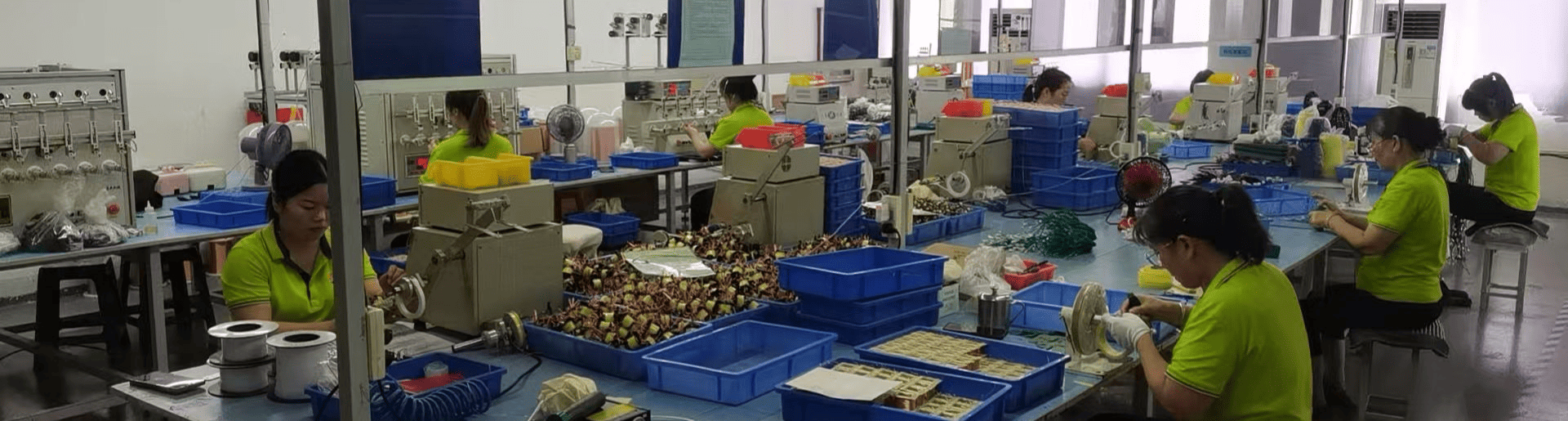

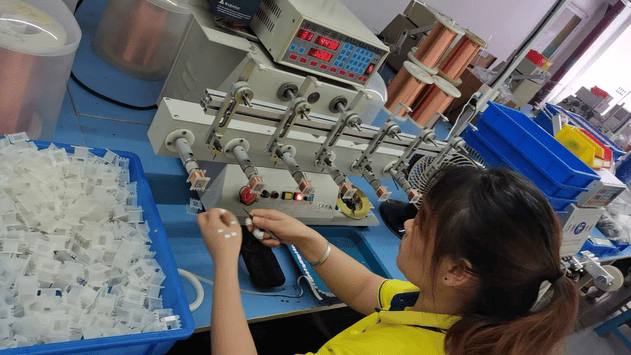

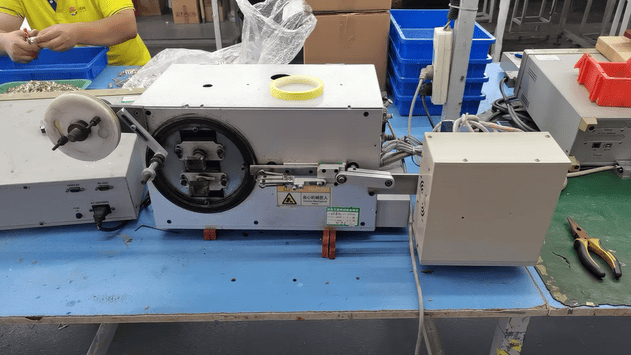

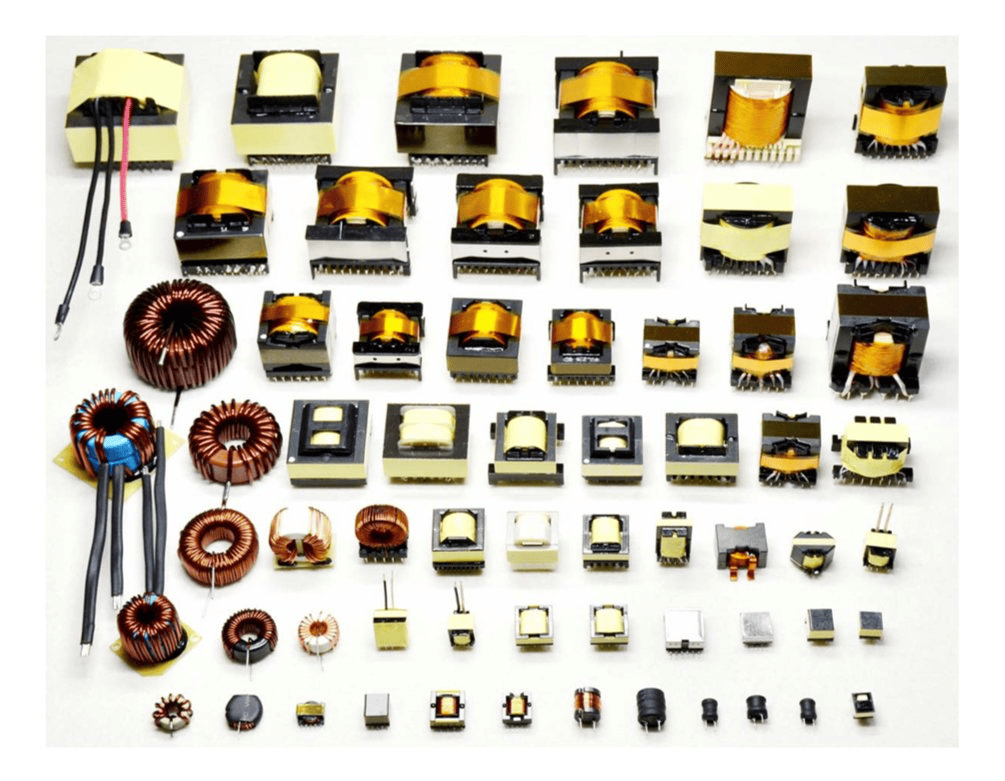

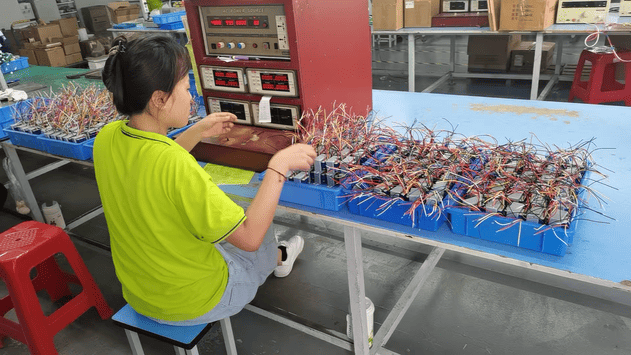

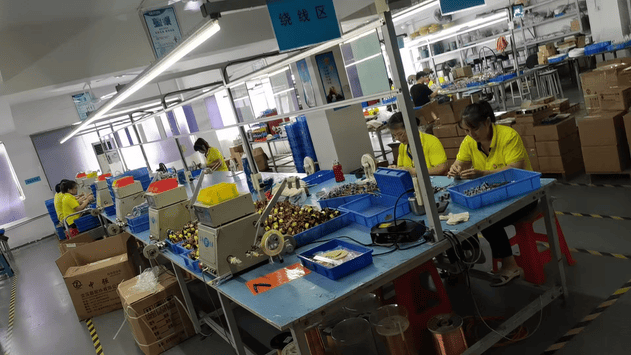

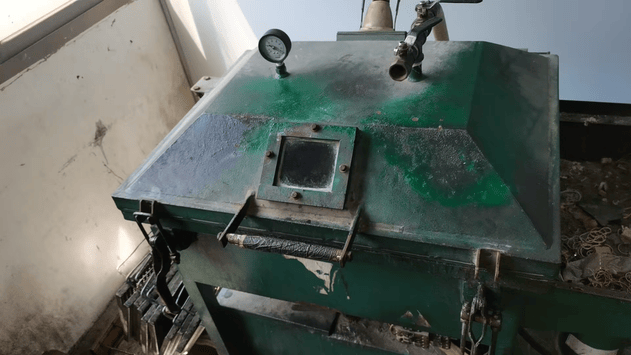

Manufacturing Process  Our high-frequency transformers are manufactured using a semi-automated production line that integrates exquisite craftsmanship with modern technology, ensuring each product delivers high-standard performance and reliability. The production process combines precision machinery with skilled technicians, with every step—from winding and assembly to testing—strictly adhering to a quality control system. With extensive experience in customized design, we can flexibly adjust product parameters and structures according to client requirements, providing tailored and efficient solutions for your specific applications. Company Profile  Originating from Xiamen Taike Electromechanical Co., Ltd, which has specialized in magnetic components for high and low frequency applications for over a decade, the company established Xiamen Reliable Magnetic Electric Technology Co., Ltd in 2022. This expansion targets the new energy storage market, focusing on power frequency transformer and reactors.   Driven by evolving technology and market demands, our high frequency electromagnetic business has been spun off into an independent entity, Xiamen Actranx New Energy Technology Co., Ltd. This venture, developed in partnership with Huaqiao University, specializes in the R&D, production, and innovation of bespoke magnetic components, including high frequency transformers andinductors coils.
