6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transf

  • Price

    $500.00

  • Brand

    Kerun

  • MOQ

    10

IP location:LAN,When contacting me for more information, please mention you found me onElecUnite, Thanks!

Sales
Add Cart
Inquiry

Services

All product claims are seller-provided.

Contact Information
Add attention0

Kerun Intelligent Control Co., Ltd.

corporate memberThe1year
InformationNot certified
BondUnpaid
  • Beijin
  • Last login 04-26 20:42
  • Wade (Mr.)
Type
  • None
News

Details

Corporate Location

Product Gallery

  • Brand:

    Kerun

  • Price:

    $500.00

  • MOQ:

    Minimum order10

  • Inventory:

    10000

  • Address:

    Beijin

  • Send out goods:

    After payment0hour

  • More

Detailed description

Product Description

Company Info.

Packaging & Delivery

Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
400.000kg

Product Description

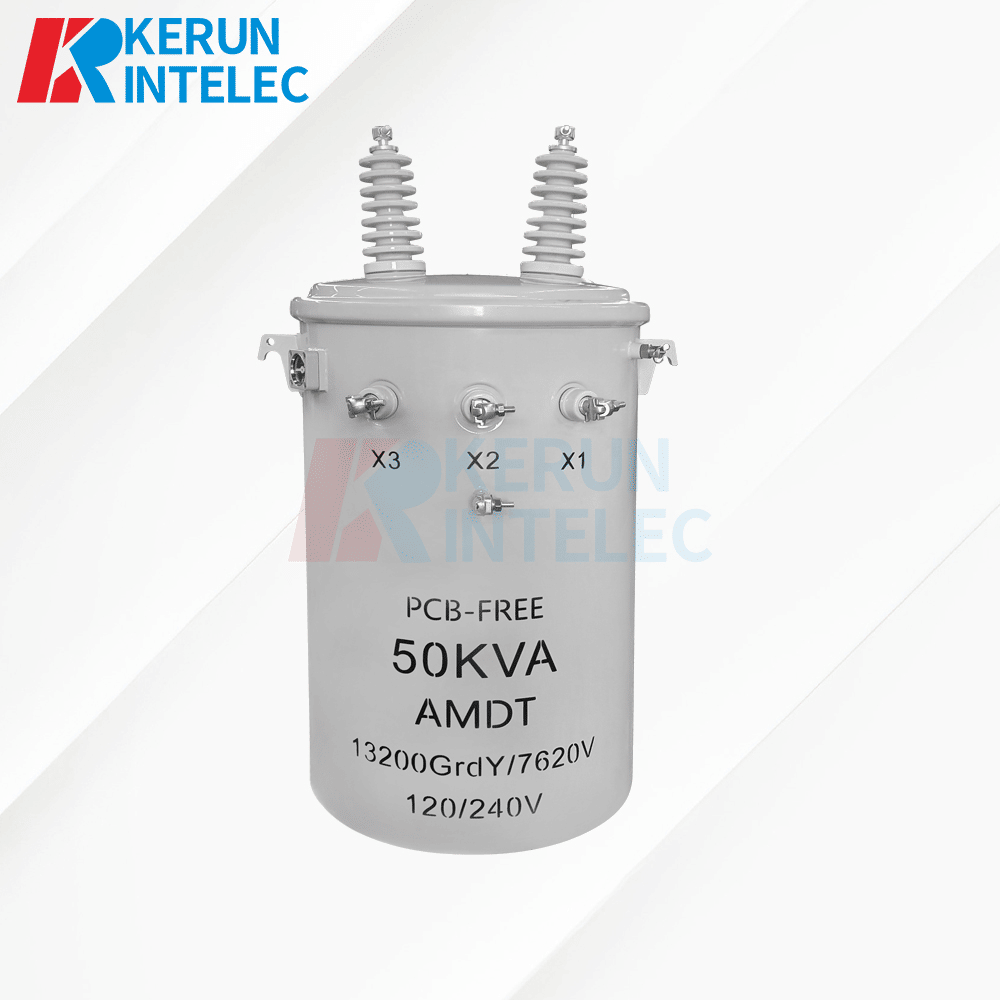

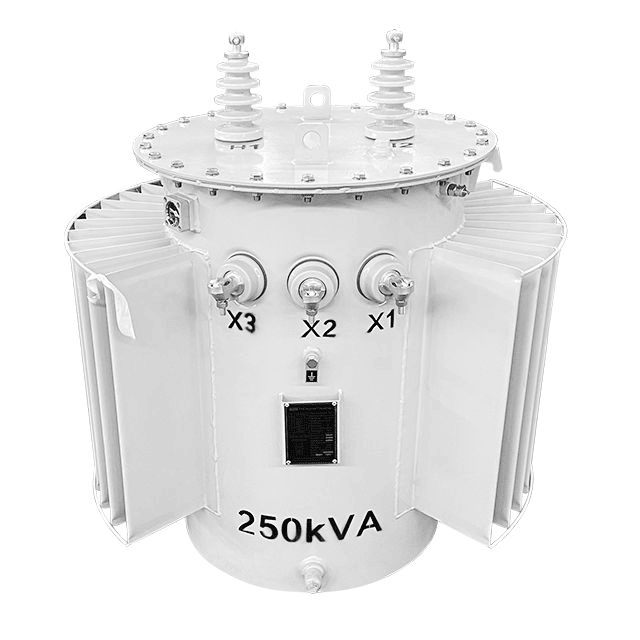

  Single Phase Pole Mounted Distribution Transformer

Technical Description

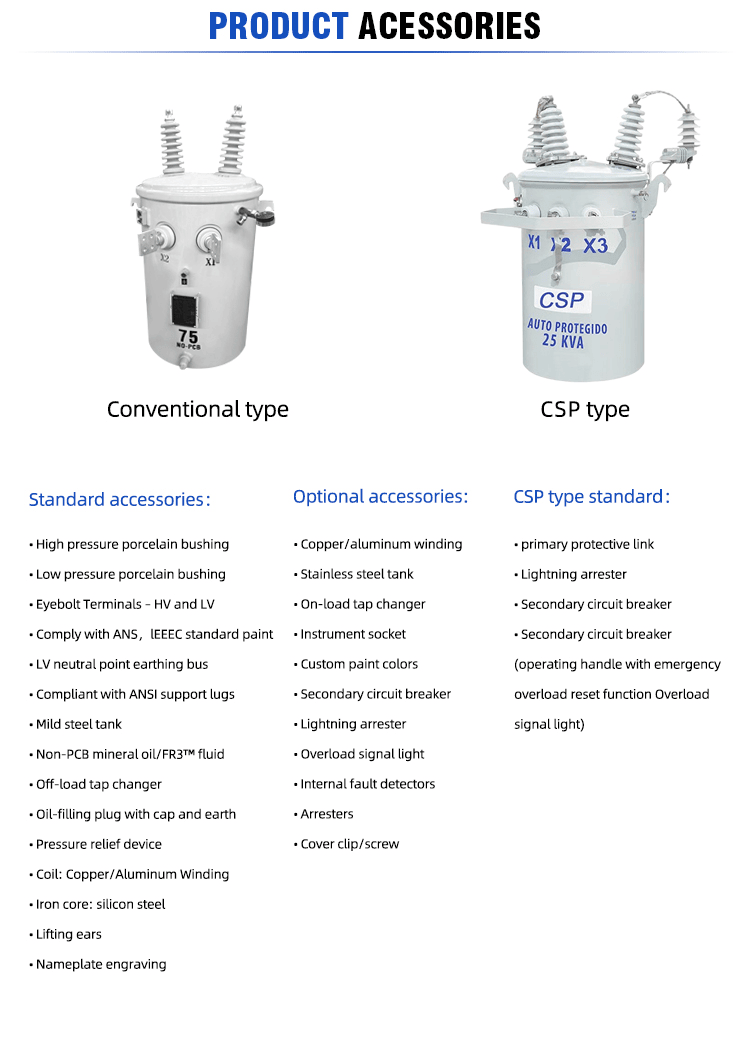

Type: Conventional type/CSP type
Rated power: up to 333 kVA
Primary voltage: up to 34.5 kV
Secondary voltages up to 500 V
Standards: IEEE/ANSI/IEC/DOE

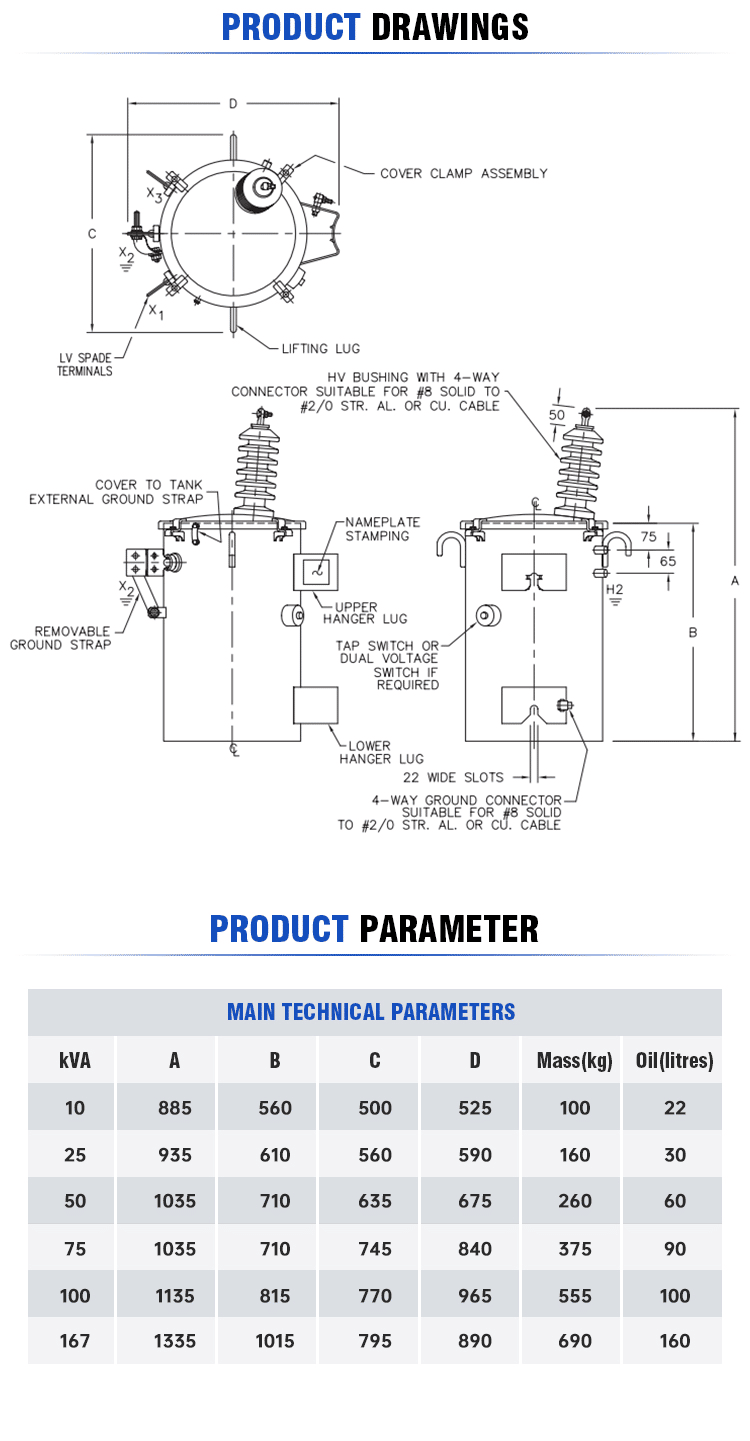

Single Phase Pole Mounted Distribution Transformer Parameters
Power (kVA) High Voltage (V) Low Voltage (V) Loss(W) Dimension(mm) Weight
No-load Loss On-load Loss W D H
5 34500/19920
13800/7957
13200/7620
12470/7200
or others
120-240
240-480
347-600
19 75 465 485 855 92
10 36 120 500 525 885 150
15 50 195 520 565 905 210
25 80 290 560 590 935 258
37.5 105 360 610 625 935 340
50 135 500 635 675 1035 395
75 190 650 745 840 1035 480
100 210 850 770 965 1135 530
167 350 1410 795 890 1335 680


Single Phase Power Pole Transformers Advantage:



KERUN utilizes a focus factory concept which leads to a great experience in specific products giving a very high level of consistency in design, manufacture, and test.


KERUN distribution transformers factories utilize the common design platform giving us best-in-class experience, consistency, and repeatability.


KERUN utilizes best-in-class manufacturing and quality processes to ensure that our transformers will meet the most stringent requirement.


Pole Distribution Transformer Applications:

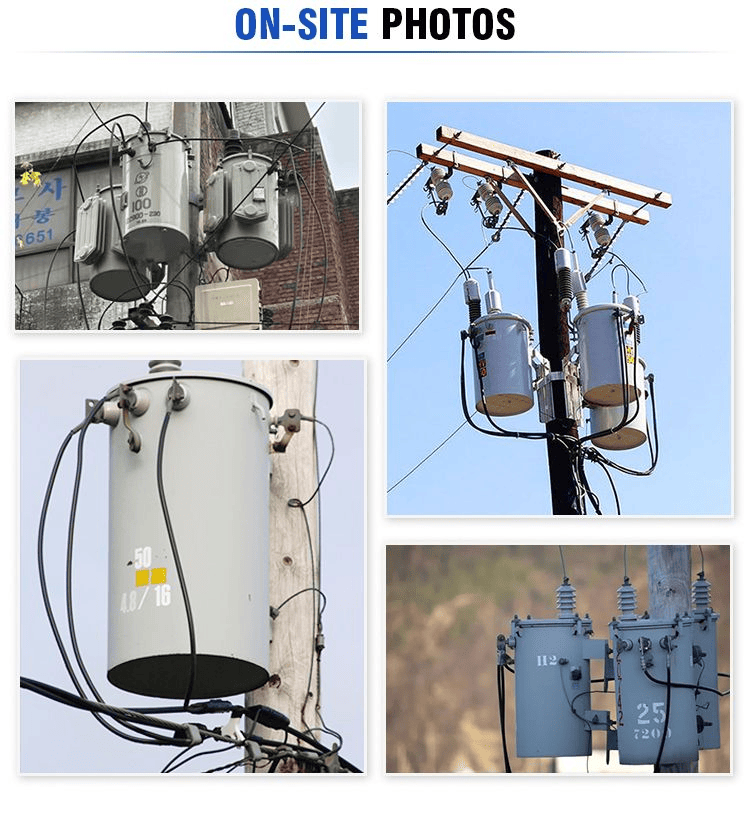

KERUN pole-mounted single phase distribution transformers are mounted above ground on poles. These transformers typically service urban and rural residential and commercial loads. Others are light industrial and commercial lighting applications.


• ANSI pole-mounted transformers are available in a continuously self-protected (CSP) version from continuous overload and network protection from transformer faults.

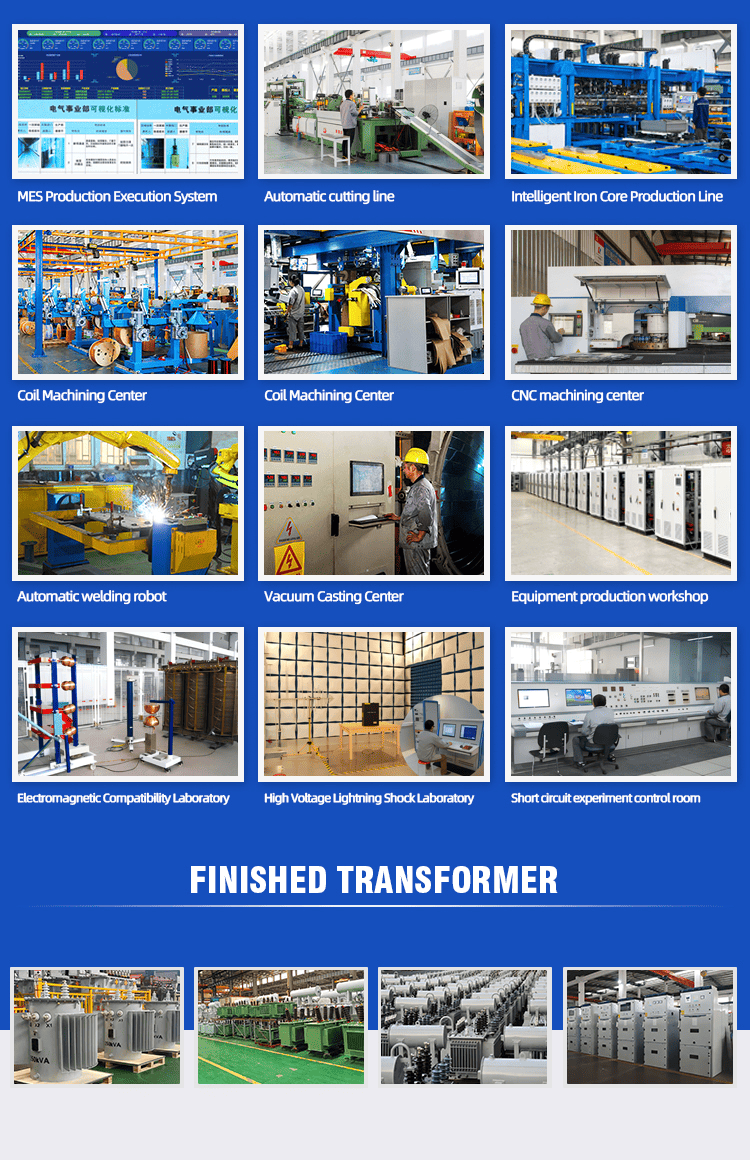

Pole Mounted Transformer Manufacturers:



KERUN engineers have 40 years of experience in the transformer industry and have accumulated a wealth of experience in participating in different projects in various countries. Based on project cooperation cases, KERUN can help you analyze the types of transformers you need in project construction and provide complete power distribution and other solutions.




Q:Who are you?
A:KERUN is a company in growth. We have reached many of our goals, and established solid marketing foundation in many countries.

Q:Are you a manufacturer or a trading company?
A:We are a professional transformer manufacturer with more than 20 year's experience.Support OEM&ODM.

Q:Which markets do you mostly export to?
A:We are exporting to more than 20 countries in South America, North America, Europe, Middle East, Africa and so on.

Q:What certificates and standards do you have?
A:ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates. A:IEC, ANSI, KEMA, GOST standard.

Q:How long is your delivery time?
A:After determining the plan, we will complete production and shipping within 20 days. It mainly depends on the quantity.

Q:What is the standard of package?
A:Our nomal package are divided into three types:wooden pallets, wooden frames, and wooden boxes.Also it can be customized.

Q:What currencies and payment Type do you support?
A:Payment Currency:USD,CNY.
    Payment Type:T/T,L/C.

Q:Why choose KERUN?
A:After comparing the quality, delivery and price of the same products, believe you will choose KERUN.
