Packaging & Delivery

Package Size 1000.00cm * 1000.00cm * 1000.00cm Package Gross Weight 400.000kg

Product Description

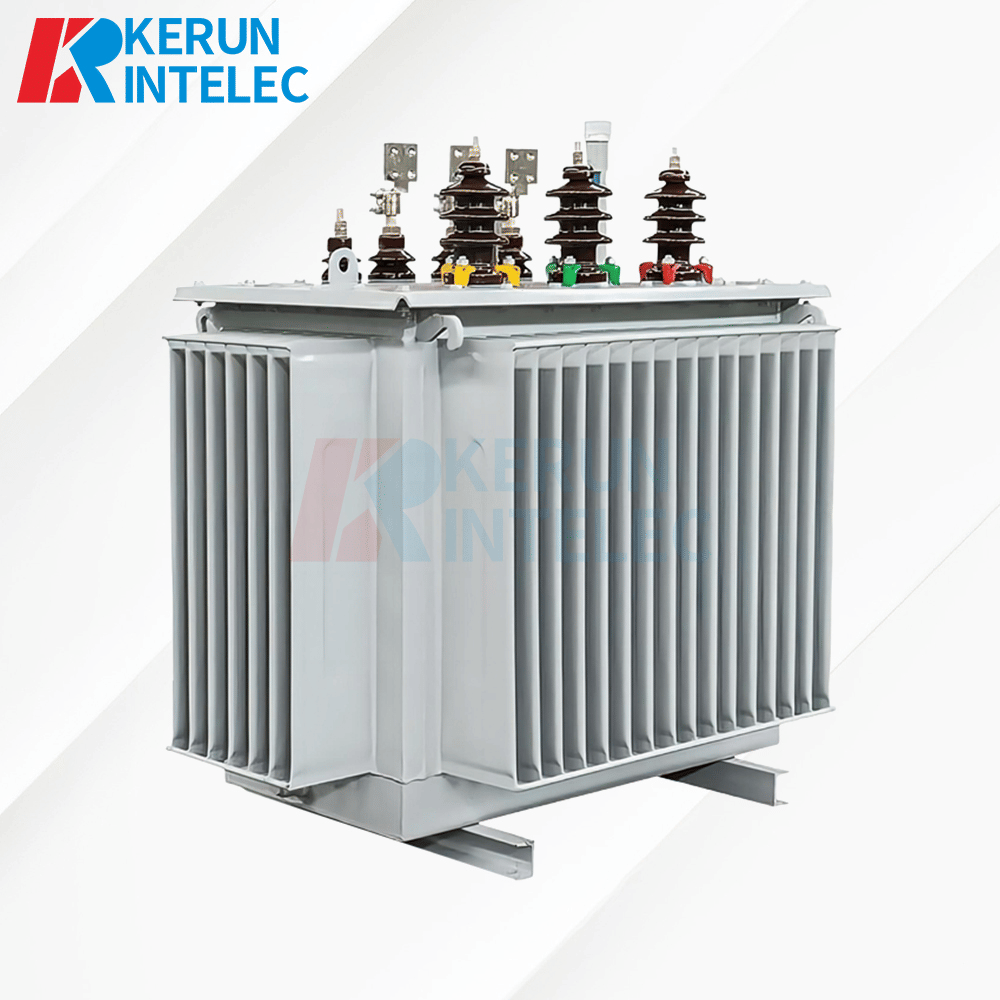

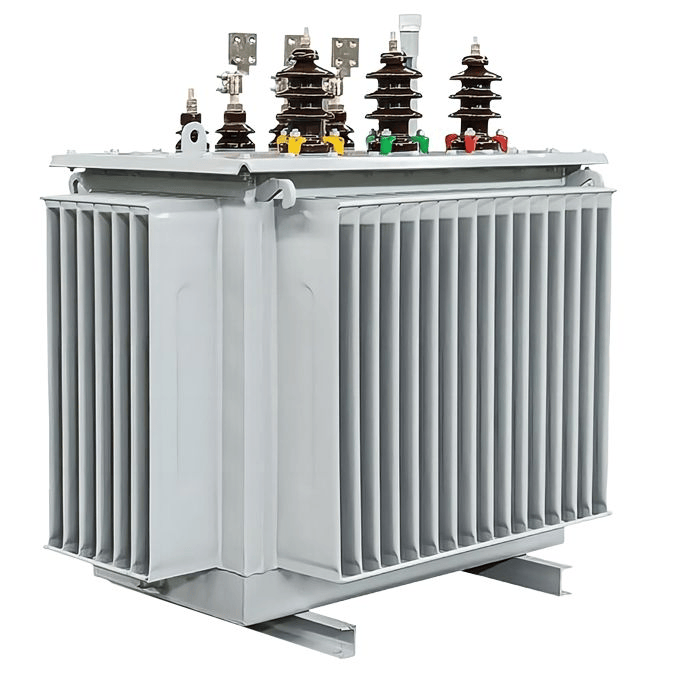

  Oil Immersed Three Phase Distribution Transformer

Technical Description

Rated power: up to 5000kVA
Primary voltage: up to 36kV
Secondary voltages up to 480V
Cooling type: ONAN
Insulation oil: Mineral fluids or MIDEL ester fluids

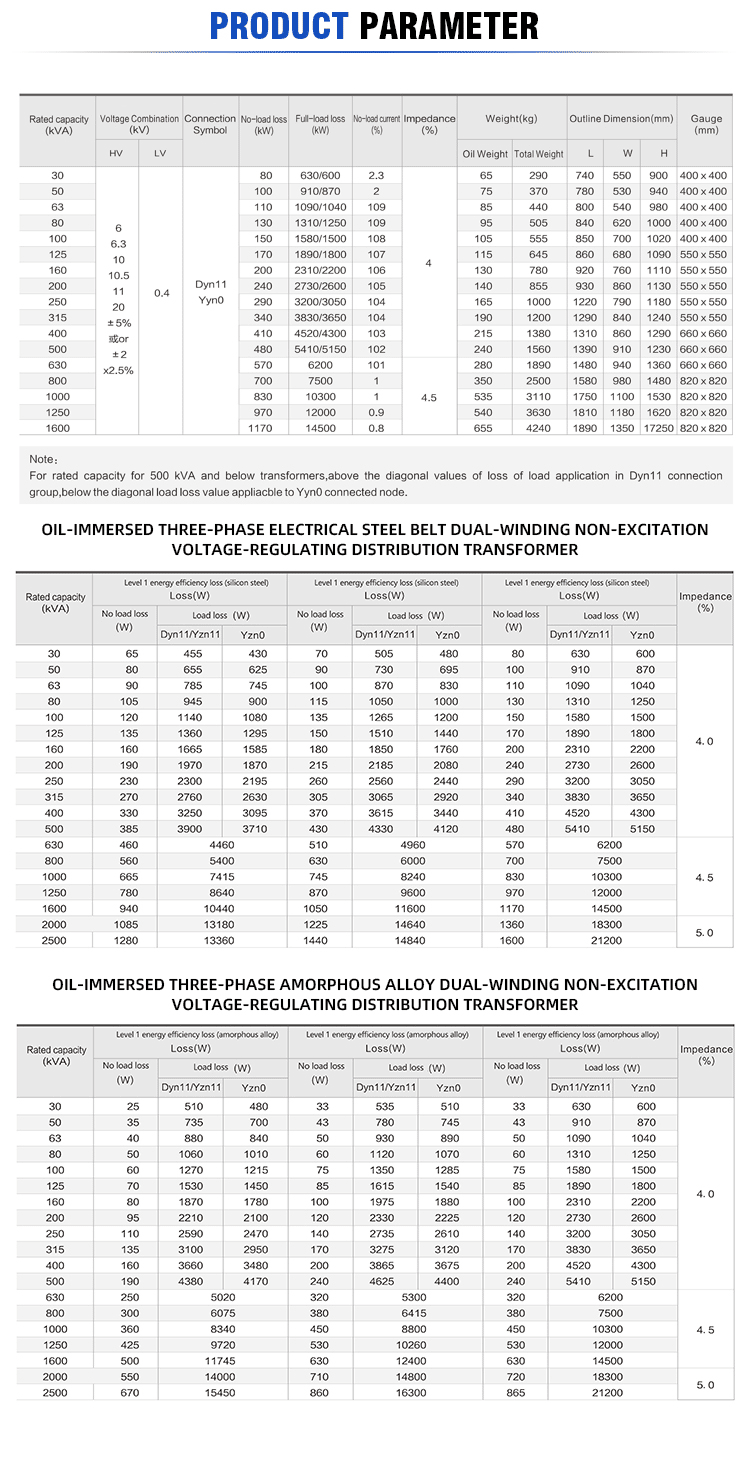

Three Phase Pole Mounted Distribution Transformer Parameters
Rated capacity (kVA)	Voltage Combination (kV)		Connection Symbol	No-load loss (kW)	Full-load |oss (kW)	No-load current (%)	Impedance (%)	Weight(kg)		Outline Dimension(mm)			Gauge (mm)
	HV	LV						Oil Weight	Total Weight	L	W	H
30	6 6.3 10 10.5 11 20 ±5% or ±2x2.5%	0.4	Dyn11 YynO	80	630/600	2.3	4	65	290	740	550	900	400x400
50				100	910/870	2		75	370	780	530	940	400×400
63				110	1090/1040	109		85	440	800	540	980	400×400
80				130	1310/1250	109		95	505	840	620	1000	400×400
100				150	1580/1500	108		105	555	850	700	1020	400x400
125				170	1890/1800	107		115	645	860	680	1090	550x550
160				200	2310/2200	106		130	780	920	760	1110	550x550
200				240	2730/2600	105		140	855	930	860	1130	550x550
250				290	3200/3050	104		165	1000	1220	790	1180	550x550
315				340	3830/3650	104		190	1200	1290	840	1240	550x550
400				410	4520/4300	103		215	1380	1310	860	1290	660x660
500				480	5410/5150	102		240	1560	1390	910	1230	660×660
630				570	6200	101	4.5	280	1890	1480	940	1360	660x660
800				700	7500	1		350	2500	1580	980	1480	820x820
1000				830	10300	1		535	3110	1750	1100	1530	820x820
1250				970	12000	0.9		540	3630	1810	1180	1620	820×820
1600				1170	14500	0.8		655	4240	1890	1350	17250	820x820

Oil Immersed Distribution Transformer Standards Compliant:

• Suitable for both indoor or outdoor.

• Air temperature: Maximum temperature: +40ºC; Minimum temperature:-25ºC.

• Humidity: Monthly average humidity 95%; Daily average humidity 90% .

• Altitude above sea level: Maximum installation altitude: 2000m.

• Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

• No frequent violent shake.

Oil Immersed Hermetically Sealed Transformer Advantage:



• KERUN utilizes a focus factory concept which leads to a great experience in specific products giving a very high level of consistency in design, manufacture, and test.


• KERUN distribution transformers factories utilize the common design platform giving us best-in-class experience, consistency, and repeatability.


• KERUN utilizes best-in-class manufacturing and quality processes to ensure that our transformers will meet the most stringent requirement.

Three Phase Oil Immersed Transformer Transformer:

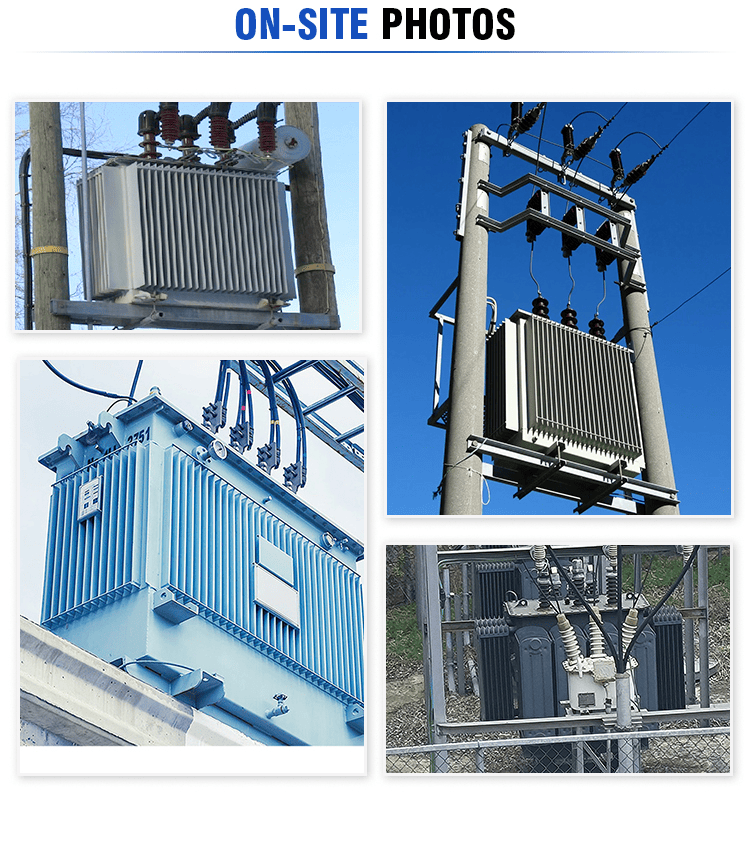

• KERUN Oil Immersed small distribution transformers up to 315 kVA are typically oil-immersed for pole, pad, or floor mounting.

• KERUN Oil Immersed small distribution transformers up to 2500 kVA are suitable for residential overhead distribution loads, as well as light commercial or industrial loads and diverse power applications.


3 Phase Distribution Transformer Manufacturers:



KERUN engineers have 40 years of experience in the transformer industry and have accumulated a wealth of experience in participating in different projects in various countries. Based on project cooperation cases, KERUN can help you analyze the types of transformers you need in project construction and provide complete power distribution and other solutions.


Q:Who are you?
A:Sourceway is a company in growth. We have reached many of our goals, and established solid marketing foundation in many countries.

Q:Are you a manufacturer or a trading company?
A:We are a professional transformer manufacturer with more than 20 year's experience.Support OEM&ODM.

Q:Which markets do you mostly export to?
A:We are exporting to more than 20 countries in South America, North America, Europe, Middle East, Africa and so on.

Q:What certificates and standards do you have?
A:ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates. A:IEC, ANSI, KEMA, GOST standard.

Q:How long is your delivery time?
A:After determining the plan, we will complete production and shipping within 20 days. It mainly depends on the quantity.

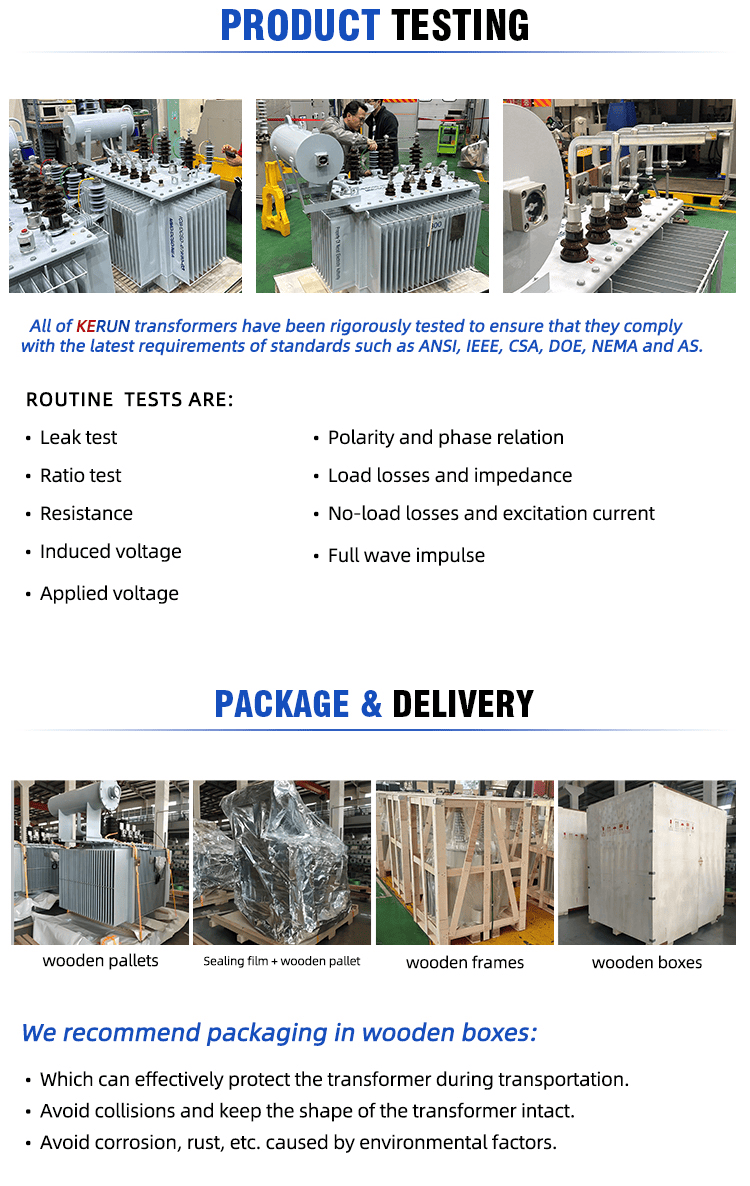

Q:What is the standard of package?
A:Our nomal package are divided into three types:wooden pallets, wooden frames, and wooden boxes.Also it can be customized.

Q:What currencies and payment Type do you support?
A:Payment Currency:USD,CNY.
    Payment Type:T/T,L/C.

Q:Why choose KERUN?
A:After comparing the quality, delivery and price of the same products, believe you will choose KERUN. View More
