YHDC Split Core Current Transformer SCT Series High Accuracy 1A to 600A

Details

Corporate Location

Product Gallery

Inquiry
Details
Recommend

Brand:

nothing
Price:

＄2.00
MOQ:

Minimum order1
Inventory:

10000
Address:

Beijin
Send out goods:

After payment0hour
More 

Detailed description

Product Description

Company Info.

Packaging & Delivery

Package Size: 6.70cm * 5.40cm * 10.60cm
Package Gross Weight: 0.400kg
Lead Time: 7 days (1 - 50 Pieces)
10 days (51 - 100 Pieces)
15 days (101 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

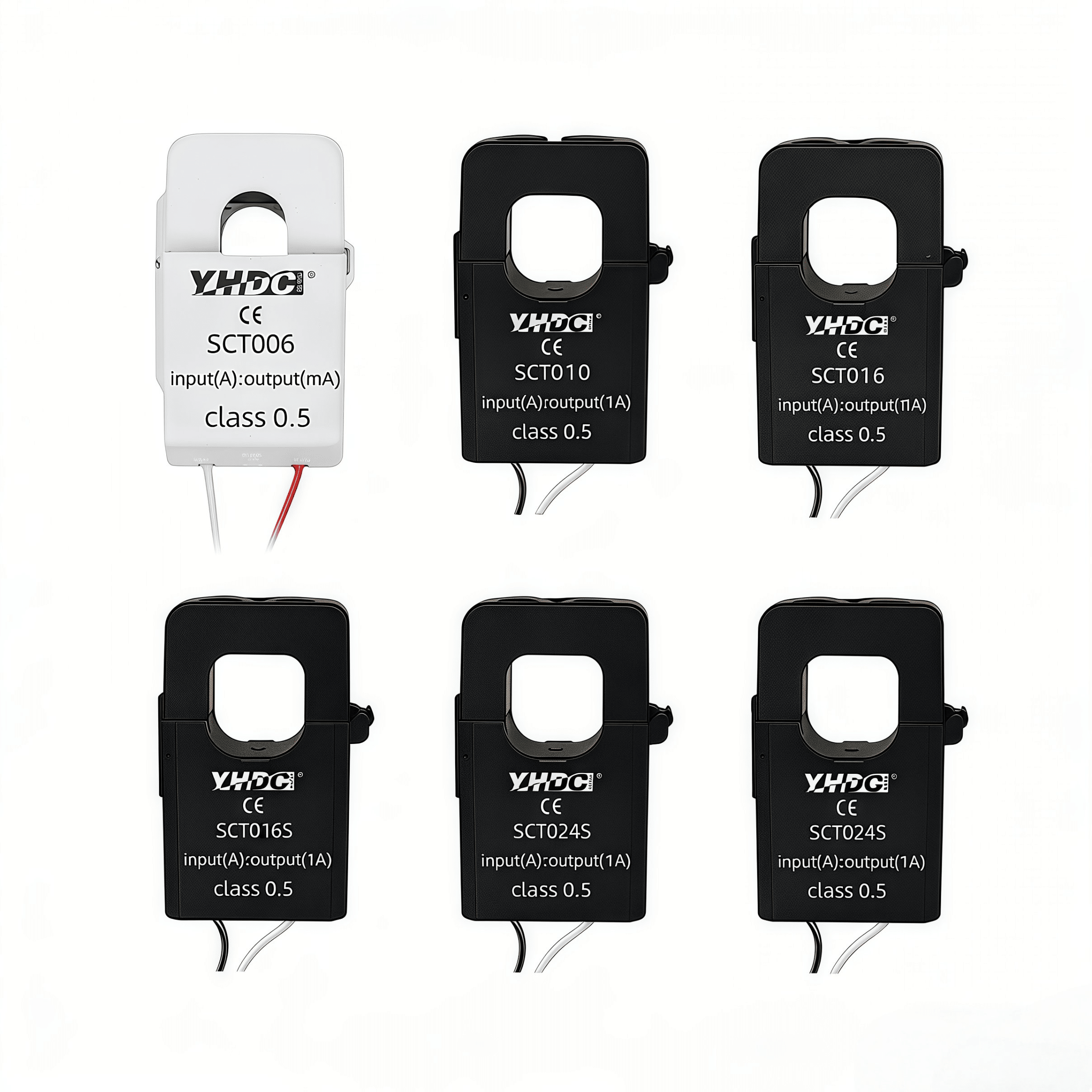

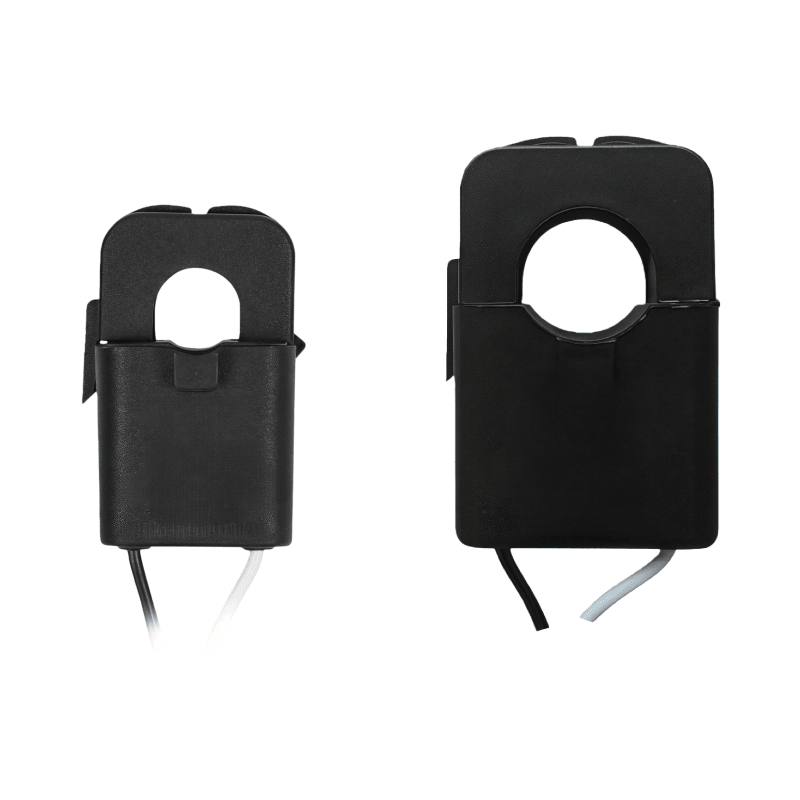

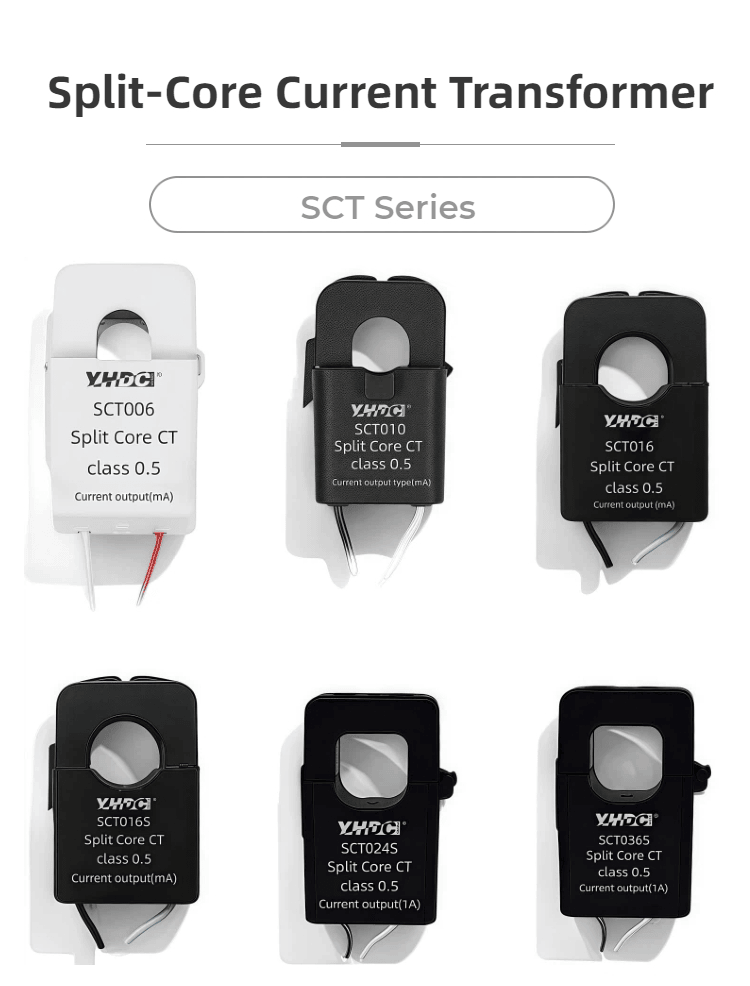

Product Introduction The SCT Series split-core current transformer is a high-performance sensing device designed for industrial power monitoring and energy management. This series covers a wide current input range from 10A to 600A and offers multiple signal types including 5A, 1A, mA, and voltage outputs to meet various system integration requirements. Featuring a safety lock buckle and split-core design, it supports live-line quick installation and can be mounted via free hanging or DIN rail fixation, significantly enhancing on-site installation flexibility and efficiency. Different models within the series are optimized for specific application scenarios: models with twisted-pair output offer superior anti-interference capability, making them ideal for power quality monitoring where signal integrity is critical; models with parallel cable output provide a cost-effective solution widely used in general power distribution monitoring and equipment protection. All products utilize high-quality laminated silicon steel or ferrite cores combined with precision winding technology, ensuring stable accuracy from 0.2% to 1% across a wide operating temperature range of -25℃ to +60℃, and full compliance with the GB20840-2014 national standard. To meet the diverse needs of the global market, the series is certified with CE and RoHS, and offers custom cable connector services compatible with various interfaces such as aviation plugs and terminal blocks. The SCT Series is widely used in smart power distribution, industrial automation, new energy power generation, building energy management systems, and more, providing customers with reliable, accurate, and easily integrable current sensing solutions.Product Link

SCT006SCT010SCT010Product Link Click: SCT006(ID 6mm)-class0.5 Click: SCT006(ID 6mm)-class1 mA Output $1.55-2.20 / piece
1 piece Product Link Click: SCT010(ID 10mm)-class0.2 Click: SCT010(ID 10mm)-class0.5 mA Output
$2.26-3.05 / piece
1 pieceProduct Link

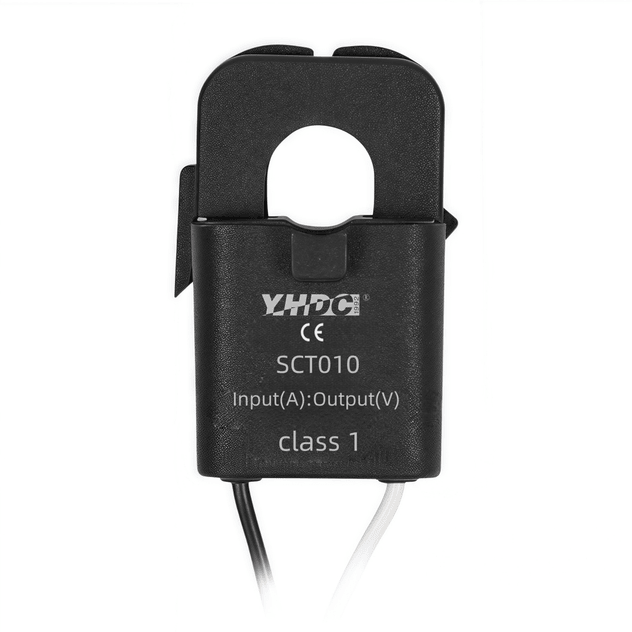

Click: SCT010(ID 10mm)-class1
Voltage output
$1.69-2.37 / piece
1 piece

SCT016SCT016SCT016SProduct Link
Click: SCT016(ID 16mm)-class0.2
Click: SCT016(ID 16mm)-class0.5
mA Output
$1.55-2.20 / piece
1 pieceProduct Link
Click: SCT016(ID 16mm)-class1
Voltage output
$2.12-2.88 / piece
1 pieceProduct Link

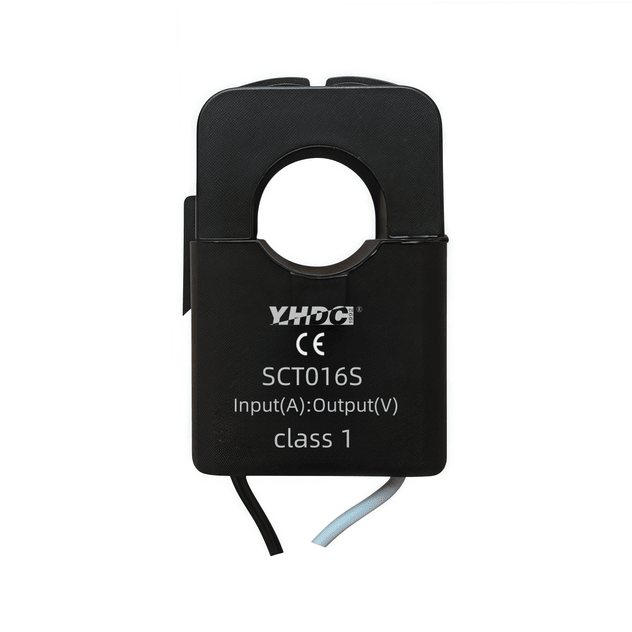

Click: SCT016S(ID 16mm)-class0.2 Click: SCT016S(ID 16mm)-class0.5
mA Output
$3.24-4.23 / piece
1 piece

SCT016SSCT016SSCT024SProduct Link
Click: SCT016S(ID 16mm)-class0.5
Click: SCT016S(ID 16mm)-class1
1A Output
$2.96-3.89 / piece
1 pieceProduct Link
Click: SCT016S(ID 16mm)-class1
Voltage output
$2.26-3.05 / piece
1 pieceProduct Link

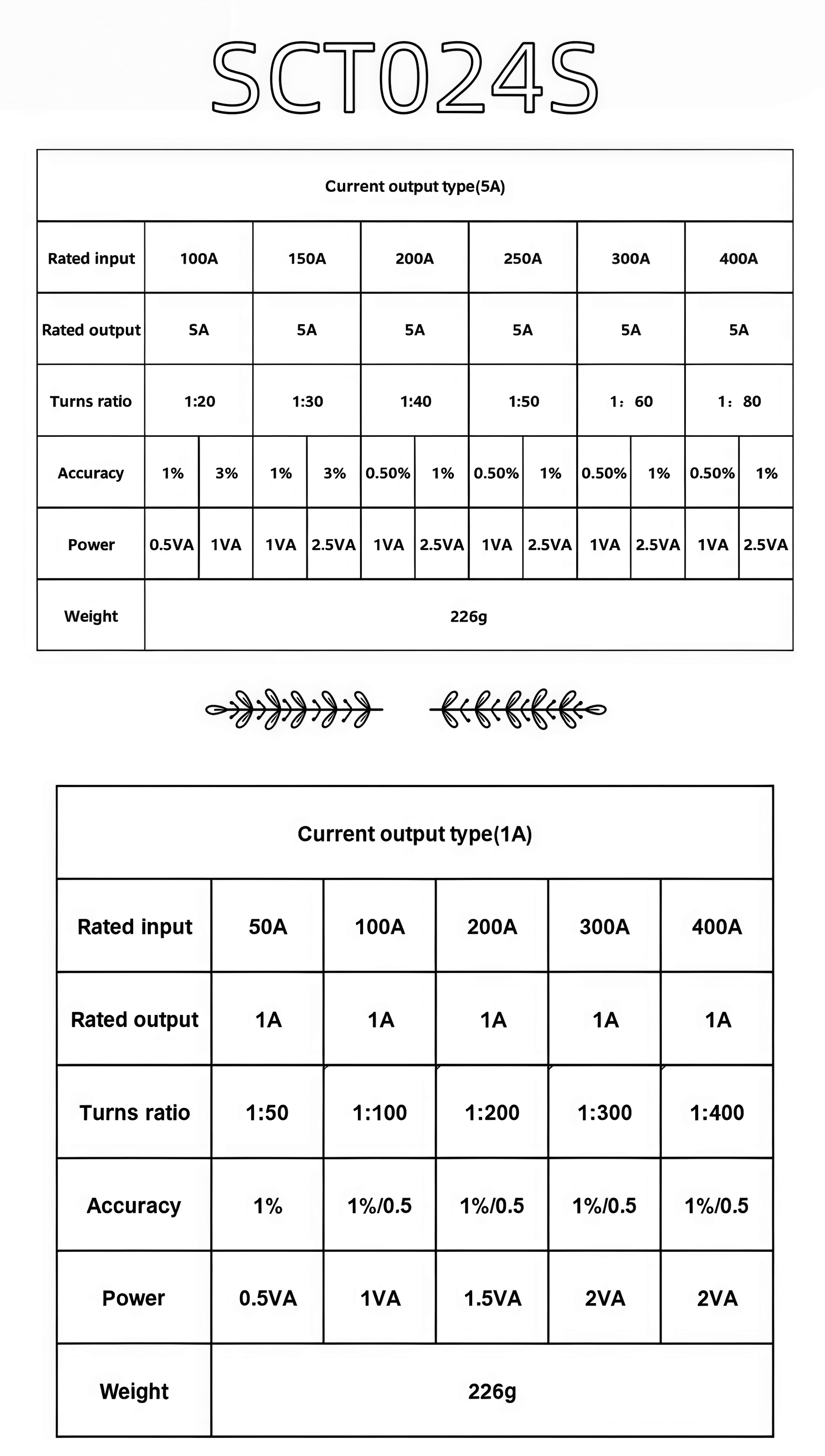

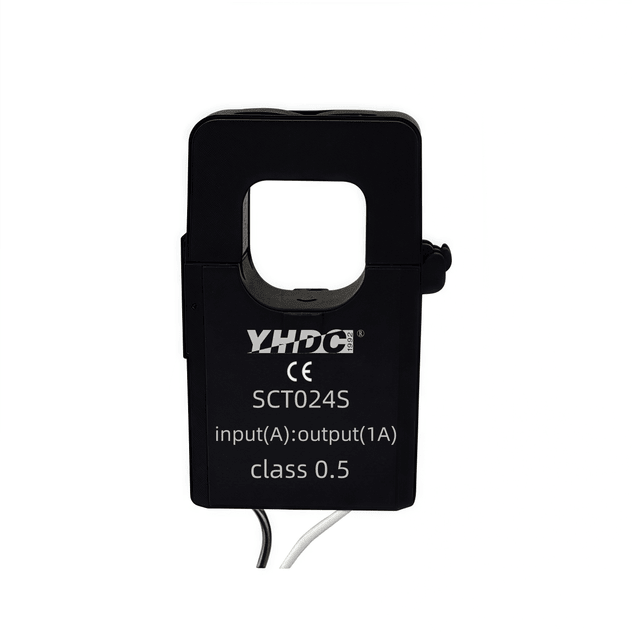

Click: SCT024S(ID 24mm)-class0.5 Click: SCT024S(ID 24mm)-class1
1A Output
$3.95-5.58 / piece
1 piece

SCT024SSCT036SSCT036SProduct Link
Click: SCT024S(ID 24mm)-class0.5
Click: SCT024S(ID 24mm)-class1
5A Output
$6.06-7.95 / piece
1 pieceProduct Link

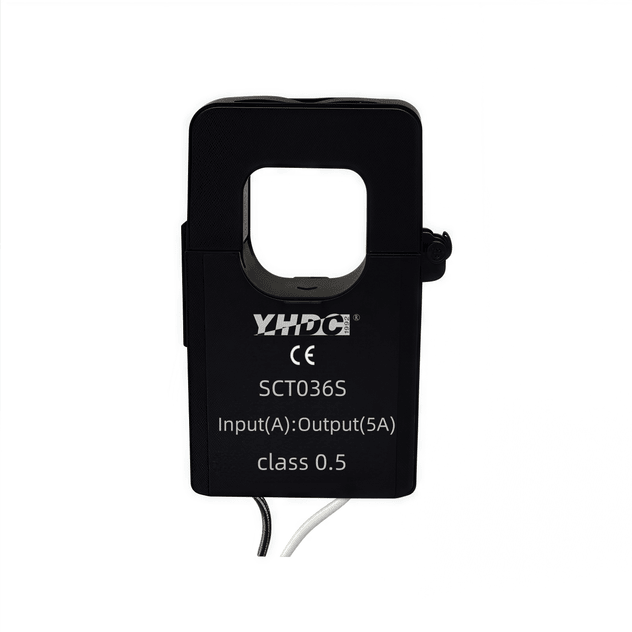

Click: SCT036S(ID 36mm)-class0.5
Click: SCT036S(ID 36mm)-class1
1A Output
$5.92-8.12 / piece
1 pieceProduct Link
Click: SCT036S(ID 36mm)-class0.5
Click: SCT036S(ID 36mm)-class1
5A Output
$6.06-7.62/ piece
1 pieceProduct Specifications

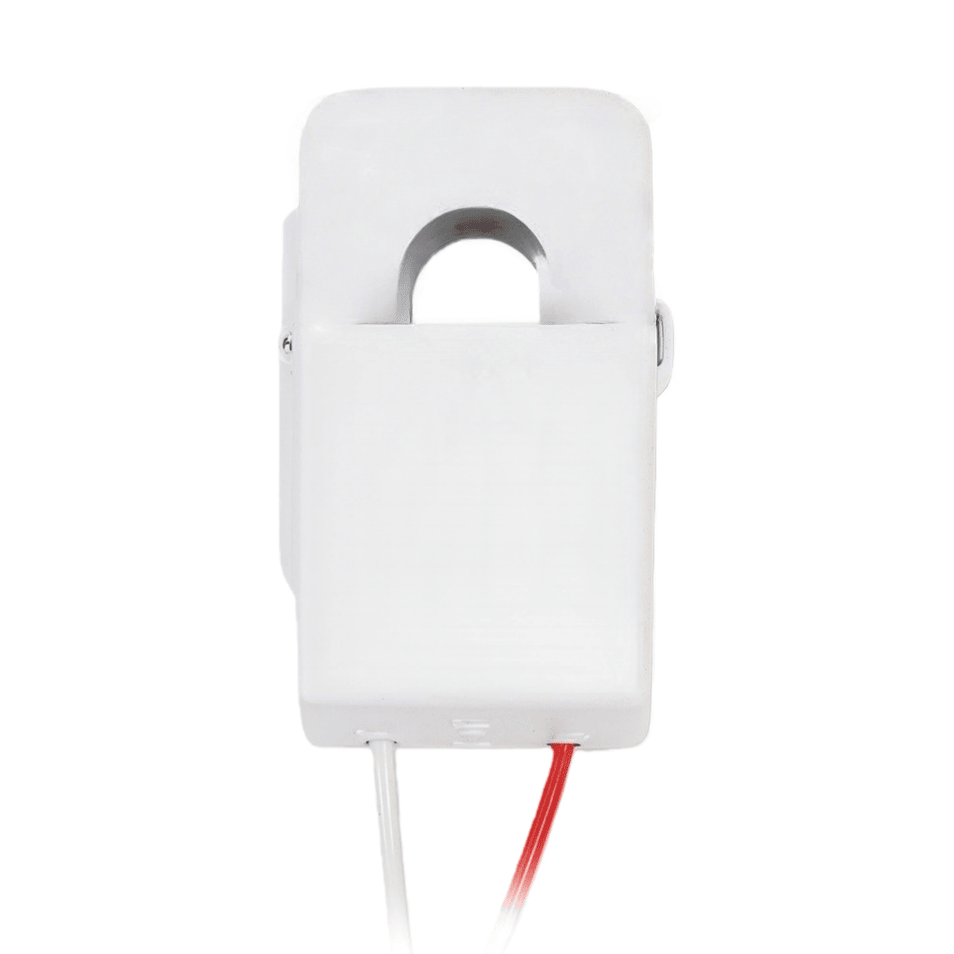

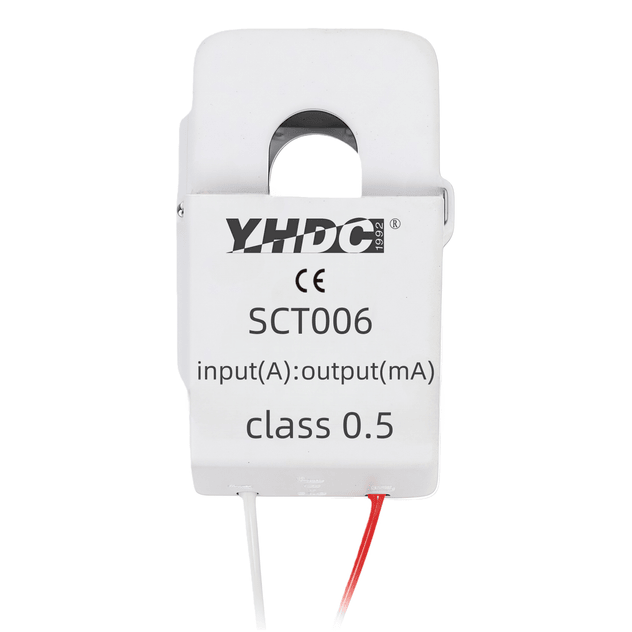

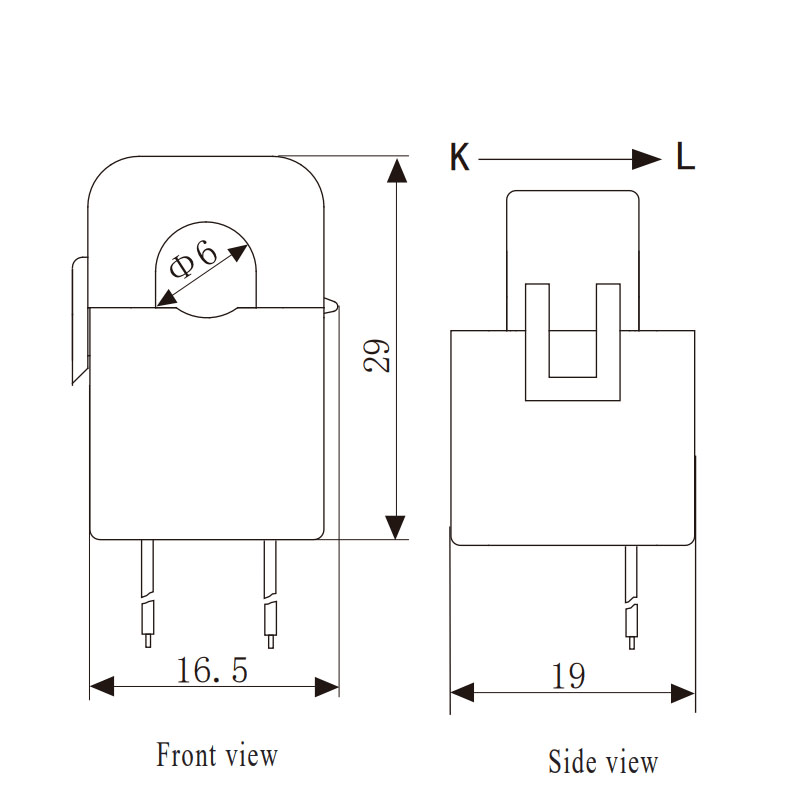

SCT006
class 0.5/1
Common ParametersMounting type: Free hanging (In-Line) Material of core: Ferrite
Applicable standards: GB20840-2014 Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-1KHz
Waterproof grade: IP00
Dielectric strength:
Input (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz
Characteristics: Safety lock buckle, easy installation,cable output. Specifications of cable: 0.35mm² high temperature wire The length of cable:
30cm~32cm

Technical index

SCT006
input:output	Turns ratio	Accuracy	Sampling resistance
1A:1mA	1:1000	1%	5Ω
5A:2.5mA	1:2000	0.5%	10Ω
5A:5mA	1:1000	1%	5Ω
5A:10mA	1:500	1%	5Ω
10A:5mA	1:2000	0.5%	10Ω
10A:10mA	1:1000	1%	5Ω
10A:20mA	1:500	1%	5Ω
20A:20mA	1:1000	1%	5Ω
20A:25mA	1:800	1%	5Ω

General Parameters (All Models):* Weight: 25 g
* Output Cable: 0.35mm² high temperature wire, length: 30cm~32cm

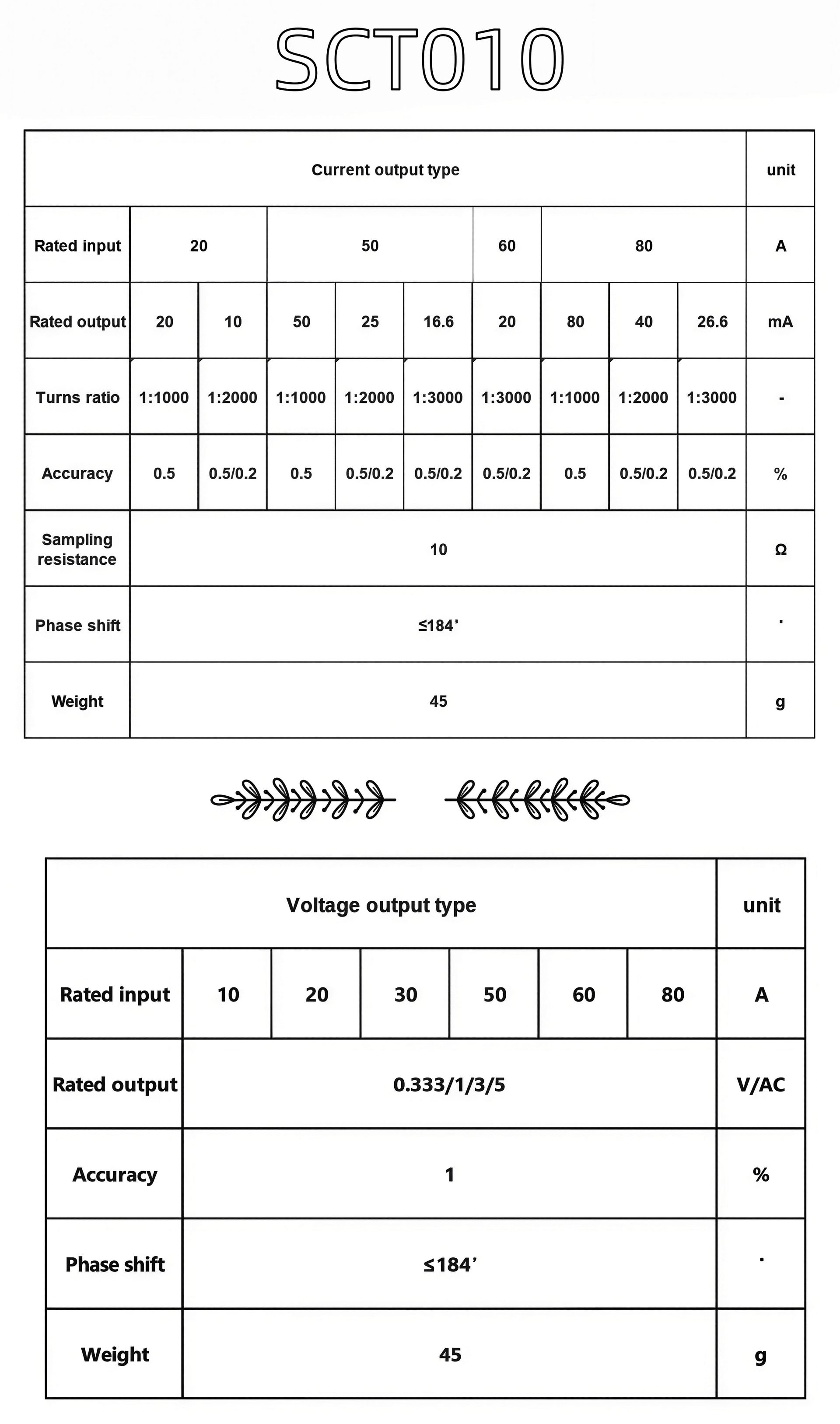

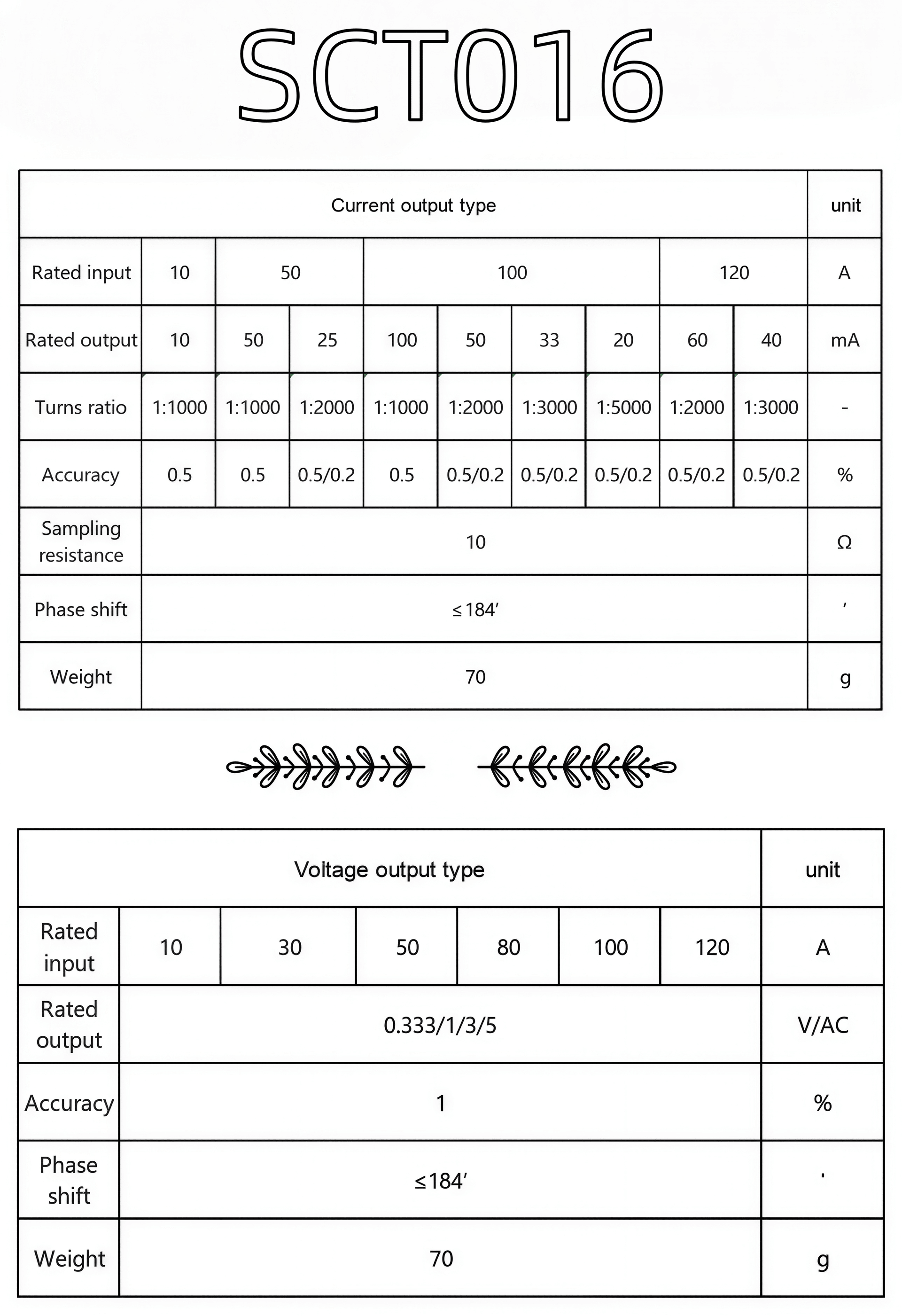

SCT010+SCT016
class 0.2/0.5/1
Common ParametersMounting type: Free hanging (In-Line) Material of core: Ferrite
Applicable standards: GB20840-2014 Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-1KHz
Waterproof grade: IP00
Dielectric strength:
Input (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz
Characteristics: Safety lock buckle, easy installation,cable output. Specifications of cable: 0.3mm² black and white parallel lines The length of cable:
50cm~55cm

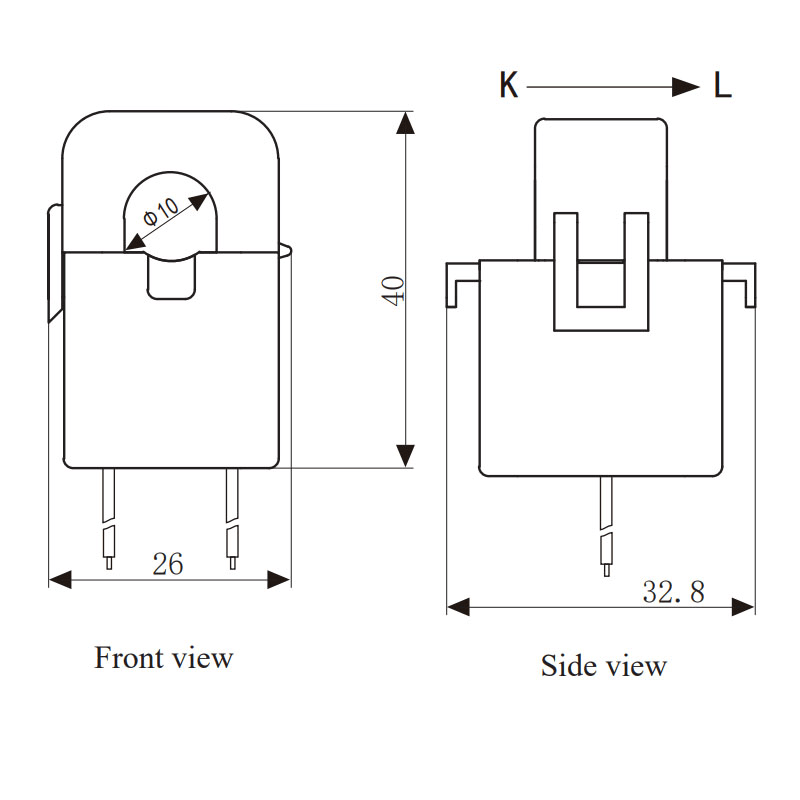

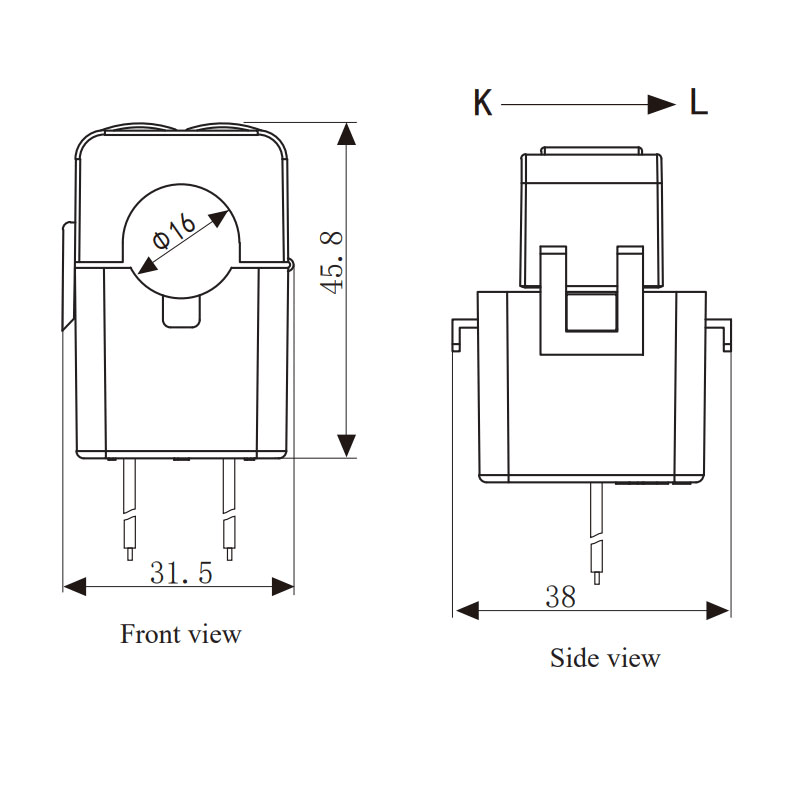

SCT010SCT016Dimensions(in mm±0.5)Dimensions(in mm±0.5)

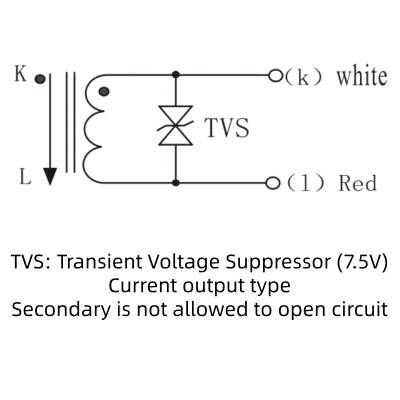

Current output type(mA)Voltage output typeTVS: Transient Voltage Suppressor (7.5V)
Secondary is not allowed to open circuitSecondary is not allowed to short circuit

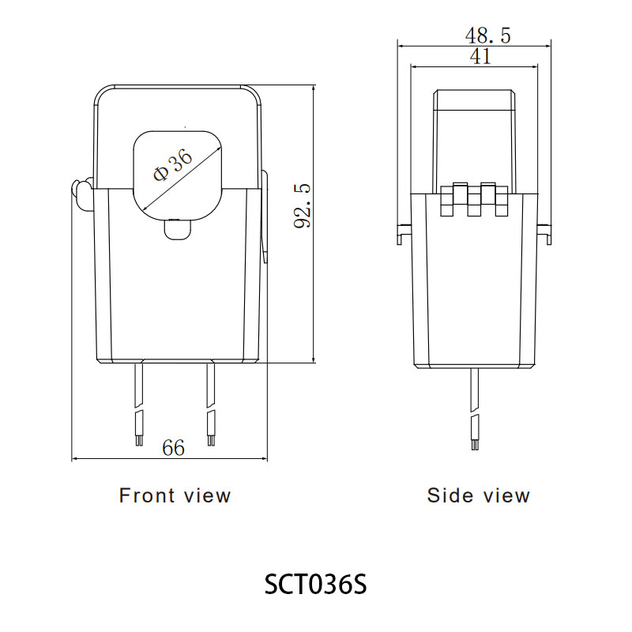

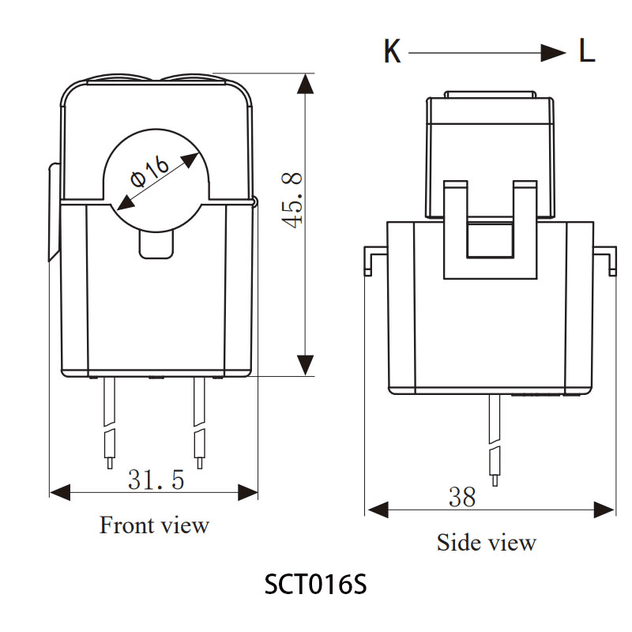

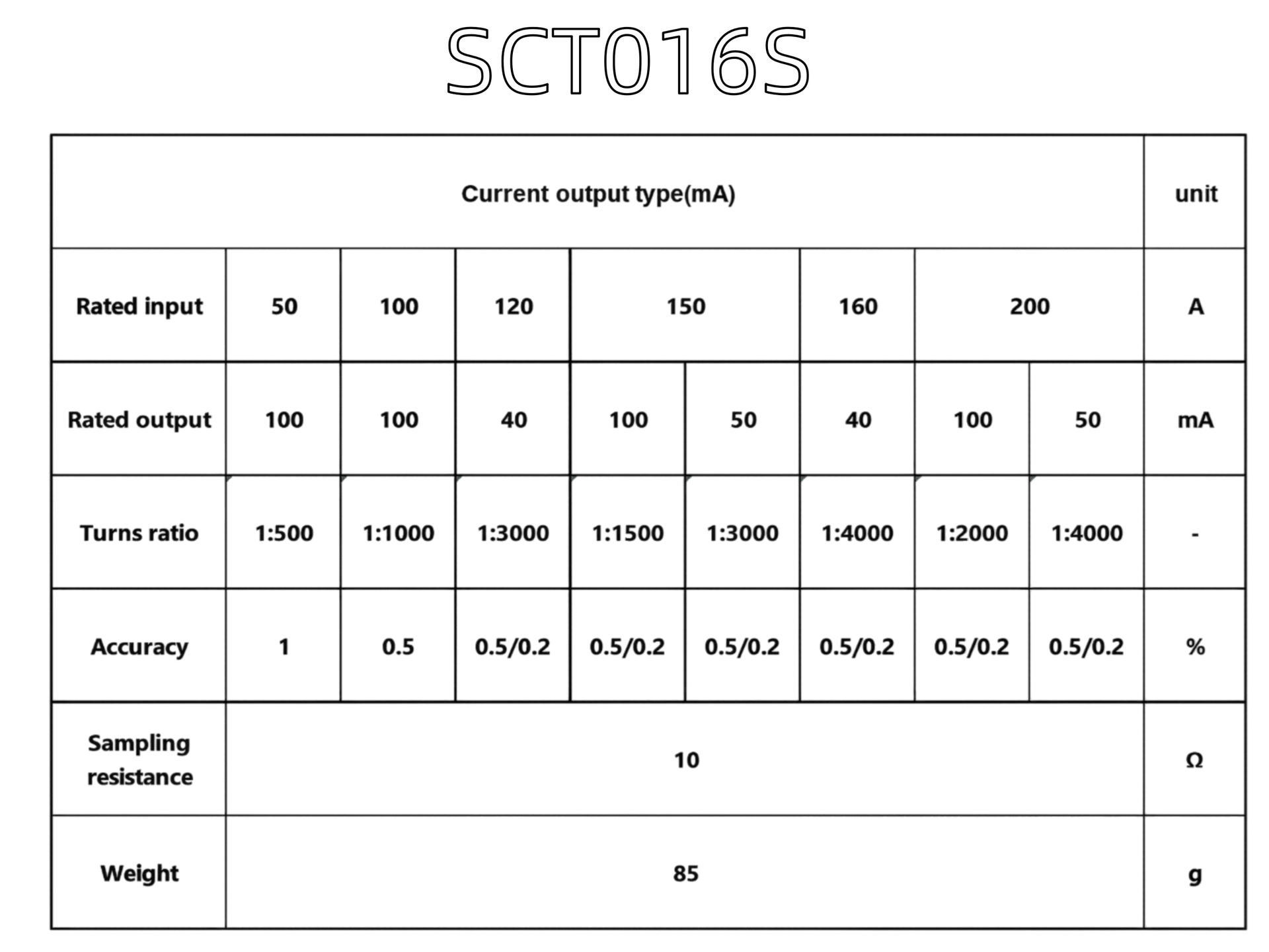

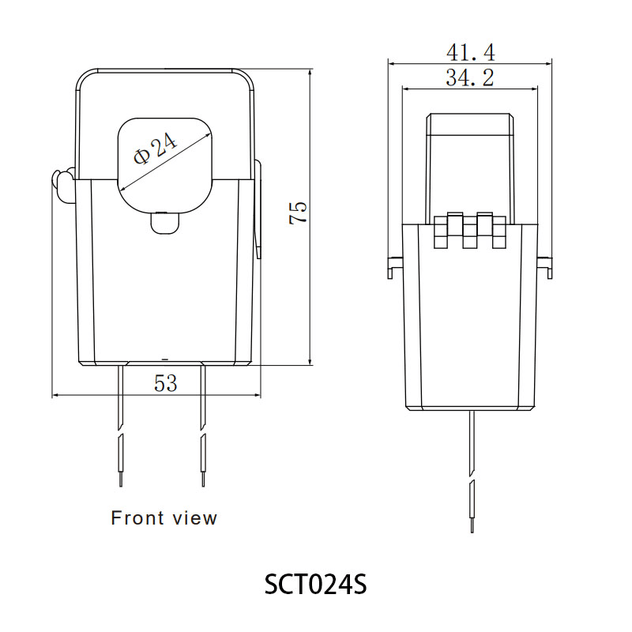

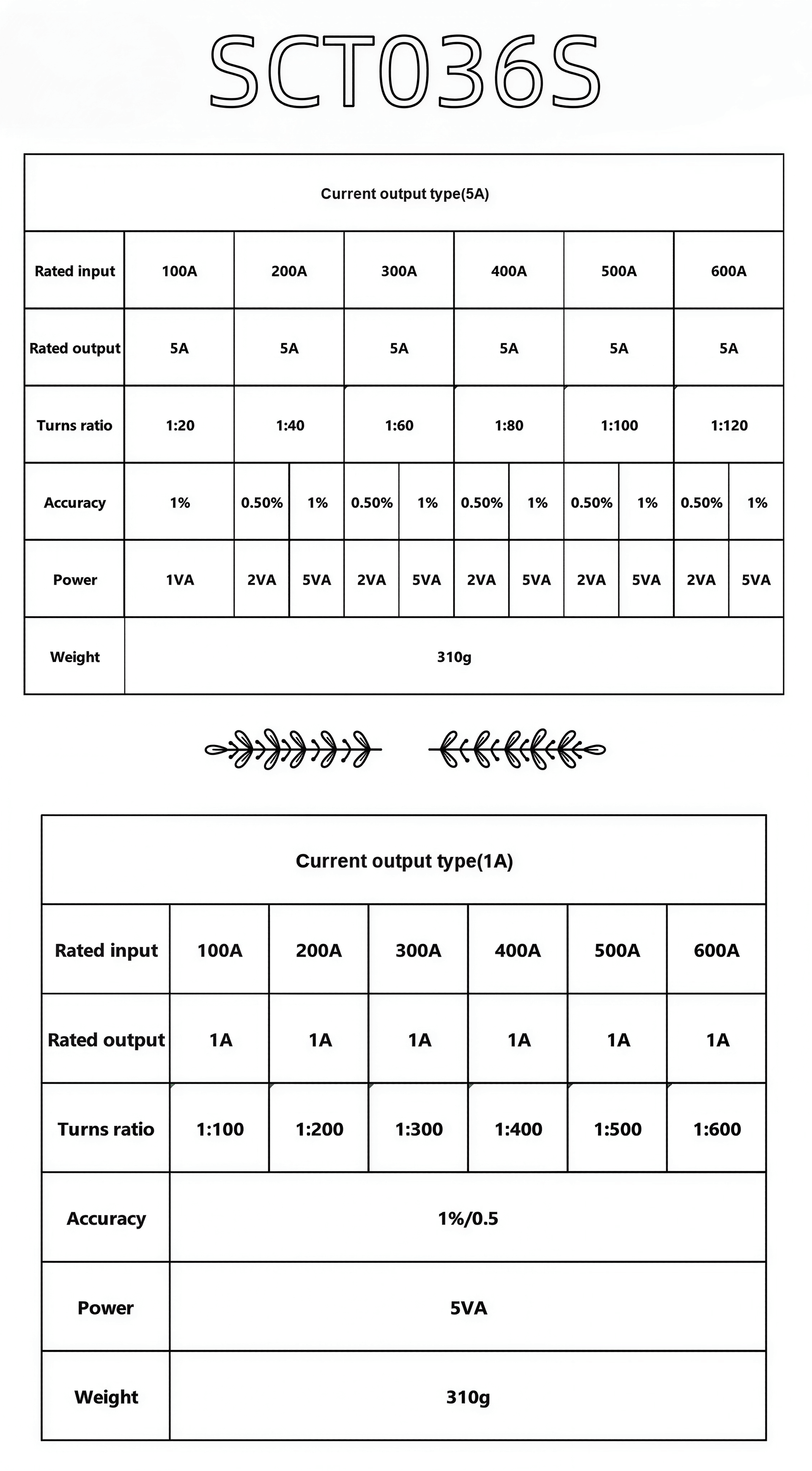

SCT016S+SCT024S+SCT036S
class 0.2/0.5/1 Common ParametersMounting type: Free hanging (In-Line) Material of core: Laminated silicon steel
Applicable standards: GB20840-2014 Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength:
Input (bare conductor)/Output AC 800V/1min 50Hz Output/housing AC 3.5KV/1min 50Hz
Characteristics: Safety lock buckle, easy installation,cable output.

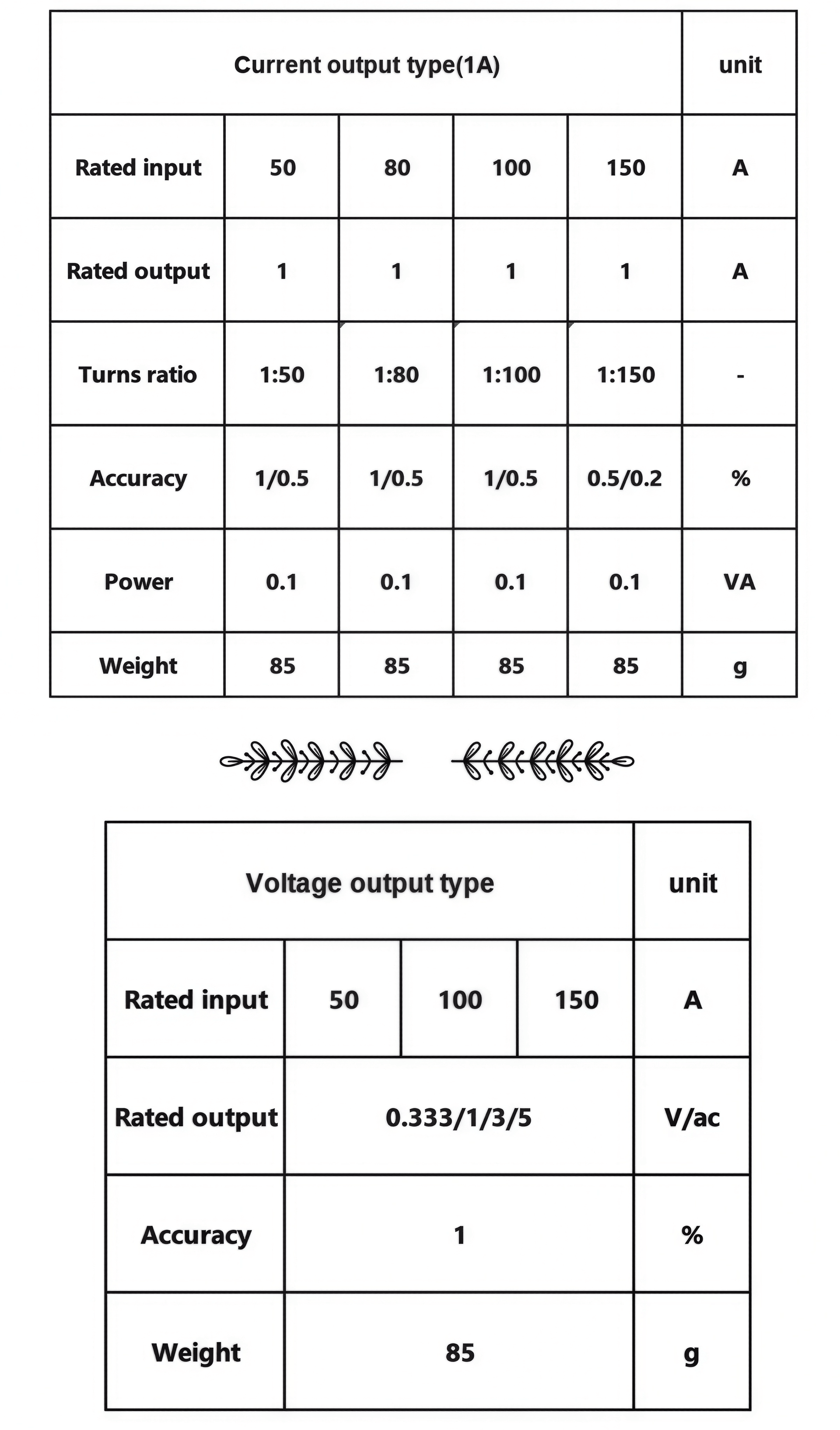

Current output type(mA)Current output type(1A+5A)Voltage output typeTVS: Transient Voltage Suppressor (7.5V)
Secondary is not allowed to open circuitSecondary is not allowed to open circuitSecondary is not allowed to short circuit
