Product Description

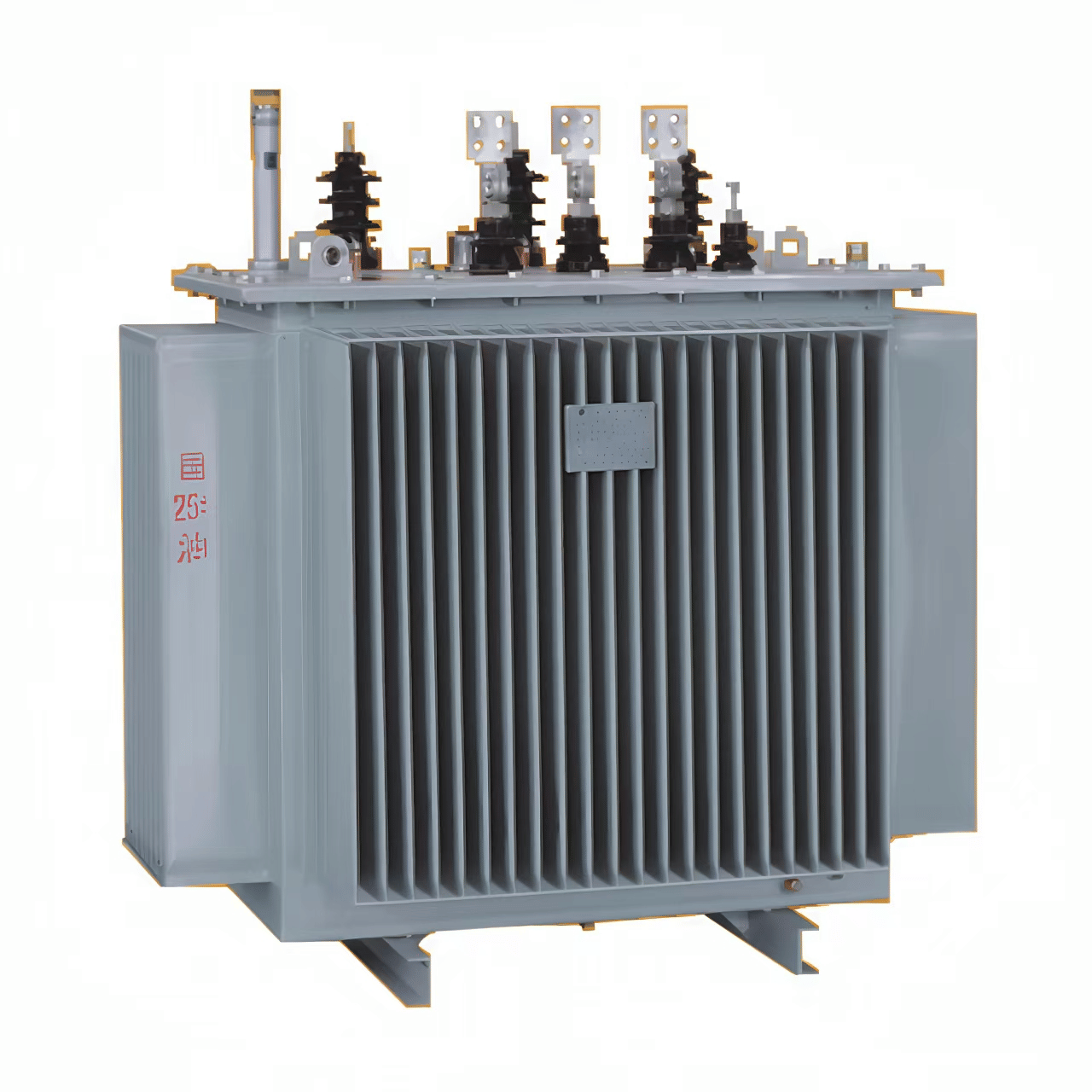

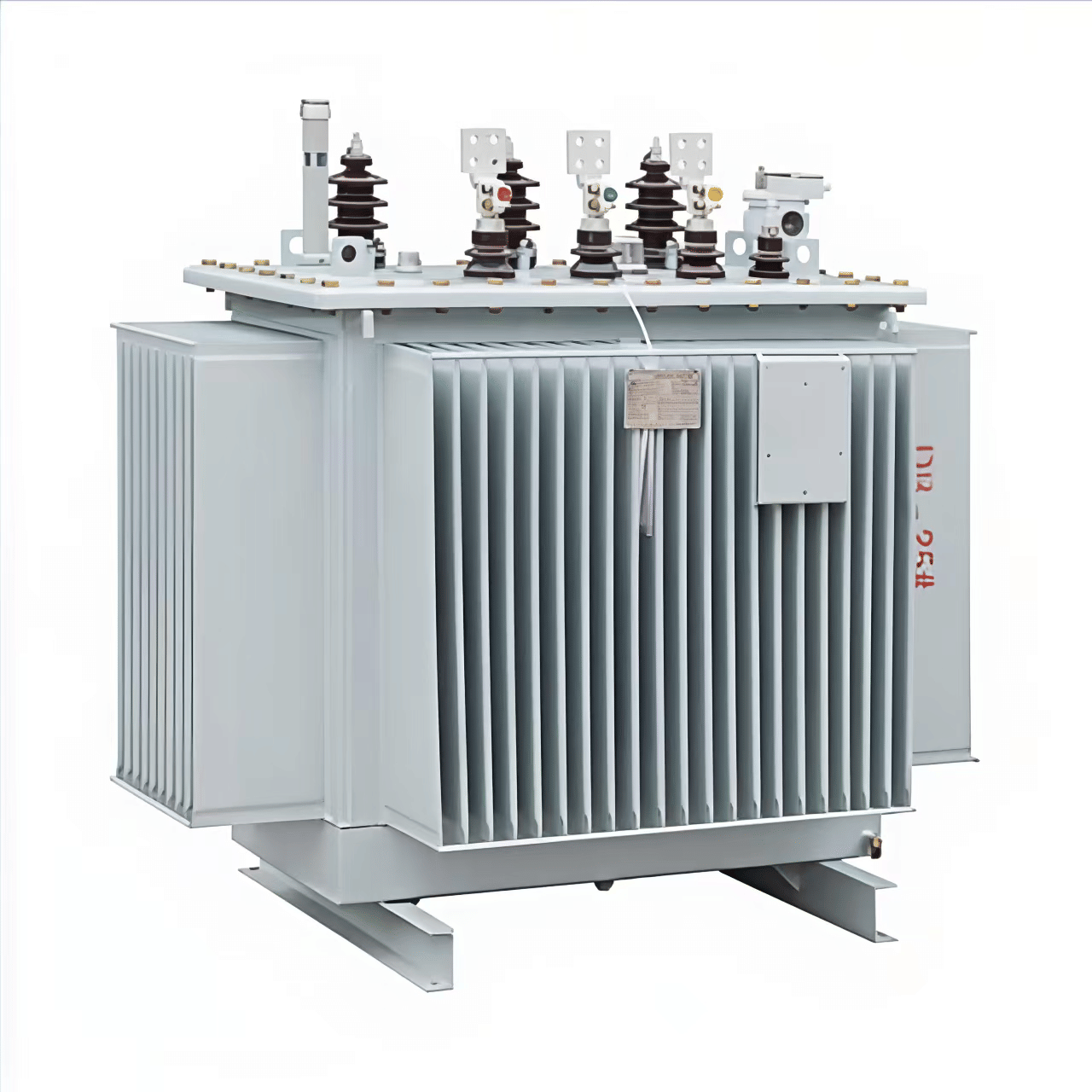

Oil immersed  transformerS22  3phase oil immersed power transformer

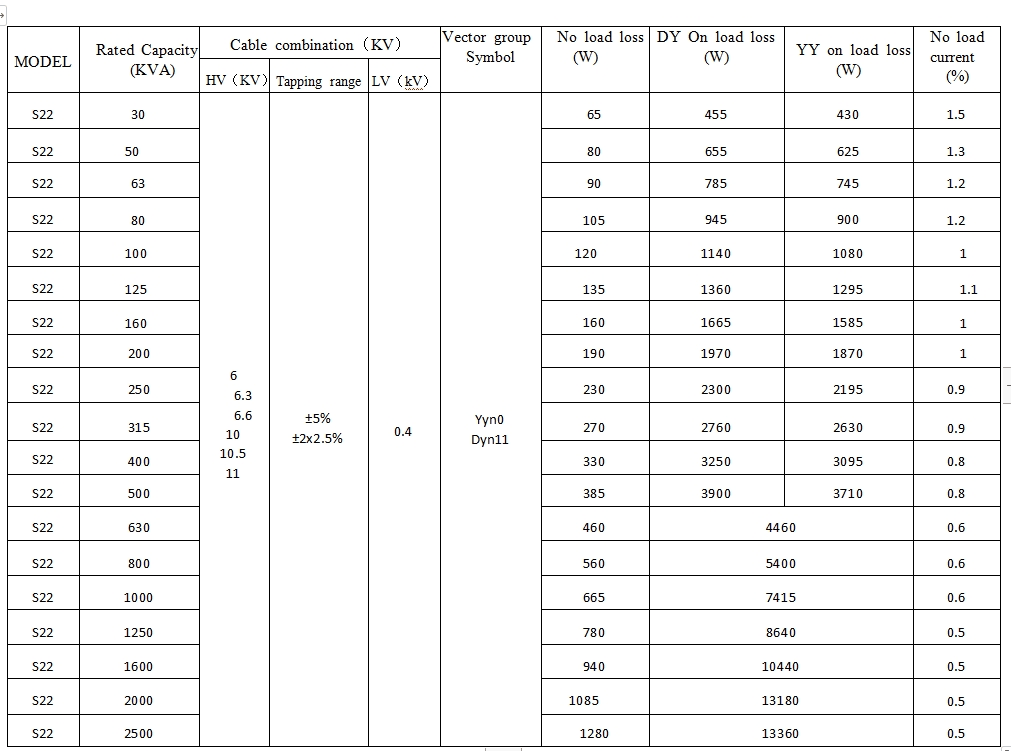

 Rated Capacity:30KVA-2500KVA Rated Voltage: 11KV the power distribution transformer for petroleum, metallurgy, chemical, textile, light industry and other enterprises and places with large dust.  The rated voltage can be customized as customers' requirements.SpecificationTechnical Specifications(Custom configurations available upon request.)

Capacity(KVA)	L	W	H
30	750	643	974
50	795	493	1013
63	800	665	1050
80	840	680	1075
100	775	690	1100
125	1260	900	1045
160	1090	720	1140
200	1180	780	1155
250	1175	750	1180
315	1315	890	1240
400	1330	910	1280
500	1390	930	1340
630	1545	1030	1410
800	1570	1020	1535
1000	1800	1250	1430
1250	1910	1130	1650
1600	2010	1220	1740
2000	2120	1280	1780
2500	2450	1280	2720

Drawings & DimensionsDetailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.After Sales ServiceWe pledge to provide comprehensive support for product quality issues, spare parts replacement, and technical guidance after sales. If you encounter any problems during product use, please contact us promptly with relevant photos and videos as evidence. We will respond within 24 hours of receiving your feedback to verify the issue and provide a solution.Company Profile
