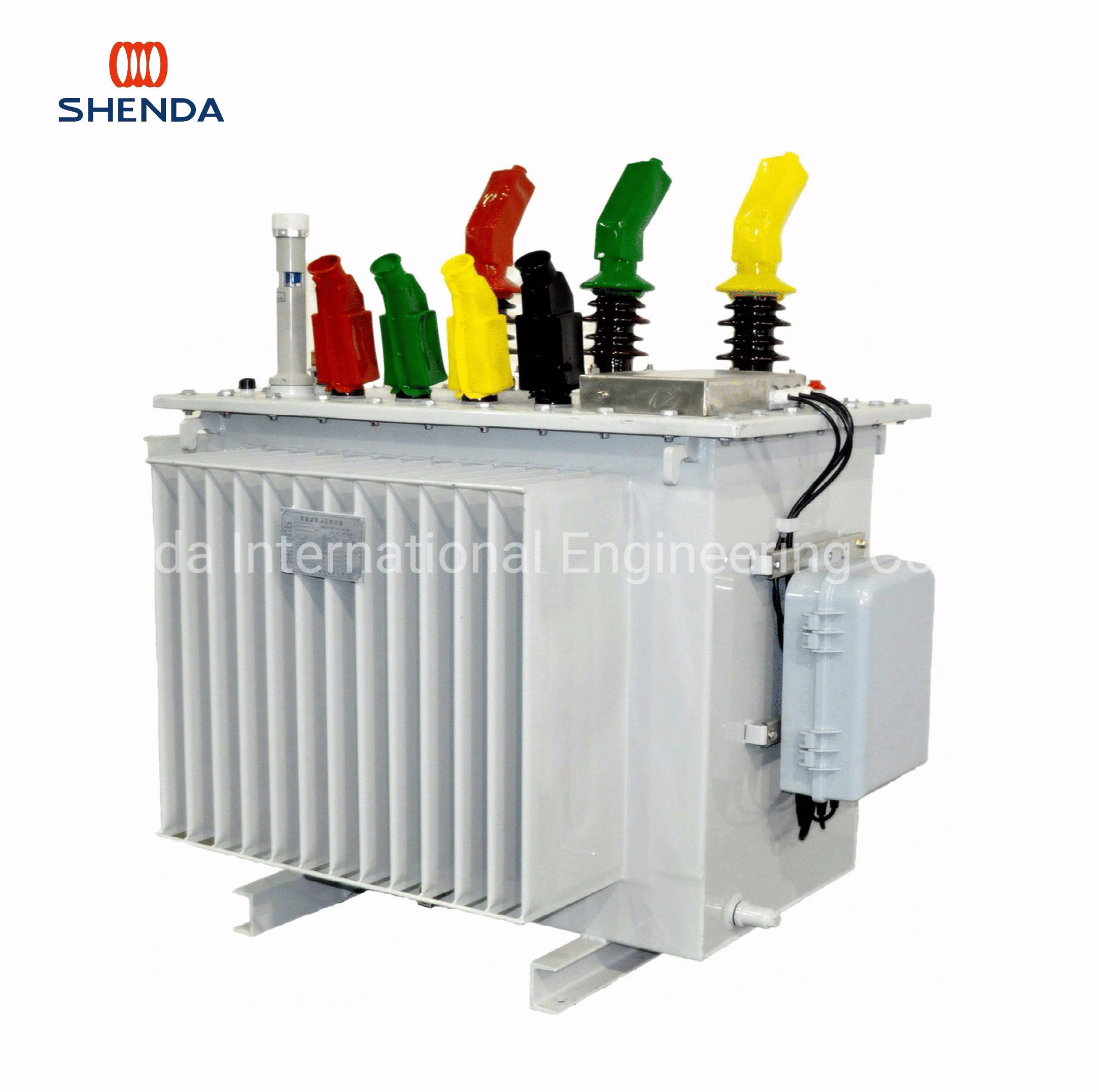

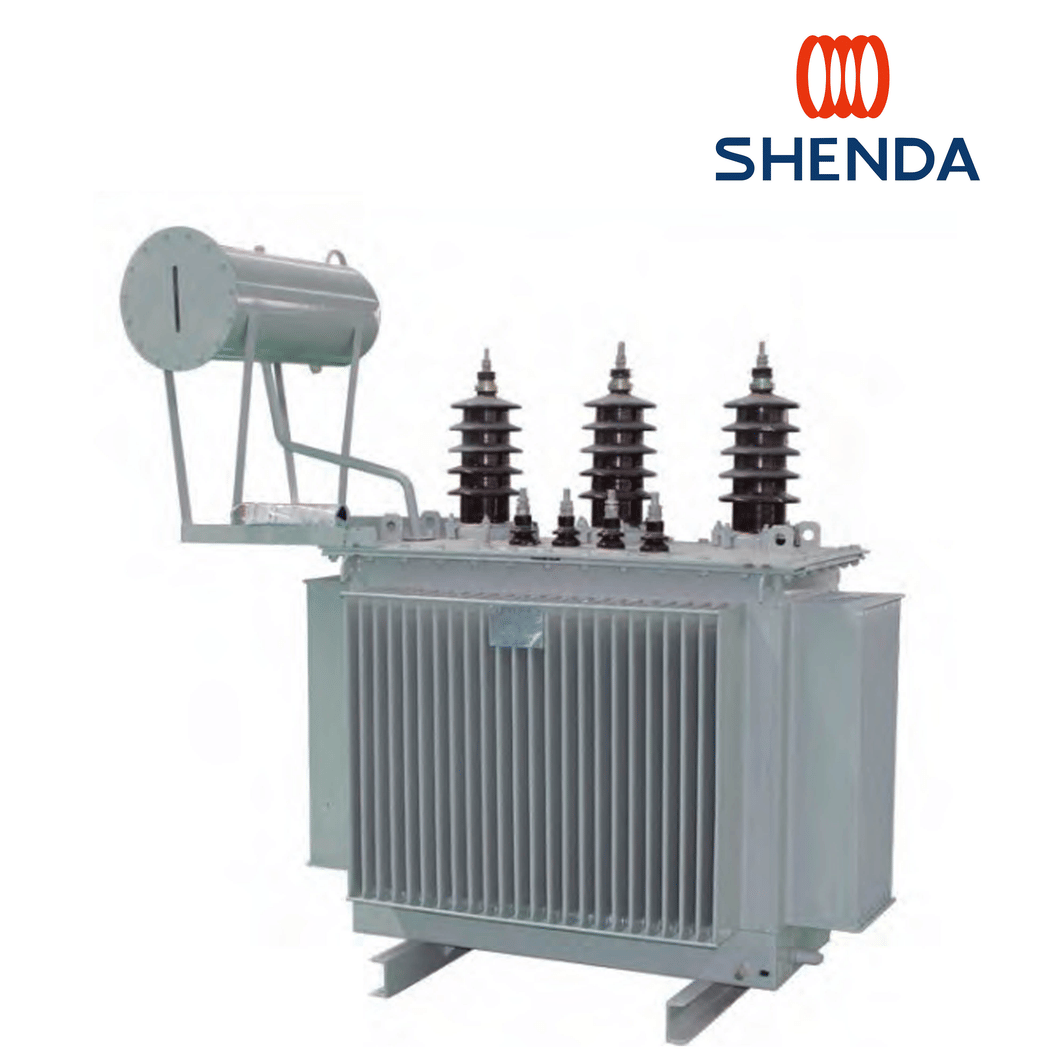

10kv electric oil immersed Power transformer





The oil tank is in two types-fully enclosed type and the type fitted with an oil conservator.

Main Technical parameters for 10kv level,S9,S10,S11,S13,S9-M,S10-M,S11-M,S13-M series three phase full-sealed on-load-tap-changing distribution transformer

Rated power (kVA)	High Voltage (kV)	H.V Tap range	Low Voltage (kV)	Connection Symbol	Short-Circuit Impedance (%)	No-load Loss (W)			On-Load Loss (W)			No-load Current (%)
						9 Type	10 Type	11 Type	9 Type	10 Type	11 Type
30	6 6.3 10 10.5	±5% ±2×2.5%	0.4	Dyn11 Yyn0	4	130	110	100	600	600	600	2.1
50						170	150	130	870	870	870	2
63						200	180	150	1040	1040	1040	1.9
80						250	200	180	1250	1250	1250	1.8
100						290	230	200	1500	1500	1500	1.6
125						340	270	240	1800	1800	1800	1.5
160						400	310	280	2200	2200	2200	1.4
200						480	380	340	2600	2600	2600	1.2
250						560	460	400	3050	3050	3050	1.2
315						670	540	480	3650	3650	3650	1.1
400						800	650	570	4300	4300	4300	1
500						960	780	680	5150	5150	5150	1
630					4.5	1200	920	810	6200	6200	6200	0.9
800						1400	1120	980	7500	7500	7500	0.8
1000						1700	1320	1150	10300	10300	10300	0.7
1250						1950	1560	1360	12000	12000	12000	0.6
1600						2400	1880	1640	14500	14500	14500	0.6
2000					5	2830	2270	1940	17140	17140	17140	0.6
2500						3350	2690	2300	20260	20260	20260	0.5

Certifications

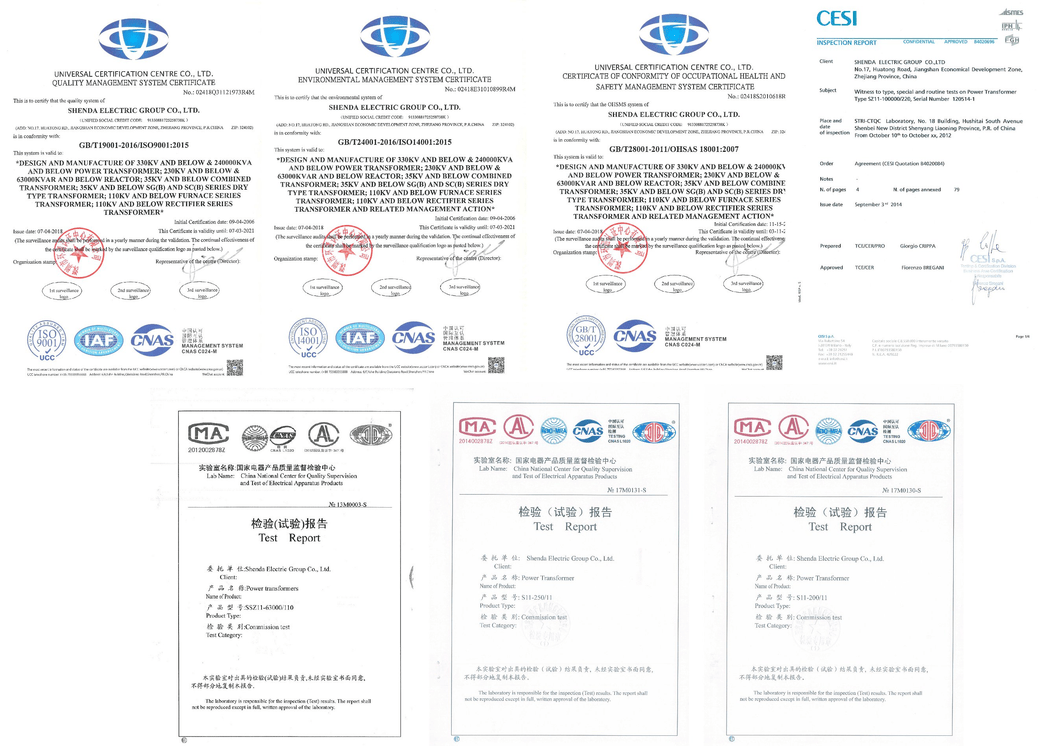

Certificates owned by shenda:
100MVA/220kv power transformer short circuit test report
-issued by CESI Italy&CTQC China

120MVA/33KV oil EAF transformer
50MVA/69KV oil power transformer
10MVA/33kv dry-type transformer
Type test report
-issued by KEMA Netherlands

63MVA/110KV Power transformer short circuit test report
-issued by CTQC China

12.5MVA/22KV Rectifier transformer routine test
-issued by V-Check korea

ISO 9001&ISO14001&OHSAS 18001
CE-POWER TRANSFORMER&FURNACE TRANSFORMER&DRY-TYPE TRANSFORMER&REACTOR

Transformer Characteristics

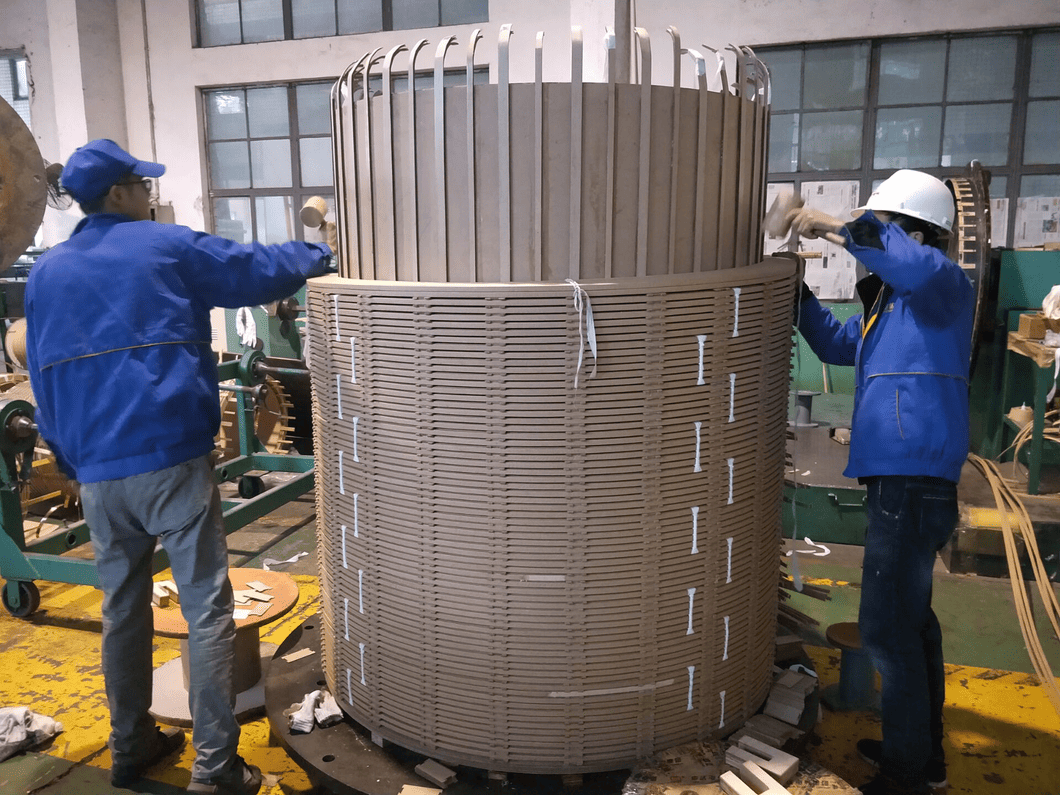

Winding .
The winding must be especially protected - both against high electrical stress due to
external over voltages and against mechanical overloads by short circuits. They are made of copper or aluminum. Low-voltage windings are made of strip or flat wire while
high voltage windings are manufactured from round or profile wire. ("diamond-dotted paper") bonds the winding into a compact block
while drying and increases the short-circuit capacity additionally.

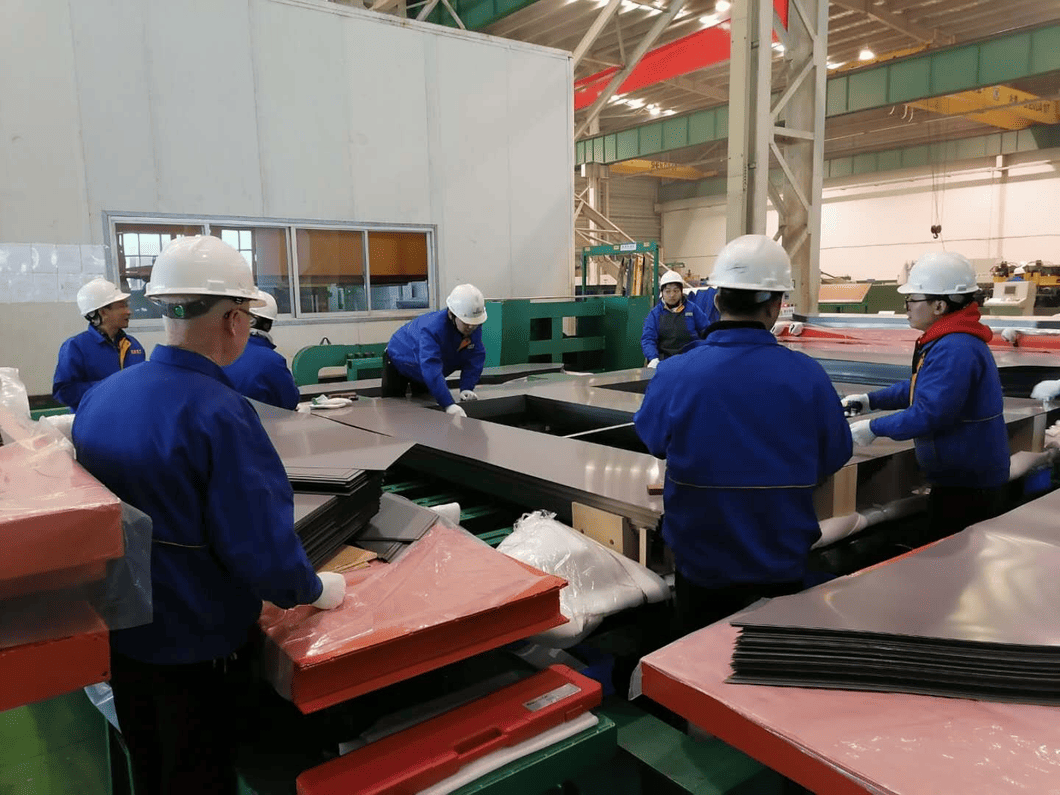

Magnetic Core lamination.
The three-limb iron core is made of oblique cut Grain-oriented, seven-step silicon steel lamination insulated on both sides,
guaranteeing low losses and low noise. These values are even improved by laser treatment. It is protected on the surface with a
flash-proof varnish in order to prevent the sheet from corrosion and to reduce the noise.

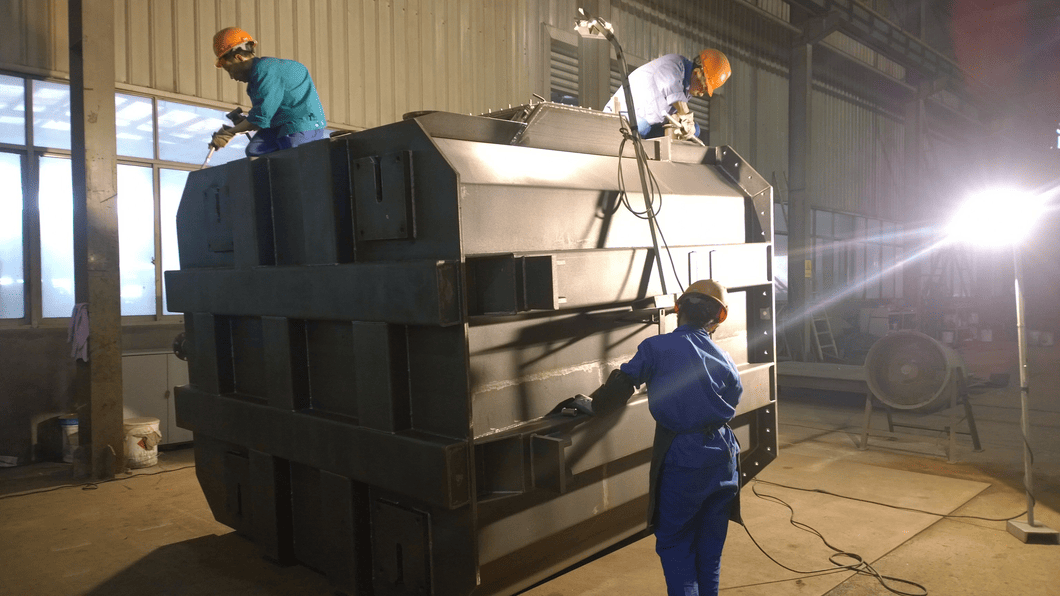

Oil tank.
Whether during transport or operation -the tank must be absolutely tight under mechanical stress. We have vast constructional experience, the most modern calculation methods and high-quality welding work. Special attention is paid to
corrosion protection. Pretreatment of the surface is processed by phosphating pickling, contributes to corrosion protection, just
like multi-coating with preset drying times for each layer. On request, hot-dip galvanization provides for even better protection

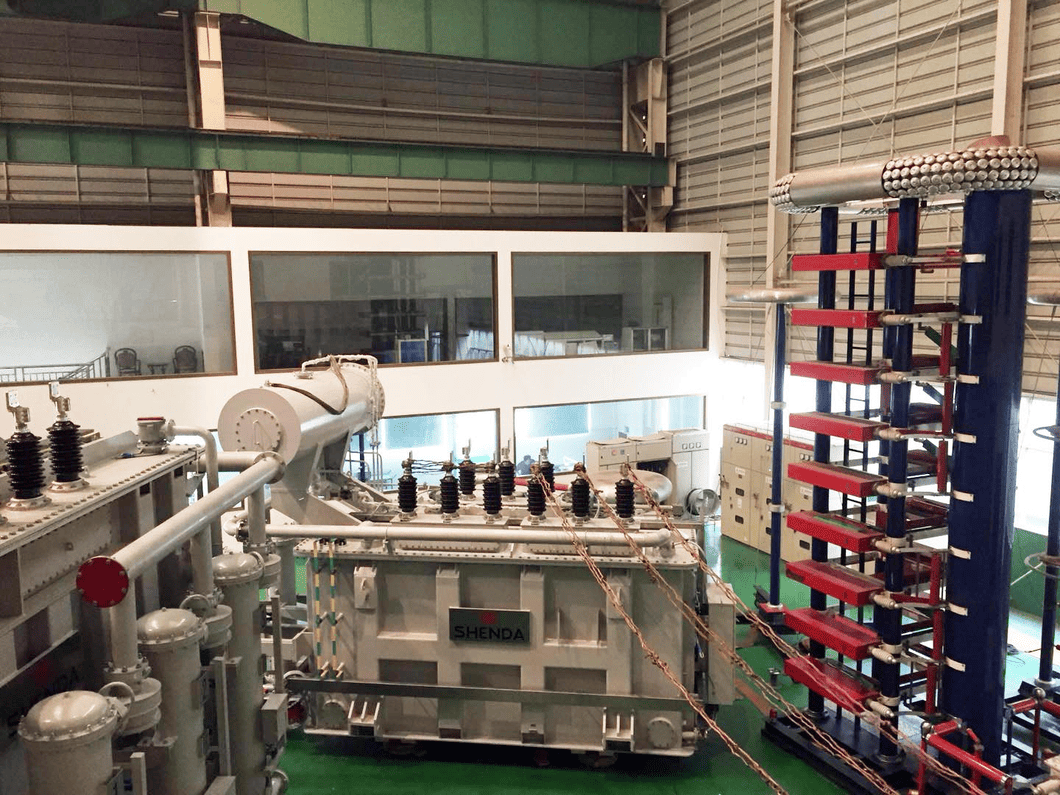

Test lab
Testing are conducted for every transformer before delivery.Tests are classified to be routine tests and type test.
A - Routine tests: According to IEC 60076 standard , the following tests must be carried out for all units of the transformers
a- Measurement of winding resistance .
b- Measurement of voltage ratio and check of phase displacement.
c- Measurement of short circuit impedance and load losses.
d-Measurement of no-load losses and current .
e-Dielectric routine tests including the separate source AC voltage withstanding test and short duration induced over voltage withstanding test ( ACSD ) .

B - Type tests :
The following tests shall be carried out
a- Temperature rise test
b- Lightning impulse test

C - Special tests :
a- Determination of noise level according to IEC 60551 .
b- Oil leakage test
c- Overload test at 150 % rated current for one hour after temperature rise test ( top oil temperature rise and winding temperature rise must be measured and recorded in the report test also hot spot temperature rise must be calculated and recorded on the report test ) .
d- Short Circuit Dynamic stability Test (test report from independent and accredited laboratory for similar transformer will be accepted).

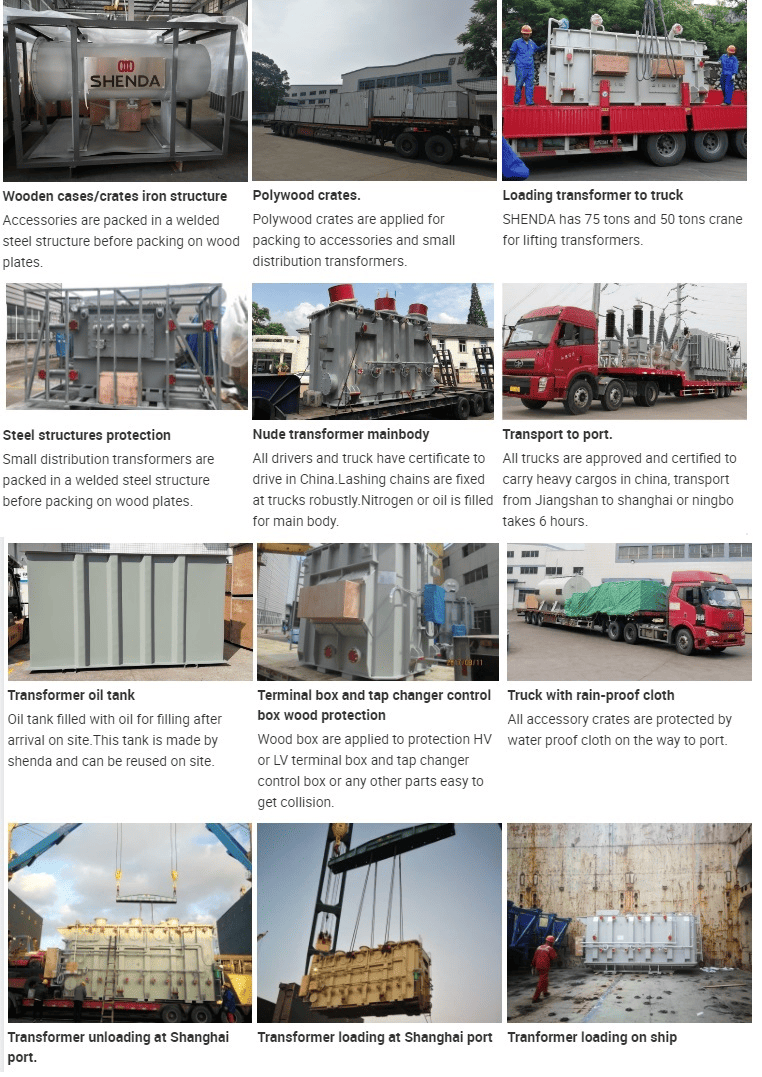

Packaging and transportation



Company Introduction

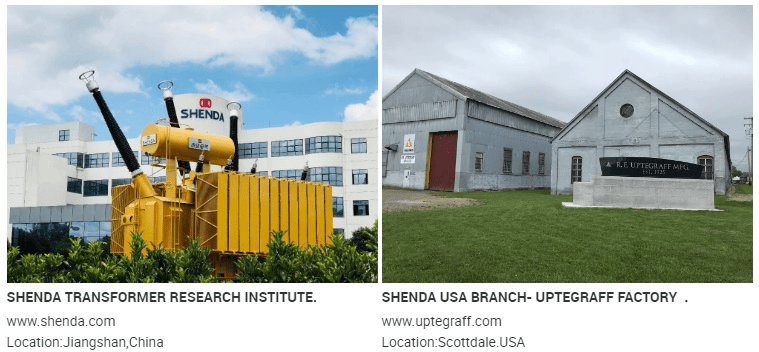

SHENDA electric group is a manufacturer and wholesale company that manufactures good & high quality electric transformers from 2000. The company provides the customized products and OEM service. The factory own the 3 production base worldwide,2 in China and 1 in USA.We also own a transformer research institute with more than 30 electric engineers .

Our Services
1. Pre-Sale Service
- Quick response: reply you within 8 hours, to save your time.
- Professional solution: supply professional completed solution base on your technical requirements,  to complete your technical plan.
- Quoataion: submit a competive price within 2 days, to promote your business

2. In Sale Service
- Supplying stipulated completed drawings
- Supplying manufacturing plan and processing photos
- Making the test plan and book hotel for the witness person
- Making good arrangement of the delivery and shipment

3. Afer Sale Service
- Supplying professional supervision and commissioning within 15 days
- Training the workers
- Providing 12 months waranty of quality and perforance



RFQ

1,Q:	Are you manufacturer?
A:	Yes, we are manufacturer. Our factory is in JiangShan City, zhejiang  Province.
2,Q:	What is your delivery time ?
A:	Depend on the type of transformer.
3,Q:	What is your payment term?
A:	30% advance by T/T , 70% before delivery by T/T or L/C or we can discuss about it.
4,Q:	Are your transformers supported for customization ?
A:	Yes, of course. We can design and produce accroding to the technical requirements and parameters of customers.
5,Q:	Do you offer guarantee for the products?
A:	Yes. Different transformers is different. We offer at least one year guarantee for all of our transformers.
6,Q:	Do you accept Factory Acceptance Test?
A:	Yes. It's available. And we are responsible for each set transformer's testing (ICE).
7,Q:	Do you assign engineer for after-sale service?
A:	Yes. For our products,we all provide after-sale installation instructions service
