Product Description

Company Info.

Product Description

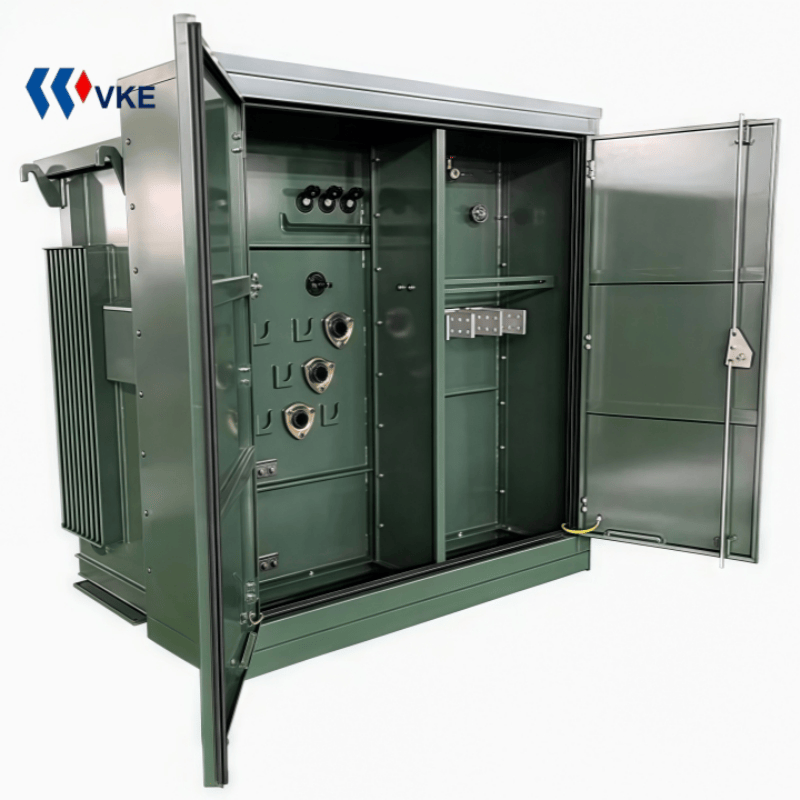

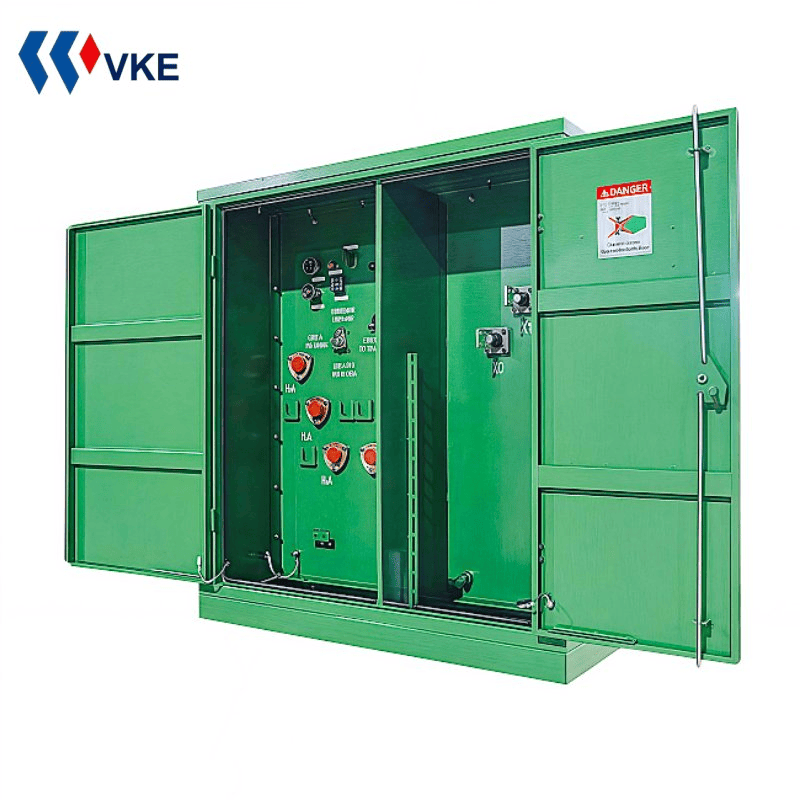

6-35kV Three Phase Pad Mounted Transformer Pad mounted transformer are suitable for commercial centers, industrial parks, residential areas, streets, airports, docks, sheep stations, and densely populated areas of Maocheng City, as well as deep load centers. They are used for ring network and bidirectional power supply, and can achieve power transmission in one installation. It has the characteristics of full insulation, fully sealed structure, maintenance free, and easy installation.Specification

Rated capacity (kVA)	Voltage combination			Connection group symbol	No-load loss(W)	Load loss (75℃ W)	No-load current %	Short-circuit impedance %
Rated capacity (kVA)	H.V.(kV)	High pressure tapping	L.V.(V)	Connection group symbol	No-load loss(W)	Load loss (75℃ W)	No-load current %	Short-circuit impedance %
30	6 6.3 10 10.5 11 12.47 13.2 1.38	±2x2.5 ±5	120 220 380 400 440 480 600	Dyn11	100	630	2.1	4.0
50					130	910	2
63					150	1090	1.9
80					180	1310	1.8
100					200	1580	1.6
125					240	1890	1.5
160					280	2310	1.4
200					340	2730	1.3
250					400	3200	1.2
315					480	3830	1.1
400					570	4520	1
500					680	5410	1
630					810	6200	0.9	4.5
800					980	7500	0.8
1000					1150	10300	0.7
1250					1360	12000	0.6
1600					1640	14500	0.5

Company Profile

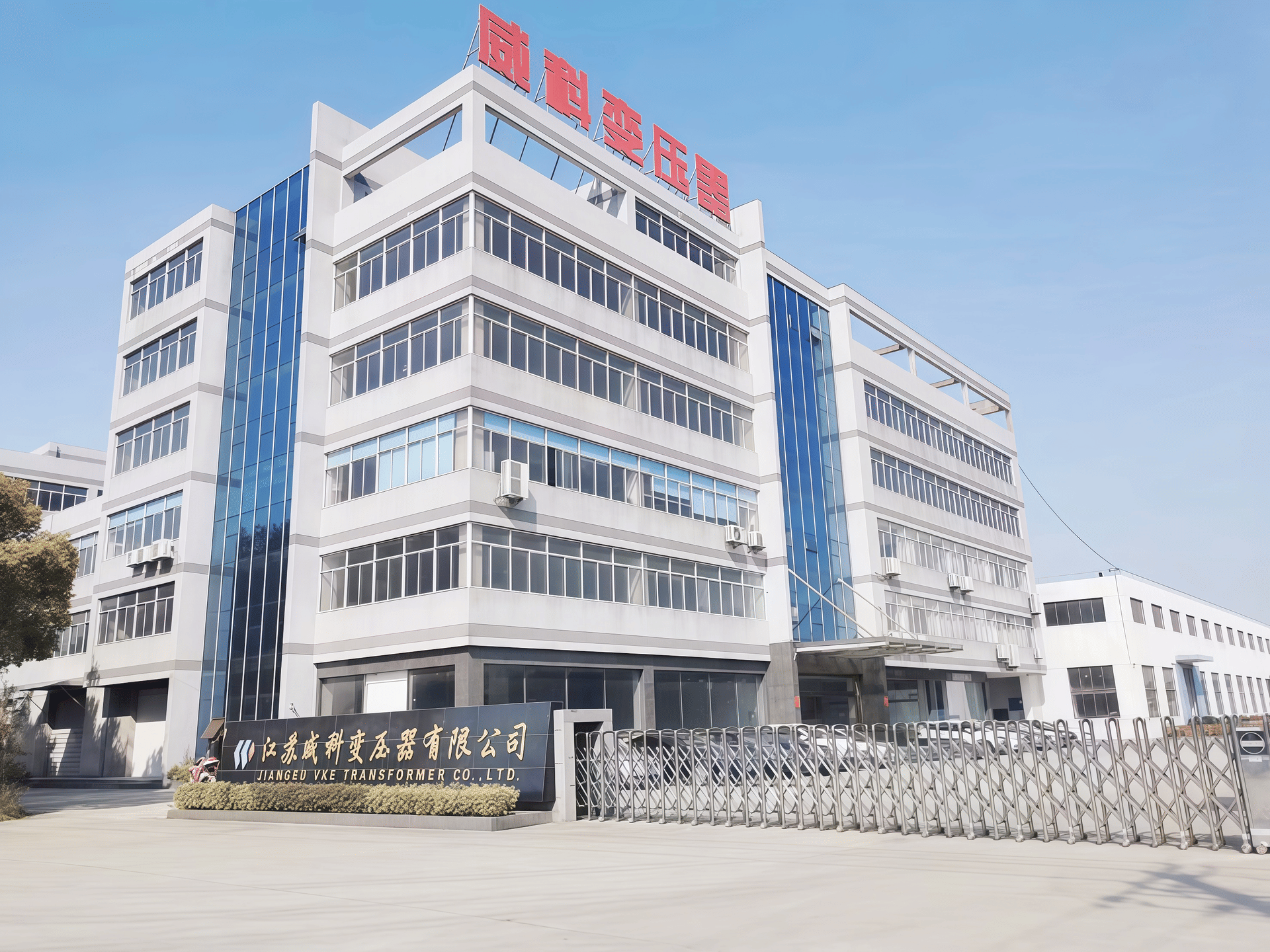

Jiangsu VKE Transformer Co., Ltd.VKE Transformer was established in 2003 with a registered capital of about US$13 million.In 2024, VKE sales performance reach about 25 million US dollars.We are now a leading manufacturer of distribution transformer in Jiangsu Province China. The company has 2 manufacturing bases covering an area of more than 30,000 m^2. 3 modern workshops producing a variety of transformers to meet the needs of global customers. The main products are as follows: Energy-saving dry-type transformers (Max 35kV) Oil-immersed transformers (Max 35kV) Intelligent substations (Max 35kV) Complete electrical equipment (Max 35kV) Introducing advanced producing lines, Which Core cutting line and Epoxy Resin cast tank are world-leading lines. Owing to high quality products and good reputation, VKE has won a rapid development opportunity. VKE achieved ISO9001-2008 Quality Certificate,ISO14001-2004 Environment Certificate and OHSAS18001-2007 Health and Safety Certificate. Also our transformer meet international IEC Standard. And we are the qualified supplier of China National Power Grid & China Southern Power Grid.Certifications
