Packaging & Delivery

Package Size 12.00cm * 10.00cm * 8.00cm Package Gross Weight 2.000kg

Product Description

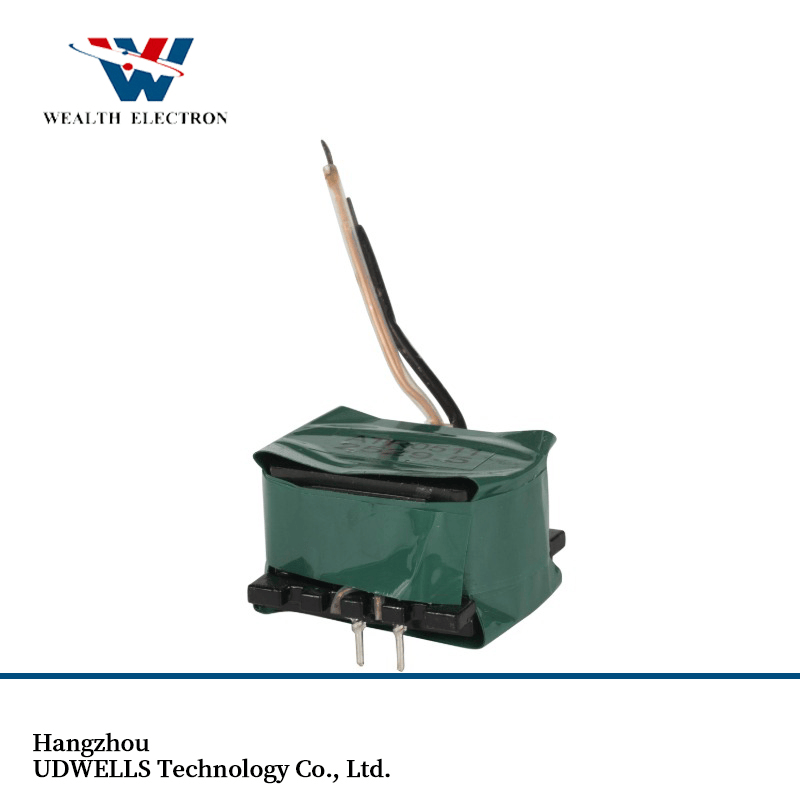

Directly Supply High Voltage Er35 Inverter Power Signal Transformer

TYPE	MATERIAL	Dimensions (mm)	Ap	Ae	Aw	AL	Le	Ve	Wt	PCL 100kHz 200mT	Pt  (100kHz)	BOBBIN
		A * B * C	( cm4 )	( mm2 )	( mm2 )	( nH/N2 )	( mm )	( mm3 )	( g )	@ 100ºC (W)	( Watts )	WITDH	PIN	SHAPE
ER9.35	TP4	9.35*2.35*4.6	0.0059	8.20	7.24	1270.00	13.70	111.80	0.55
ER9.5	PC44	9.5*2.45*5.9	0.0054	8.47	6.40	610.00	14.20	120.00	0.60		3.9	2.2	8	V
ER11.5	PC44	10.83*2.45*4	0.0078	11.70	6.67	870.00	14.00	174.00	0.85		5.0	1.9	10	V
ER14.5	PC44	14.5*2.95*6.7	0.0190	17.60	10.80	1280.00	19.00	333.00	1.00		9.5	1.9	10
ER1916	TP4	19.2*16*5.6	0.1985	28.80	68.93	1140.00	54.90	1584.10	1.80
ER25.5	PC40	25.5*9.3*7.5	0.3557	44.80	79.40	1920.00	48.20	2160.00	11.00	0.98	87	10.6	10	V
ER25/51	TP4	25.4*25.4*18	0.0734	52.80	13.91	4330.00	27.20	1435.70	8.10
ER28/28	PC40	28.55*14*11.4	0.9359	82.10	114.00	2870.00	64.00	5257.00	28.00	2.3	203	16.1/16.7	10--12	H  V
ER28/34	PC40	28.55*16.9*11.4	1.2047	81.40	148.00	2520.00	75.50	6143.00	33.00	2.7	228	21.8/22.4	10--12	H  V
ER30/16	TP4	30*8*20	0.8546	107.50	79.50	4500.00	45.00	4833.80	25.00
ER30/35	TP4	30*17.5*11.2	1.3569	85.50	158.70	2160.00	75.40	6673.00	32.00
ER35/34	TP4	35*16.8*11.3	1.6178	107.00	151.20	3000.00	72.80	7790.00	51.00			26.4	12	V
ER35/41	PC40	35*20.7*11.3	2.3326	107.00	218.00	2770.00	90.80	9682.00	52.00	4.2	325	26.1	12--16	V
ER39/36	B1	39.1*17.8*12.5	2.7713	125.00	221.70	3850.00	84.00	10530.00	56.00			28.2	12	V
ER39/42	B1	39.1*21.1*12.5	3.4975	125.00	279.80	3200.00	96.00	12000.00	57.10			28.4	16	V
ER40/45	PC40	40*22.4*13.3	3.7101	149.00	249.00	3620.00	98.00	14587.00	78.00	6.3	421	27.8	16	V
ER42/15	PC40	42*22.4*15.5	4.3262	194.00	223.00	4690.00	98.80	19163.00	102.00	8.6	433	27.8	16	V
ER42/20	PC40	42.15*21.2*19.6	5.4960	240.00	229.00	5340.00	98.60	23635.00	116.00	10.7	509	27.3	16	H
ER49/54	N27	49*27*17.2	9.0153	243.00	371.00	3500.00	118.00	28700.00	146.00
ER54/36	3C85	53.5*18.3*17.95	3.1500	250.00	126.00	6100.00	91.80	23000.00	61.00	3.8		31	18	V

Please click bellow CONTACT US image, consulte sales for more option and details.

Product description of the High Frequency Transformer for PCB Mounting with ISO9001 Specifications:
1.Output:0.2W~2KW
2.Current:5A~1200A loads
3.ISO9001,RoHS approval
4.MOQ:1000piece

Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 10w-10kw

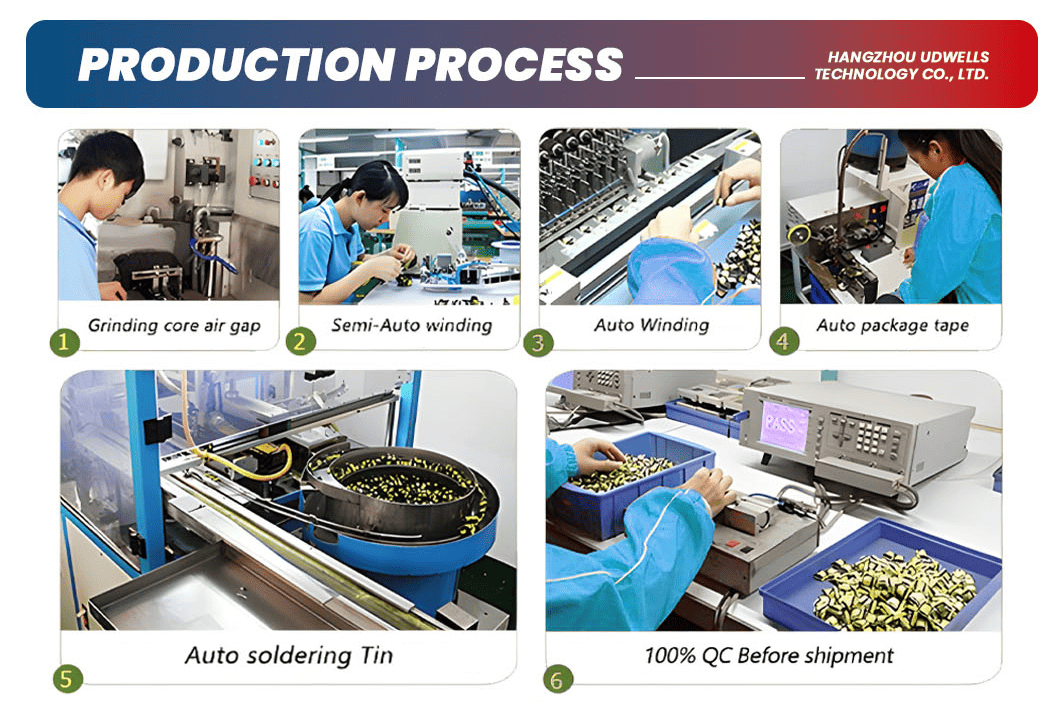

Primary advantage:
1.Customers requirements are welcome.
2. custom-made transformer as your design specification
3.We can apply SGS report of materials to prove all the products are ROHS.
4.We have experienced engineers, every one has more than 20 years experience.
5.Every goods must be test three times before shipped to ensure no unqualified products

Application scope:
electronic ballast,compact fluorescent lamp ,Television receiver,radio cassette player,
PC power supply,Monitor,audio, VCD,DVD,UPS,the electronic apparatus,
the noise rejection on the electronic transformer,Induction cooker,etc Please click bellow CONTACT US image, consulte sales for more option and details.
