Packaging & Delivery

Package Size 120.00cm * 100.00cm * 170.00cm Package Gross Weight 2000.000kg

Product Description

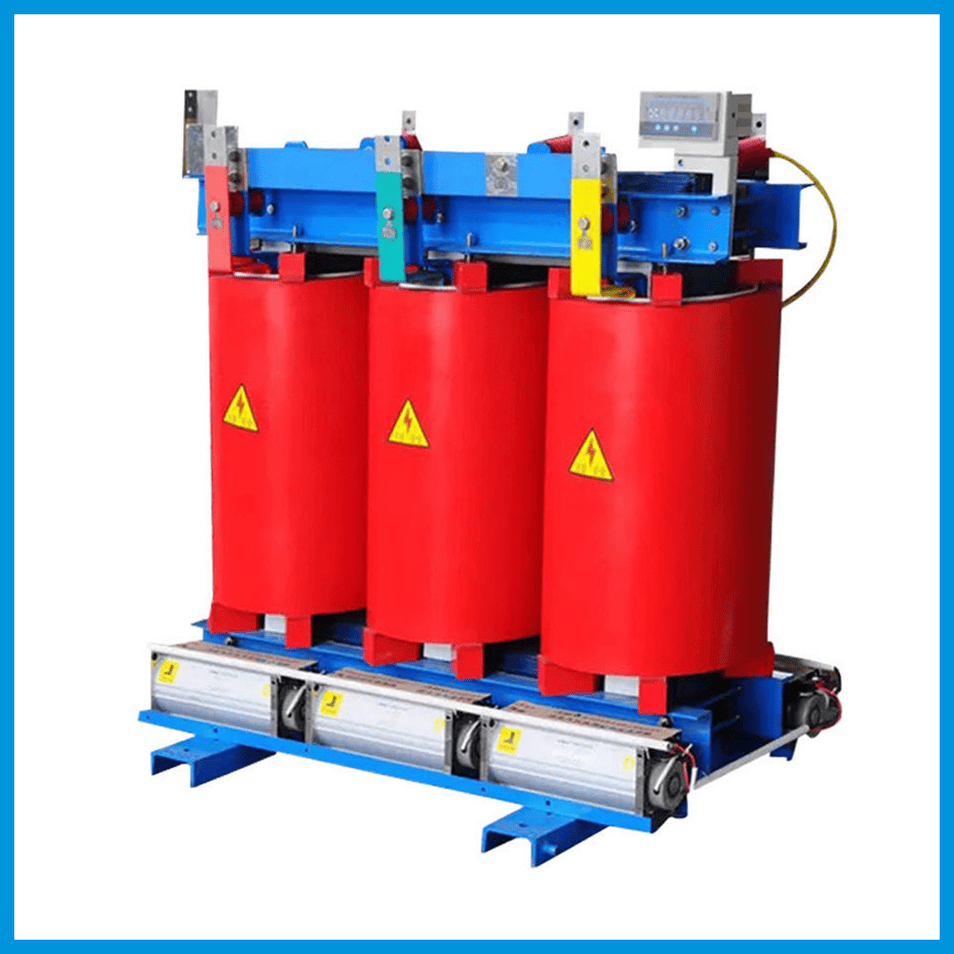

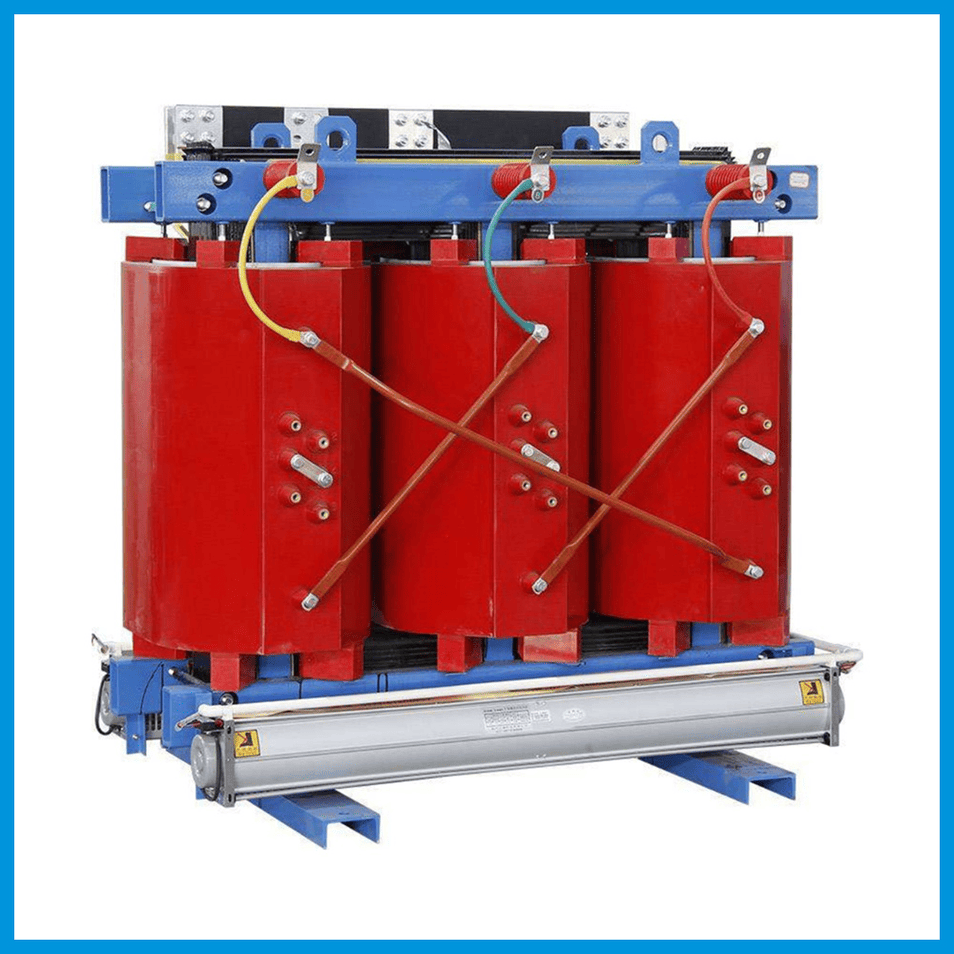

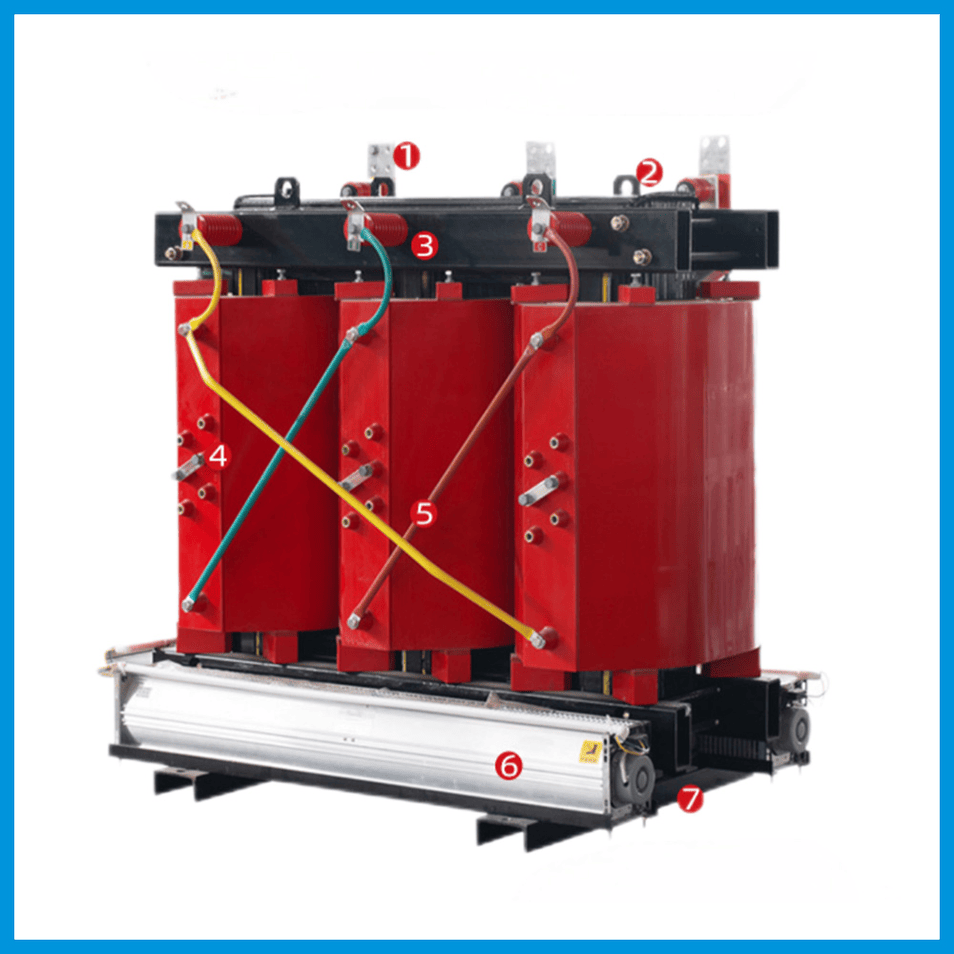

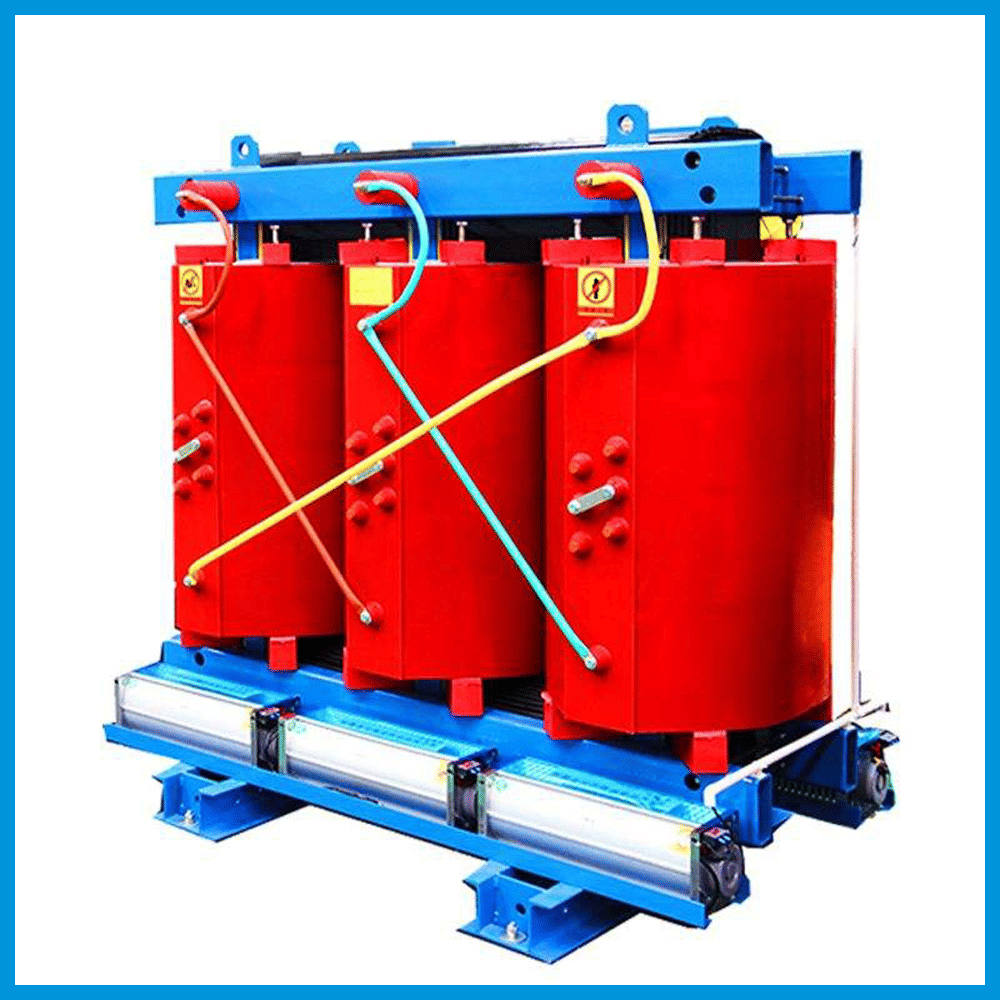

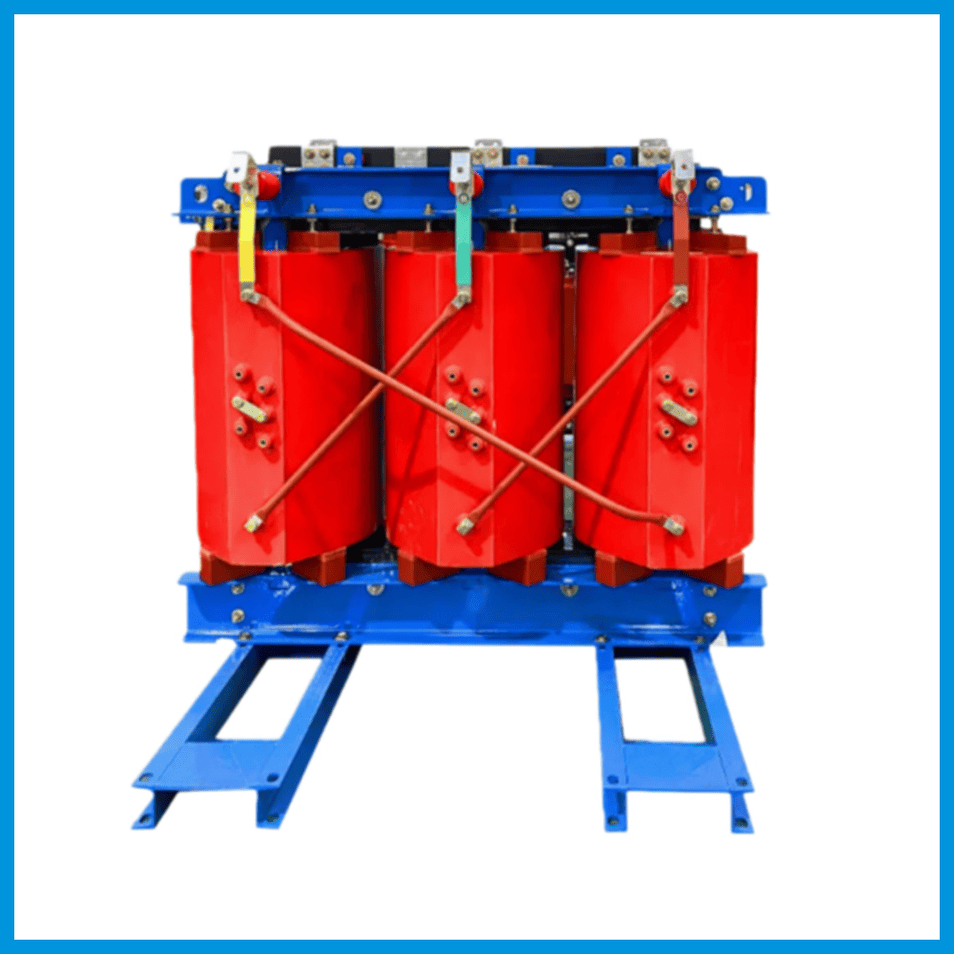

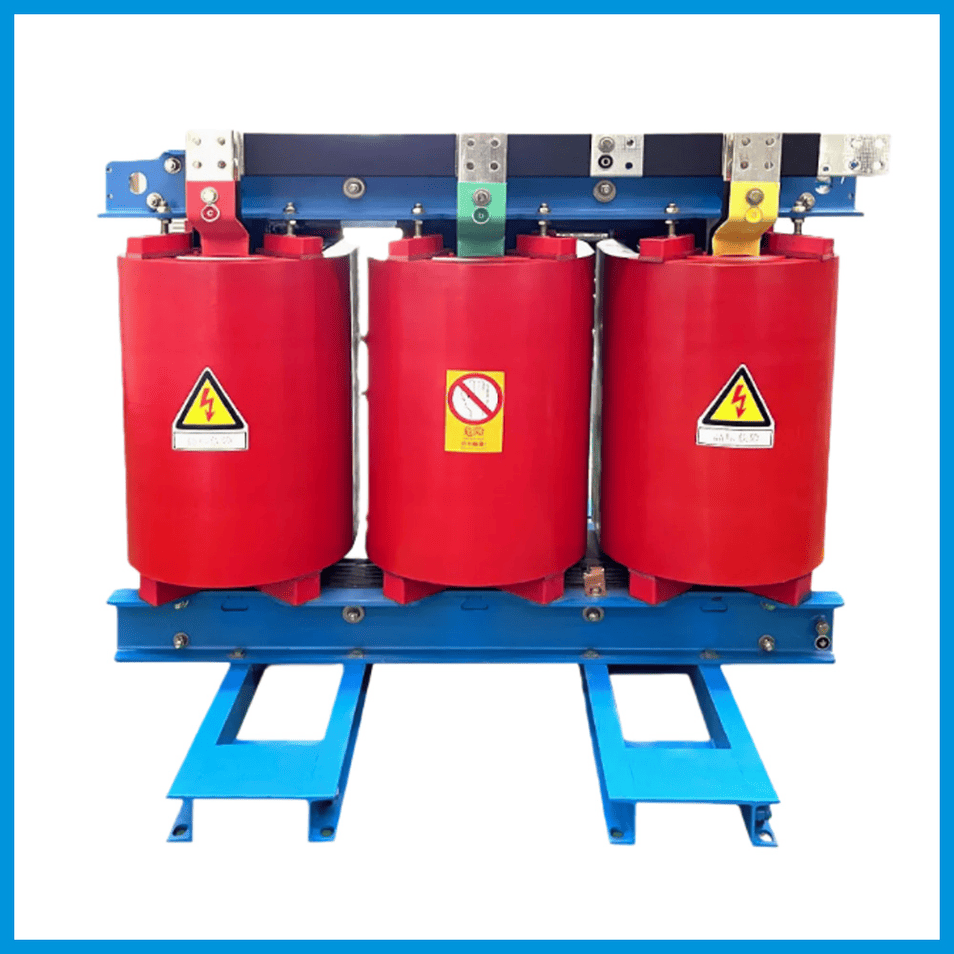

Product DescriptionThree phase cast resin dry type distribution transformer is with features of low loss, compact and light weight, low noise level,clamp-proof, anti-fouling, high mechanical strength, flame resisting, strong overload ability and low partial discharge quality, they are application to power transmission and distribution system, hotel, restaurant, commercial building, stadiums, chemical plants, stations, aiports, offshore drilling platforms, especially to heavy load centers and places with special fire protection requirements.Product Features:- Safe, flame-retardant, explosion-proof,fireproof, no pollution, can be directly installed in the load center;
- Maintenance free, easy installation, low overall operation cost;
- Good moisture-proof performance, can operate normally under 100% humidity;
- Low loss, low partial discharge, low noise, strong heat dissipation capacity, forced air cooling conditions;
- Equipped with perfect temperature protection and control system to ensure the transformer to run in a safe and reliable way;
- High reliability. The reliability index of the products has reached the international advanced level.Normal Environment conditions1.Ambient Temperature:
-No more than +40℃;
-No less than -25℃;
-The monthly average temperature is no more than +30℃;
-The yearly average temperature is no more than +20℃;
2.Altitude: No more than 1000m.
3.The power supply voltage's wave is similar to sine wave.
4.Three-phase power supply voltage is approximately symmetrical.
5.The relative humidity of the surrounding air should be less than 93%. There should be no water droplets on the coil surface.
6.Installation Site: Indoor or outdoor

Rated Power  (kVA)	Rated Voltage(kV)		Vector Group	No-load loss(W)	Load loss(W)	Impedance(%)
	HV	LV
30	11 10 10.5 6 6.3 Tapping range: ±5%; ±2*2.5%	0.4 0.433 0.415	Dyn11 Yyn0	190	710	4
50				270	1000
80				370	1380
100				400	1570
125				470	1850
160				540	2130
200				620	2530
250				720	2760
315				880	3470
400				980	3990
500				1160	4880
630				1300	5960
800				1520	6960	6
1000				1770	8130
1250				2090	9690
1600				2450	11730
2000				3050	14450
2500				3600	17170
3150				4500	22300

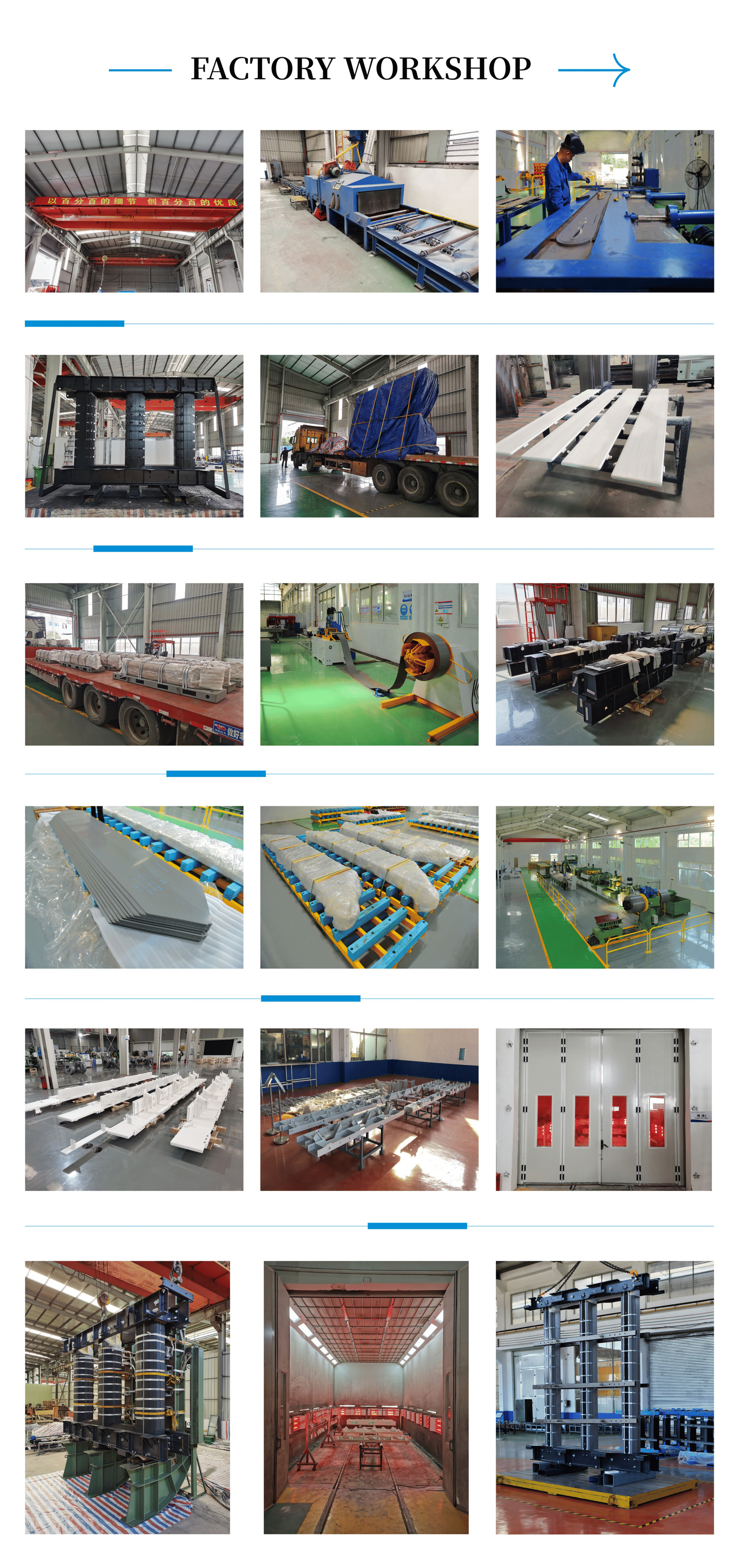

Company ProfileFoshan Huage Power Equipment Co., Ltd.,is specialized manufacturing transformer cores and clamps. Founded in 2000 in Foshan, we have advanced production lines which enable efficient, automated production and cost savings. We are capable of producing large - capacity dry - type transformer cores below 34,000K, with a 20,000 - ton annual capacity.

Adhering to strict quality management systems, Our products pass rigorous inspections. With over 20 years of experience,we supply to top brands like SIEMENS ENERGY, HITACHIA ENERGY, GE and famous domestic companies. Our products are exported to Europe, the US and other countries all around the world.

Aligning with China's energy policies, Huage boosts high - end transformer production. In April 2026, we will have a new factory for dry - type transformers and smart substations in Lishui Town, Foshan. Sticking to "quality, technology, service first", we strive for innovation and cooperation as always.CertificationsPackaging & Shipping
