Product Description

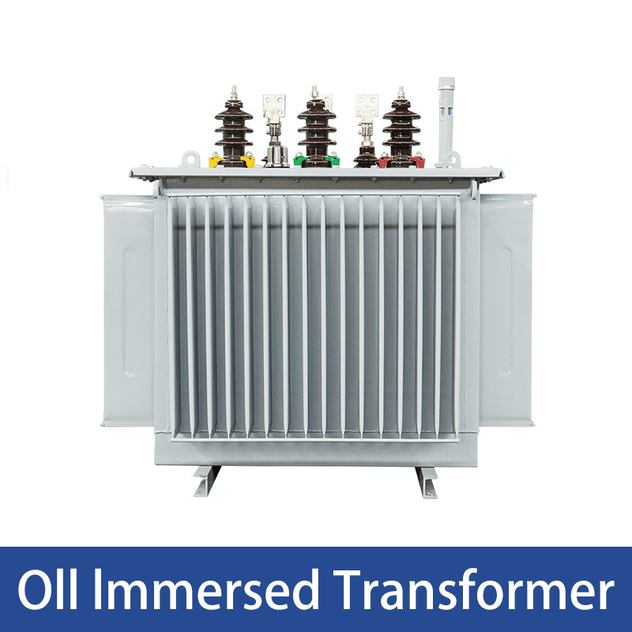

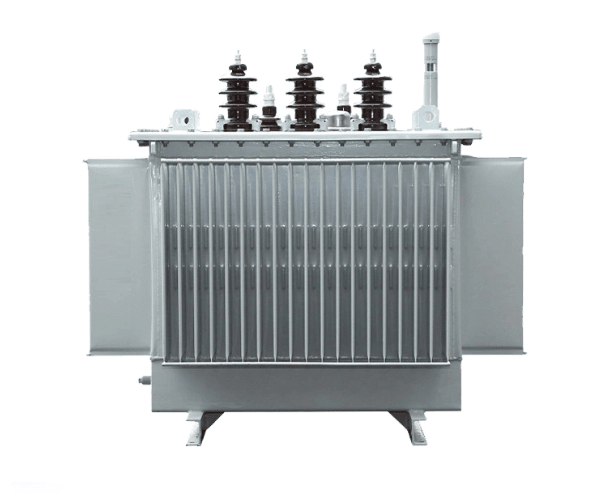

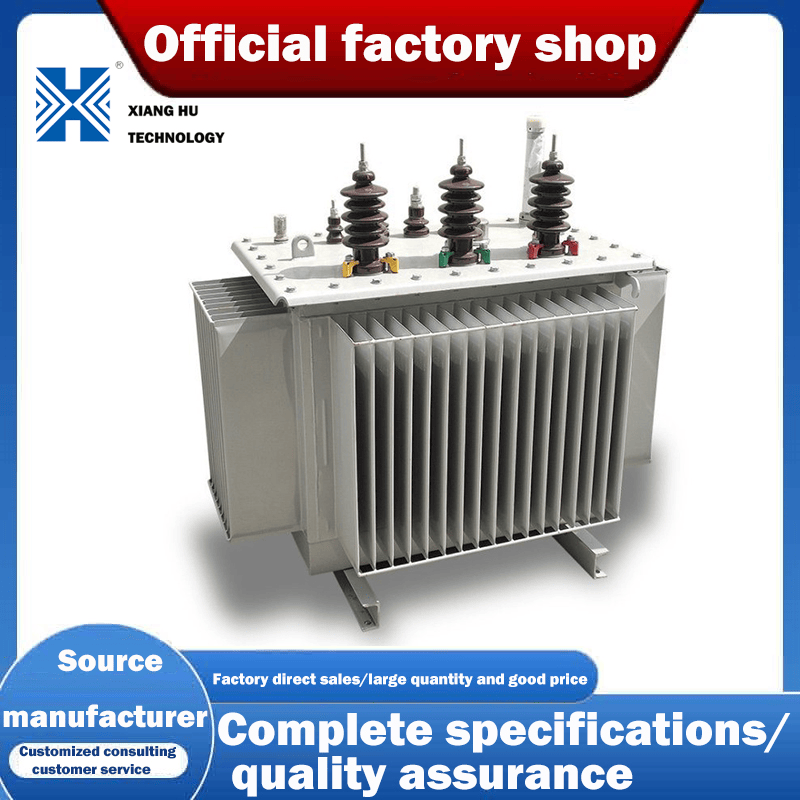

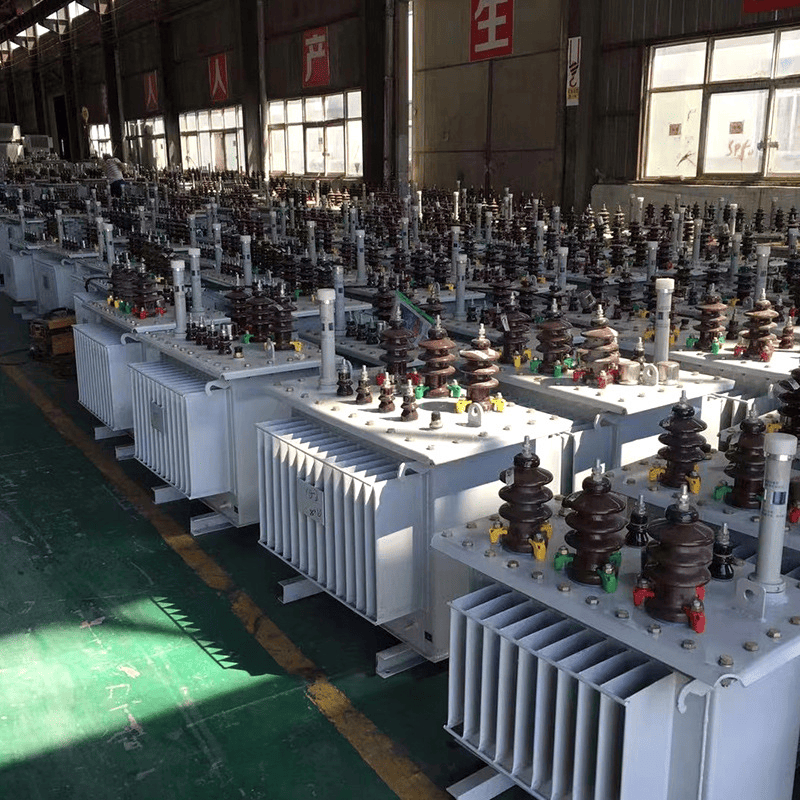

Oil immersed series transformer:S11-M series fully sealed oil immersed power transformer developed and produced by chaotai power has the advantages of low loss, low noiseand high efficiency, which can achieve good energy-saving effect and reduce pollution. Compared with the ordinary oil immersed transformer, the fullysealed transformer cancels the oil conservator, and the changeof oil volume is automatically adjusted and compensated by the elasticity of thecorrugated sheet of the corrugated oil tank. The transformer issolated from the air, so as to prevent and slow down the deterioration of oil andinsulation aging, enhance the operation reliability, and avoid maintenance in normal operation.
1.Power Capacity:25-2500KVA,24KV ,30KV,33KV 35KV 36KV and Others as customers requirement2.Voltage Level: 1OKV,11KV, 13.8KV,15KV,17.5KV,20KV,22KV3.Type of Voltage Regulation: Off-circuit or On-load
4.Tapping Range: ±5 % 2x2.5 % ±4x2.5 %
5.Frequency: 50Hz or 60Hz
6.Phases: Three or single
7.Connection Symbol: Dyn11,Yyn0 ( or as requested)
8.Short- circuit lmpedance: Standard lmpedance
eeding 40OC. lf it can't meet such conditions,we will modulate parameters in9.Altiude is not exceeding 1000m,ambient temperature not exc
accordance with standard.SpecificationInnovative DesignPower capacity: 25-2500KVAIdeal for:IOkYAky 1 OY I a. D SKY .2OKY 22KY 2ANV 3OKV.33KV 35KV 3GKV
Voltage Level:
Type of Voltage Regulation: Off-circuit or On-load
TappingRange: ±5%±2x2.5%±4x2.5%
Frequency: 50Hz or60Hz
Phases: Three or single
Connection Symbol: Dynll,Yyn0( oras requested)
Short-circuitlmpedance: Standard lmpedance
Altitude is not exceeding 100Om,ambient temperature not exceeding 400c
If it can't meet such conditions,we will modulate parameters in accordance with standard.Power transmission and distribution networks in the metallurgical industry and large commercial buildingsProduct parameters of oil-immersed transformers

Rated capacity kVA	Voltage combination				NO-load loss W	Load loss W	No-load current%	Short-circuit
	HV (KV )	HV tapping range	LV (KV)	Connection symbol				Impedance
30	6.3kV 10.5kV 11kV 13.2kV 13.8kV 15kV	±2 × 2.5%; Or ±5%	0.4	Dyn11 or Yyn0	90	660	2.1	5.5
50					130	960	2
63					150	1145	1.9
80					180	1370	1.8
100					200	1650	1.6
125					240	1980	1.5
160					290	2420	1.4
200					330	2860	1.3
250					400	3350	1.2
315					480	4010	1.1
400					570	4730	1
500					680	5660	1
630					810	6820	0.9	6
800					980	8250	0.8
1000					1150	11330	0.7
1250					1350	13200	0.7
1600					1630	15950	0.6
2500					2340	22200	0.6

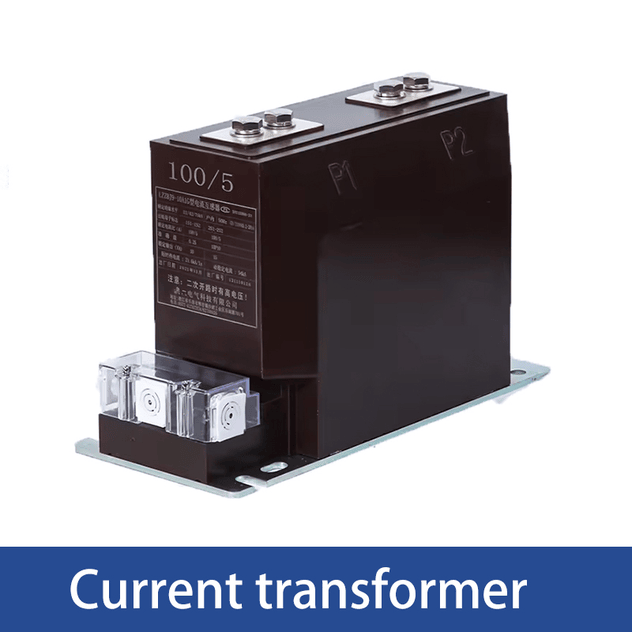

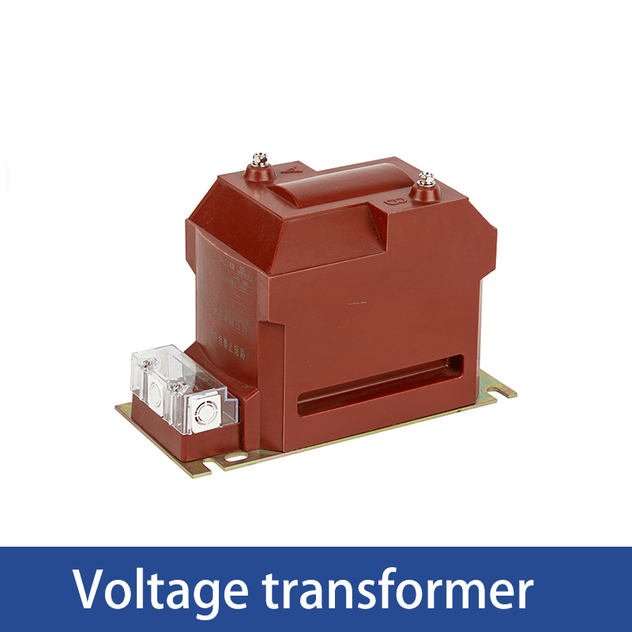

Other than this model we proudly offer a diverse array of other instrument transformers. Our extensive selection caters to the varied needs of our esteemed clientele, ensuring every customer finds the ideal solution for their specific requirements, blending innovation with reliability.

Packing & Delivery

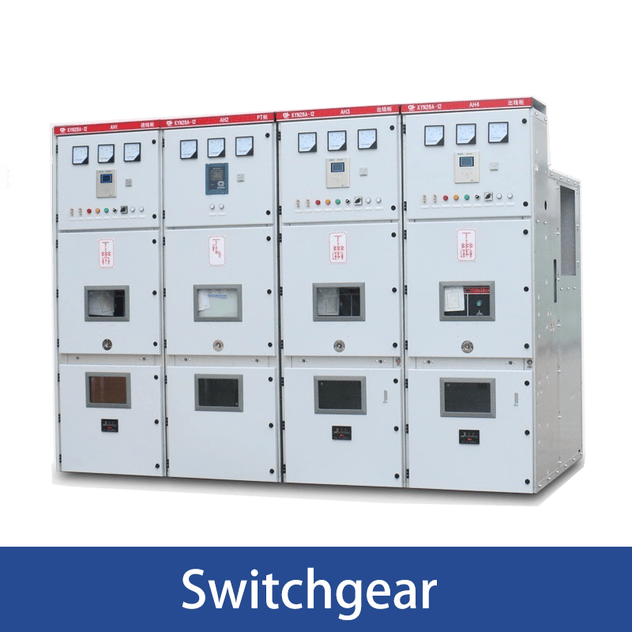

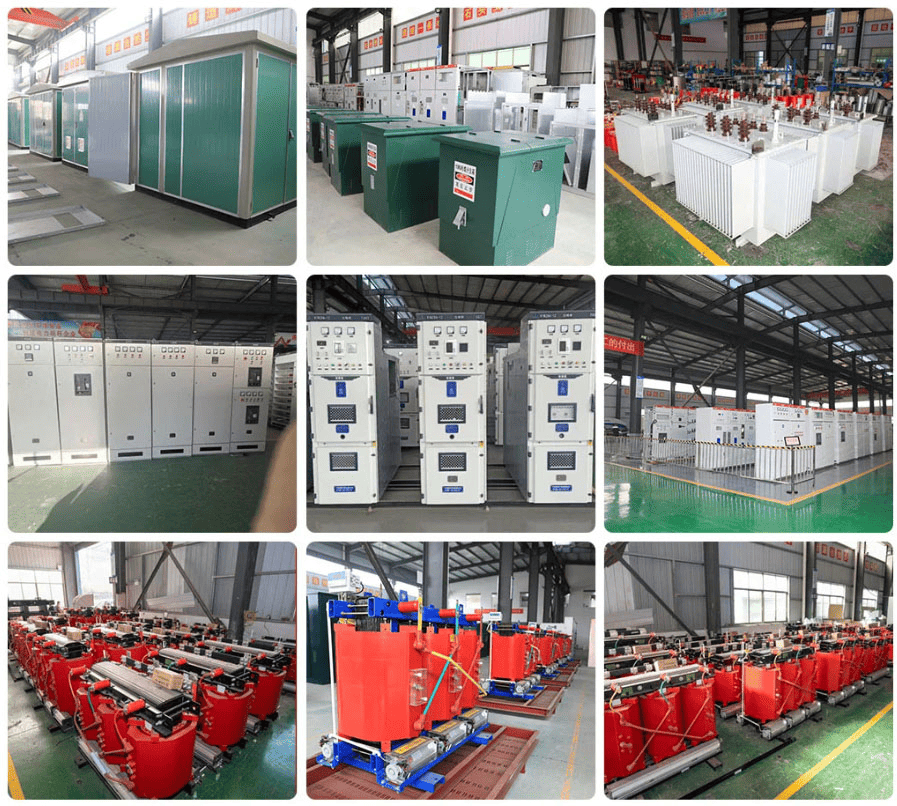

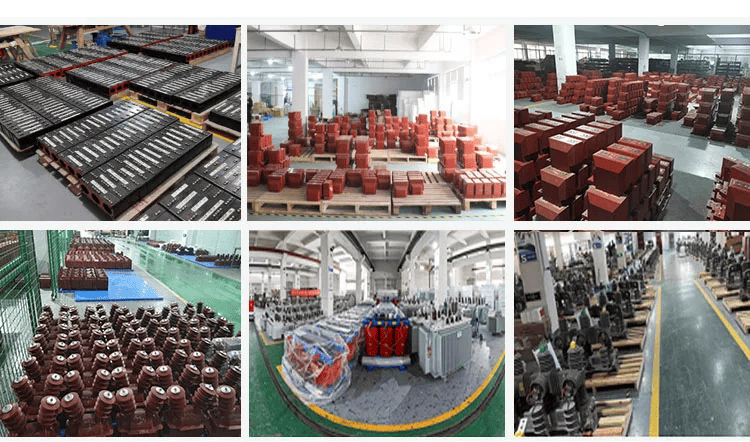

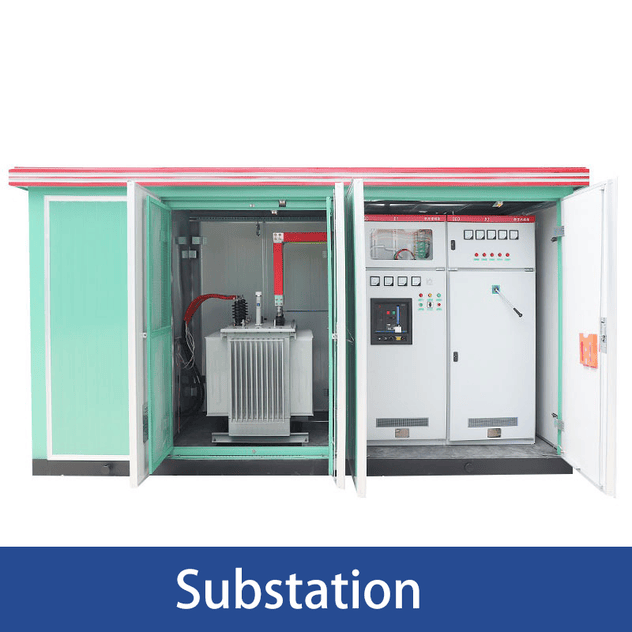

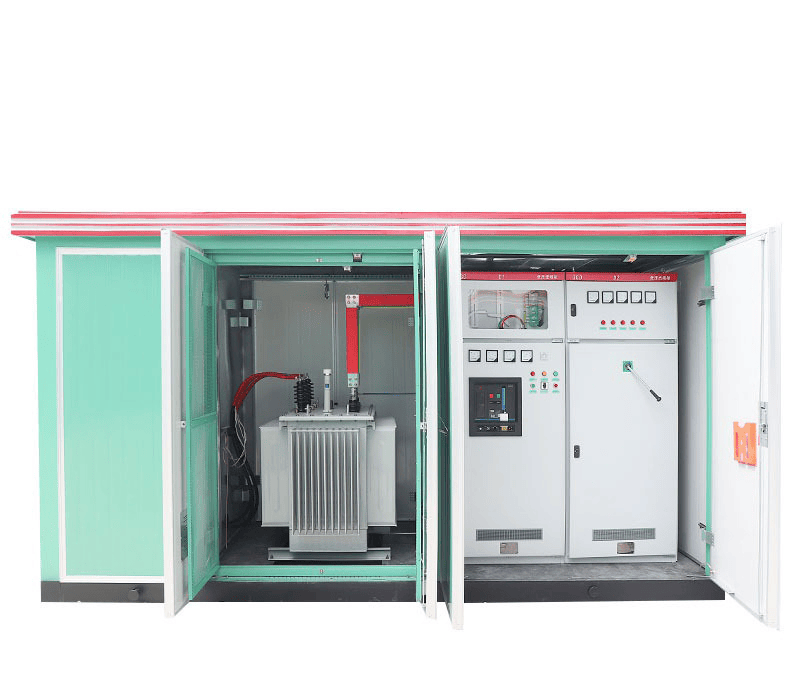

Our dedicated packaging team excels in customizing exquisite wooden boxes, crafting distinctive logos, selecting vibrant colors, and designing unique labels tailored precisely to meet your requirements. We ensure that each product is impeccably packaged, safeguarding its integrity, and is dispatched with precision to reach you promptly.Company ProfileZhejiang Xianghu Technology Co., LtdFounded in 2017,is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers.  Manufacturing of the main products are 10kv High tension Mutual inductor,10 kv transformer, YBW box-type substation, KYN61-40.5, KYN28A - 24, KYN28A - 12, XGN2-10, HXGN-10 high voltage switchgear, XGN ring net cabinet, SHSRM inflatable ring main unit, SHSG solid ring main unit, MNS, GCS, GCS, GGD, XL and other transmission and distribution equipment.  For a long time also for all kinds of metallurgy, shipbuilding, electric power, mining, and intelligent buildings, high-rise buildings, hospitals, schools and other industries to provide high quality power transmission and distribution of complete sets of equipment and electrical control equipment. The company has a strong technical force, sophisticated technology and sophisticated testing methods, and the products sell well across the country. Deeply appreciated and praised by the broad masses of users.CertificationsIS09001:2015 S014001:2015 IS0 45001:2018FAQQ1: Are you a trading company or manufacturer ?
A1: We are a professional factory with 7 years experience in the field of high and low voltage power transformers, substation, vacuum circuit breaker, power equipment. Q2: Do you accept customized serveice ?
A2: We offer OEM/ODM service , can print your logo on product . our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .

Q3: What is your MOQ?
A3: Our MOQ is 1 piece.

Q4: How long is your delivery lead time ?
A4: It depends on your product requirement and quantity . Generally , 5~10 working days is avaliable .

Q5: How do you solve quality problems?
A5: Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make asatisfied soluton within 2 days .

Q6: What is the price of shipping?
A6: Depending upon the port of delivery, prices varies. Q7: What is your payment terms ?
A7: 30%T/T in adcance,70% before shipment . West union , L/C are also acceptable . View More
