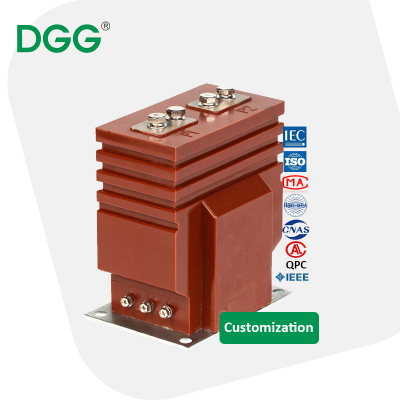

Dgg High Voltage Electrical Single Phase Indoor Instrument Protection Measuring Epoxy Resin CT PT Cu

  • Price

    ＄100.00

  • Brand

    nothing

  • MOQ

    1

IP location:LAN,When contacting me for more information, please mention you found me onElecUnite, Thanks!

Sales
Add Cart
Inquiry

Services

All product claims are seller-provided.

Contact Information
Add attention0

Denggao Electric Co., Ltd.

corporate memberThe1year
InformationNot certified
BondUnpaid
  • Beijin
  • Last login 04-26 20:43 •
  • Mrs. Linda (Mr.)
Homepage More Products
Type
  • None
Recommended
News

Products

Details

Corporate Location

Product Gallery

  • Brand:

    nothing

  • Price:

    ＄100.00

  • MOQ:

    Minimum order1

  • Inventory:

    10000

  • Address:

    Beijin

  • Send out goods:

    After payment0hour

  • More

Detailed description

Product Description

Company Info.

Packaging & Delivery

Package Size
21.00cm * 15.00cm * 25.00cm
Package Gross Weight
23.000kg

Product Description



0.38kV-123kV Supplier of Integrated Power Transmission & Distribution Equipment.

Get factory pricing.
Request a quote now.

More Than 15 Years Of Experience In Supplying State Grid And Southern Power Grid.   With DGG, you can bring your project concept to life in just a few days.

Our foreign colleague and over 50 experienced engineers are ready to support your project.

We are a seasoned manufacturer of both high- and low-voltage power system products.



Proven track record in winning and delivering domestic and international power projects with reliable execution capability.

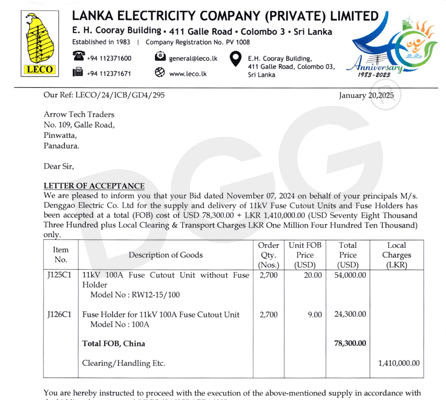

Selected Project Reference Numbers (Partial List):

DD1/P&D/ICB/2025/028/D
CEB SPECIFICATION 082:2019
DD4/P&D/ICB/2024/010/D
CEB/AGM(DD3)/P&D/ICB/2025/25/BPC
TENDER Y103092
NO-DIS-MA-2205
NO-DIS-MA-6003
NO-DIS-MA-7006
NO-DIS-MA-7007TENDER FOR THE ...

For more information, please feel free to contact
us.

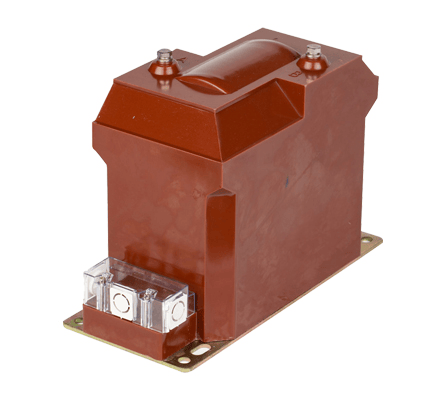

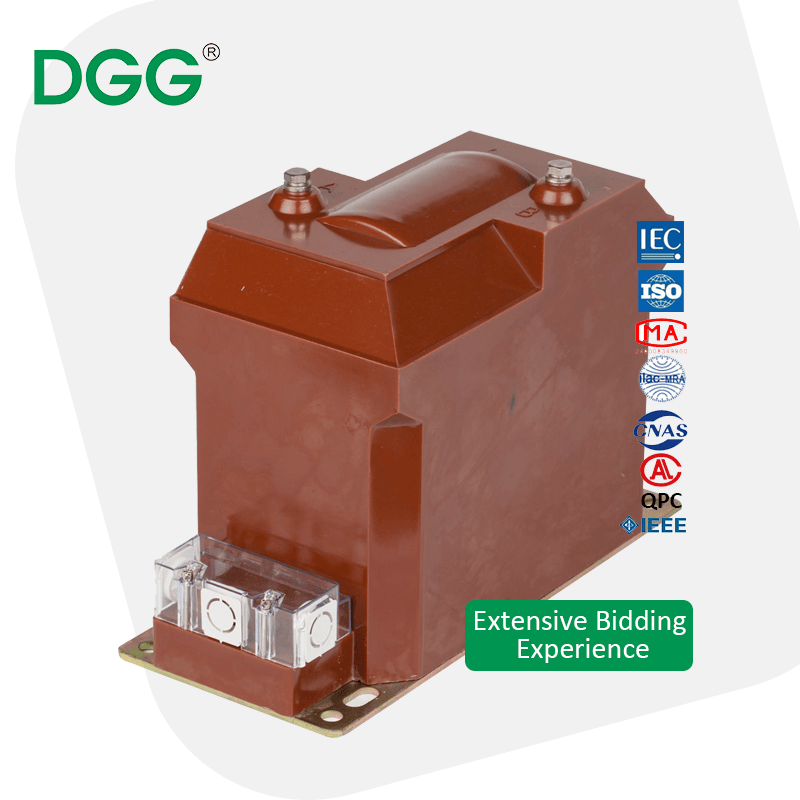

JDZ10-10(6)A1
Voltage Transformer
Indoor / Single-phase / Epoxy Resin Casting Type

Technical Parameter

Compliance with standards: GB/T 20840.1 &3 and lEC61869-1 &3
Ambient temperature: -5ºC~+40ºC
Insulation level: 12/42/75kV,7.2/30/60kV
Power factor: cosФ=0.8
Rated frequency: 50Hz or 60Hz.
Weight: 23kg.
Rated Voltage Ratio(kV) Accuracy class Rated Output
(VA) 		Limit output
(VA)
6/0.1/0.1 0.2/0.2 15/15 300
6/0.1/0.22 0.2/3 15/100 300
10/0.1/0.1 0.2 15/15 300
10/0.1/0.22 0.2/3 15/100 300
Note: If the parameters requested by the user are beyond the scope of the above table, they can be determined after consutaion with us.

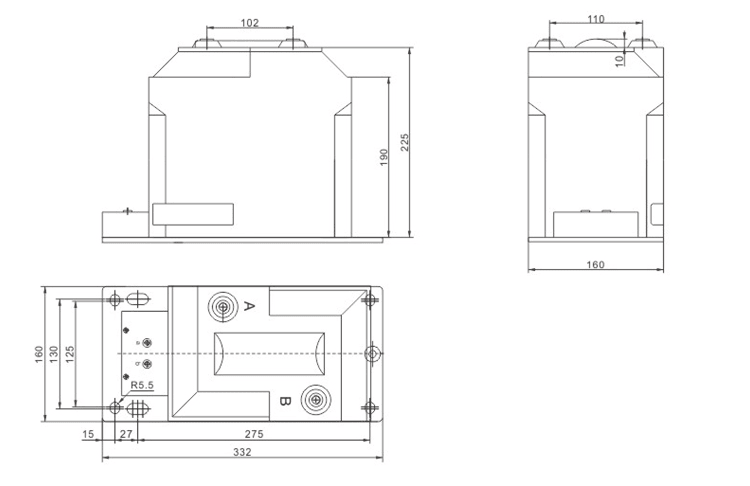

Outline & Installation Dimensions
Denggao Electric Co., Ltd.

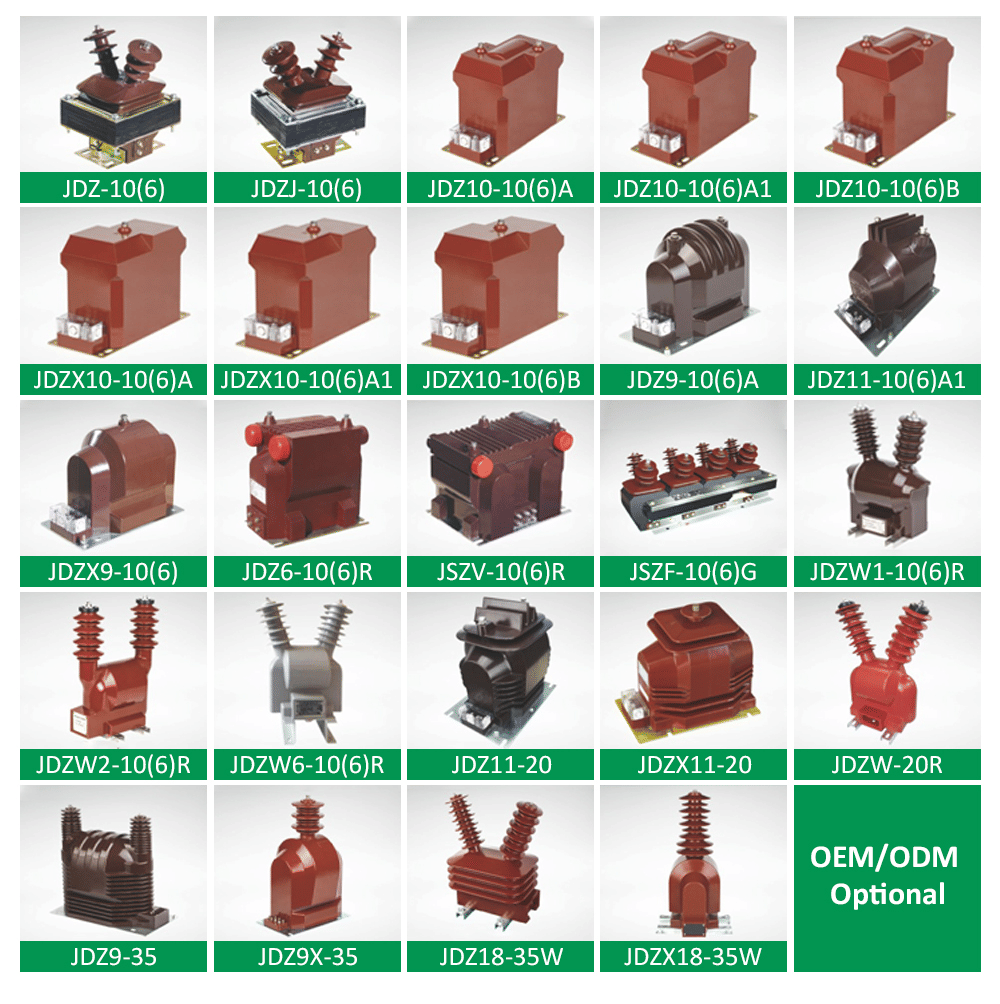

DGG 6-35kV Voltage Transformer Products
(Simply let us know what you need, and we'll assist you in selecting the right model.)

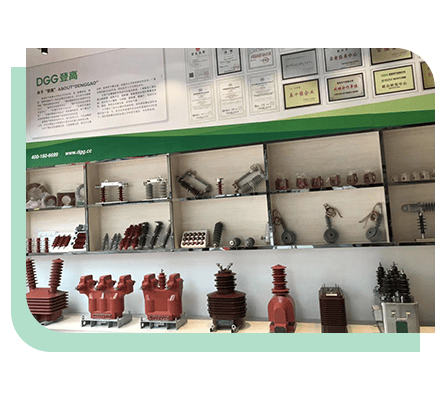

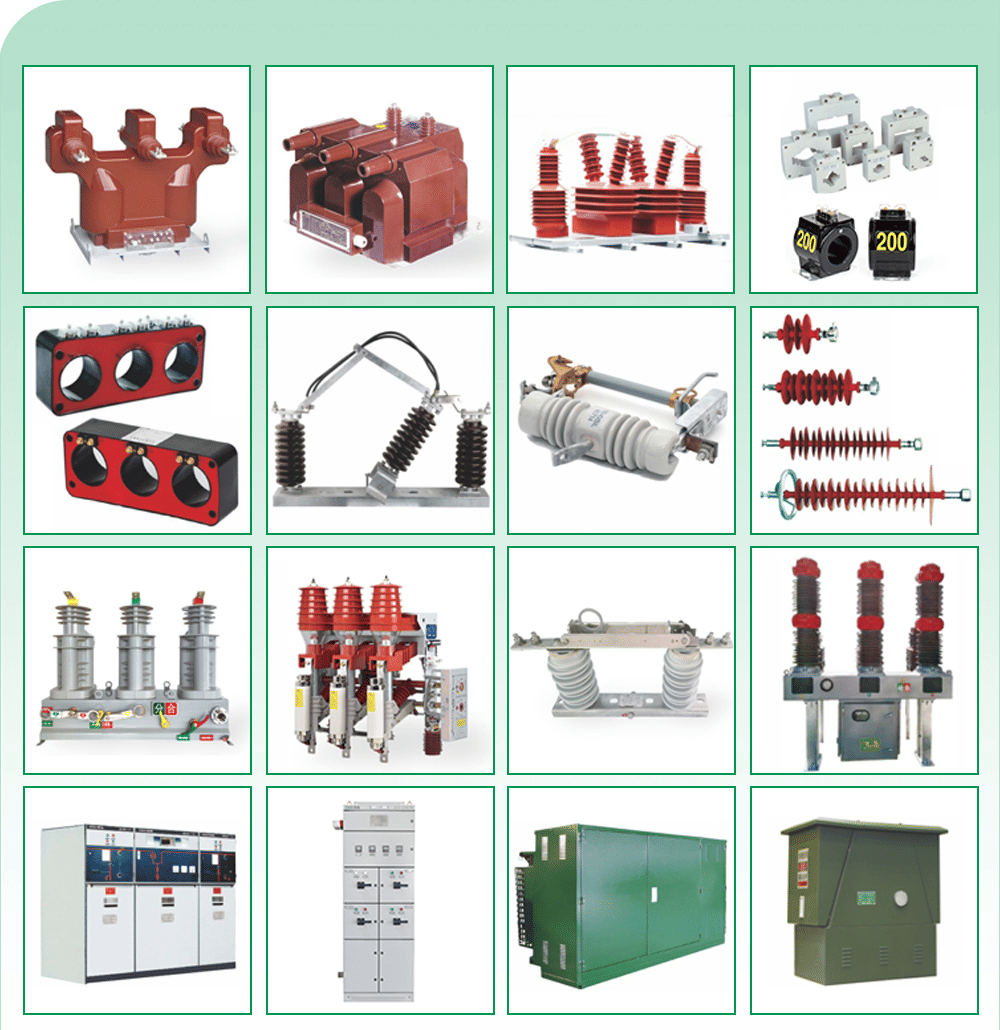

DGG Other Products
Denggao Electric Co., Ltd.

Why Choose DGG
Denggao Electric Co., Ltd.
  DGG has successfully passed various certifications including IEC, KEMA, CNAS, TUV, Type Test Reports.
  Our team consists of highly experienced professionals. We have continually invested in advanced production and testing equipment that meets global standards. · Strong Support: The sales engineers you engage with are experienced and certified in English proficiency. We have several English-speaking team members and foreign colleagues, along with a dedicated group of over 50 experienced engineers who ensure smooth communication and provide viable design solutions.

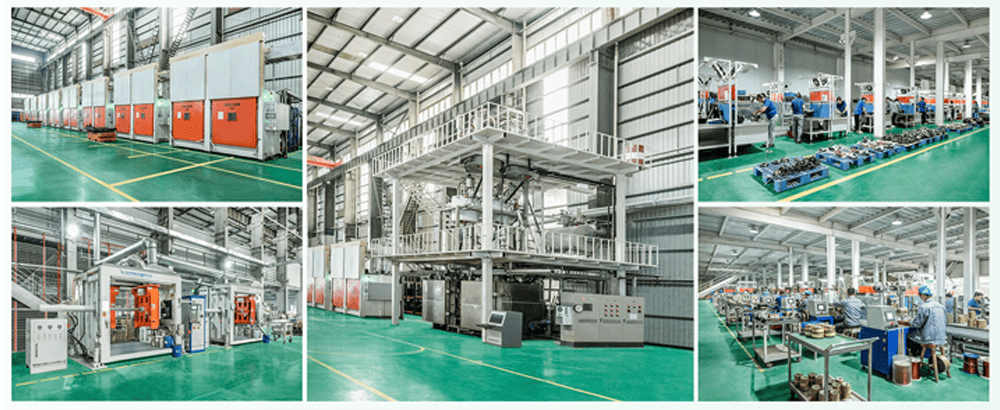

· Strong Production Capacity: Currently, we operate four production bases encompassing an area of 40,000 square meters, employing over 300 staff members. We have more than 2,000 sets of our own molds, leading to an annual output value exceeding 500 million.

· Quality Assurance: Additionally, we maintain independent laboratories and hold numerous certificates and test reports, including those from IEC, KEMA, CNAS, and CSIT, as well as various Type Tests. 1. Over 30 Years of Experience: We have encountered and resolved a wide range of potential challenges in the technology sector.
2. Reliable Suppliers: We have access to the highest quality materials in the industry.
3. Experienced Workforce: Our skilled workers each have over 10 years of experience.
4. Cost-Effective Solutions: With our own production facility and direct sales, we can offer significant savings whether you are an agent or a direct buyer.

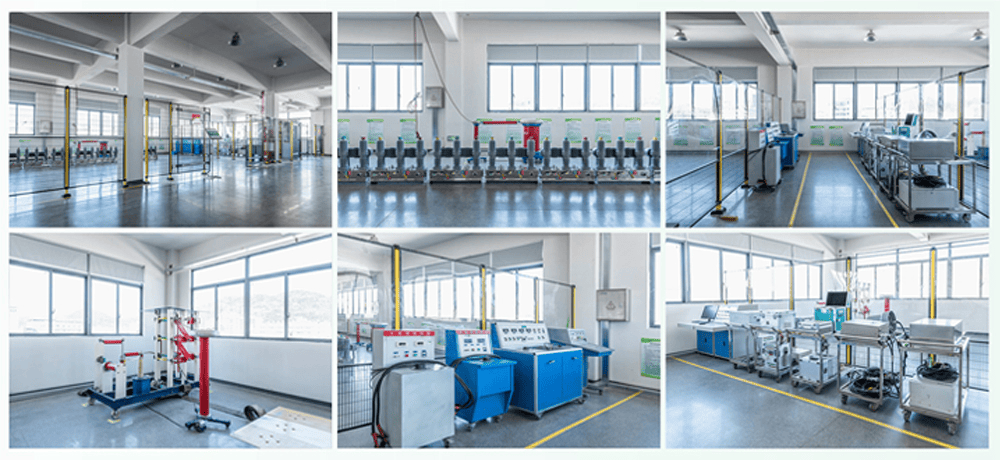

DGG has fully independent laboratories to test all aspects of developed products. It also possesses extensive product data, ready to address various customer issues in the future.

DGG Power is a manufacturer of integrated Low,medium and high voltage power transmission and distribution equipment, supplying solutions for voltage levels from 0.38kV to 123kV. Our product portfolio includes circuit breakers, load break switches, disconnect switches, instrument transformers, fuse cutouts, surge arresters, and complete power distribution solutions. DGG Power equipment is widely used in power grids, substations, industrial plants, mining projects, and infrastructure distribution systems. We serve national and regional power utilities, EPC contractors, local distributors, and industrial project owners worldwide. With in-house testing facilities, our products are supported by complete type test reports in accordance with IEC standards. We also provide OEM and ODM services, offering customized designs to meet project specifications, technical drawings, and tender requirements. Through integrated manufacturing and quality control processes, DGG Power ensures stable production capacity and reliable delivery for international projects, aiming to be a long-term partner for medium and high voltage power applications.
  DGG's Cooperative Partner
Denggao Electric Co., Ltd.

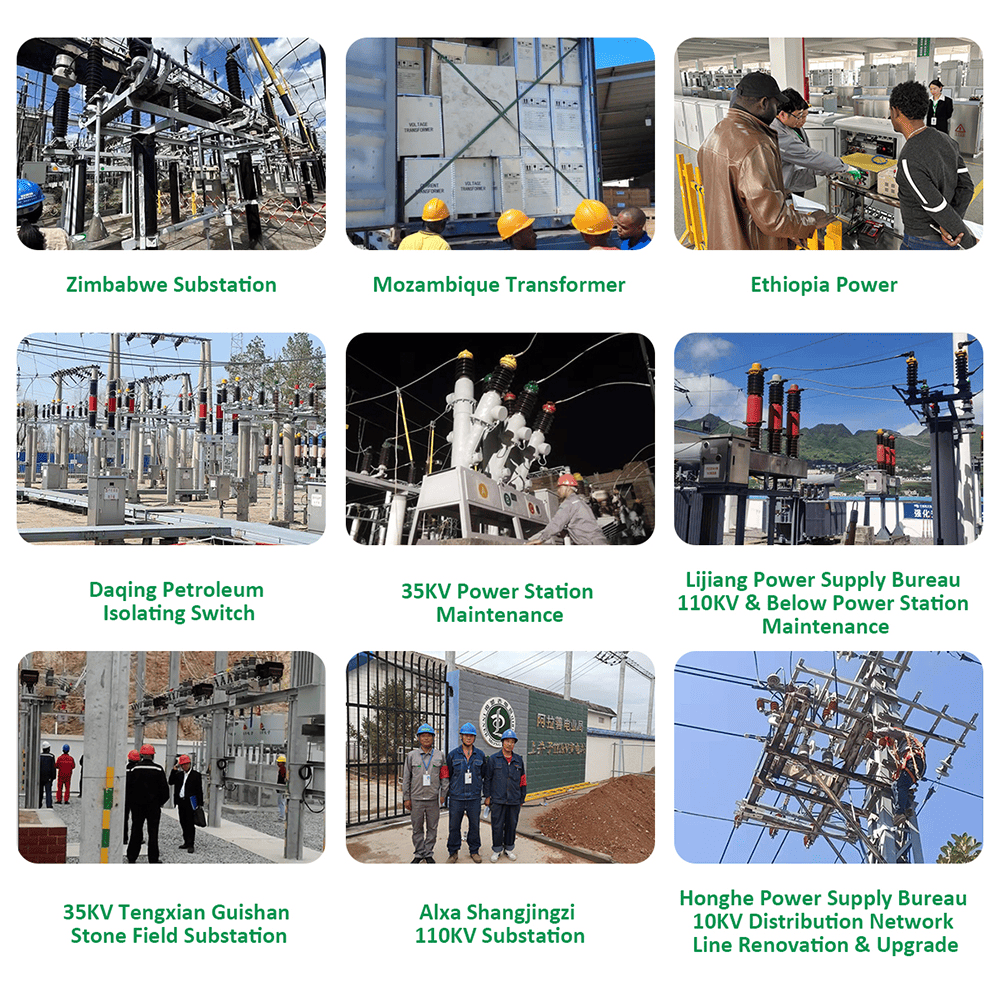

DGG's Projects
Denggao Electric Co., Ltd.
DGG's Certifications & Test Reports
Denggao Electric Co., Ltd.


Get Project Support Easily
At DGG, we make complexity simple! Follow these 3 steps to get started now!

1.Tell Us What You Need:
Describe your needs as specifically as possible. Please provide drawings, reference pictures, and share your ideas.

2.Receive Solutions and Quotation:
We will create the best solution based on your requirements and drawings. You will receive a specific quotation within 24 hours.

3.Approval for Mass Production:
We will begin production once we receive your approval and deposit, and we will arrange the shipment thereafter.

    We are a trusted supplier to State Grid and China Southern Power Grid,providing equipment
for over 15 years with proven long-term performance.

This gives us the confidence to expand globally and share our
high-quality products worldwide.

Our products are backed by multiple type test reports, ensuring absolute safety and reliability.

We are confident we will be your best choice.
