Shanghai Changji Electric Co., Ltd. is a professional enterprise specializing in the production of various reactors, power transformers, dry-type transformers, amorphous alloy transformers, special transformers, and box-type substations.

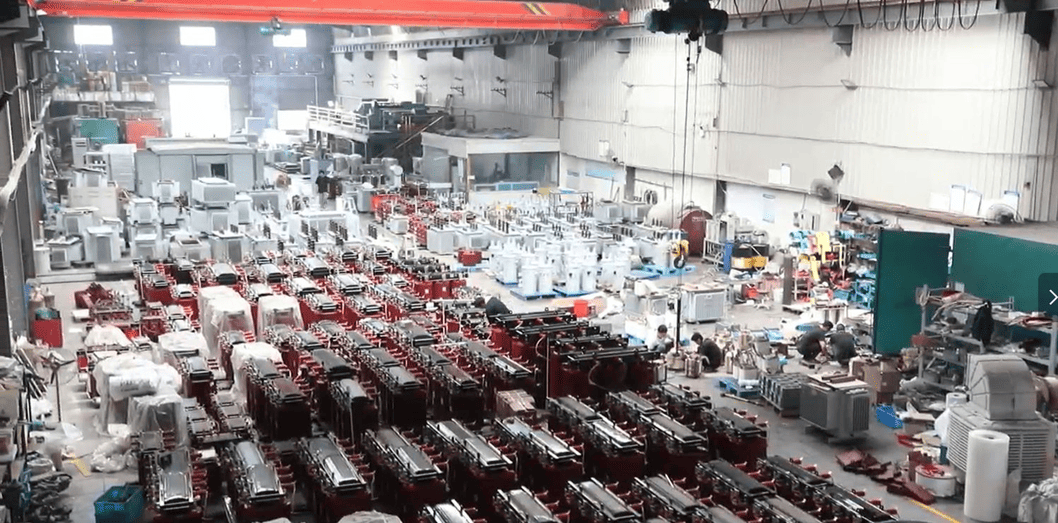

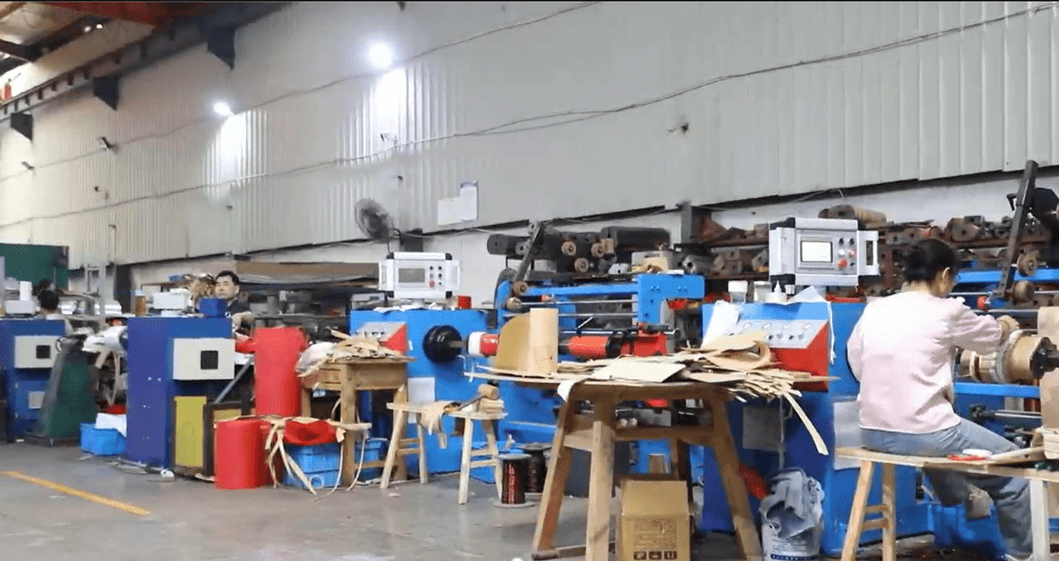

Equipped with modern production facilities, advanced manufacturing processes, and comprehensive testing equipment, the company ensures the production of high-performance products featuring innovative designs, low losses, low temperature rise, low noise, high impact resistance, and strong short-circuit withstand capability.

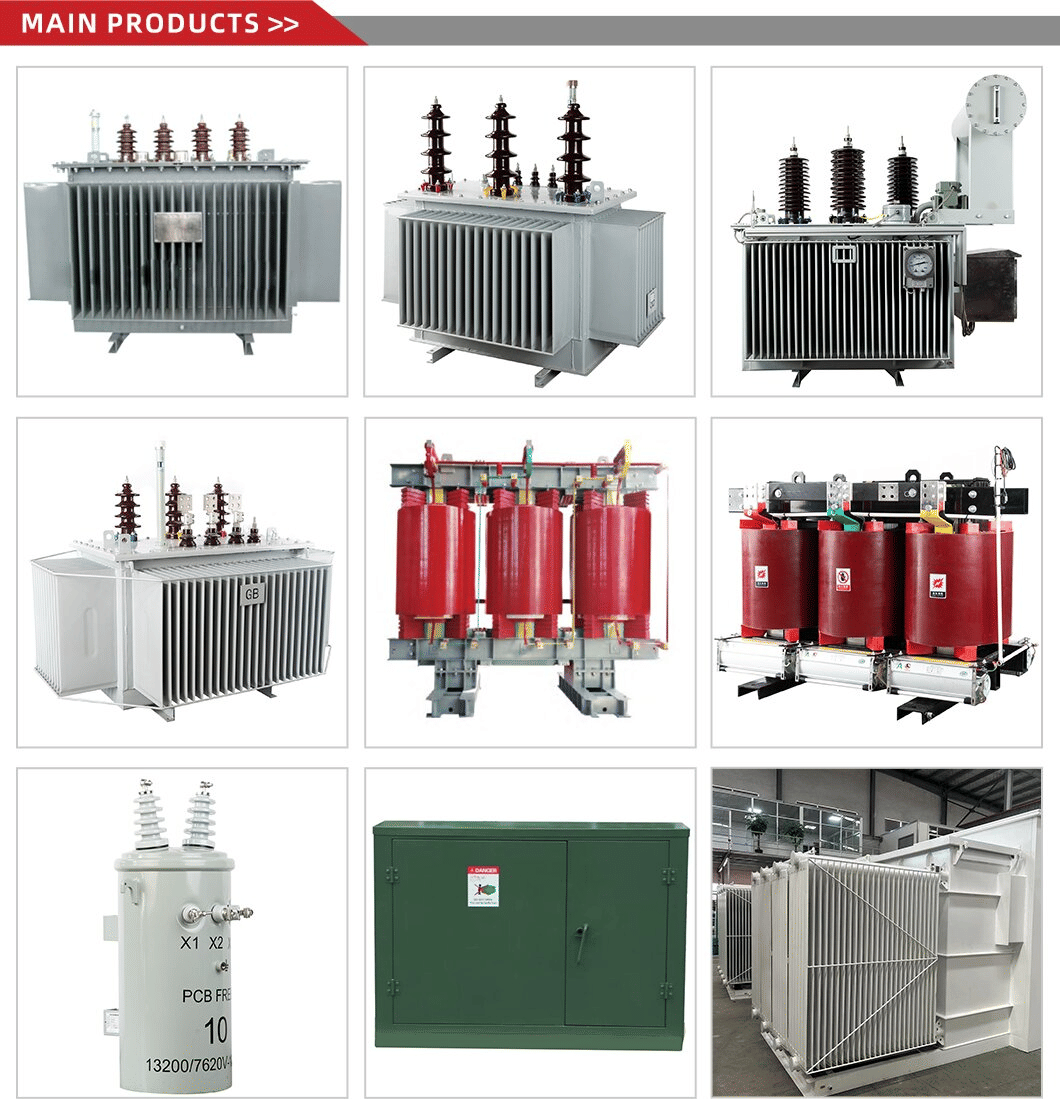

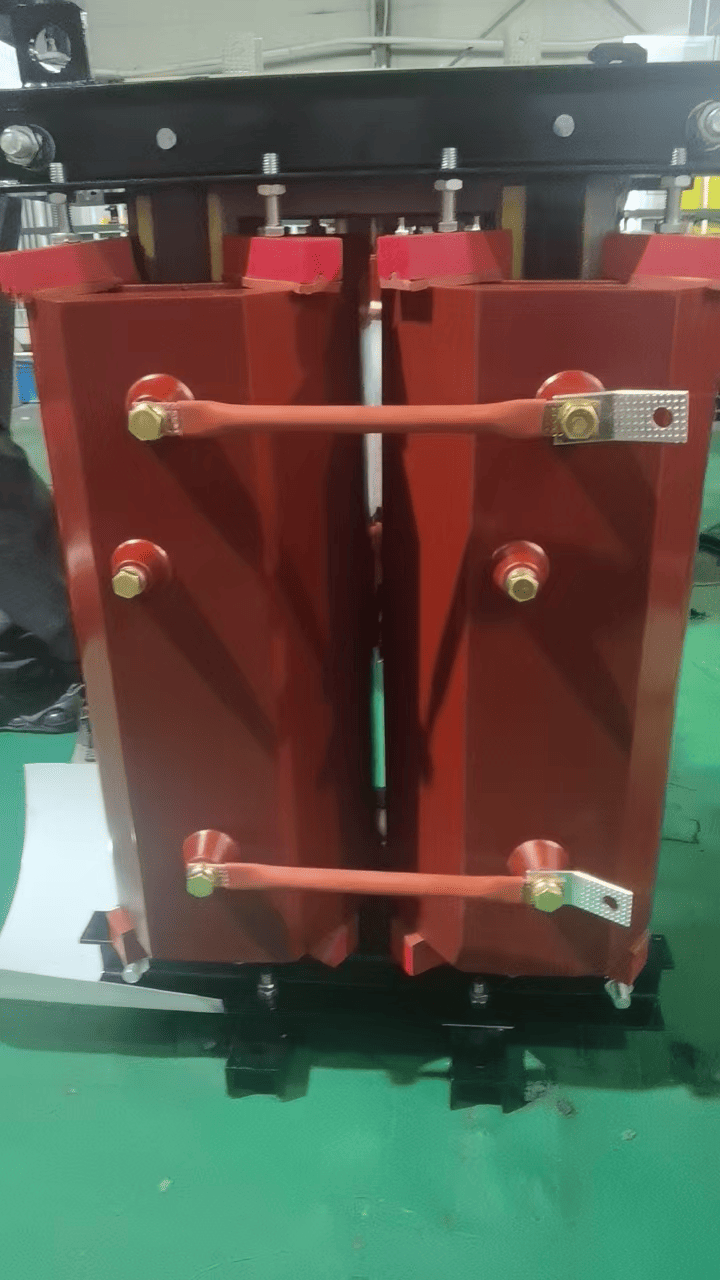

Core Products: 10kV, 20kV, and 35kV dry-type and oil-immersed reactors
10kV, 20kV, and 35kV oil-immersed transformers
10kV, 20kV, and 35kV vacuum epoxy-cast dry-type transformers
10kV, 20kV, and 35kV non-encapsulated (SG) vacuum pressure-impregnated dry-type transformers

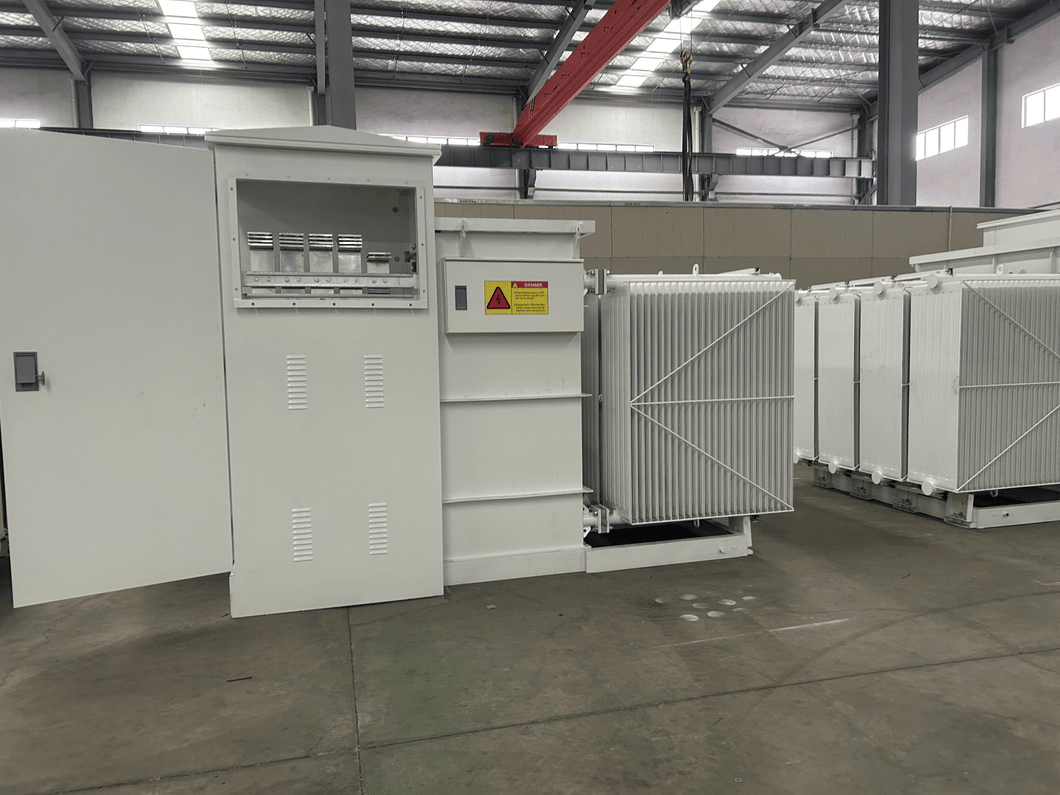

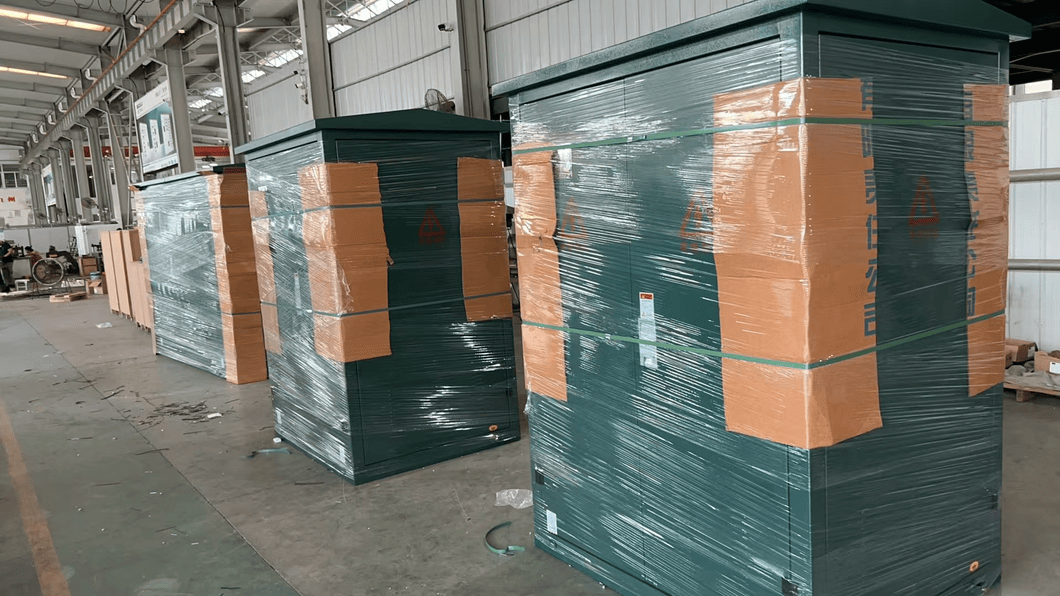

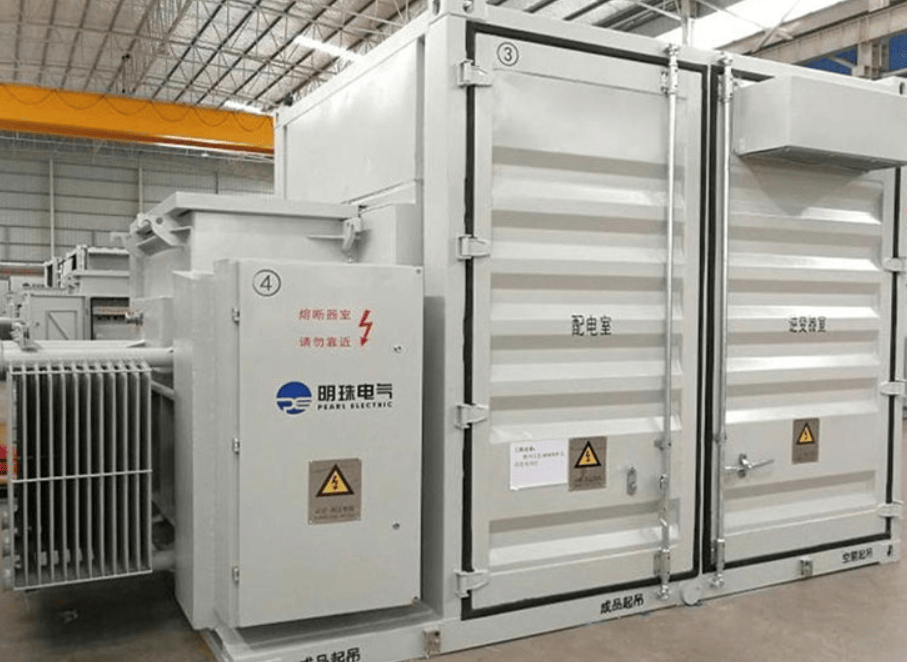

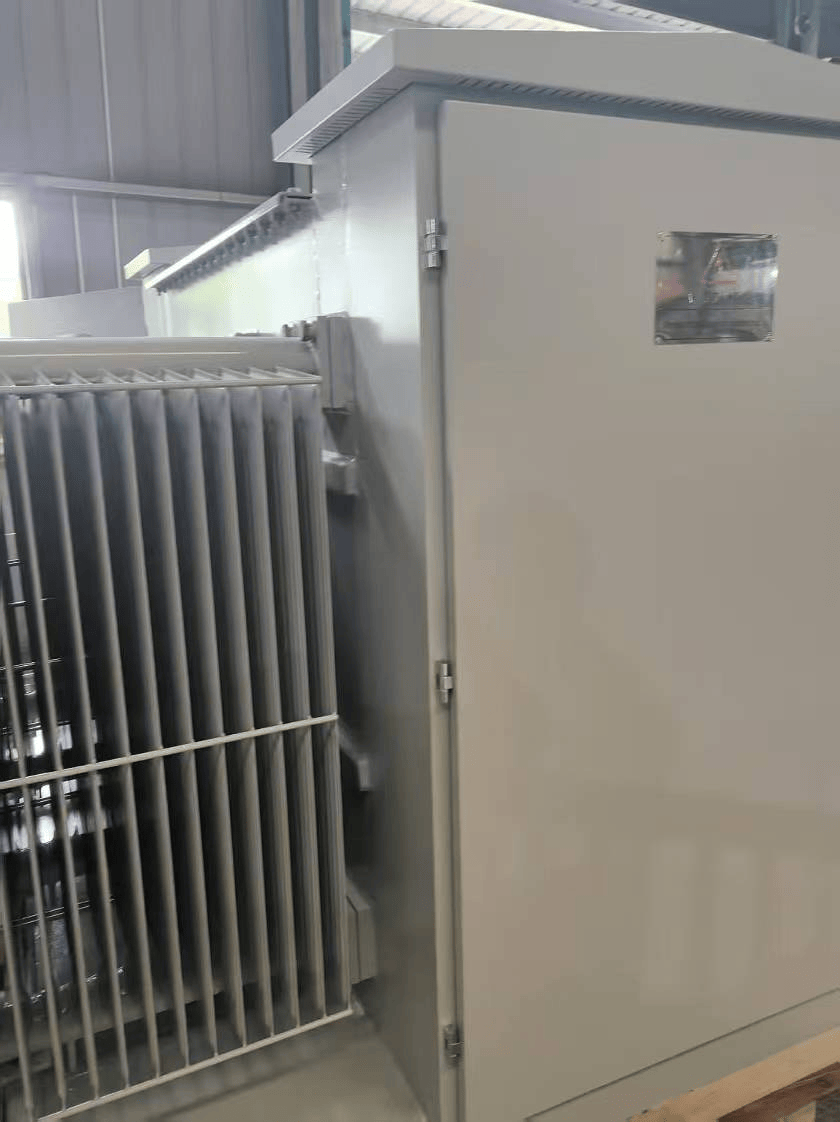

Box-type substations
Additionally, the company can design and manufacture various special transformers according to customer requirements.
For years, the company has adhered to a customer-first philosophy, earning trust and support through a strong commitment to product quality. By continuously improving quality management and pursuing excellence, Zhejiang Changji Electric Co., Ltd. Strives to secure its market position. With full enthusiasm, sincere cooperation, and a win-win business approach, we warmly welcome domestic and international customers to visit, inquire, and discuss potential collaborations!

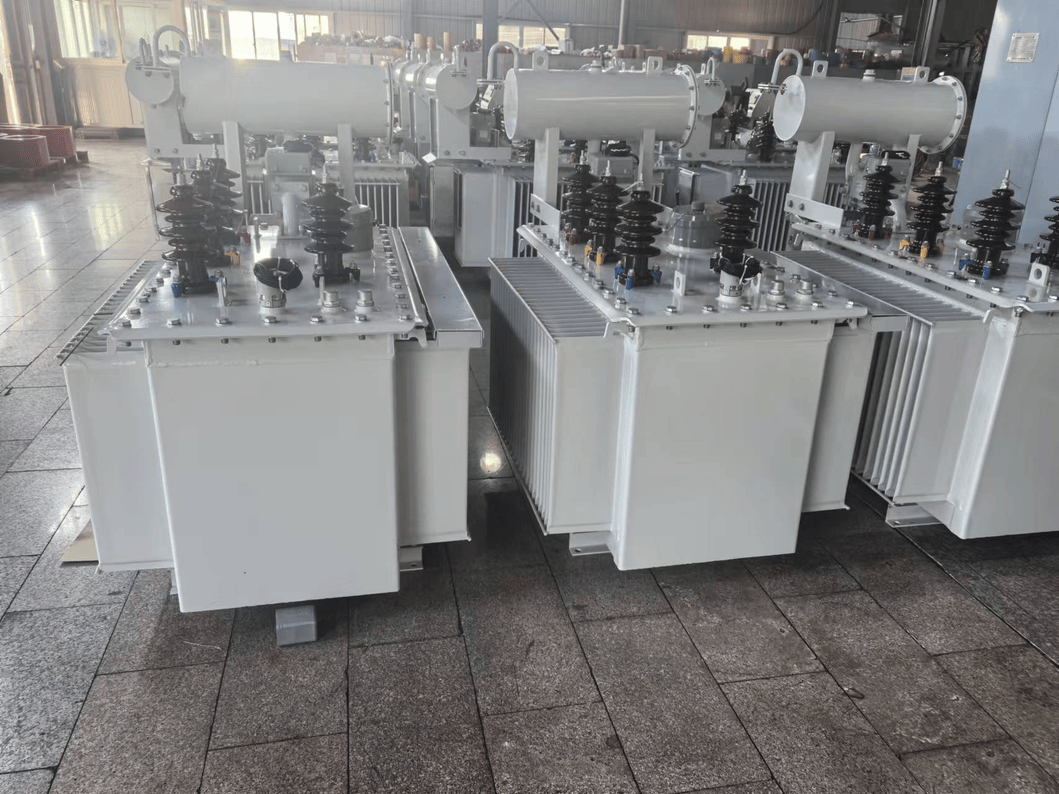

Our 10 MVA oil transformer is a state - of - the - art electrical device designed to meet the diverse power distribution needs. With a capacity of 10 MVA (10000kVA), this oil - type transformer is a reliable workhorse in the power grid.
The 10 MVA oil transformer operates at a primary voltage of 23kV and a secondary voltage of 13,860V. Its connection group is Ynd11, which is a well - established and widely used configuration in the power industry. This connection group offers several advantages, such as providing a neutral point on the low - voltage side for single - phase loads and better protection against unbalanced loads.
One of the remarkable features of this 10 MVA oil transformer is its dual - frequency operation capability. It can operate at both 50Hz and 60Hz frequencies, making it highly adaptable to different power systems around the world. Whether you are in a region with a 50Hz power grid or a 60Hz one, this 10 MVA oil transformer will perform efficiently.
The oil - type design of the 10 MVA oil transformer is a key factor in its performance. The insulating oil not only provides excellent electrical insulation but also helps in dissipating heat generated during operation. This ensures that the transformer can run continuously without overheating, thereby extending its service life.

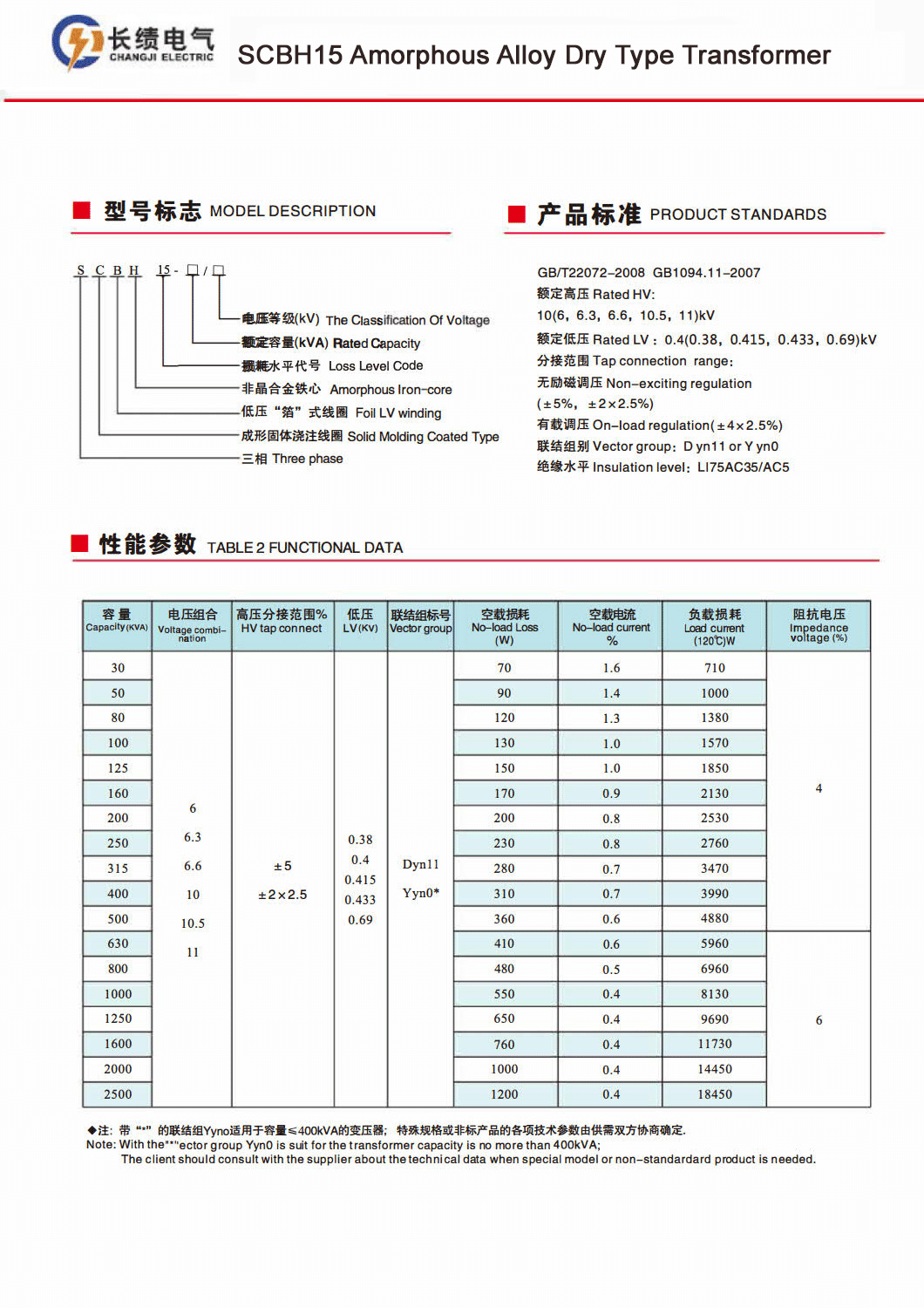

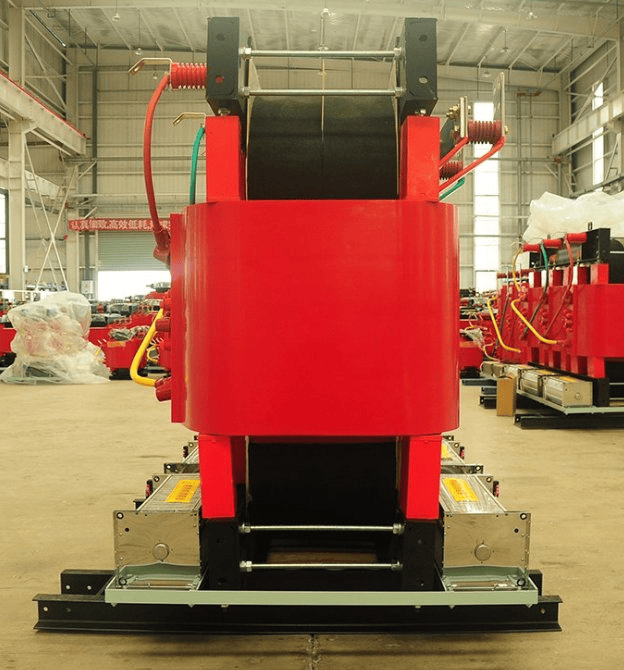

SCBH15 Amorphous Alloy Dry-type Transformer
The SCBH15 amorphous alloy dry-type transformer is an advanced electrical device that combines the latest technological advancements with high - performance materials to provide efficient and reliable power transformation solutions. This product is designed in strict accordance with the IEC (International Electrotechnical Commission) standards, ensuring its quality and compatibility on a global scale.
1. Core Features

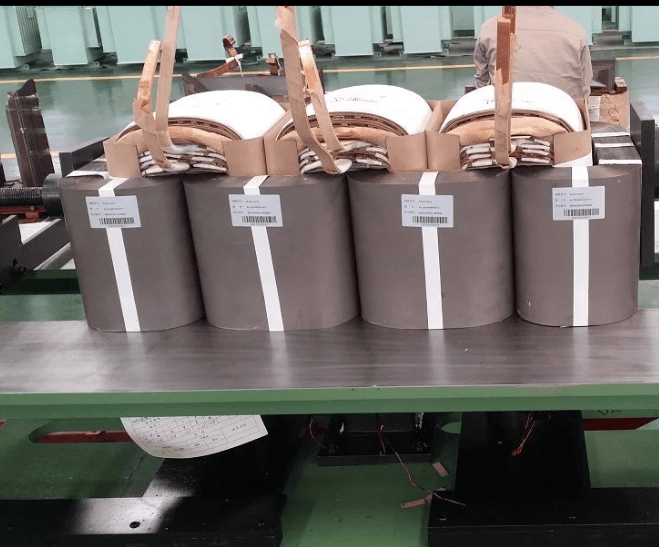

Amorphous Alloy Core: The most prominent feature of the SCBH15 transformer is its use of amorphous alloy material in the core. Amorphous alloy has extremely low hysteresis loss and eddy - current loss compared to traditional silicon steel cores. This results in significantly reduced no - load losses, making the transformer highly energy - efficient. It is like a thrifty steward, conserving energy and reducing operational costs over its long service life.
Dry - type Design: The dry - type design eliminates the need for oil, which not only enhances safety by eliminating the risk of oil leakage and fire but also makes it environmentally friendly. It can be installed in a wide range of locations, including indoor spaces, due to its non - flammable and non - polluting nature. It is as safe as a fortress, protecting both people and the environment.
2. Performance Advantages
High Efficiency: With its advanced core material and optimized design, the SCBH15 transformer achieves high levels of efficiency. It can convert electrical energy with minimal losses, ensuring that more power is delivered to the load. This efficiency is like a well - tuned engine, running smoothly and effectively.
Low Noise Operation: The unique structure and high - quality materials used in the transformer contribute to its low - noise operation. This is especially important in environments where noise pollution needs to be minimized, such as hospitals, schools, and residential areas. It operates as quietly as a gentle breeze, causing no disturbance.
Good Thermal Performance: The transformer is equipped with an effective cooling system that can dissipate heat quickly. This allows it to operate stably under various load conditions, ensuring a long service life. It is like a well - ventilated room, keeping the internal components at a proper temperature.
3. Technical Parameters (Referenced to IEC Standards)
Electrical Parameters
Rated Power: [Specify the rated power range, e.g., from 100 kVA to 2500 kVA]
Primary Voltage: [List the available primary voltage levels, e.g., 10 kV, 20 kV]
Secondary Voltage: [Specify the secondary voltage options, e.g., 0.4 kV]
Voltage Regulation: [Provide the voltage regulation range, e.g., ±2×2.5% or ±5%]
No - load Loss: [State the no - load loss values according to different power ratings, e.g., for a 100 kVA transformer, the no - load loss is [X] kW]
Load Loss: [Give the load loss values under different load conditions, e.g., at 75°C, for a 100 kVA transformer, the load loss is [Y] kW]
Insulation Parameters
Insulation Class: [Indicate the insulation class, e.g., F or H]
Dielectric Strength: [Describe the dielectric strength requirements in accordance with IEC standards, e.g., the transformer can withstand a certain voltage test for a specified time without breakdown]
Mechanical Parameters
Dimensions: [Provide the overall dimensions of the transformer, including length, width, and height]
Weight: [List the weight of the transformer according to different power ratings]
4. Applications
The SCBH15 amorphous alloy dry - type transformer is suitable for a wide variety of applications, including but not limited to:
Industrial Facilities: It can be used in factories, mines, and other industrial sites to provide stable power supply for various electrical equipment.
Commercial Buildings: Such as shopping malls, office buildings, and hotels, where reliable power is essential for normal business operations.
Residential Areas: To ensure the safe and efficient distribution of electricity to households.
In conclusion, the SCBH15 amorphous alloy dry - type transformer is a high - quality, energy - efficient, and reliable electrical product that meets the strict requirements of IEC standards. It is an ideal choice for modern power distribution systems.
3. Technical Parameters (Referenced to IEC Standards)
Parameter
Specification
Rated Capacity
30 - 2500 kVA
Voltage Rating
Primary: 6 kV, 10 kV, 20 kV; Secondary: 0.4 kV
Frequency
50 Hz or 60 Hz
No - Load Loss
In strict accordance with IEC standards, significantly lower than traditional transformers due to the use of amorphous alloy cores
Load Loss
Complies with IEC requirements, and the values are optimized to ensure overall high - efficiency operation
Impedance Voltage
4% - 6%
Insulation Level
Meets IEC insulation class requirements, providing reliable electrical insulation
Temperature Rise
The temperature rise of the winding and oil is strictly controlled within the limits specified by IEC standards to ensure long - term stable operation
Noise Level
In line with IEC noise - limit requirements, generally less than 50 dB (A) for small - capacity transformers and less than 65 dB (A) for large - capacity transformers
