11kv 440V 2000kVA Oil Filled Electric Transformer Oil Immersed Distribution Power Transformer Three

Details

Corporate Location

Product Gallery

Inquiry
Details
Recommend

Brand:

Guang Bian
Price:

＄687.00
MOQ:

Minimum order1
Inventory:

10000
Address:

Beijin
Send out goods:

After payment0hour
More 

Detailed description

Product Description

Company Info.

Packaging & Delivery

Package Size: 1.00cm * 1.00cm * 1.00cm
Package Gross Weight: 1.000kg

Product Description

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Description

The rated capacity of this oil immersed power transformer is 15kva-5000kva(Customization). It can be used outdoors or installed inside substations.

The models that can be selected for oil immersed transformers include S9, S11, S13, S15, and so on.

The high-voltage part of oil immersed transformers can also be selected from 6KV, 6.3KV, 10KV, 10.5KV, 11KV, 20KV, 25KV, 33KV, 35KV, and so on

The low voltage part of oil immersed transformers can also be selected: 400V, 415V, 0.4KV, etc. It can be configured according to the actual situation in your local area.

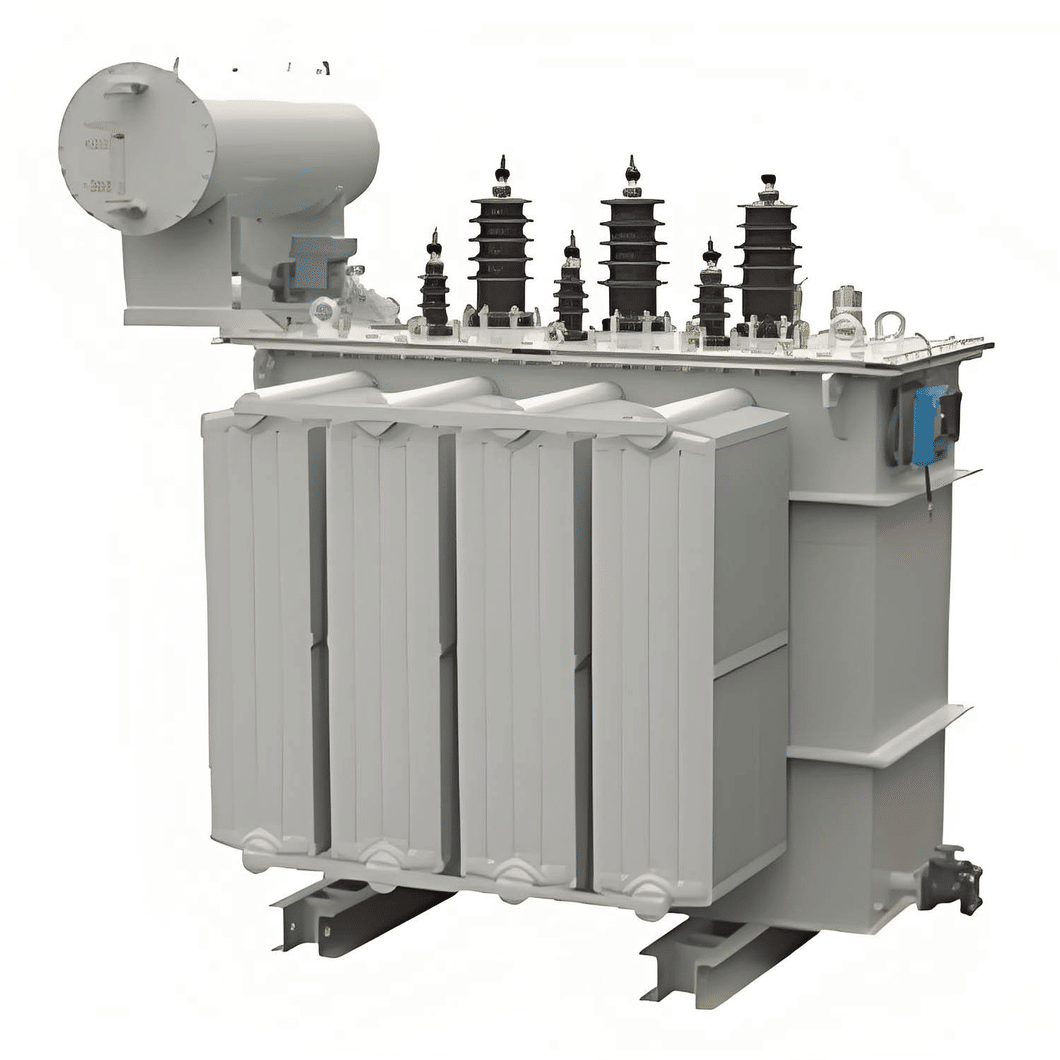

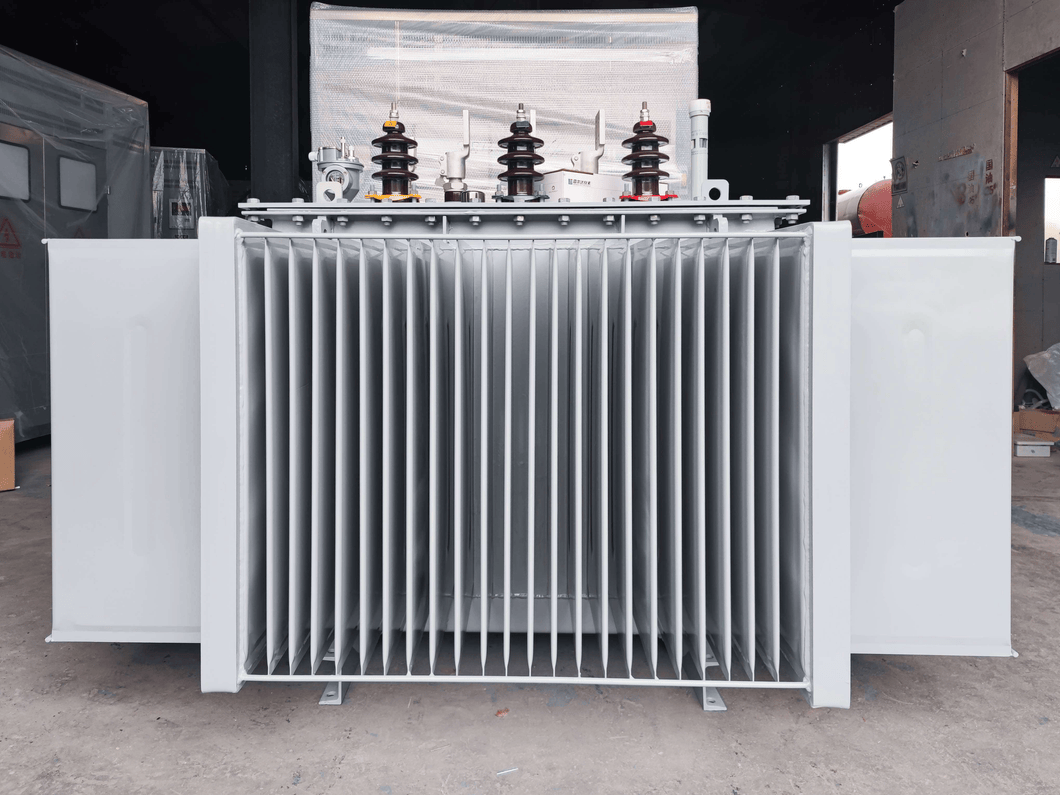

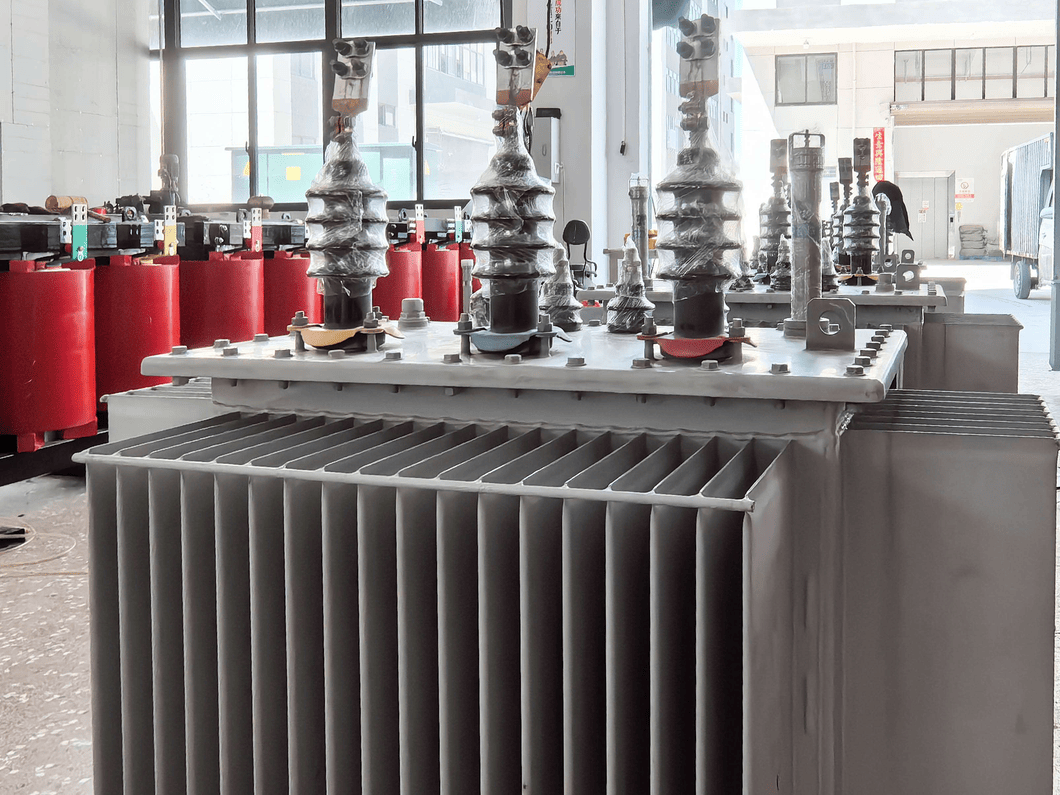

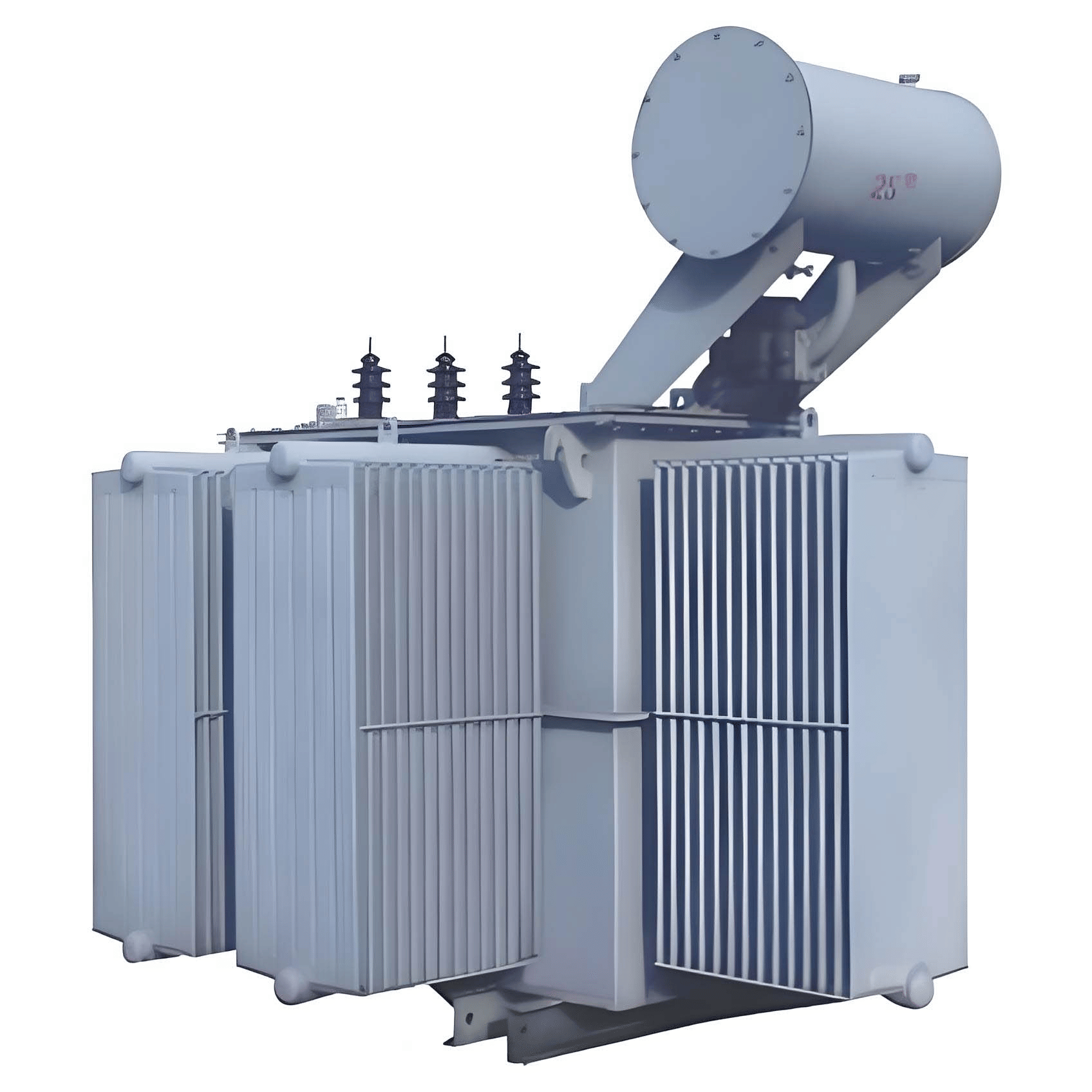

15kva-5000kva(Customization) oil-immersed transformer appearance

*The picture is a general picture of the product, subject to the actual product

If you have other capacity configuration requirements, you can choose according to the ↓ table ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Selection Table

Rated Power (kVA)	High Voltage (kv)	Low Voltage (kv)	Connection symbol	No-load loss(W)	On-load loss(W)	No load current (W)
30	6KV 6.3KV 10KV 10.5KV 11KV 20KV 35KV (customizable)	0.4KV (customizable)	Ydn11 Yyn0 (customizable)	100	600/630	2.1
50				130	870/910	2.0
63				150	1040/1090	1.9
80				180	1250/1310	1.8
100				200	1500/1580	1.6
125				240	1800/1890	1.5
160				280	2200/2310	1.4
200				340	2600/2730	1.3
250				400	3050/3200	1.2
315				480	3650/3830	1.1
400				570	4300/4520	1.0
500				680	5150/5410	1.0
630				810	6200	0.9
800				980	7500	0.8
1000				1150	10300	0.7
1250				1360	12000	0.6
1600				1640	14500	0.6
2000				2020	17820
2500				2380	20700

(↓If you have other product needs, please click here to ask me)

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Good Price Is Cheap Iron core:
The iron core is made of brand new and excellent silicon steel sheets.
Ensure that customers maintain low wear and tear during use, low noise during operation, and more energy-efficient requirements

Winding:
Use heat-resistant enameled wire.
Ensure good conductivity, stable operation, enhanced overload capacity, low line loss, and resistance to oxidation of the winding.
Extend the lifespan of transformers

Transformer oil tank:
The transformer oil tank is composed of corrugated walls that can breathe.
Excellent corrugated walls can compensate for changes in transformer oil volume caused by temperature rise and fall. Therefore, we cancelled the design of the oil storage tank for the transformer. This not only reduces the cost of the transformer, but also lowers the overall height of the transformer. Saved users' various costs.

Safety protection device:
We will equip the transformer with sensitive relief valves and precise glass thermometer sockets.
Of course, we can also equip trip terminals with alarms and gas relays according to customer requirements.
Everything is just to ensure your safety during use.

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Why Choose Us

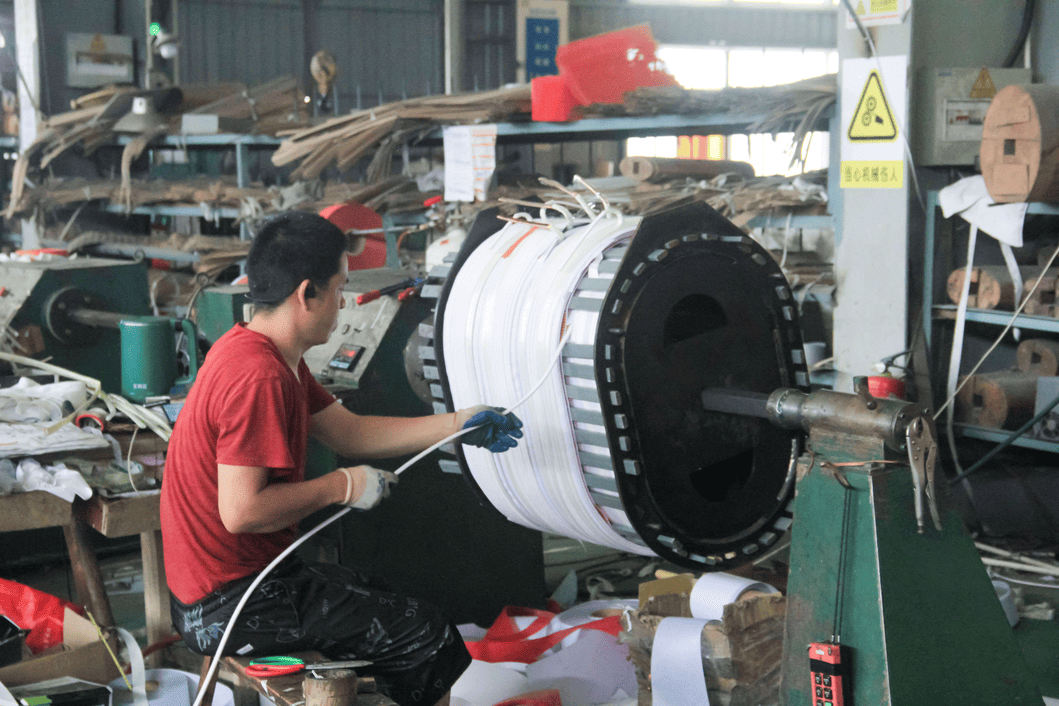

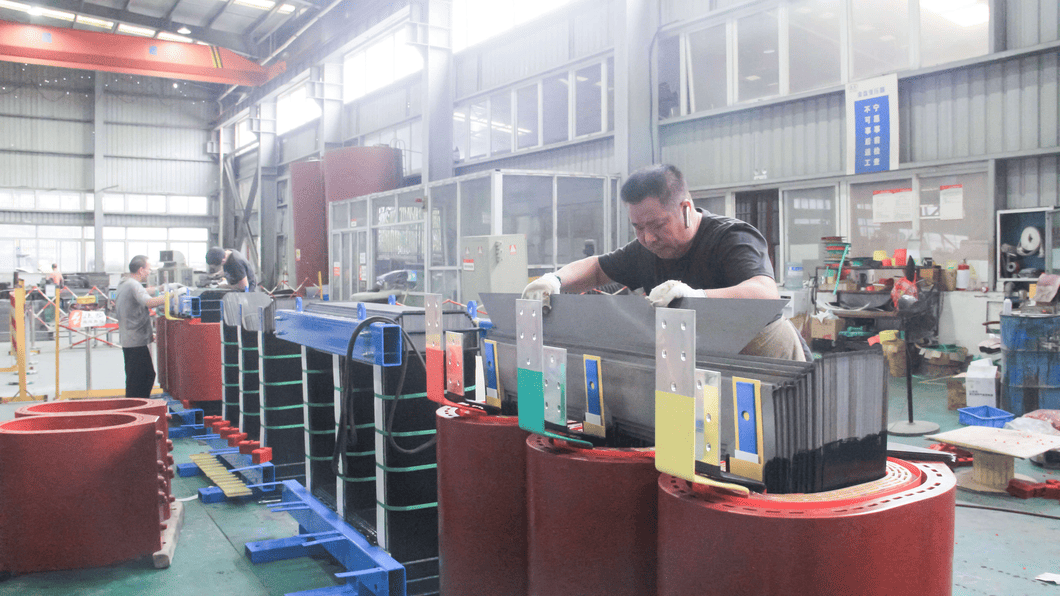

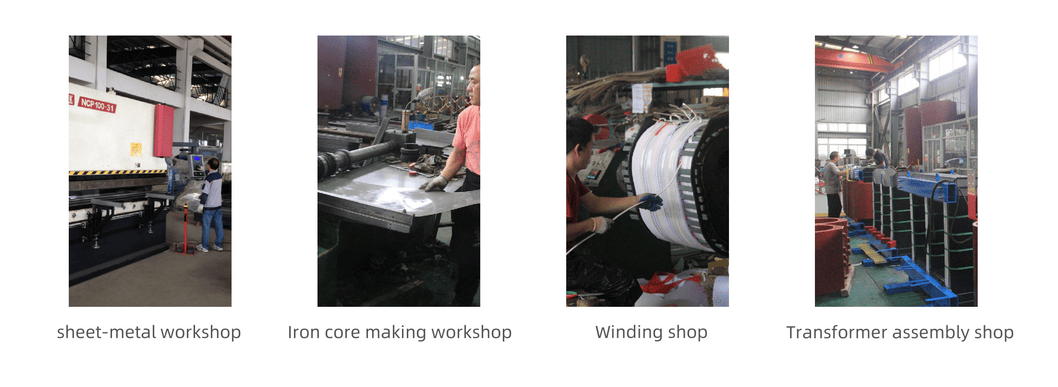

Four production workshops

Our company's four workshops can achieve diversified production of transformer products. And achieve high-fit assembly and testing to ensure the high efficiency and safety of each transformer.
Due to the independent control of all aspects of our company, we can achieve economic benefits for our products. We ensure that each product is not only of high quality, but also very cheap.

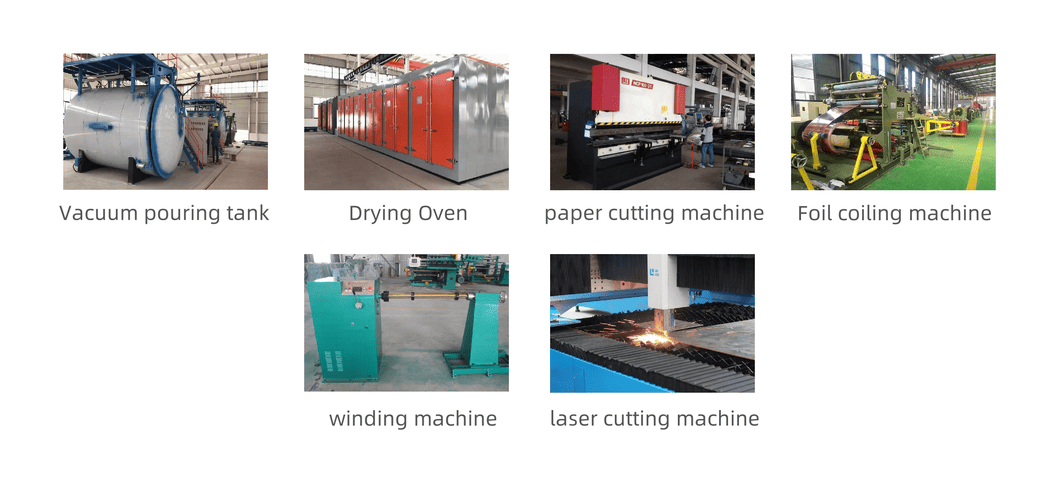

Industry standard production equipment

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Authentication Certificate

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Shipping And Packing

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">
