Price
＄600.00
Brand
Tianhong
MOQ
1
IP location:LAN,When contacting me for more information, please mention you found me onElecUnite, Thanks!
Services
All product claims are seller-provided.
Three Phase Cast Resin Power Distribution Dry Type Transformer for Offshore Wind
Beijin
View
Three Phase Factory Mv High Voltage 500kv 230 132 110 Kv 40mva 50mva Electrical Oil Immersed Solar E
Beijin
View
Powerful Oil Transformer Smart Transformer H-Class Insulation 30-2500kVA
Beijin
View
High Voltage 33kv Step Down Onan Power Transmission Distribution Transformer with Copper Core
Beijin
View
Copper Winding Dry Cast Resin Transformers Energy Saving 125kVA for Power Distribution
Beijin
ViewDetails
Corporate Location
Product Gallery
Brand:
Tianhong
Price:
＄600.00
MOQ:
Minimum order1
Inventory:
10000
Address:
Beijin
Send out goods:
After payment0hour
ntent="" style="background-color:#ddebf6;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Technical Parameters
| Rated capacity (kVA) | High voltage(KV) | Voltage Combination | Connective group label | No-load loss(KW) | Load loss (KW) |
No-load current(%) | Short circuit impedance (%) | Weight (KG) | ||
| High pressure tap range | Low voltage(KV) | Weight of oil | Total weight | |||||||
| 30 | 20/10 | ±5*2.5% ±2*2.5% |
0.4 | Dyn11 | 0.09 | 0.66 | 2.1 | 5.5 | 180 | 420 |
| 50 | 0.13 | 0.96 | 2.0 | 150 | 495 | |||||
| 63 | 0.15 | 1.145 | 1.9 | 170 | 560 | |||||
| 80 | 0.18 | 1.37 | 1.8 | 190 | 635 | |||||
| 100 | 0.2 | 1.65 | 1.6 | 215 | 710 | |||||
| 125 | 0.24 | 1.98 | 1.5 | 250 | 840 | |||||
| 160 | 0.29 | 2.42 | 1.4 | 285 | 945 | |||||
| 200 | 0.33 | 2.86 | 1.3 | 340 | 1125 | |||||
| 250 | 0.4 | 3.35 | 1.2 | 390 | 1295 | |||||
| 315 | 0.48 | 4.01 | 1.1 | 445 | 1475 | |||||
| 400 | 0.57 | 4.73 | 1.0 | 515 | 1712 | |||||
| 500 | 0.68 | 5.66 | 1.0 | 6.0 | 460 | 1995 | ||||
| 630 | 0.81 | 6.82 | 0.9 | 565 | 2450 | |||||
| 800 | 0.98 | 8.25 | 0.9 | 635 | 2765 | |||||
| 1000 | 1.15 | 11.33 | 0.7 | 840 | 3650 | |||||
| 1250 | 1.35 | 13.2 | 0.7 | 970 | 4220 | |||||
| 1600 | 1.63 | 15.95 | 0.6 | 1105 | 4800 | |||||
| 2000 | 1.95 | 19.14 | 0.6 | 1205 | 5240 | |||||
| 2500 | 2.34 | 22.22 | 0.5 | 1300 | 5650 | |||||

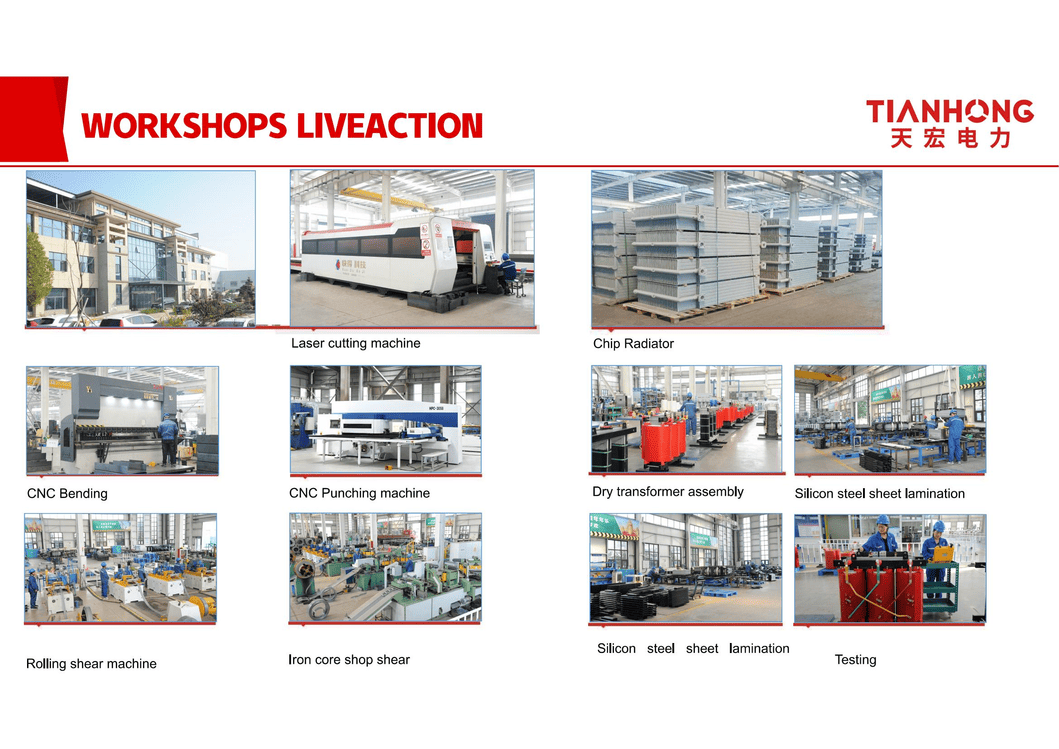

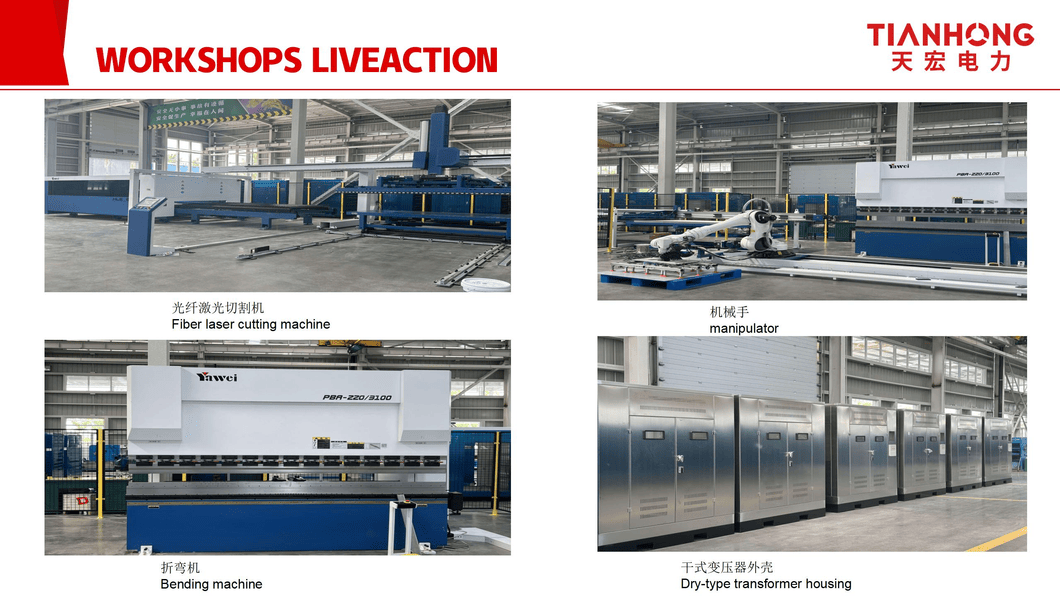

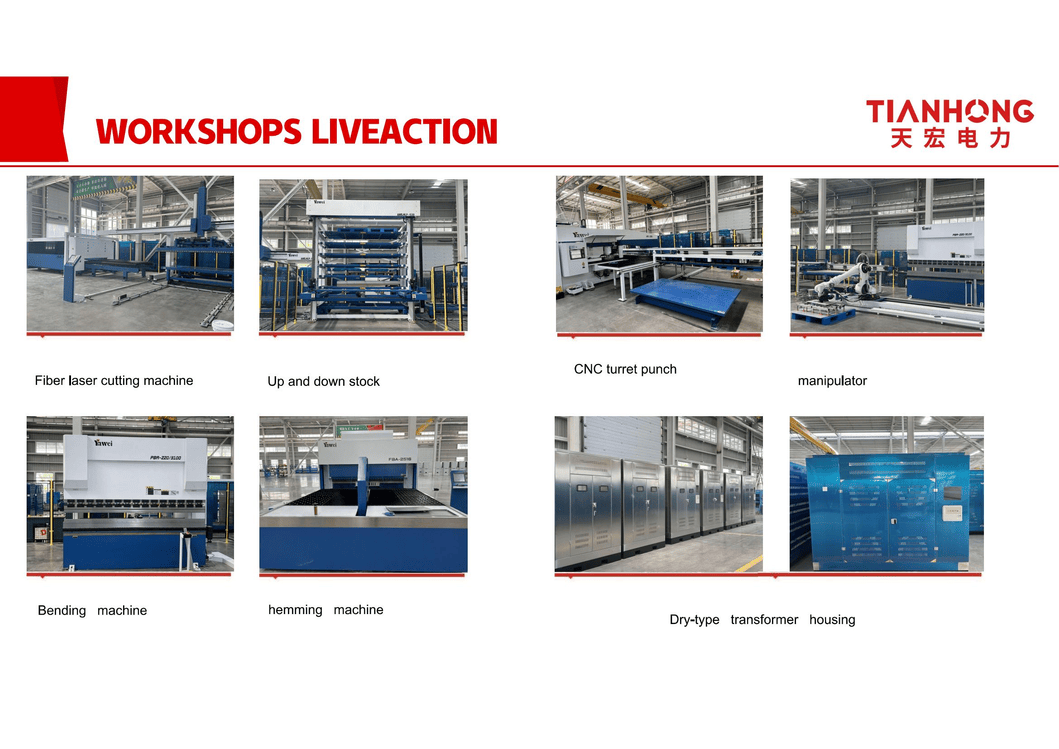

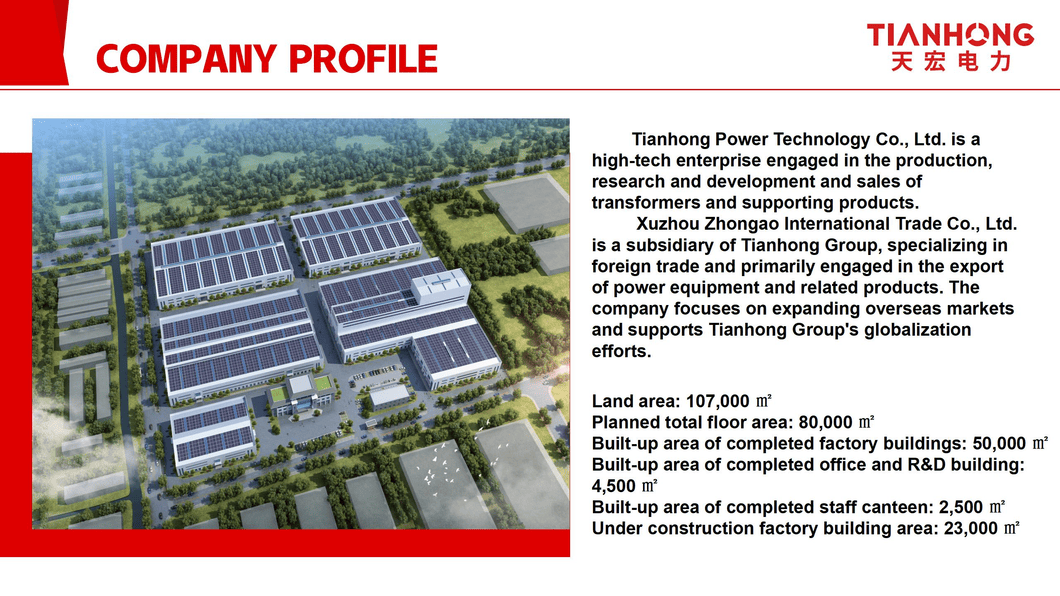

ntent="" style="background-color:#ddebf6;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Company Profile

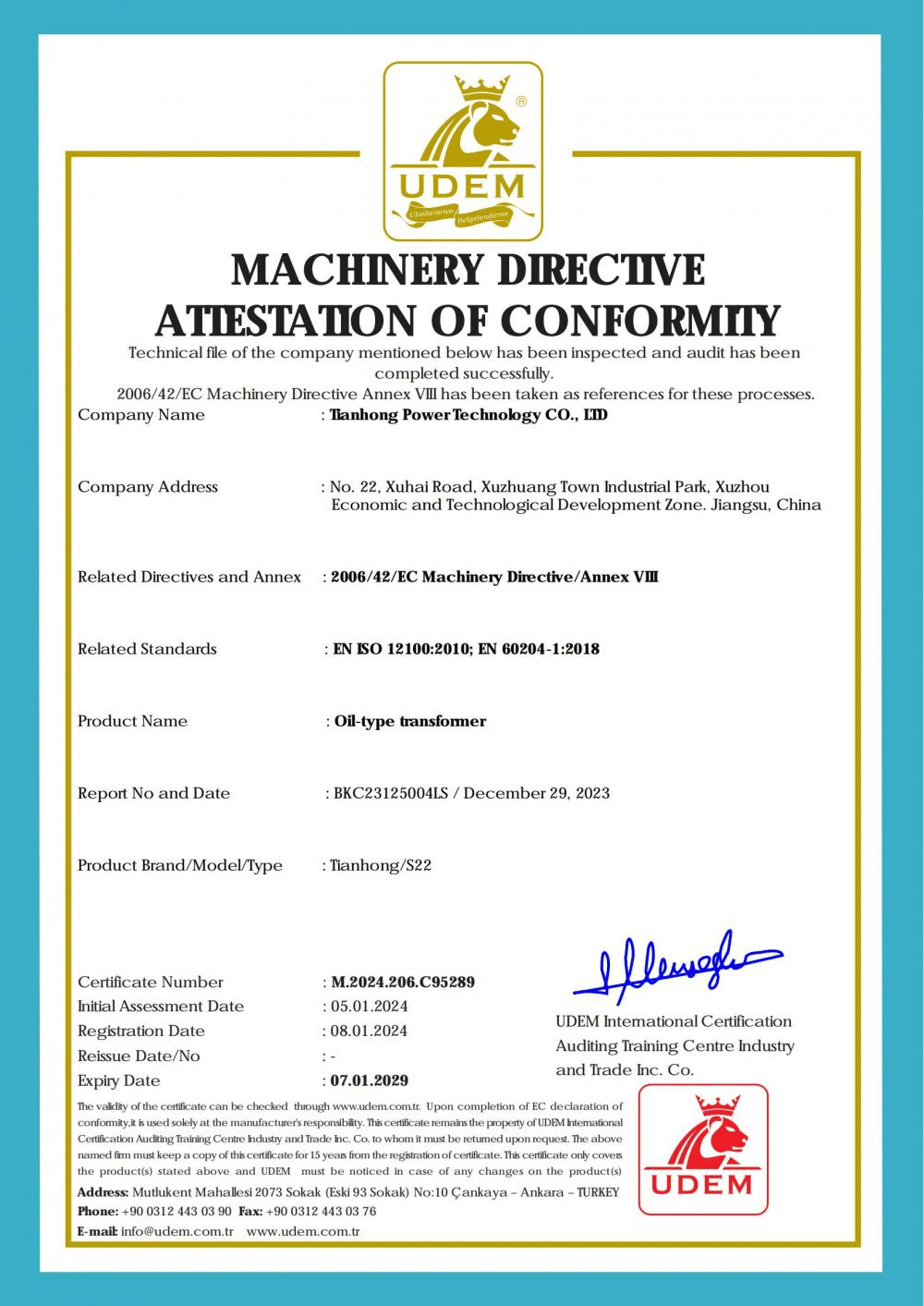

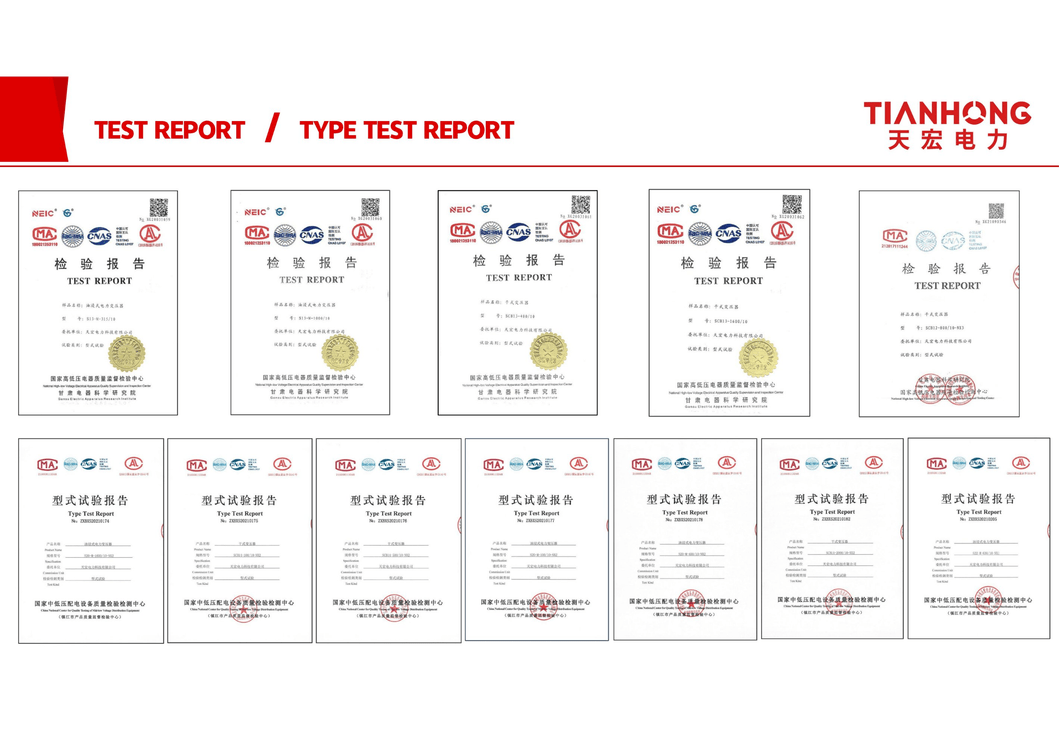

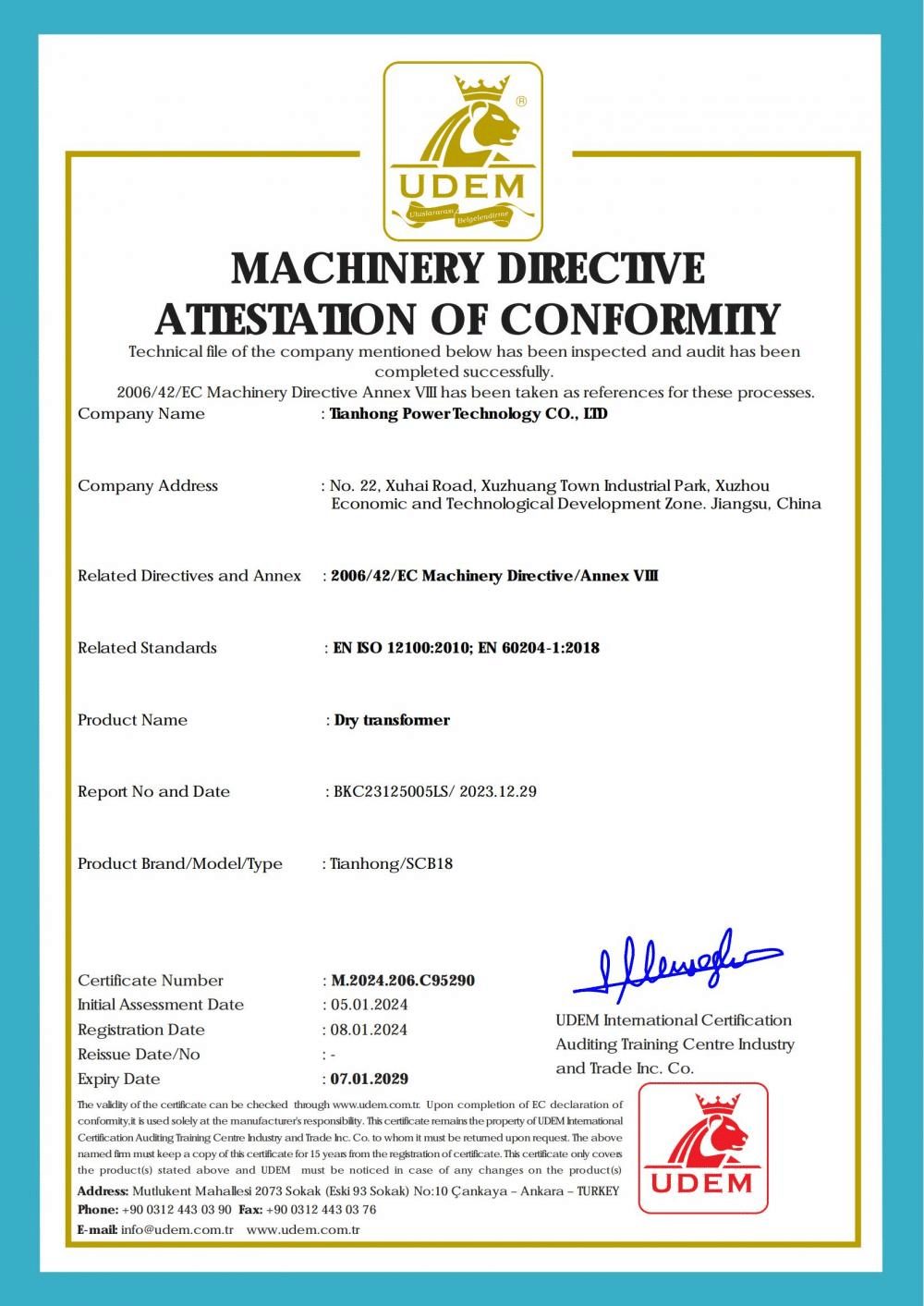

ntent="" style="background-color:#ddebf6;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Certifications

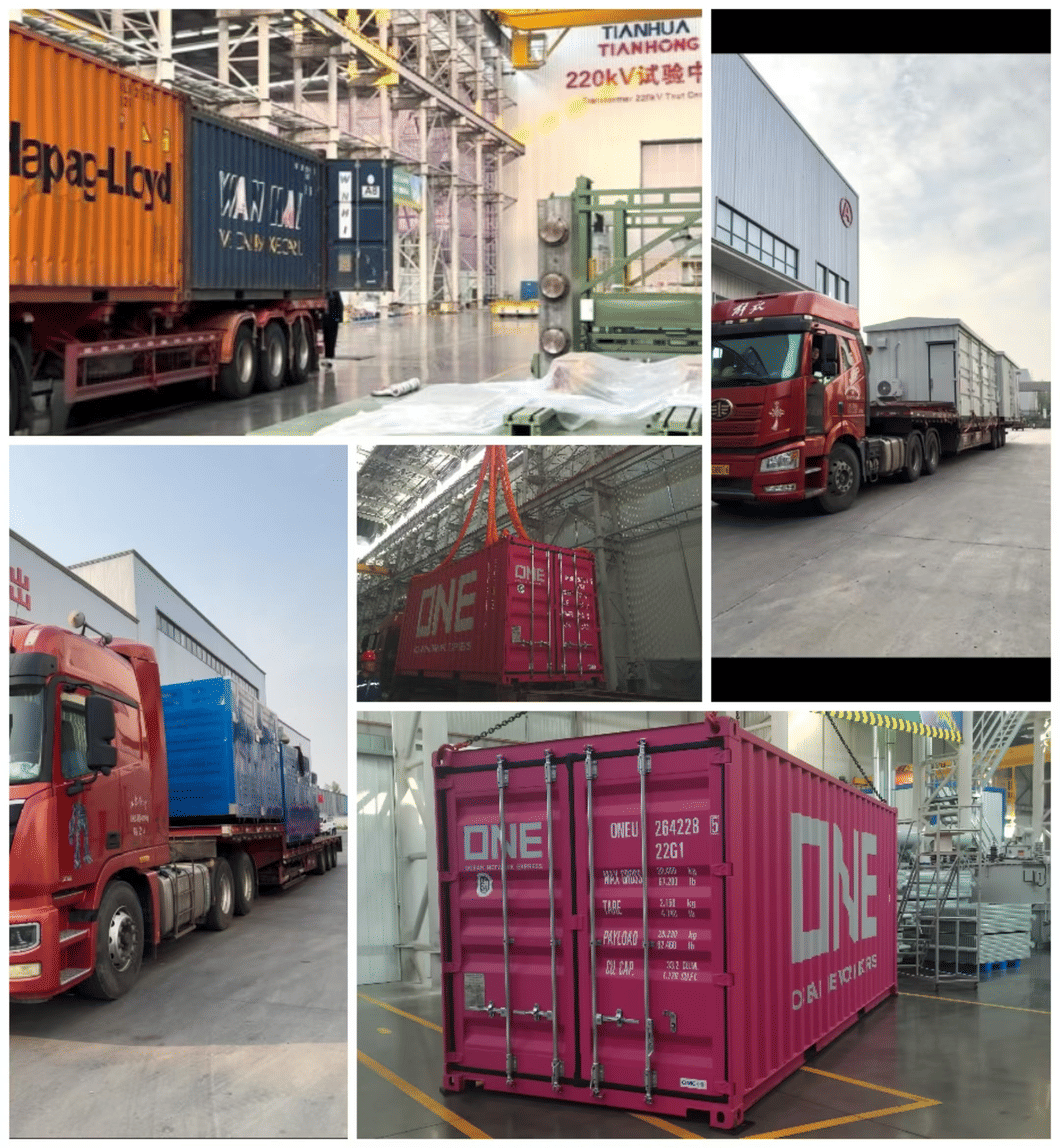

ntent="" style="background-color:#ddebf6;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Global Exhibition
ntent="" style="background-color:#ddebf6;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Please mention you found us on ElecUnite when contacting. Thanks!
Platform serves as information intermediary only
| Price | ＄600.00Compare | |
| Orders | None | |
| View | 964 | |
| Send out goods | Beijin | |
| Inventory | 10000Minimum order1 | |
| Brand | Tianhong | |
| Expiry | Long-term | |
| Editdate | 2026-04-29 16:26 |

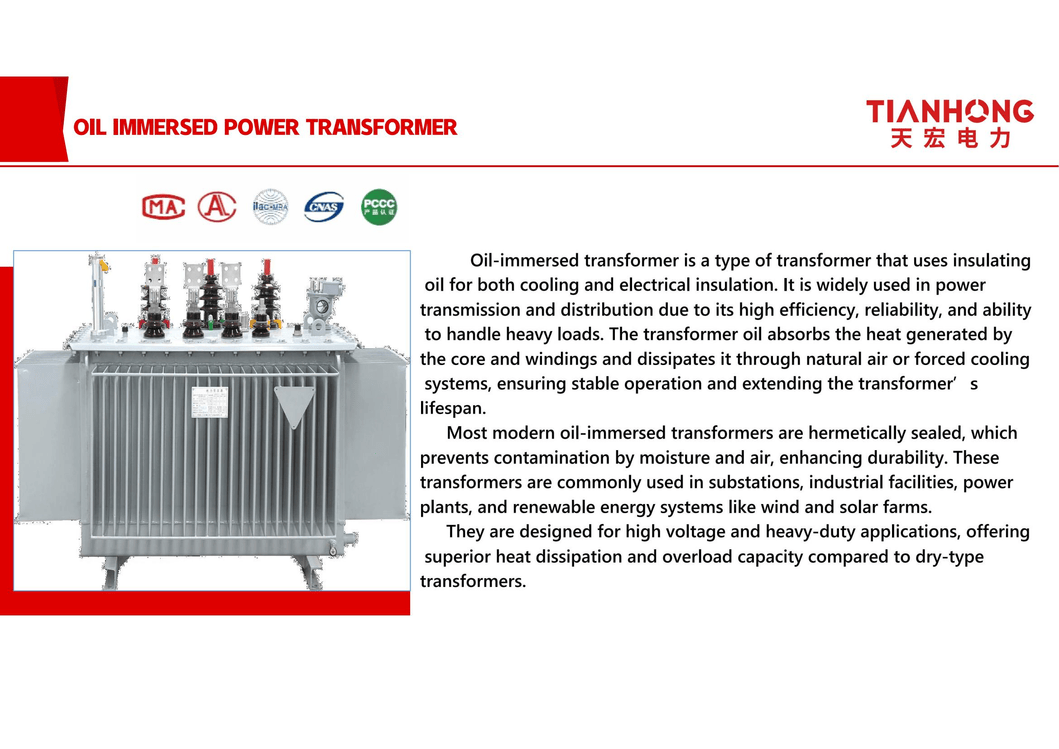

Tianhong Power Technology Co., Ltd.'s Custom Compact 1000kVA 20kv Oil Immersed Transformer Power UL CE Pulse Transformer Collection
