Detailed description

Product Description

Company Info.

Product Description

Product Description

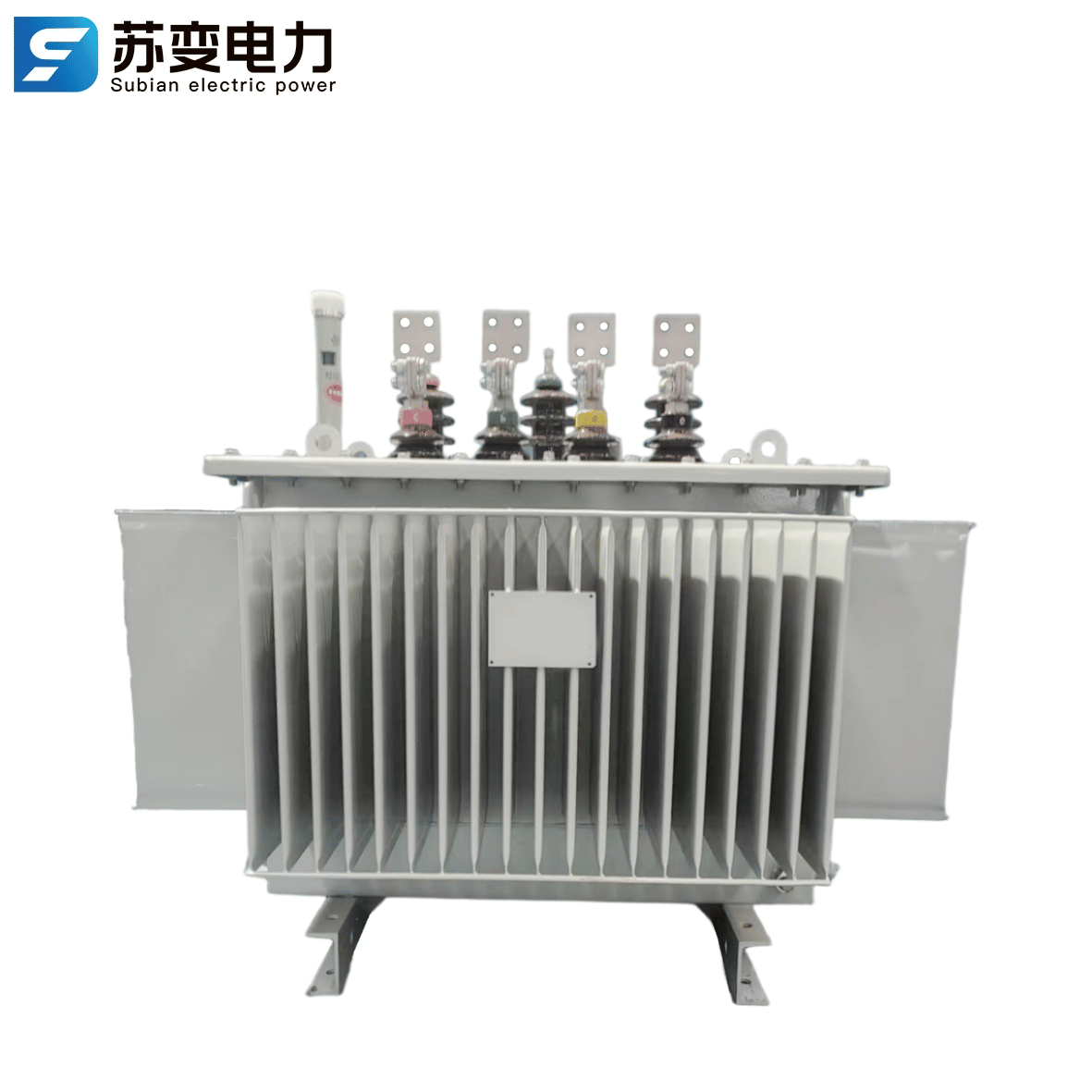

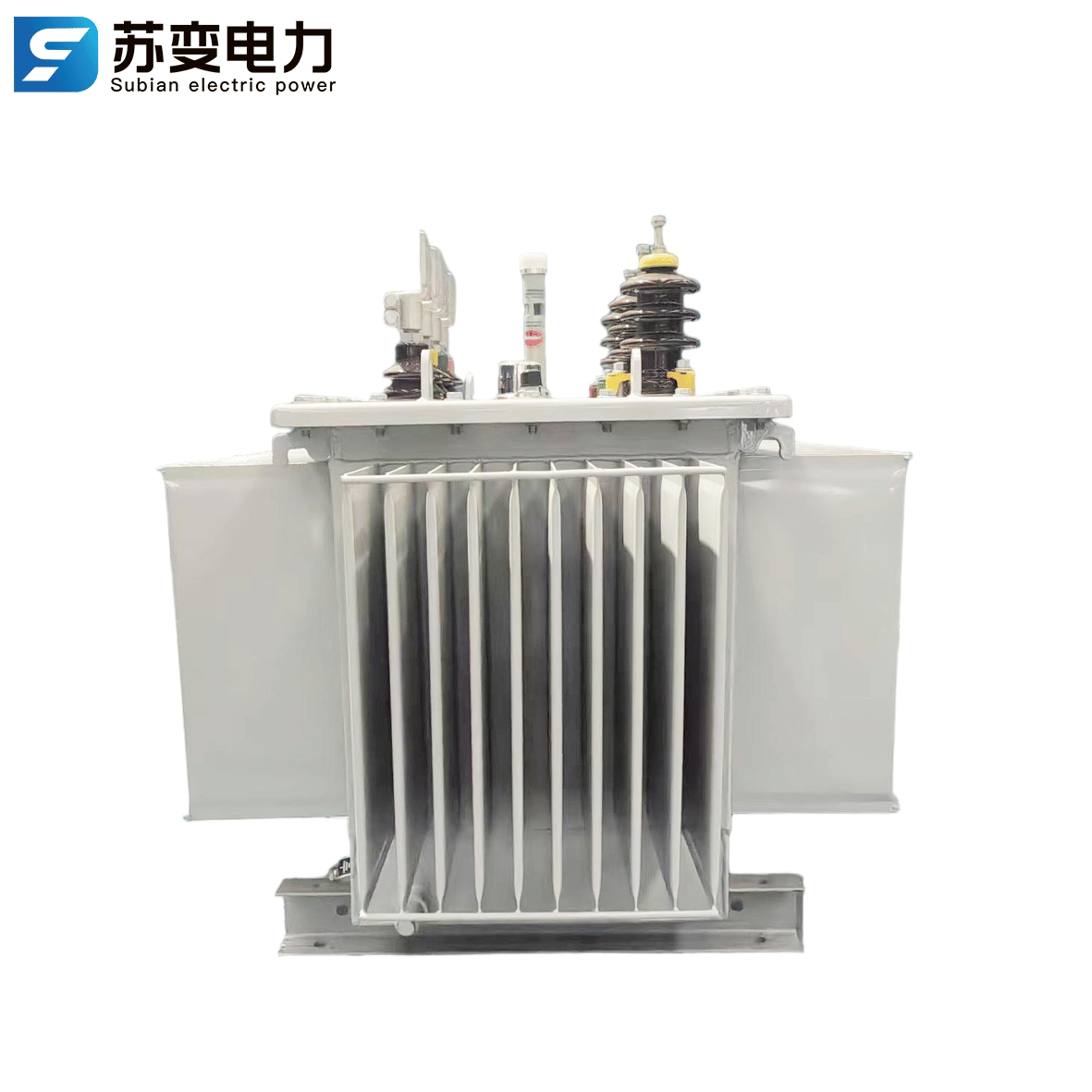

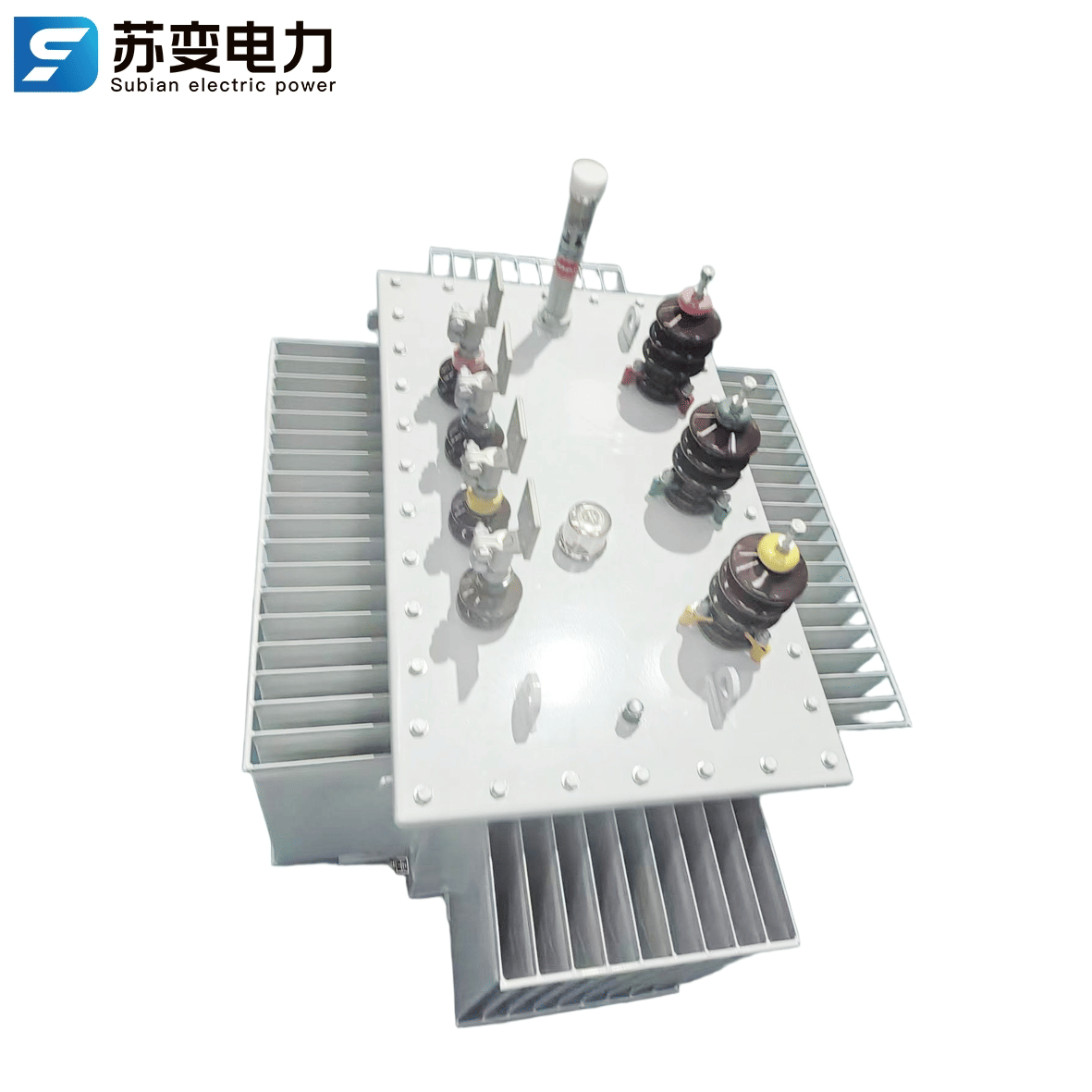

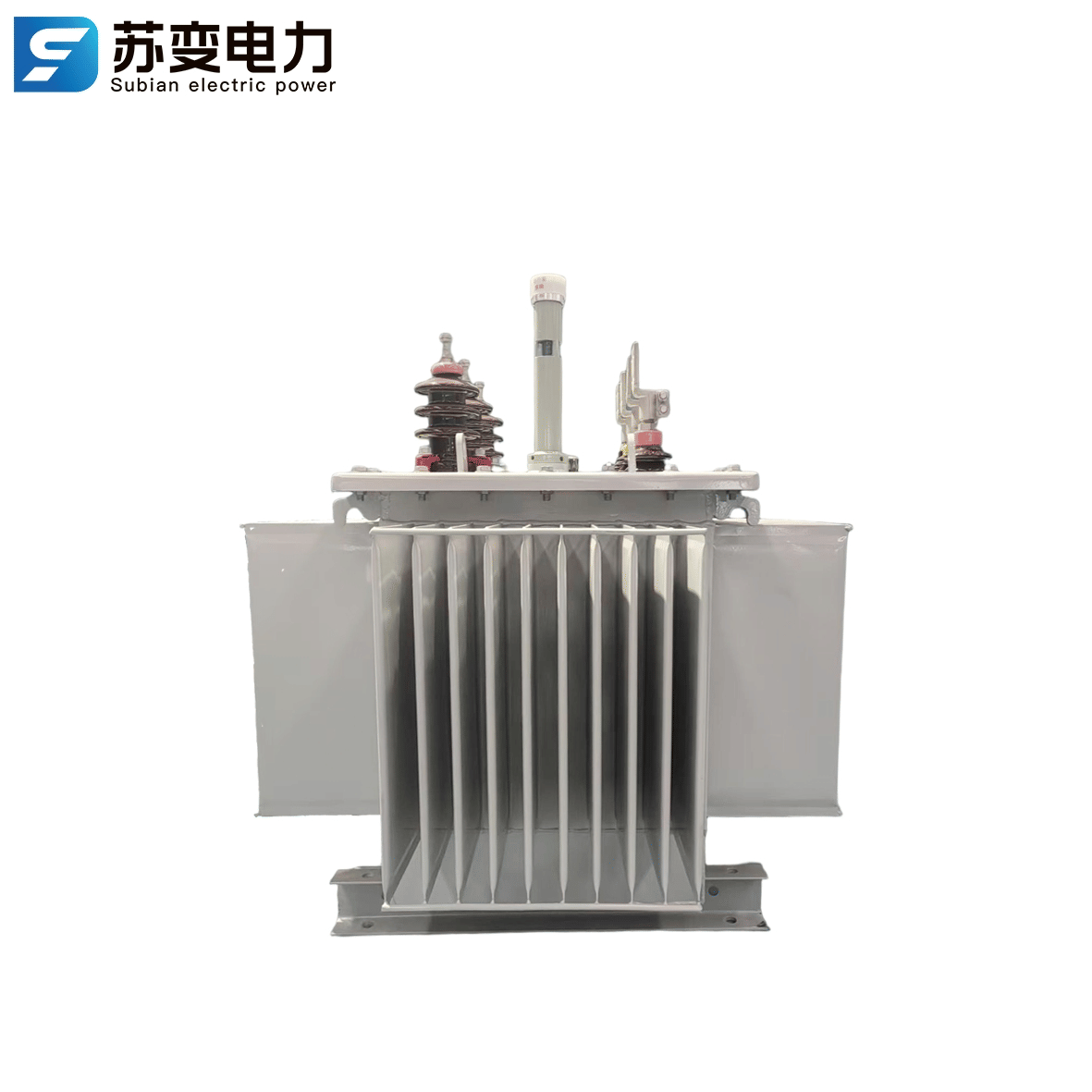

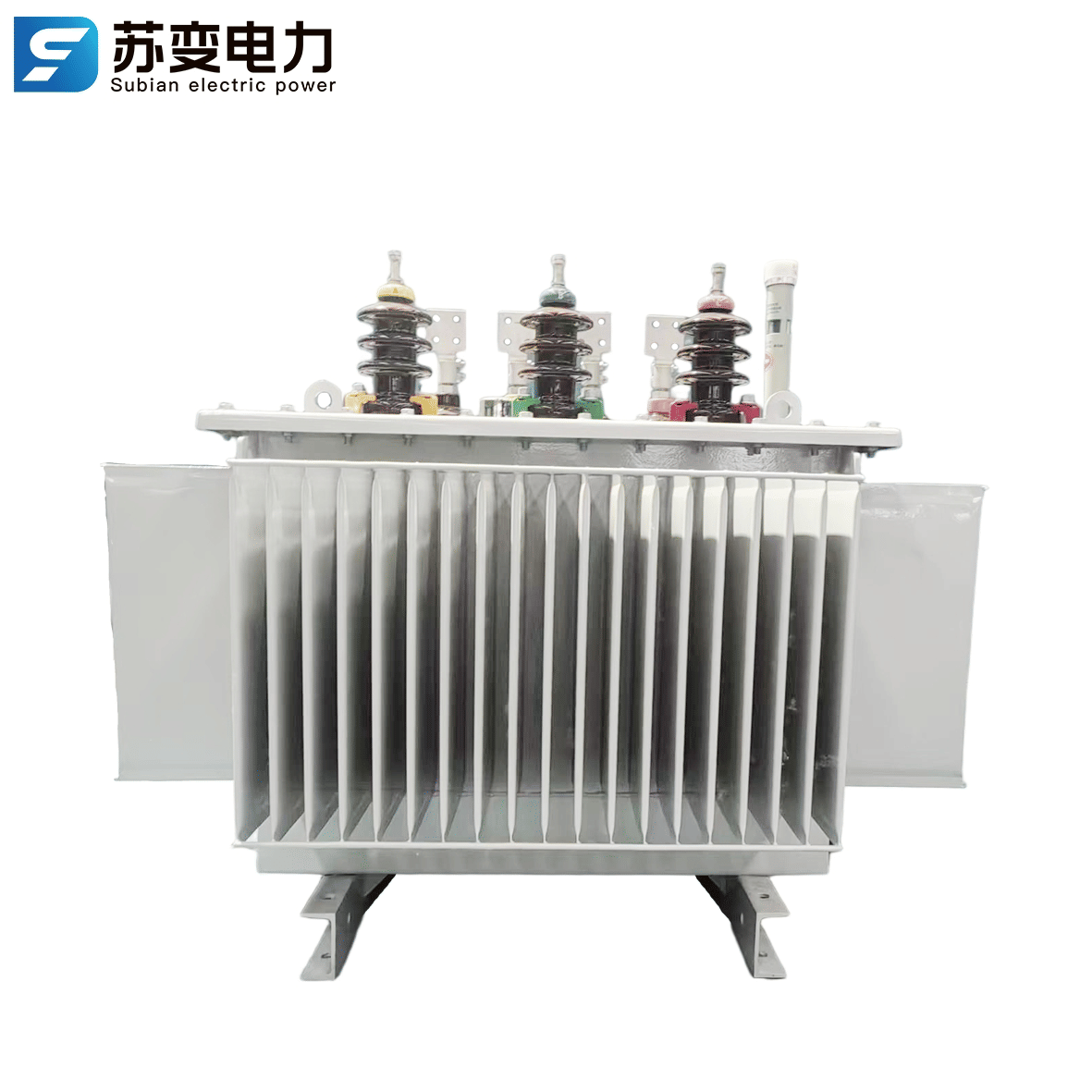

The S11, S13, S20, and S22 series fully sealed oil-immersed transformers are suitable for power systems with an alternating current of 50Hz and a rated working voltage of 20KV or below. They serve as distribution transformers for enterprises in industries such as petroleum, metallurgy, chemicals, textiles, and light industry, as well as in dusty environments.

Specification

Rated capacity KVA	Voltage combination and tap range			Connection Group Symbol	No-load Loss(W)	Load Loss(W)	No-load Current(%)	Short Circuit Impedance(%)
Rated capacity KVA	high voltage KV	Tap Range	low voltageKV	Connection Group Symbol	No-load Loss(W)	Load Loss(W)	No-load Current(%)	Short Circuit Impedance(%)
30	11 10.5 10 6.3 6	±5±2×2.5%	0.40.69	Yyn0 Dyn11 Yzn11	100	630/600	2.3	4
50					130	910/870	2.0	4
63					150	1090/1040	1.9	4
80					180	1310/1250	1.9	4
100					200	1580/1500	1.8	4
125					240	1890/1800	1.7	4
160					280	2310/2200	1.6	4
200					340	2730/2600	1.5	4
250					400	3200/3050	1.4	4
315					480	3830/3650	1.4	4
400					570	4520/4300	1.3	4
500					680	5410/5150	1.2	4
630				Yyn0 Dyn11	810	6200	1.1	4.5
800					960	7500	1.0	4.5
1000					1150	10300	1.0	4.5
1250					1360	12000	0.9	4.5
1600					1640	14500	0.8	4.5
2000					1960	19800	0.8	5

Company Profile

Like 0ReportCollect 0Comment 0

For more details, please call

Please mention you found us on ElecUnite when contacting. Thanks!

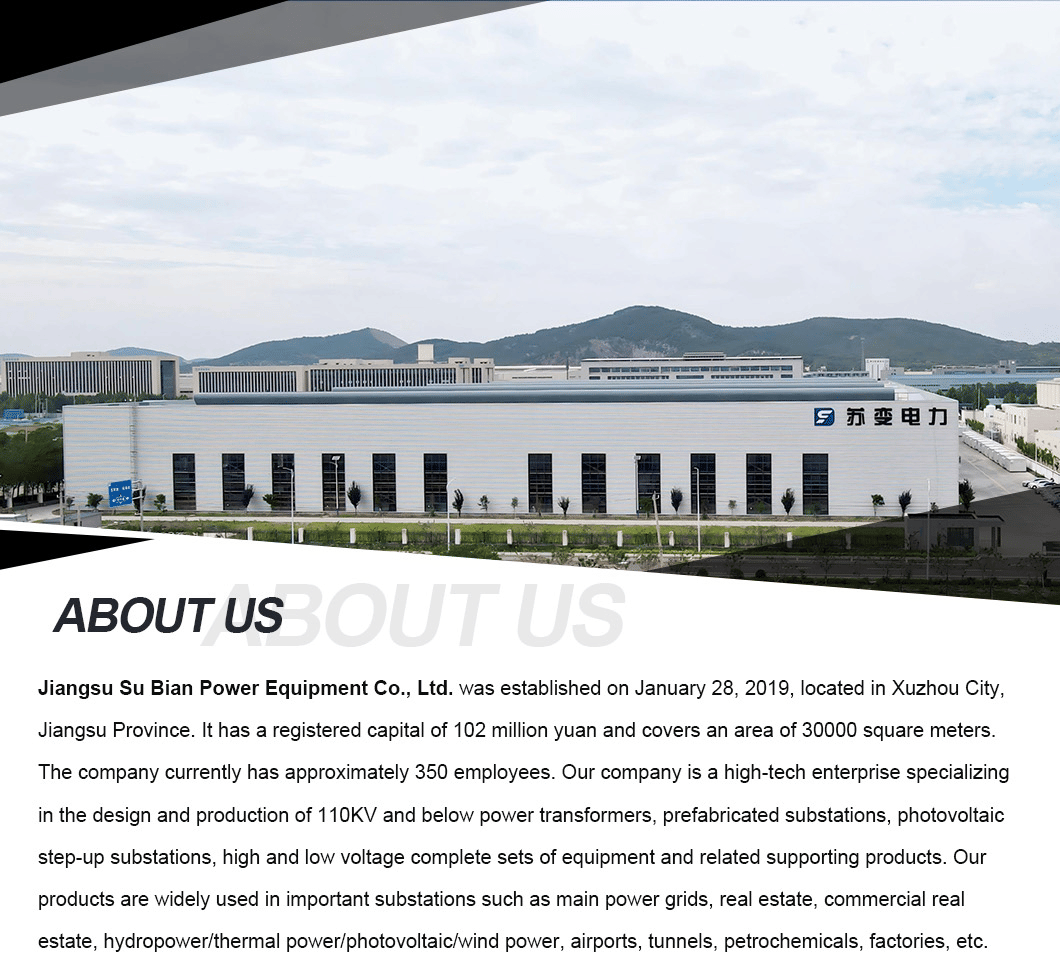

Company Profile
