Packaging & Delivery

Package Size 2800.00cm * 2200.00cm * 2400.00cm Package Gross Weight 800.000kg

Product Description

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;">Product Description
THE STRUCTURE AND ADVANTAGES

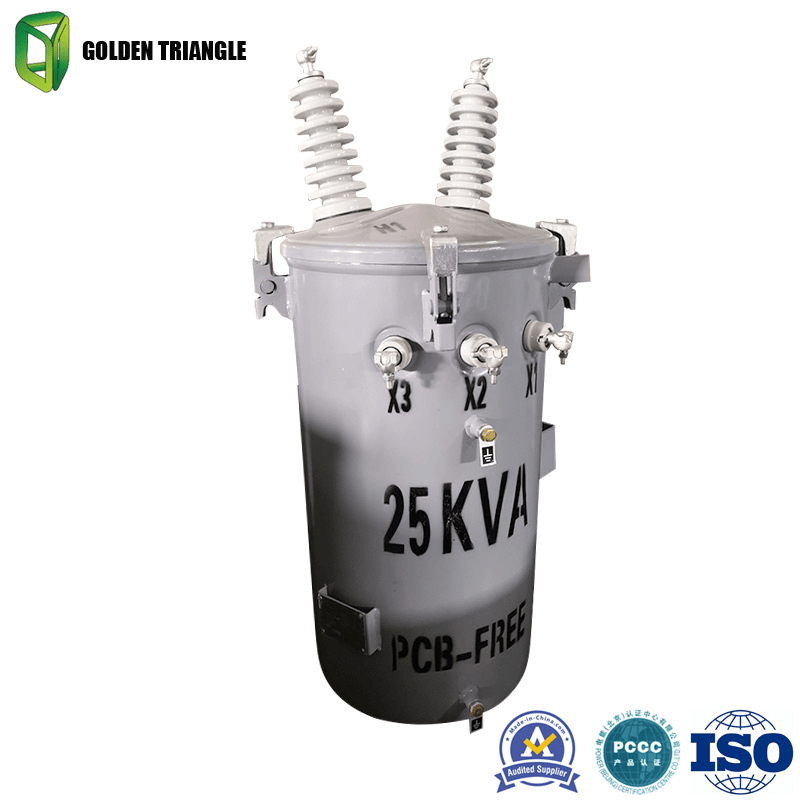

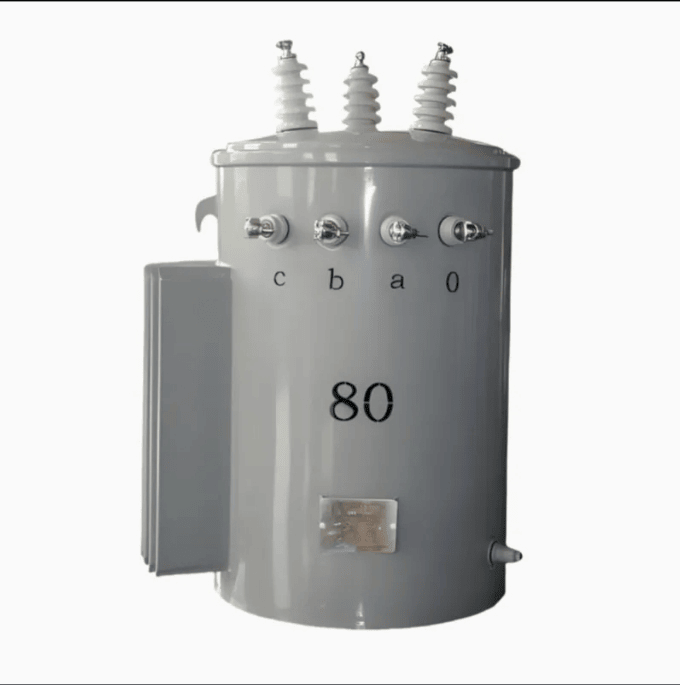

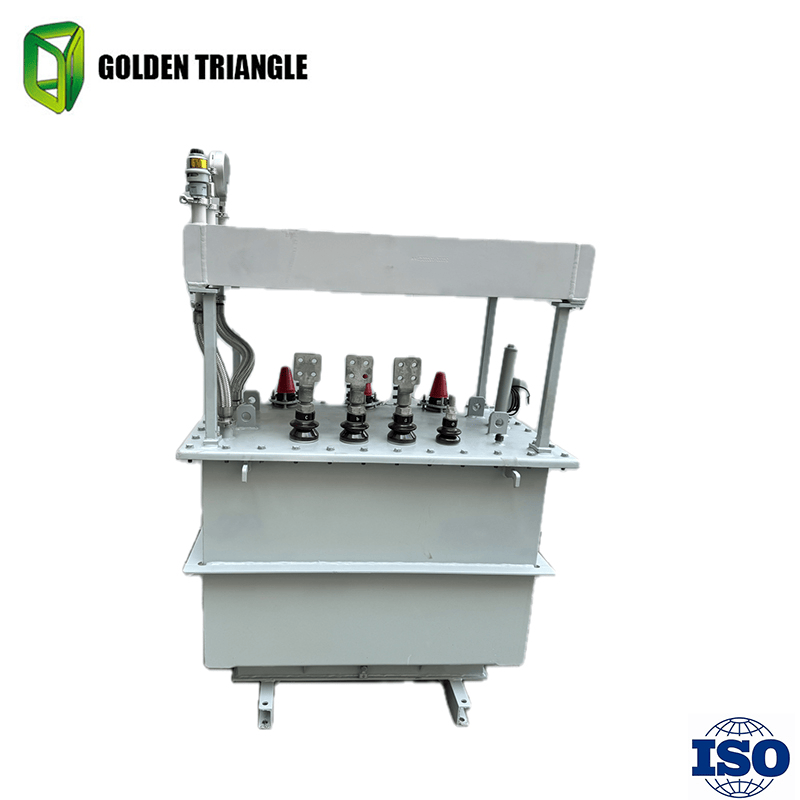

D11 series high-eficiency, low.loss single-phase transformer is suitable for agricutural production, ighting & power consumption in rural power grid andremole mountalinous areas.t can aiso be used for urban power grid transfomation, wilhave good energy*saving elfect. The transformer can be installed direclyon the plaorm, or installed on the wire pole, Single-phase ol immersed distribution transfomer produced by our company has passed typetest by the nationalqualty supervision and inspection center of transformer . The combination of low votage of the transformer is 2 * 0.23kv, the principle and the ue of thelransformer are dilerent from the ordinary sinale chase two wire system translormer. it's low voltage curent is only hall comparing rated curent oordinarysingle-phase transformerla1-a2 voltage is 2 imes of the 230v, therefore, the current only hall .the bigest advantage is line loss is only 1/4(P=12R)comparing the use of the former with the latter one , which is the main reason for ordinary foreign users of the single-phase transformer.

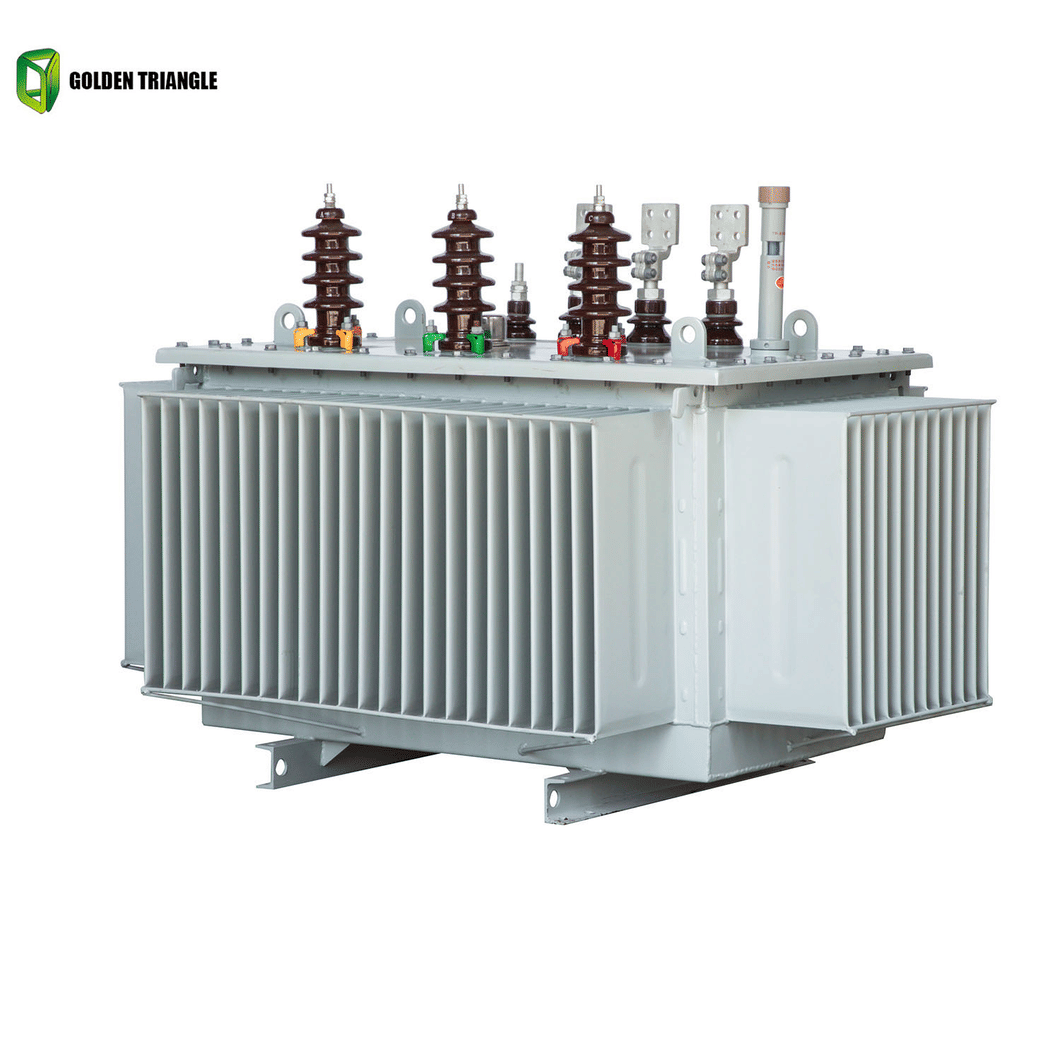

The oil-immersed transformer is a new type of high-performance transformer with a more reasonable structure and better performance. It uses oil as the main insulation medium and relies on oil as the cooling medium, such as oil-cooled self-cooling, oil-cooled air-cooling, oil-cooled water-cooling, and forced oil circulation, etc. The main components of the transformer include the iron core, windings, oil tank, oil reservoir, respirator, explosion-proof tube (pressure release valve), heat sink, insulation bushing, tap changer, gas relay, thermometer, and oil purifier, etc.
Due to the long-term immersion of the silicon steel sheets in the transformer, oil can seep into the interlayers, and the transformer oil has elasticity to act as a buffer. Therefore, the oil-immersed transformer has low noise. However, the voltage regulating switch is inside the oil tank. When adjusting the voltage, the contact condition of the switch cannot be seen outside. If the contact is not good, it is equivalent to a break in that circuit. If the contact is poor, when the load is too large, the switch is prone to burn out.

Transformer normal service conditions

1.The height above the sea level is below 1000m;

2.Highest air temperature +40ºC;

3.Highest daily average air temperature+30ºC;

4.Highest annual average air temperature +20ºC;

5.Lowest outdoor air temperature -25ºC.
(defines in detail when transformer in special service conditions )

Type of cooling
  (1) Oil-immersed transformers usually adopt three cooling methods: oil-immersed self-cooling, oil-immersed air-cooling, and forced oil circulation.
The oil-immersed self-cooling method relies on the natural convection of oil to dissipate heat.   (2). The oil-immersed air-cooling method is based on the oil-immersed self-cooling method, and additional fans are added to blow air into the oil tank and oil pipes to enhance the heat dissipation effect. Forced oil circulation uses an oil pump to extract the hot oil from the transformer, cool it outside the transformer, and then send it back into the transformer.
Structure Function

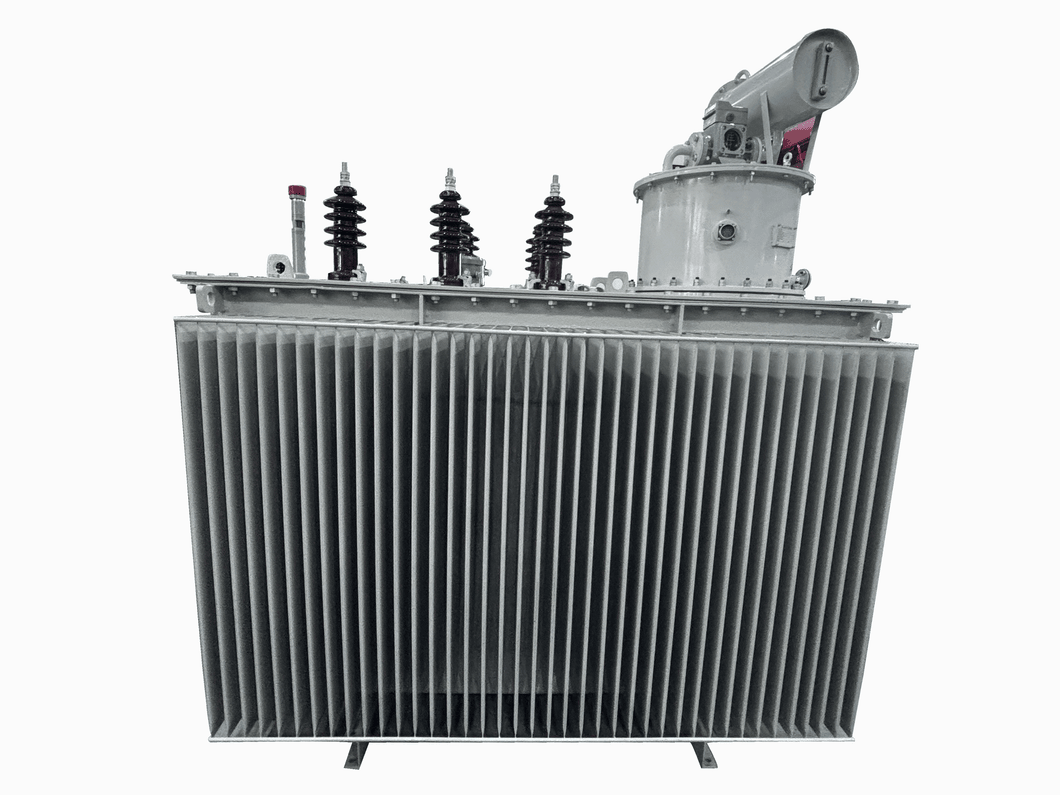

  In the main substation of the urban rail transit power supply system, the main transformer usually adopts a three-phase oil-immersed transformer. The oil-immersed transformer mainly consists of the core, windings, oil tank, voltage regulating device, radiator, oil reservoir, gas relay, insulation bushing, explosion-proof tube, etc. 1. Core
The core is composed of silicon steel sheets stacked together with good magnetic conductivity. It forms a magnetic flux closed circuit, and the primary and secondary windings of the transformer are wound on the core.
The transformer core is divided into two structures: core type and shell type. Currently, the widely used transformers are of core type. The core of the core type transformer consists of the core column and the yoke. The core of the oil-immersed transformer has oil channels inside for cooling the core, which facilitates the circulation of transformer oil and also enhances the heat dissipation effect of the equipment.
2. Winding
The winding, also known as the coil, is the conductive circuit of the transformer. It is made by winding copper wire or aluminum wire into multiple layers of cylindrical shapes. The primary and secondary windings are concentrically arranged on the core column and are insulated from each other. The low-voltage winding is usually inside and the high-voltage winding is outside. The insulating material is wrapped around the wire to ensure insulation between the wires and between the wires and the ground. 3. Oil Tank
The oil tank is the outer shell of the oil-immersed transformer. Besides holding oil, it is also used to install other components. [2]
4. Voltage Regulator
The voltage regulator is set up to ensure the stability of the secondary voltage of the transformer. When the power supply voltage fluctuates, the voltage regulator is used to adjust the tap switch of the transformer to ensure the stability of the secondary output voltage. The voltage regulator is divided into on-load voltage regulator and off-load voltage regulator. 5. Radiator
The radiator is installed on the oil tank wall. The upper and lower parts are connected to the oil tank through pipes. When there is a temperature difference between the upper and lower oil temperatures of the transformer, the radiator forms oil convection, and the cooled oil flows back to the oil tank to reduce the temperature of the transformer oil. To improve the cooling effect, measures such as self-cooling, forced air cooling, and forced water cooling can be adopted.

6. Oil Sump
The oil sump is also called the oil tank. Transformer oil will undergo thermal expansion and contraction due to temperature changes, and the oil level will rise or fall accordingly. The function of the oil sump is to provide a buffer for the thermal expansion and contraction of the oil, keeping the oil tank always filled with oil; at the same time, due to the presence of the oil sump, the contact area between the oil and air is reduced, which can slow down the oxidation of the oil.
7. Gas Relay
The gas relay, also known as the gas protection relay, is the main protection device for internal faults of the transformer. It is installed in the middle of the connecting pipe between the oil tank and the oil sump. When a serious fault occurs inside the transformer, the gas relay connects the circuit breaker trip path; when a less serious fault occurs inside the transformer, the gas relay connects the fault signal circuit.
8. Insulation Bushing
The high and low insulation bushings are located on the top cover of the transformer oil tank. For oil-immersed transformers, porcelain insulation bushings are generally used. The insulation bushing's function is to maintain good insulation between the high and low voltage windings leads and the oil tank, and to fix the leads.
9. Explosion-proof Tube
The explosion-proof tube, also known as the safety air passage, is installed on the transformer's oil tank. Its outlet is sealed with a glass explosion-proof membrane. When a serious fault occurs inside the transformer and the gas relay fails, the gas inside the oil tank will break through the glass explosion-proof membrane from the safety air passage and prevent the transformer from exploding.

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">Our Advantages 1.The insulation performance is excellent, which can reduce the insulation distance and lower the cost.

2.The transformer oil has a low viscosity and good heat transfer performance.

3.It can effectively protect the core and windings from the influence of moisture in the air.

4.It protects the insulating paper and insulating paperboard from the action of oxygen, reduces the aging of insulating materials, and extends the lifespan of the transformer.

5.Low maintenance cost and low noise level   ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">Product Parameters

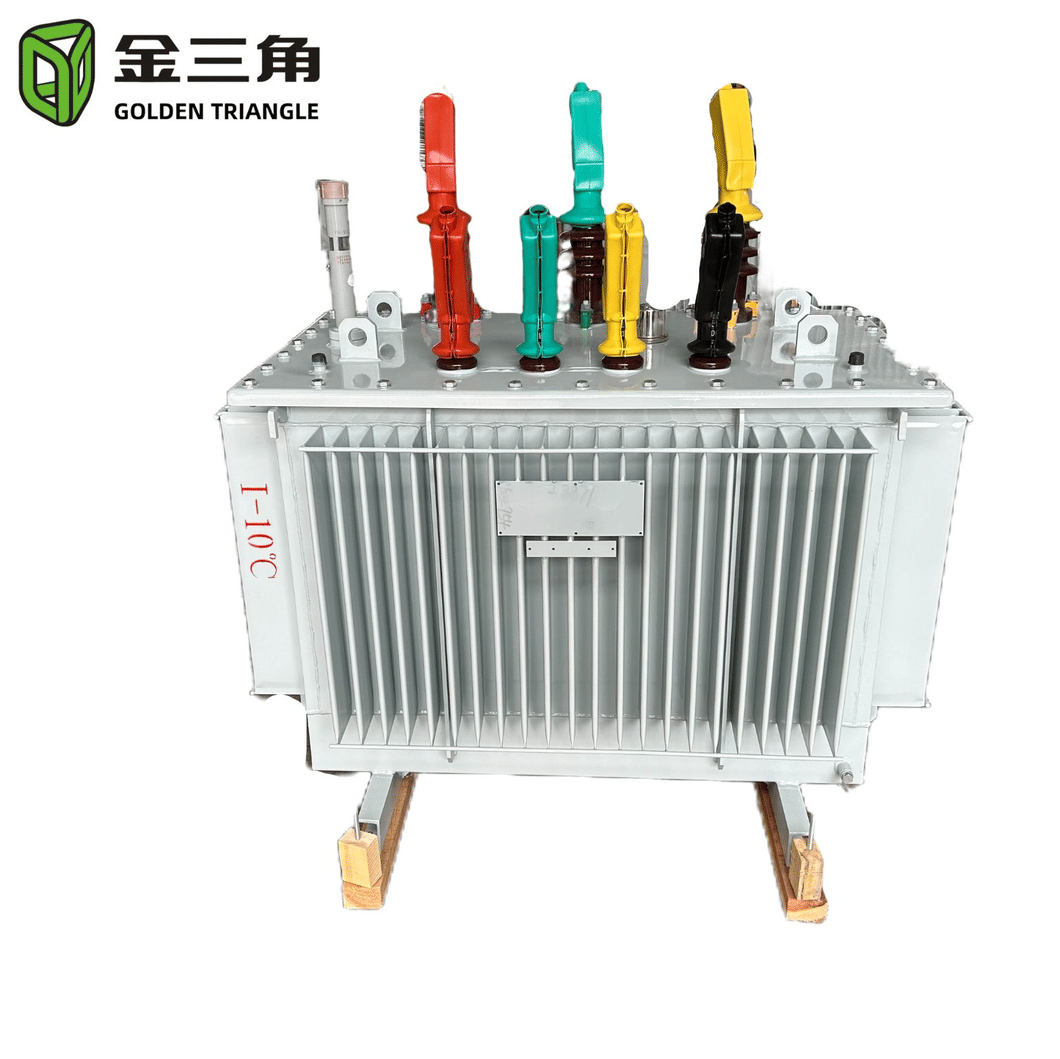

D14-M-(10/160)/ 10 Single Phase Oil-Immersed distribution Transformer

Rated capacity(kVA)	High voltage(kV)	Tap range	Low voltage(kV)	connected group label	No-load loss(w)	Load loss (75ºC)(W)	No-load current(%)
30	6 6.3 6.6 10 10.5 11	±2*2.5 ±5	0.4	Dyn11 Yyn0 Yzn11	80	630/600	1.5
50					100	910/870	1.3
63					110	1090/1040	1.2
80					130	1310/1250	1.2
100					150	1580/1500	1.1
125					170	1890/1800	1.1
160					200	2310/2200	1.0
200					240	2730/2600	1.0
250					290	3200/3050	0.9
315					340	3830/3650	0.9
400					410	4520/4300	0.8
500					480	5410/5150	0.8
630				Dyn11 Yyn0	570	6200	0.6
800					700	7500	0.6
1000					830	10300	0.6
1250					970	12000	0.5
1600					1170	14500	0.5
2000					1550	18300	0.4
2500					1830	21200	0.4

  NOTICE !
Please tell us the imformation before your ording. The imformation include:
1. Prefabricated substation type;
2. Transformer model and capacity;
3. High and low voltage circuit main wiring scheme;
4. Types and parameters of electrical components with special requirements;
5. Shell Color;
6. Names, quantities and other requirements of spare parts and spare parts;
Two-year warranty
More than three certifications

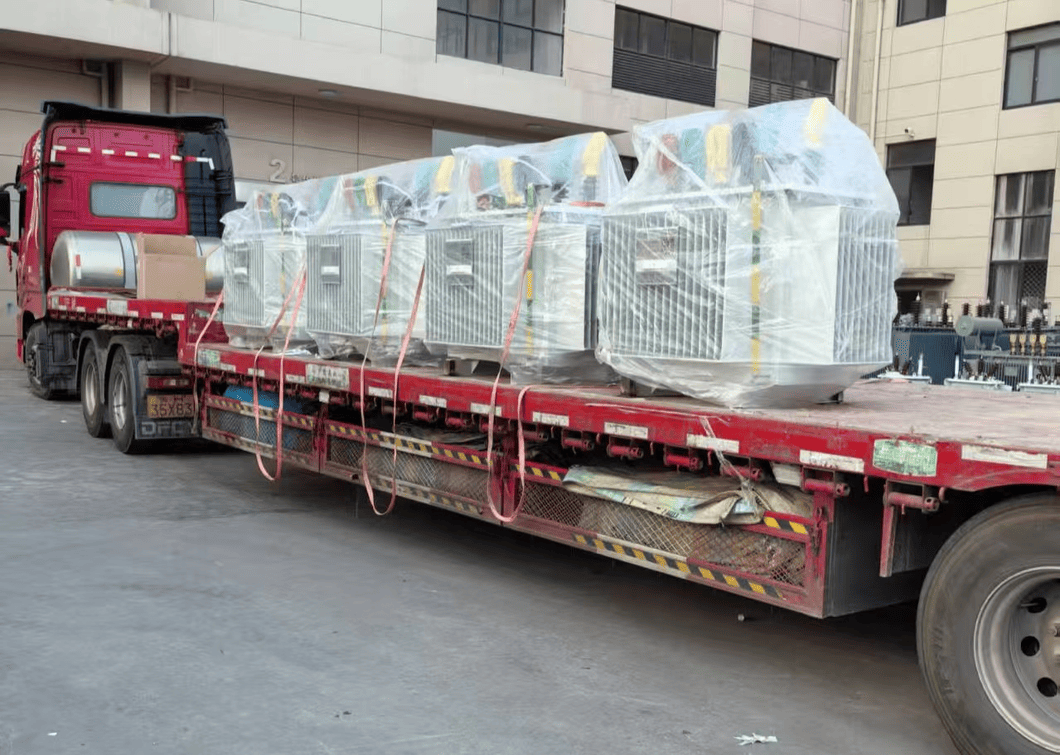

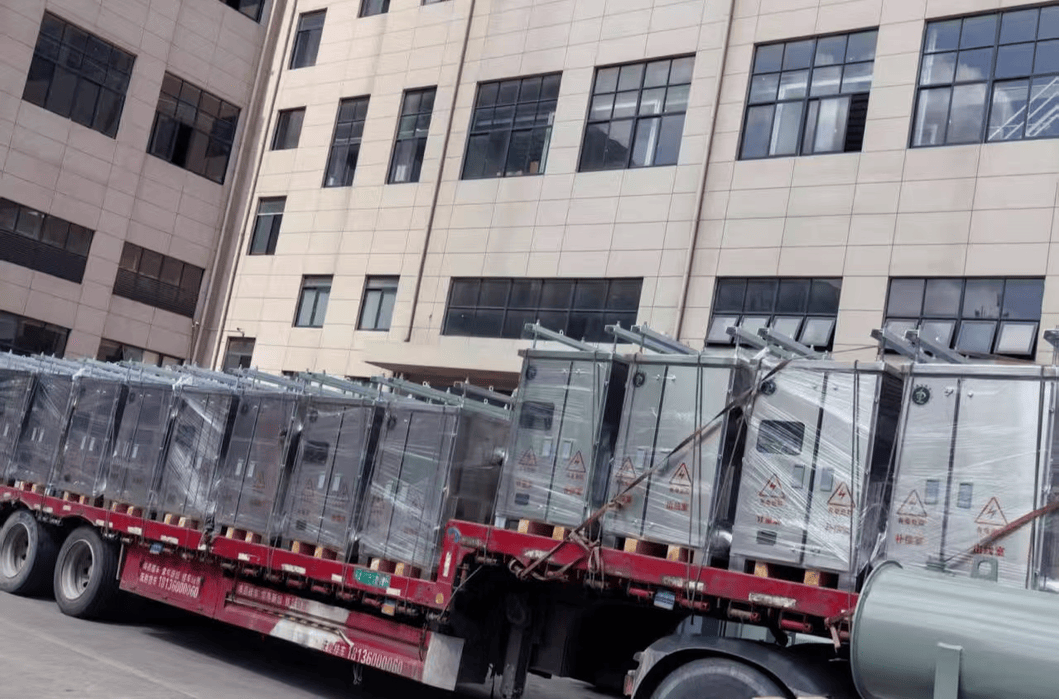

15 years of accumulated experience ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">Packaging & Shipping ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">product recommendation ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">The exhibition we attended Display area


  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">Company Profile
ABOUT OUR COMPANY
    Golden Triangle Power Technology Co., Ltd.(stock name: Golden Trianglestock code: 837424) was established in November 2009. lt is a company specializingin the research and development, production, sales, and technical services of powerproducts such as three-dimensional coil core transformers, amorphous alloy coretransformers,amorphous three-dimensional coilcore transformers, photovoltaicsubstations, energy storage equipment, high and low voltage switchgear, European,American, Chinese outdoor box substations,intelligent substations, etc A productionservice oriented enterprise integrating construction EPC. The products are widelyused in fields such as State Grid, Southern Power Grid, railways, mines, infrastructure, metallurgy, roads and bridges, and real estate management system
    The company has passed ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, ISO45001:2008 occupational health and safety management system certification, PCCC energy-saving product certification, national mandatory product"CCC"certification, CQC China quality certification, AAA credit rating certification, etc. The company has been rated as a national high-tech enterprise, a provincial "specialized. special and new" small and medium-sized enterprise, one of the top 100 scientific and technological enterprises with the most growth potential in the province, a provincial small and medium-sized scientific and technological enterprise, and a municipal green factory. The company has provincial high-tech enterprise research and development center academician workstation, doctor innovation workstation, 3 invention patents and 51 utility model patents.
    The company's products have been recorded in the promotion catalog of the"Energy Saving and People Benefiting Project" and the "Recommended Catalog of Energy Saving Electromechanical Equipment" of the Ministry of Industry and Information Technology, the Ministry of Finance and the National Development and Reform Commission.lt is the first power industry enterprise in Wenzhou to receive direct subsidies from the Ministry of Finance for product sales. The company's products have won honorary titles such as the national industrial energy saving technical equipment products, the first set of products in key fields of provincial equipment manufacturing, and the provincial excellent new industrial products. The production standards of the main products "SCB13-RL solid triangle ironcore dry-type transformer" and "SBH16-RL solid triangle rolled iron core amorphous transformer" are listed as "Zhejiang manufacturing quality standard". The company led the drafting of 10 standards, including "GB/T32825-2016 National Standard for Three phase Dry type Three dimensional Wound Core Distribution Transformer","NB/T 10483-2020 Standard for Three phase Dry type Amorphous Alloy Three dimensional Wound Core Distribution Transformer" and "T/CEElA 251-2016 Standard for Composite Transformers for Photovoltaic Power Generation", making positive contributions to energy conservation and emission reduction in China's powerindustry and the development of green energy technology.

THE HONOR OF COMPANY Nowadays, market competition is ncreasingly fierce, science and technology changes rapidly. Adhereing to persistent philosophy of "quality is the enterprise life", with the full implementtation of ISO9001:2000 international quality management system, Golden Triangle frimly established "quality execellence .service perfect, product quality, continuous quality improvement" as the quality policy to ensure customer satisfaction. The company was included in "energy saving and Huimin engineering energy-effcient distribution transformer" by the national development and Reform Commission, Ministry of Finance, Ministry of industry and imformation in its first promotion of enterprise.

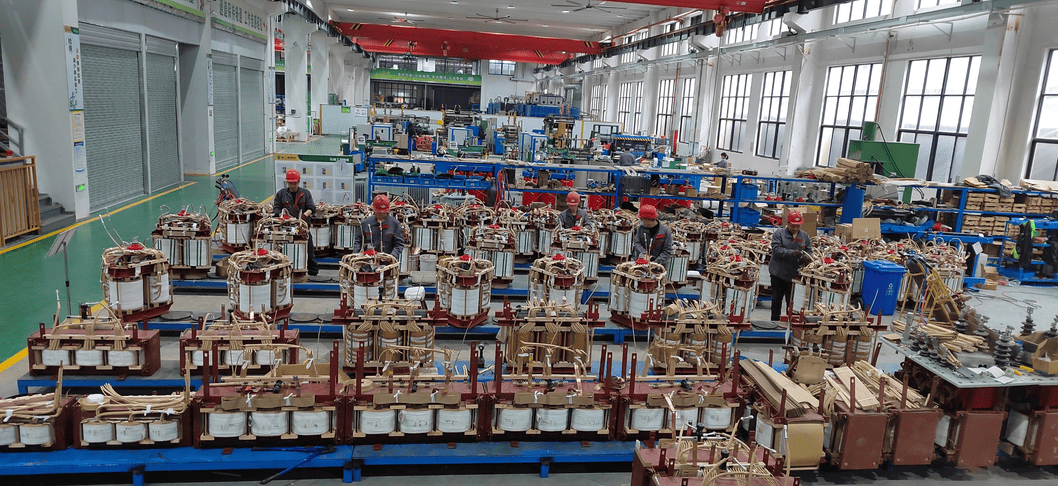

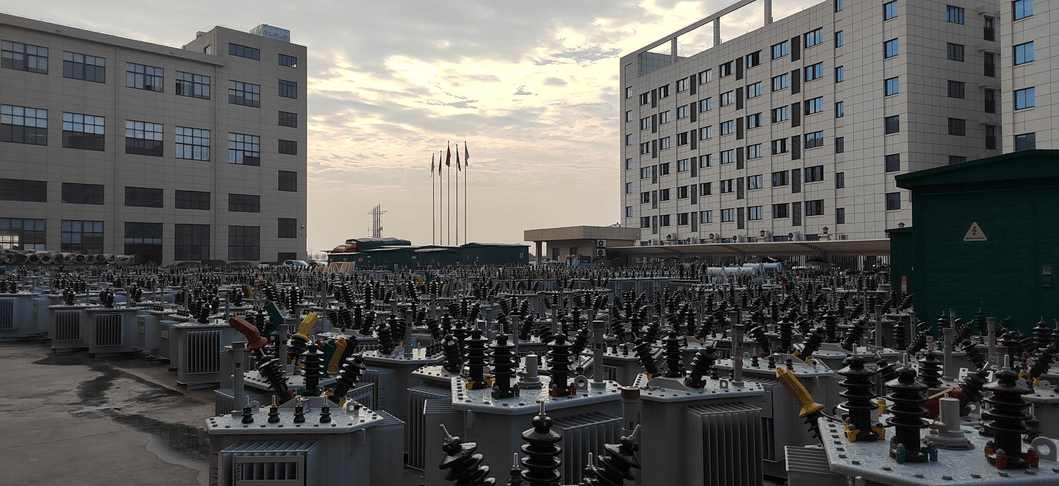

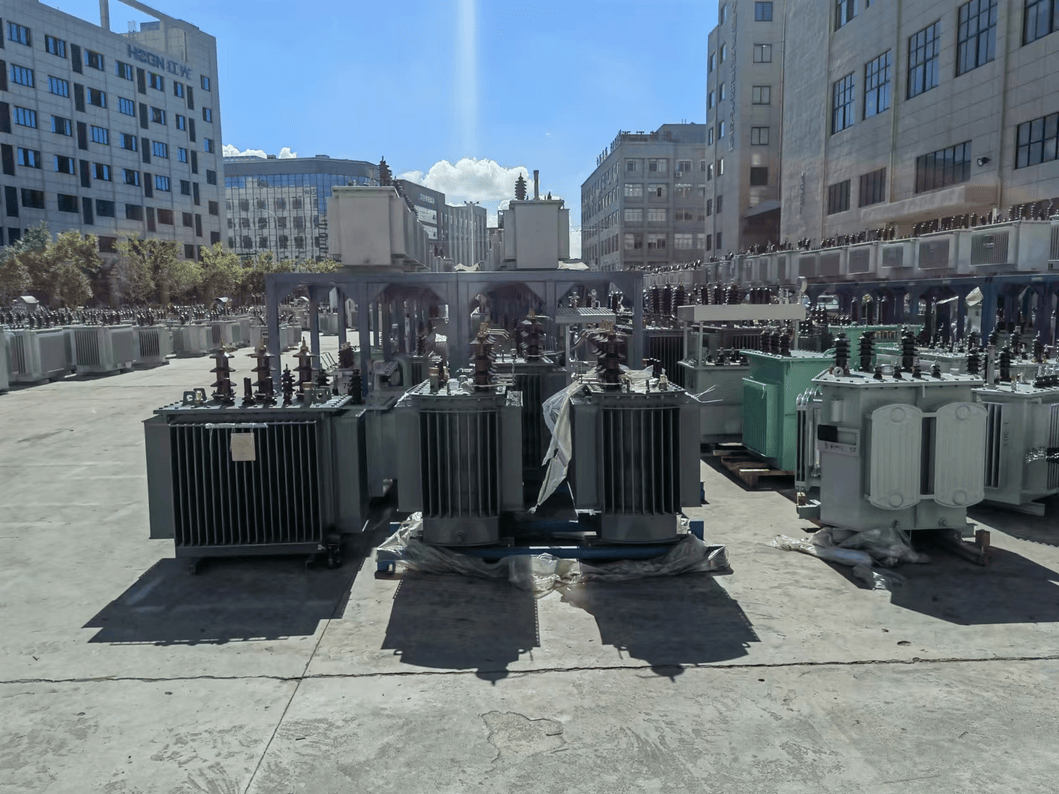

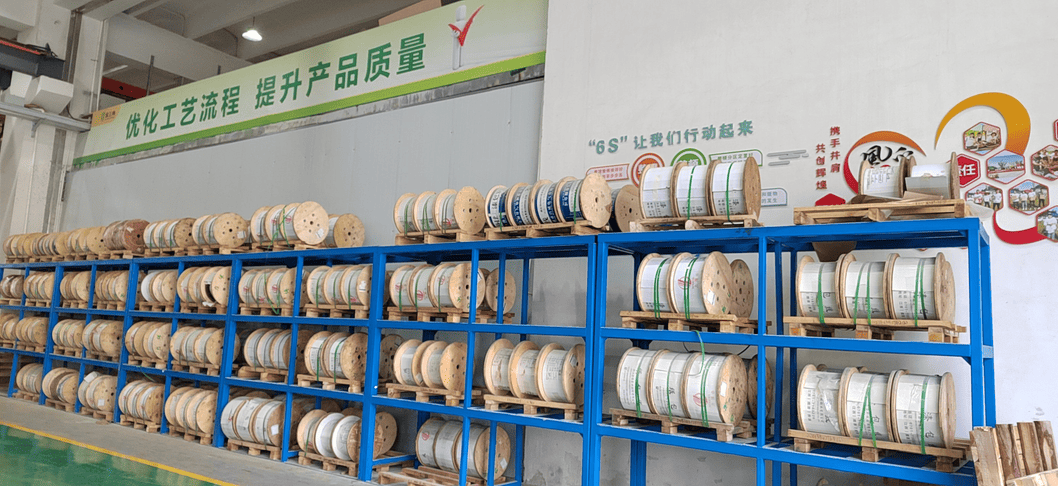

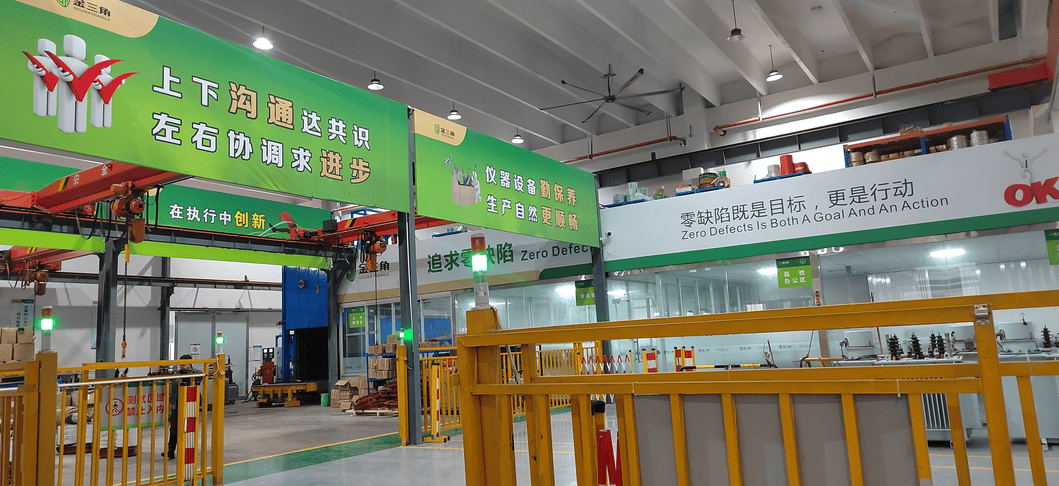

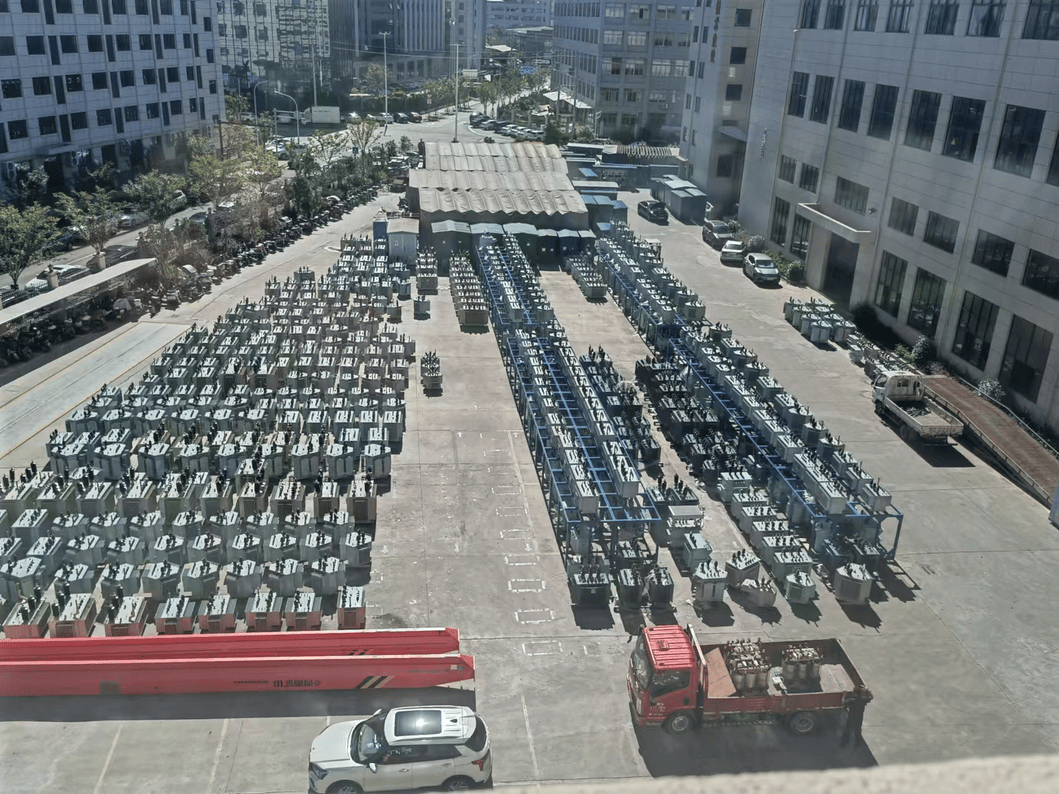

SEVERAL PICTURES ABOUT COMPANY AND PRODUCTION     ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">
