Product Description

LZZB11-10 HIGH VOLTAGE CURRENT TRANSFORMER
This type of current transformer adopts epoxy-resin vacuum casting and fully enclosed post structure, is applicable for power systems of rated frequency 50Hz or 60Hz rated voltage up to and including 10kV, used for electric energy metering, current measurement and relay protection, it can be arbitrary combination of classes 0.2S, 0.2, 0.5 and 10P.
It complies with the standards GB20840.1-2010 Instrument transformers-Part 1: General requirements, GB 20840.2-2014 Instrument transformers- Part 2: Additional requirements for current transformers, and JJG 313-2010 Instrument Current Transformers.

Use environment

1. Altitude:should not exceed 1000m
2. Ambient temperature:-5ºC~+40ºC
3. Air relative site:indoor.

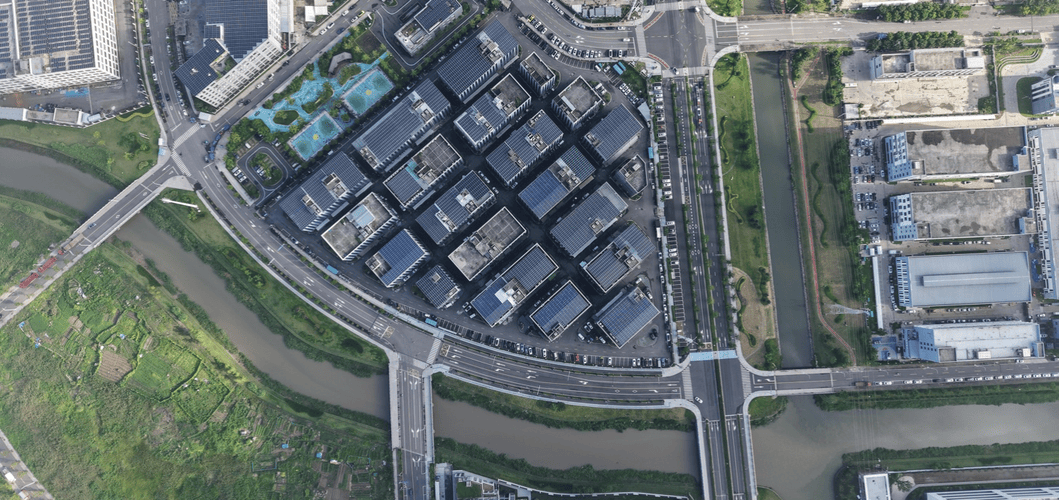

SHUAIXIN Electric Co., Ltd. which is specialized in producing, developing and marketing VOLTAGE TRANSFORMER,CURREN TRANSFORMER,TRANSFORMER,AC CONTACTOR and distribution products. The company is established in 1999, which is located in Wenzhou city, Zhejiang province, China.Our product has passed ISO9001 and CE certificate.
We have a professional technical team which can provide you with full design solution and technical support.

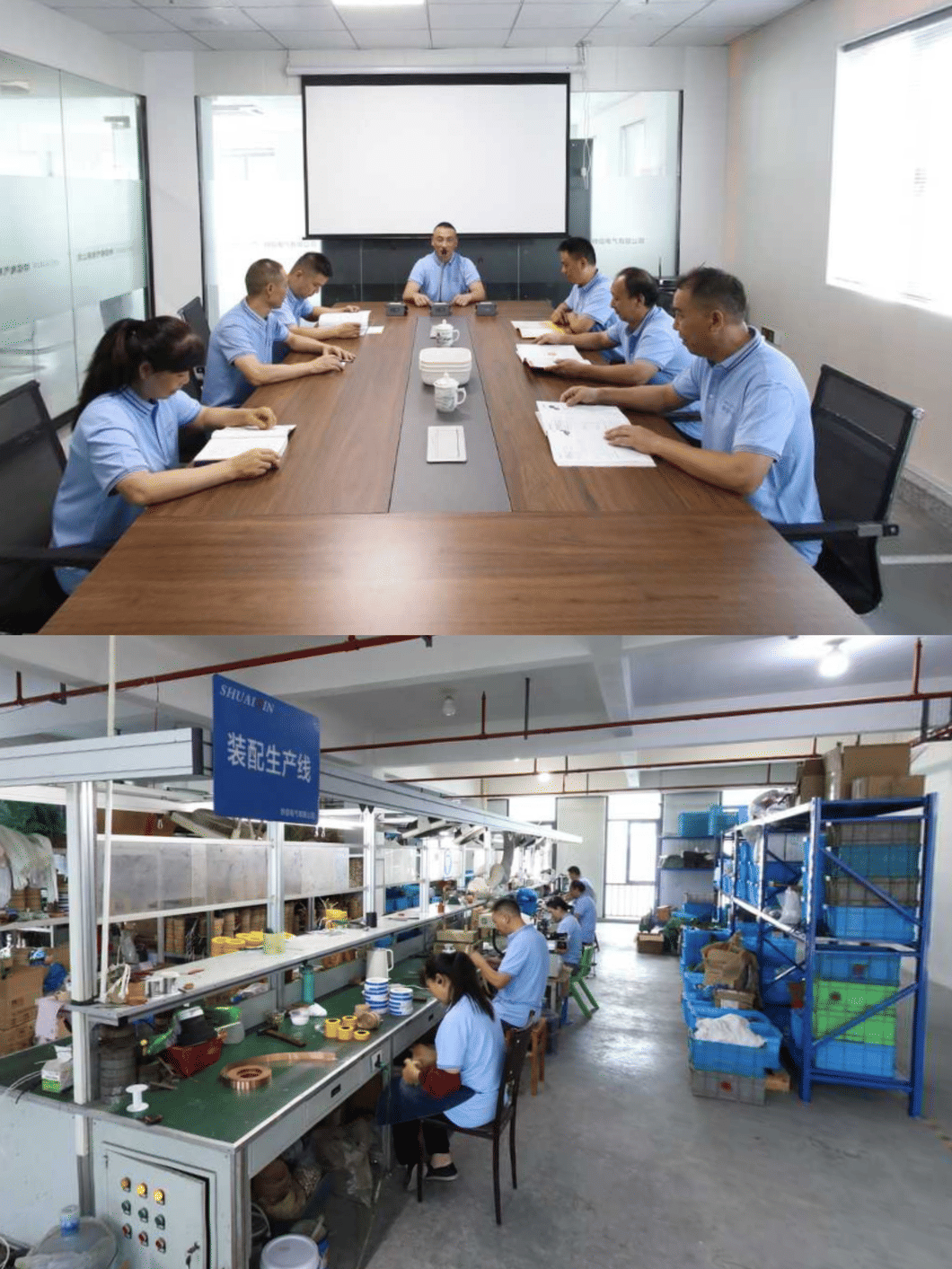

WORKSHOP


CERTIFICATE

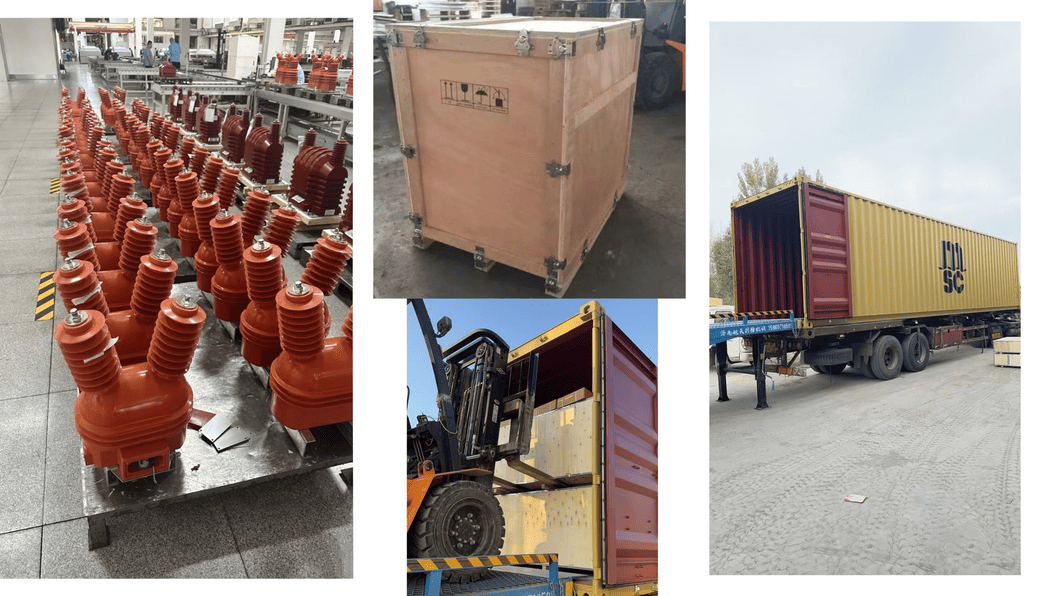

PACKING & SHIPPING
