Product Description

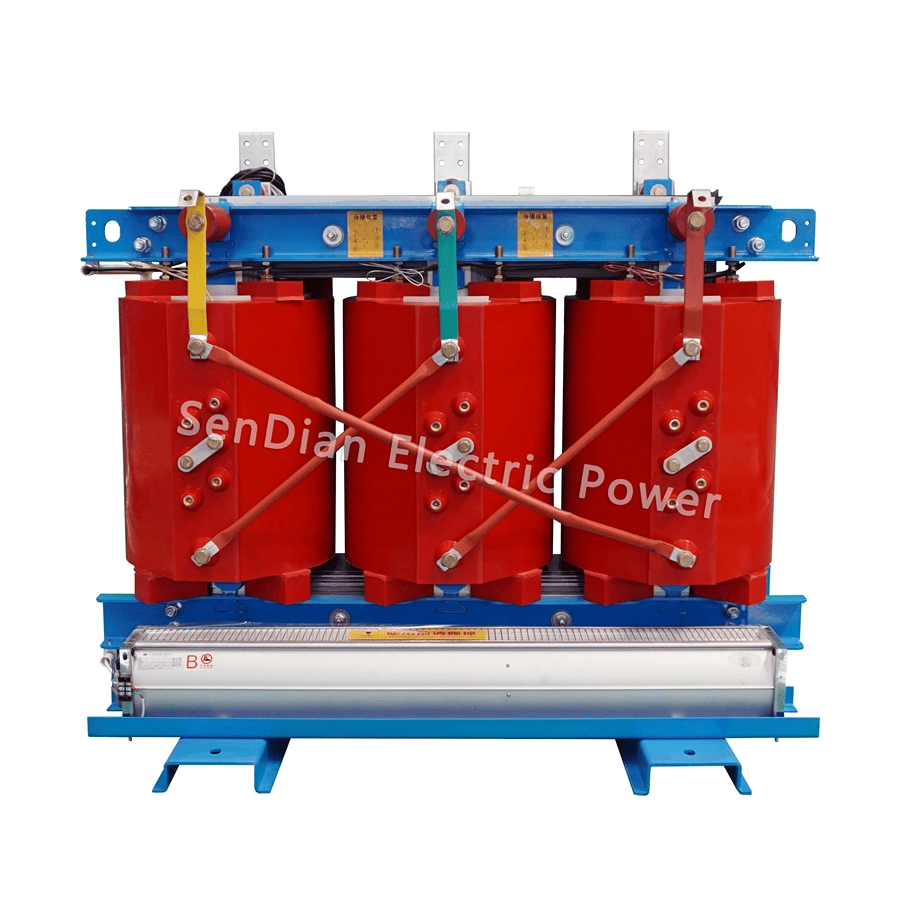

DRY TYPE TRANSFORMER

Scb11 three-phase epoxy resin casting dry-type transformers represent cutting-edge electrical distribution technology. This advanced product utilizes a high-density silicon steel core manufactured with precision engineering techniques and is fitted with premium epoxy resin copper coils designed for optimal electrical conductivity.

The comprehensive product capacity ranges from 160-2500kVA, effectively covering most industrial, commercial, and residential application scenarios. Each critical production stage is meticulously guided by experienced professional technicians to ensure superior product quality while systematically minimizing material waste and product losses.KEY FEATURE

* A fully sealed and professionally insulated structure design can guarantee the absolute security and safety of personnel during installation and maintenance operations

* It is not only specifically engineered for network distribution systems but also perfectly suited for terminal electrical applications in various industrial environments

* Low power loss characteristics, exceptionally low noise operation, and superior electrical performance make these transformers ideal for sensitive applications

* Outstanding low-temperature resilience and remarkable overload capacity ensure reliable operation under demanding conditions

* These transformers adopt an innovative special structure design, and their outstanding technical advantages consistently deliver high-quality electrical performance and extended operational lifespan

Specification

TECHNICAL PARAMETERS
Product Name	Scb11 Three Phase Epoxy Resin Casting Dry Type Transformer
Keywords	Dry Type Transformer
Core	Core-Type Transformer
Winding Type	Two-Winding Transformer
Cooling Method	Dry Type Transformer
Usage	Power Transformer, Distribution Transformer
Frequency Characteristics	Power Frequency
Shape Of Core	OD
Cooling System	Nature Air, Fans Cooling
Capacity	2500KVA
Coil Structure	Toroidal
Winding Material	Copper, Aluminum
Tap Changer	Off Load Tap Changer
Connection	Dyn11

SCB11 Dry Type Transformer Main Technical Parameters
Type	Rated capacity (kVA)	High voltage	Tapping range(%)	Low voltage(kV)	No-load loss(w)	On-load loss(W) (75℃)	Short circuit impedance(%)	LHW Size (mm)	Track guage(mm)
SC(B)11-30/10	30	6 10 10.5 11	±5	0.4	180	560	4	800660940	400*400
SC(B)11-50/10	50				260	730		830690990	400*400
SC(B)11-80/10	80				320	1120		8606901020	400*400
SC(B)11-100/10	100				350	1370		9007201060	550*550
SC(B)11-125/10	125				430	1620		9407401080	550*550
SC(B)11-160/10	160				480	1900		12207701100	550*550
SC(B)11-200/10	200				540	2100		12407801170	550*550
SC(B)11-250/10	250				650	2560		13908001200	550*550
SC(B)11-315/10	315				760	3010		14108201230	550*550
SC(B)11-400/10	400				780	3690		15008601270	660*660
SC(B)11-500/10	500				840	4300		15208701520	660*660
SC(B)11-630/10	630				1040	5160	6	16008901410	660*660
SC(B)11-800/10	800				1240	6290		16609501460	820*820
SC(B)11-1000/10	1000				1430	7380		17609701500	820*820
SC(B)11-1250/10	1250				1500	8830		180010901620	820*820
SC(B)11-1600/10	1600				1710	10580		187011001700	820*820
SC(B)11-2000/10	2000				2200	12810		198011801800	1070*1070
SC(B)11-2500/10	2500				2650	15080		209012601930	1070*1070

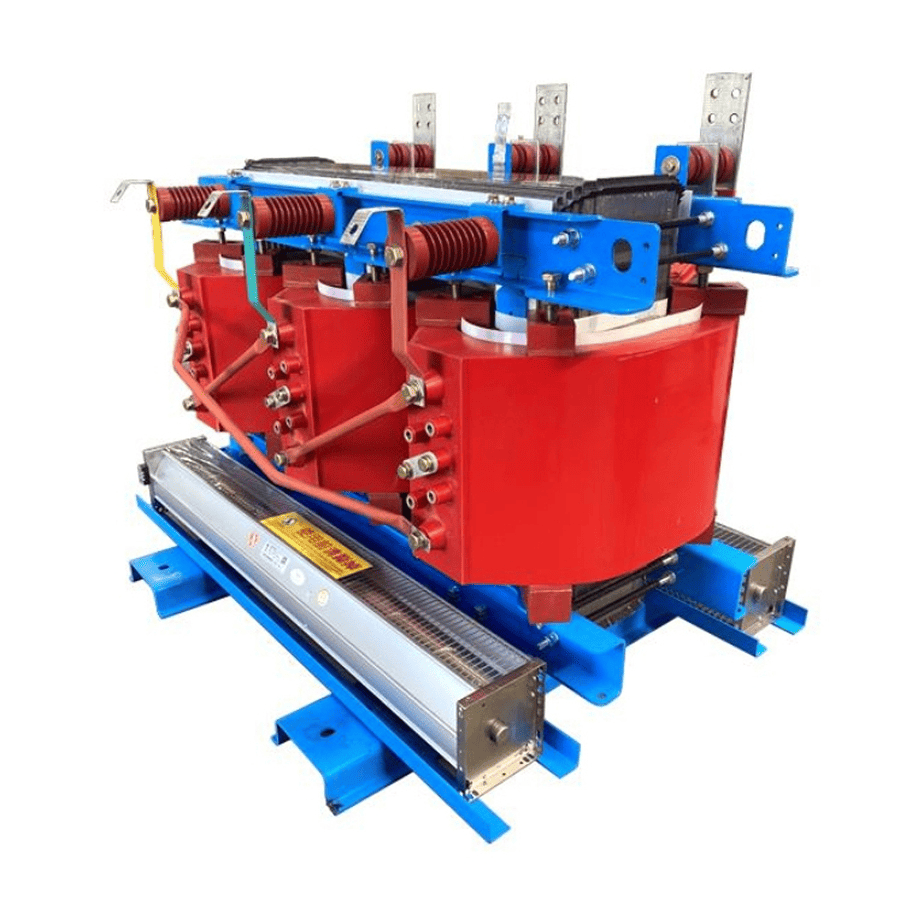

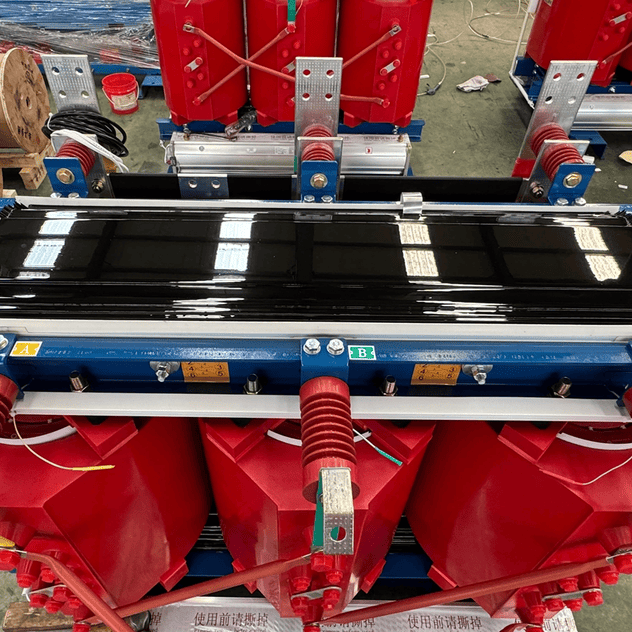

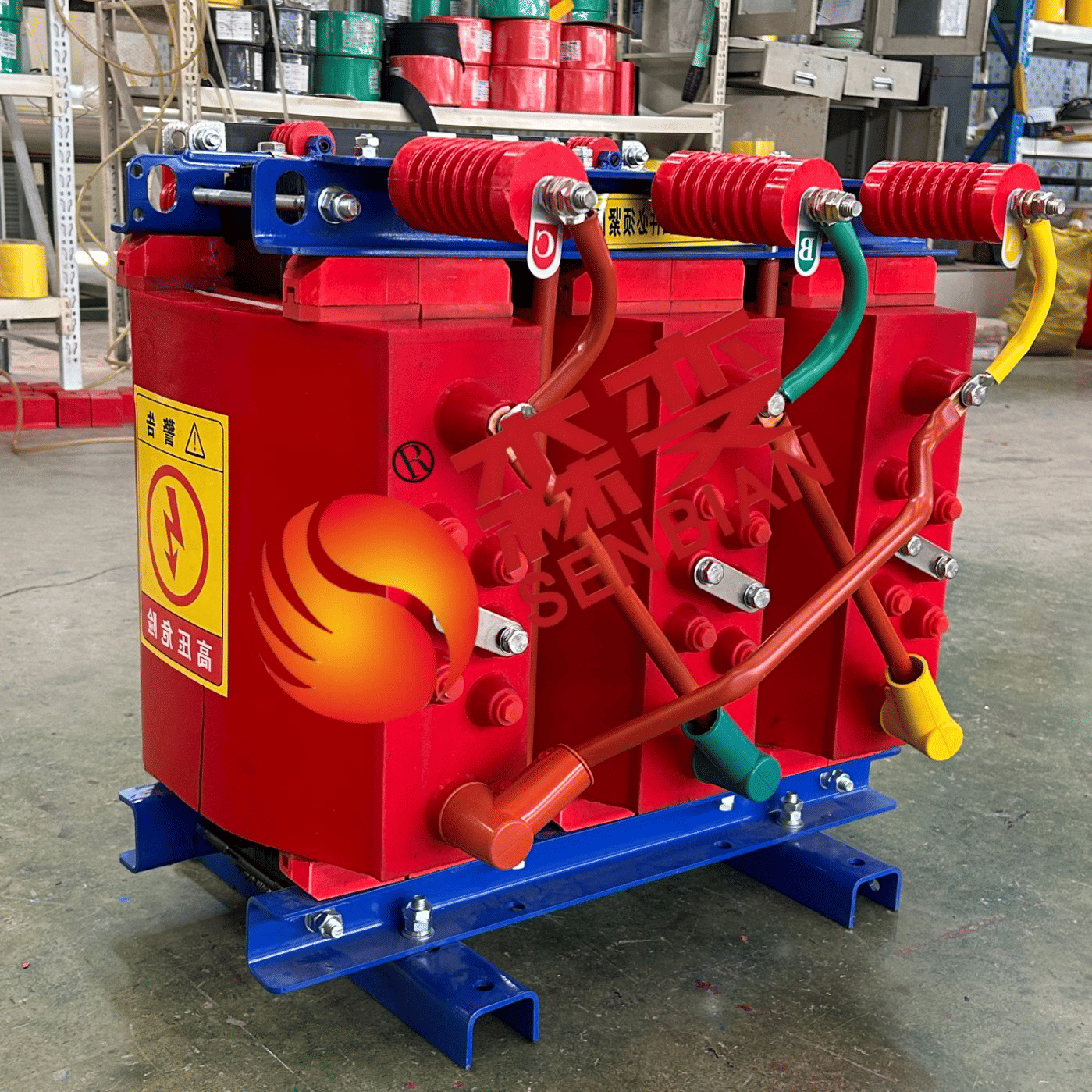

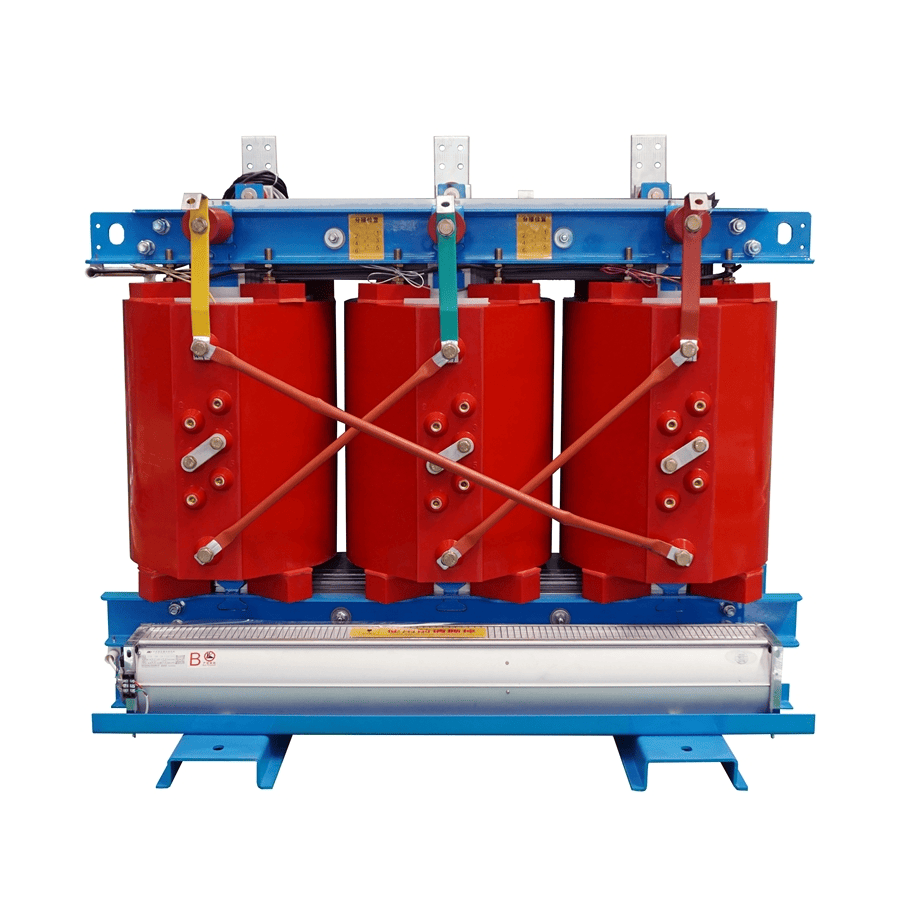

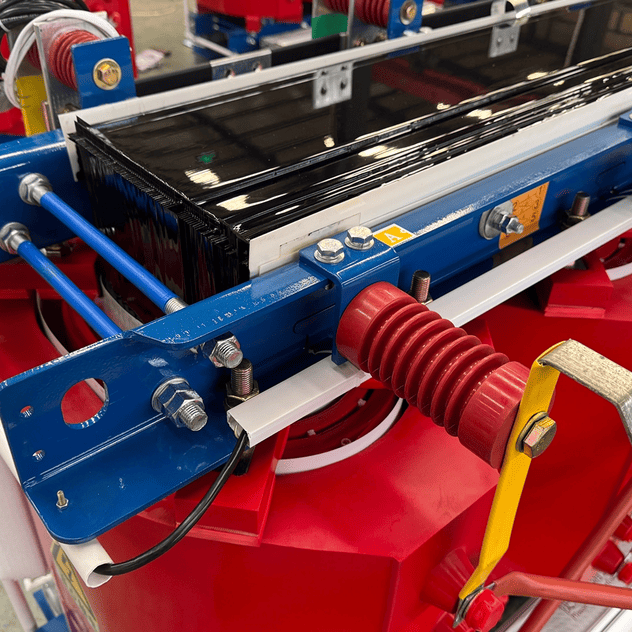

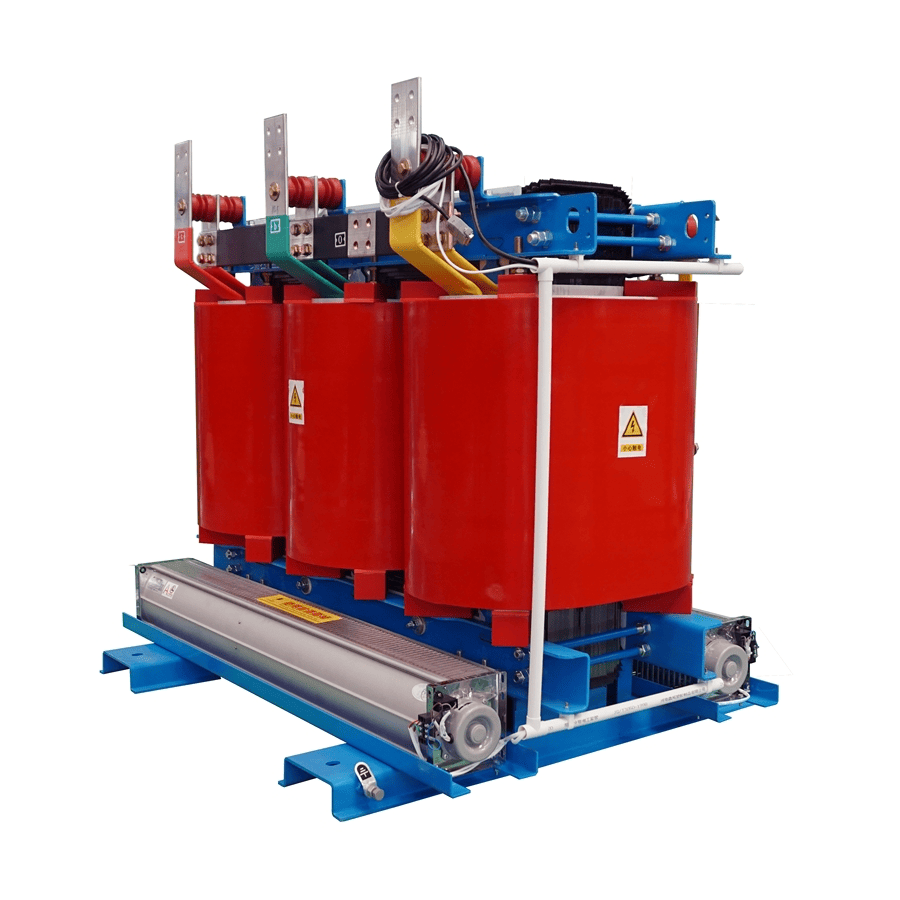

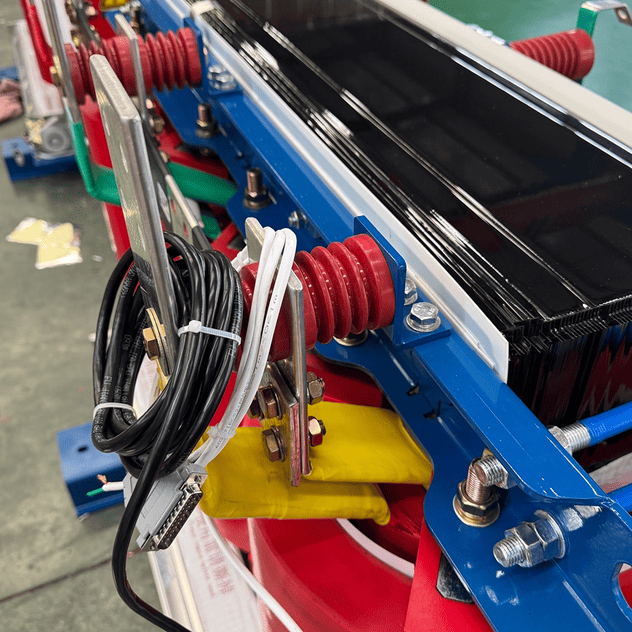

Detailed Photos

ULTIMATE SAFETY & RELIABILITY SOLUTION

SCB11 Three-Phase Epoxy Resin Casting Dry-Type Transformers eliminate fire hazards and electrical risks through advanced flame-retardant epoxy resin technology, providing maintenance-free operation that reduces downtime costs by up to 80% compared to traditional oil-filled transformers while ensuring complete personnel safety and environmental protection compliance. MAXIMUM ENERGY EFFICIENCY & COST SAVINGS

Our precision-engineered high-density silicon steel cores deliver industry-leading low-loss performance, reducing operational electricity costs by 15-25% annually, while the robust copper coil design extends service life to over 30 years with minimal maintenance requirements and guaranteed return on investment within five operational years.

VERSATILE ENVIRONMENTAL ADAPTABILITY

The innovative fully-sealed construction enables reliable performance in extreme temperatures from -40°C to +40°C with exceptional overload capacity up to 150%, making these transformers the perfect solution for harsh industrial environments, urban installations, and remote locations where traditional transformers fail to deliver consistent power distribution results.
