Package Size 1670.00cm * 1175.00cm * 1335.00cm Package Gross Weight 2295.000kg

Product Description

ntent="" style="background-color:#bdd7ee;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Description

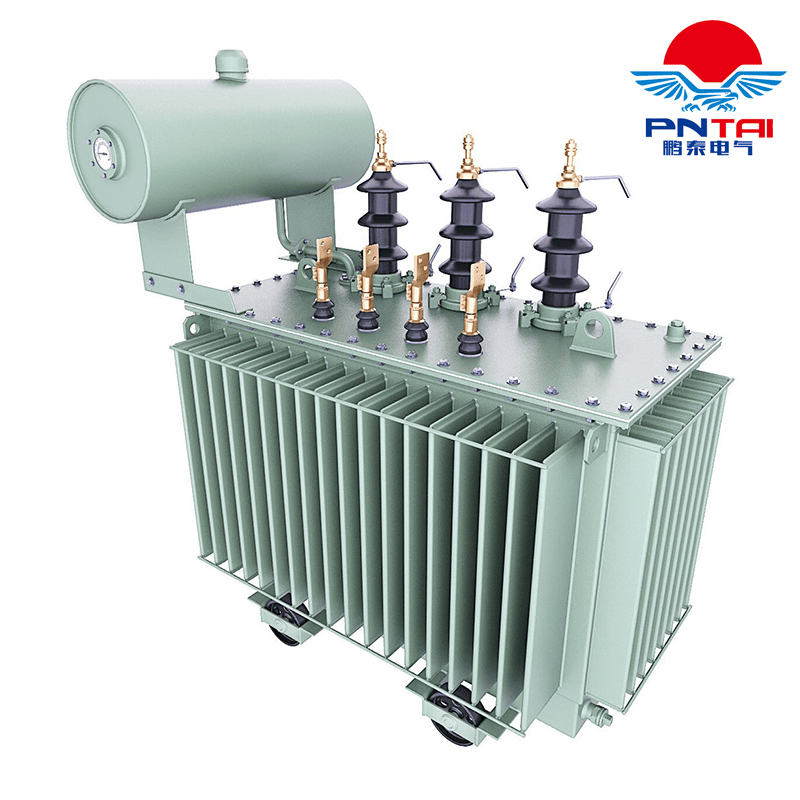

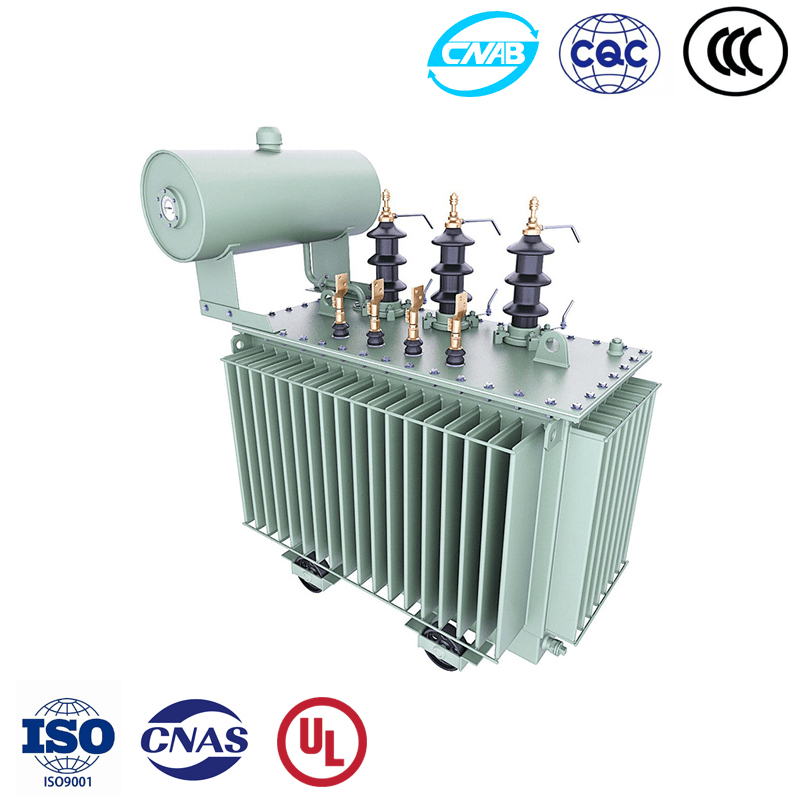

IEC60076 Sealed Type Hermetic Oil Type Onan Transformer Promotional Product Price, No Conservator Tank, Zero Oil Air Contact, Maintenance Free

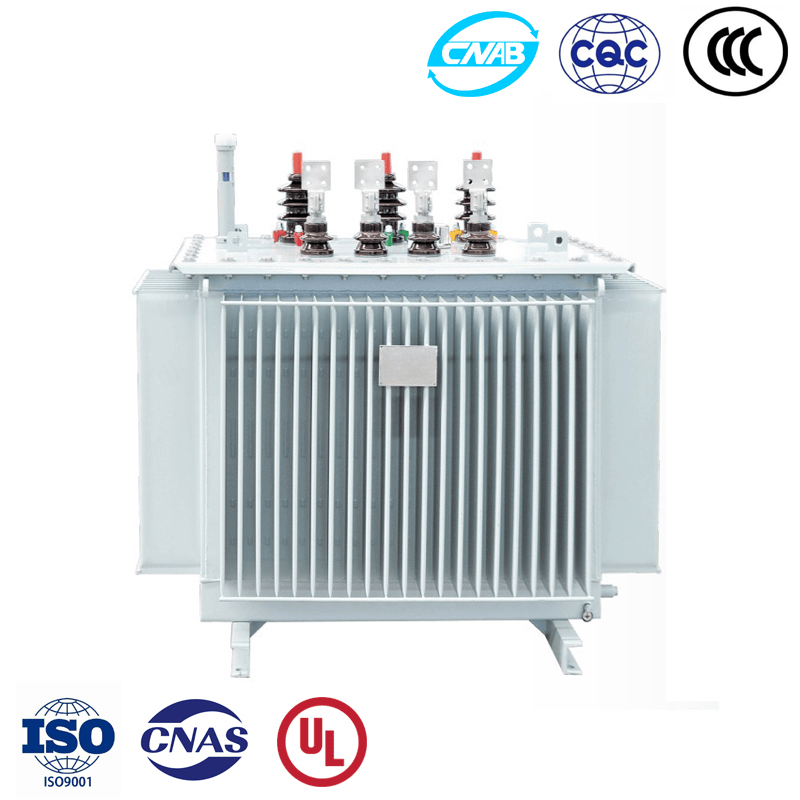

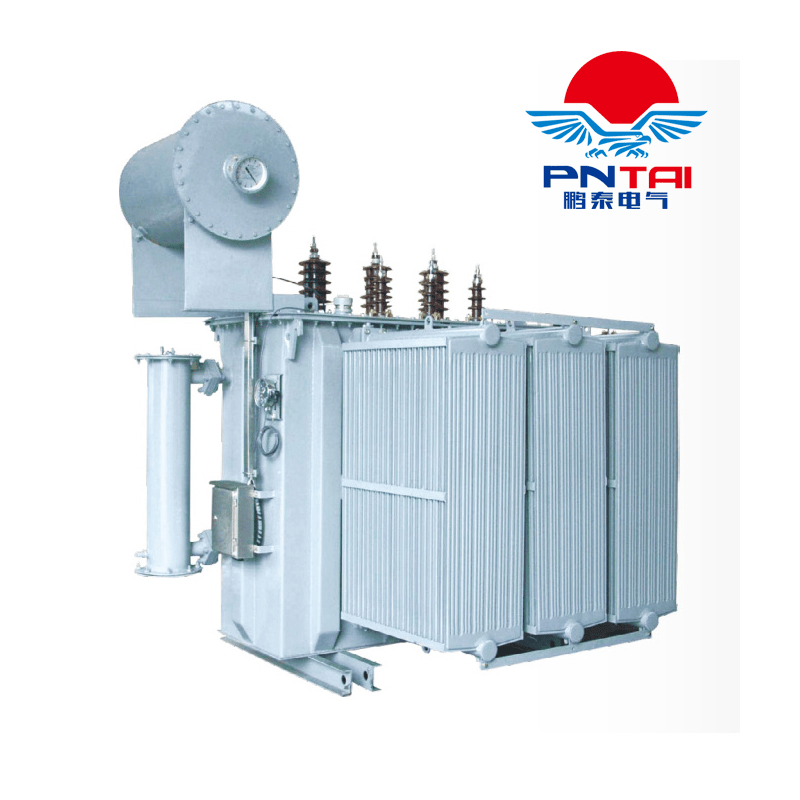

  OIL IMMERSED TRANSFORMER

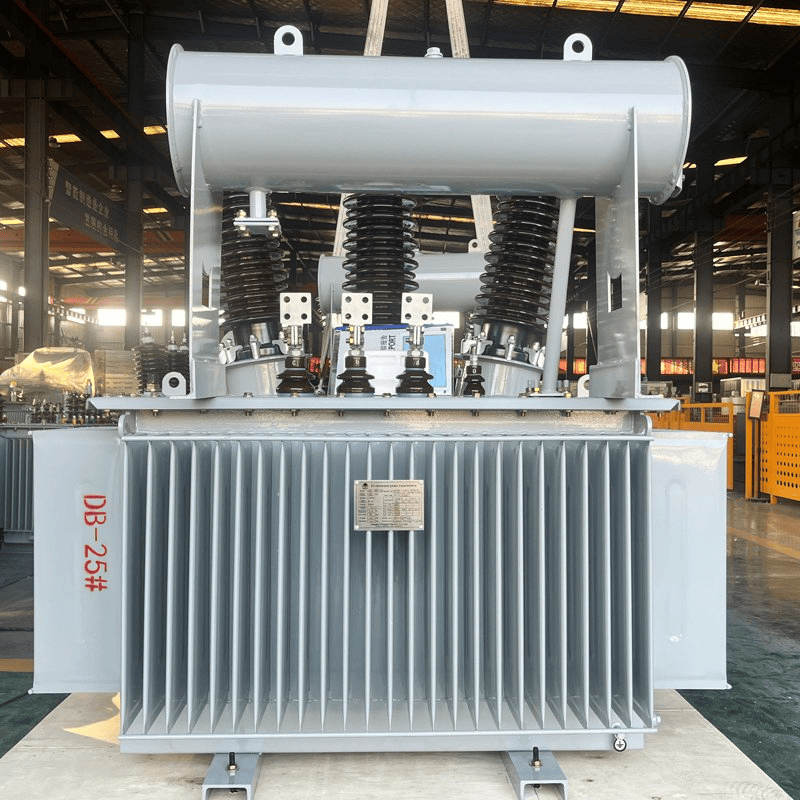

The 35KV oil-immersed power transformer is a cutting-edge product that has undergone significant improvements in design, materials, structure, and craftsmanship. It features a robust construction with high and low voltage clamps using steel straps for enhanced structural integrity, increased core fastening strength, and improved resistance to transportation impact. This product excels in short-circuit resistance, low power loss, minimal noise, reliable operation, and aesthetically pleasing appearance, meeting and even surpassing the advanced levels of similar products worldwide.

This high-performance transformer is widely used in various industrial and commercial applications, including power plants, substations, factories, and large-scale infrastructure projects. It is designed to efficiently and safely transform electrical energy, ensuring a stable and reliable power supply for diverse operational needs. (Energy-efficient three-level oil-immersed transformer)

Energy-saving, environmentally friendly, safe and reliable, your trusted choice, ideal distribution equipment for urban and rural distribution network centers

ntent="" style="background-color:#bdd7ee;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Parameters

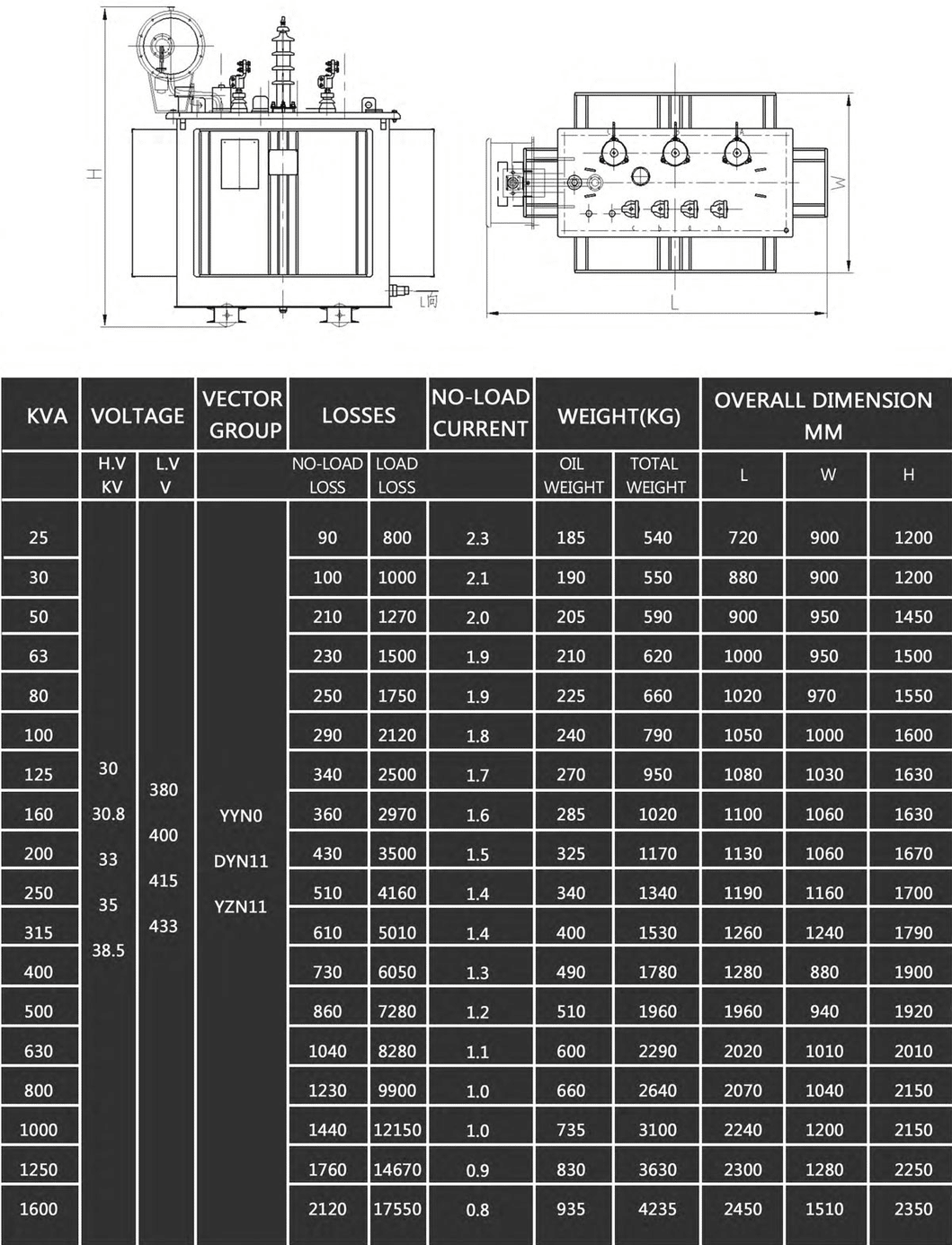

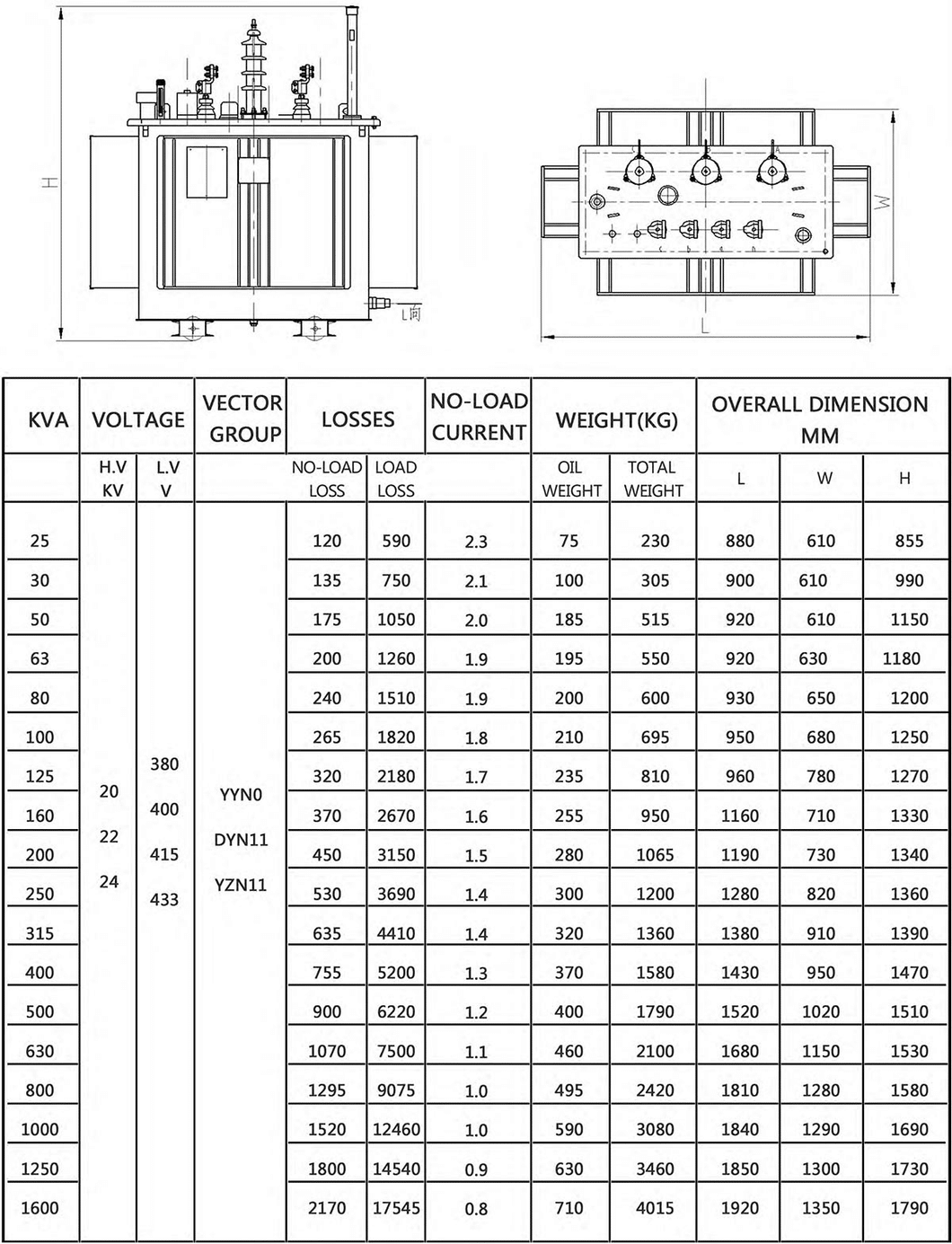

Technical Parameter
Model	Rated Capacity	Connection Group Number	Voltage Combination(kV)			No-load Loss	Load Loss(W)		No-load Current	Short Circuit Impedance
	(kVA)		High voltage	Tap range	Low Voltage	(W)	Dy	Yy	(%)	(%)
S11-M-30	30	Yyn0 or Dyn11	11 10 6.3 6	±5% or ±2×2.5%	0.4	100	630	600	1.5	4
S11-M-50	50					130	910	870	1.3	4
S11-M-63	63					150	1090	1040	1.2	4
S11-M-80	80					180	1310	1250	1.2	4
S11-M-100	100					200	1580	1500	1.1	4
S11-M-125	125					240	1890	1800	1.1	4
S11-M-160	160					280	2310	2200	1	4
S11-M-200	200					340	2730	2600	1	4
S11-M-250	250					400	3200	3050	0.9	4
S11-M-315	315					480	3830	3650	0.9	4
S11-M-400	400					570	4520	4300	0.8	4
S11-M-500	500					680	5410	5150	0.8	4
S11-M-630	630					810	6200	6200	0.6	4.5
S11-M-800	800					980	7500	7500	0.6	4.5
S11-M-1000	1000					1150	10300	10300	0.6	4.5
S11-M-1250	1250					1360	12000	12000	0.5	4.5
S11-M-1600	1600					1640	14500	14500	0.5	4.5
S11-M-2000	2000					1940	18300	18300	0.4	5
S11-M-2500	2500					2290	21200	21200	0.4	5



ntent="" style="background-color:#bdd7ee;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Detailed Photos

STRUCTURAL COMPOSITION

The low-voltage winding of the oil-immersed transformer adopts copper foil winding or layer structure; the high-voltage winding adopts a multi-layer cylindrical structure, with balanced ampere-turn distribution, small magnetic leakage, high mechanical strength, and strong short-circuit resistance. LOW NOISE

The iron core is made of high-quality, high-magnetic silicon steel sheets and adopts a full-slant step-joint stacking machine type. The process is advanced, with low no-load loss and low noise. RELIABLE FASTENING

The body adopts fastening measures, and the fastening parts, such as the height and low-voltage leads of the body, are equipped with anti-loosening nuts. The non-hanging structure is adopted, and the long-distance transportation is also fastened and reliable. INSULATION PERFORMANCE

The coil and the iron core are vacuum-dried, and the transformer adopts the vacuum oil injection process, which makes the insulation strength of the oil-immersed transformer higher and the electrical strength higher. SAFE USE AND LONG SERVICE LIFE

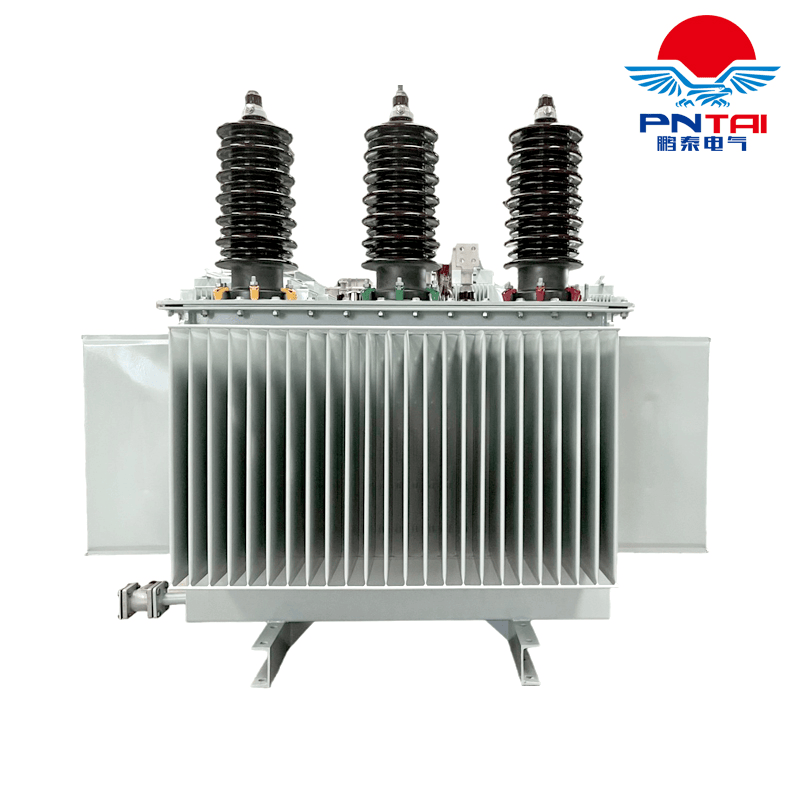

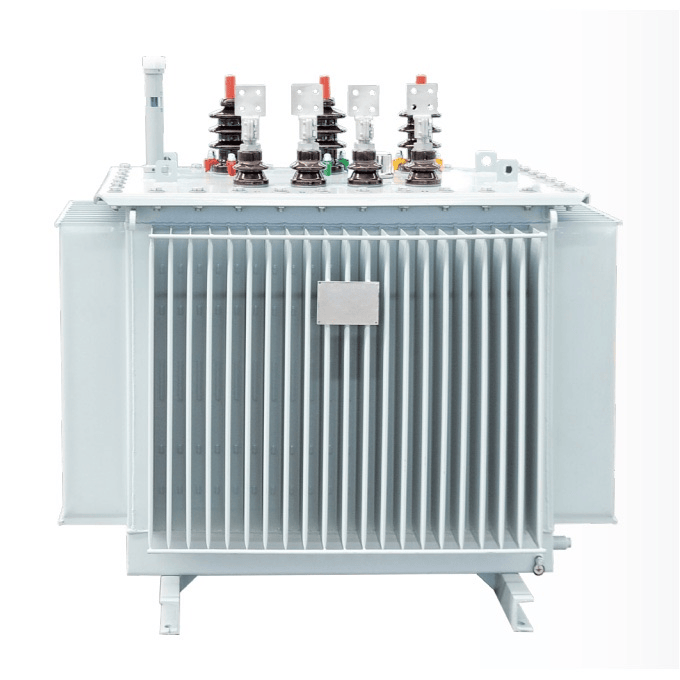

Because the oil tank adopts a corrugated oil tank, the oil storage cabinet is eliminated, and the transformer oil is isolated from the outside world, which effectively prevents the entry of oxygen and moisture and causes the decline of insulation performance, truly realizing maintenance-free, greatly reducing the maintenance cost of the transformer, and at the same time extending the service life of the transformer.
