Product Description

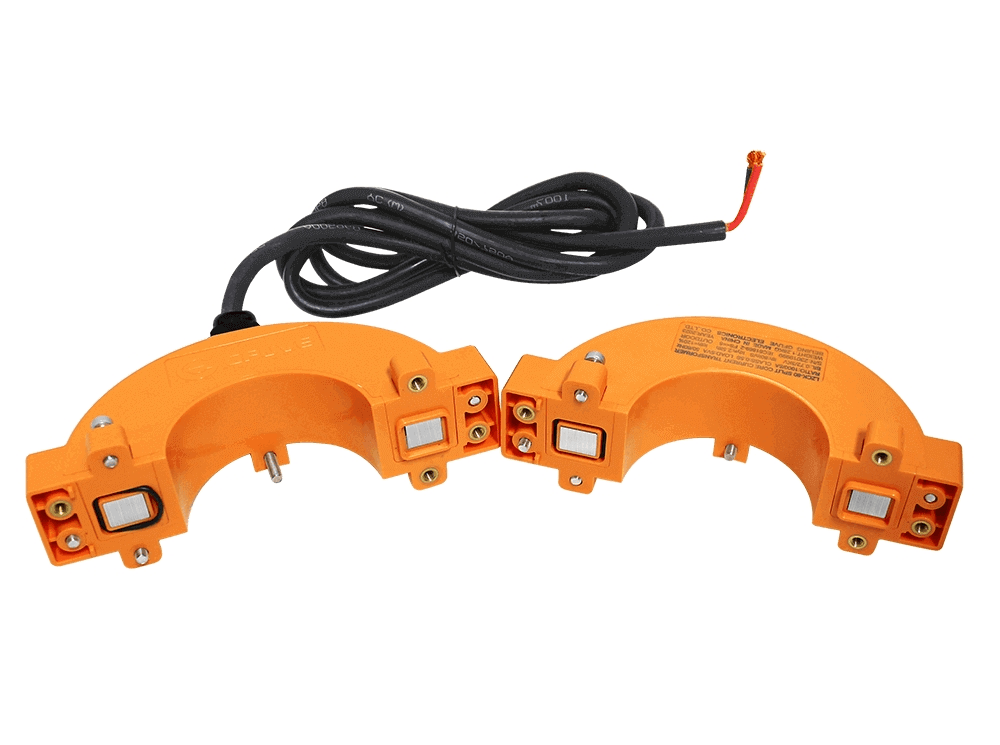

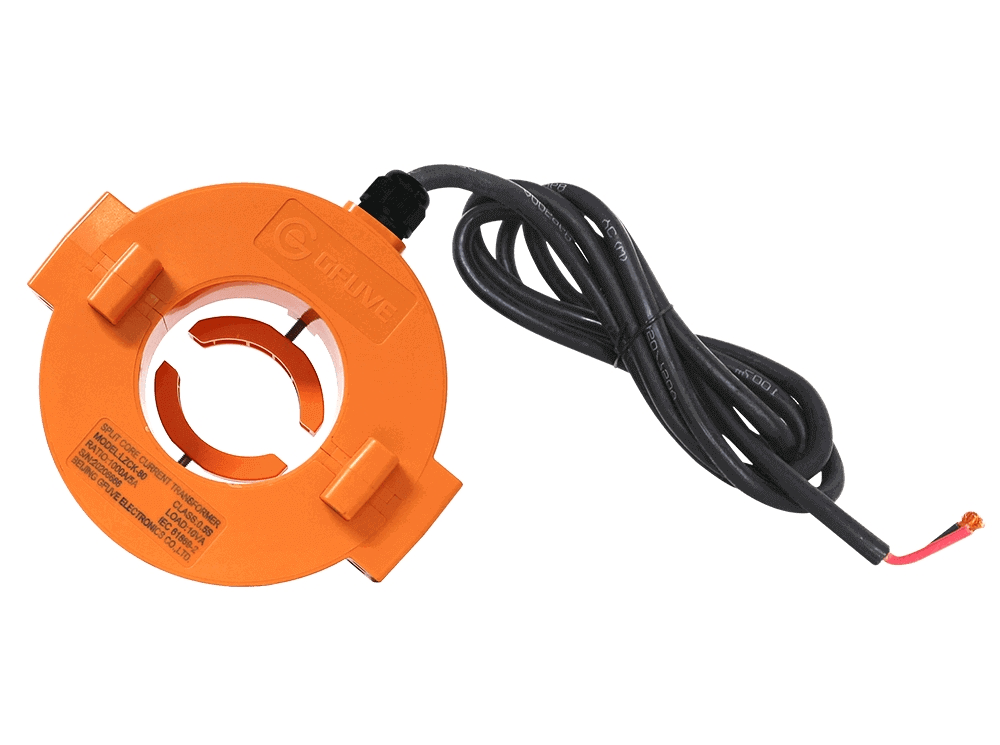

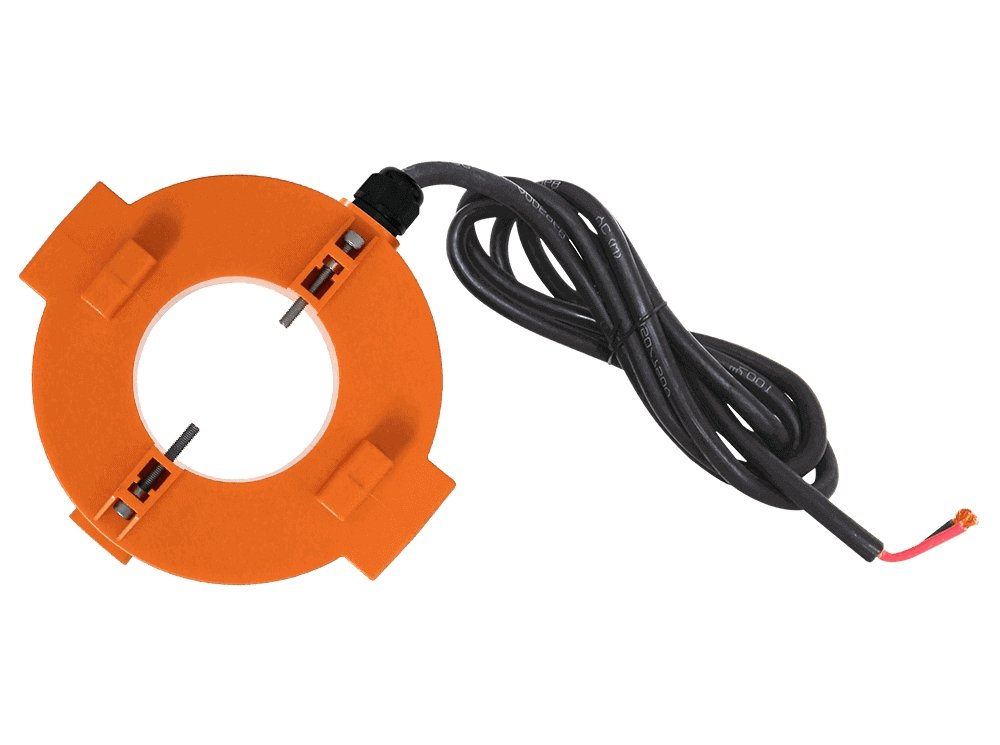

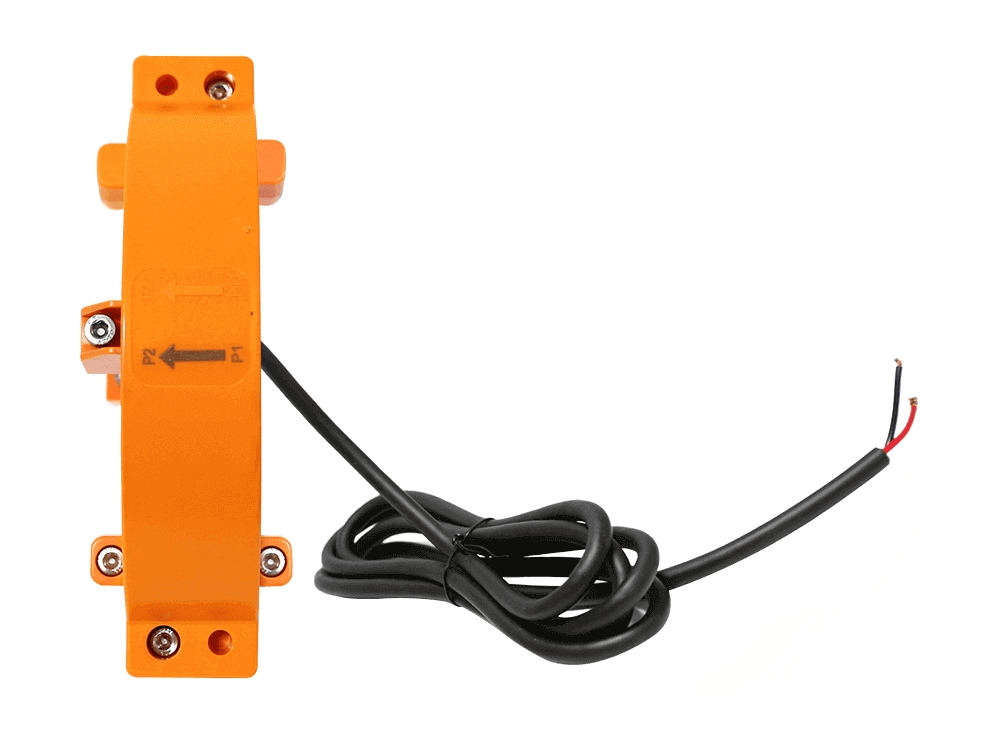

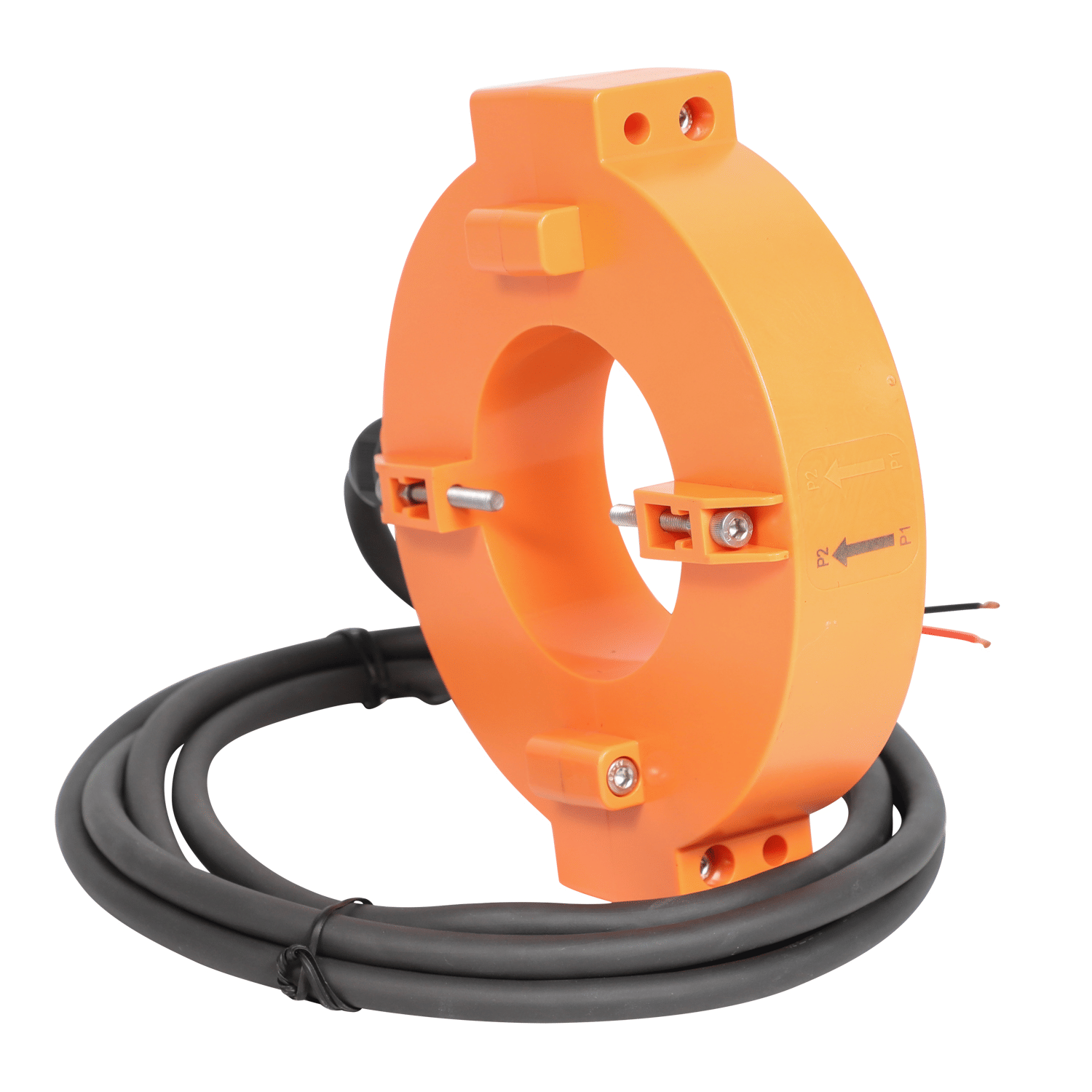

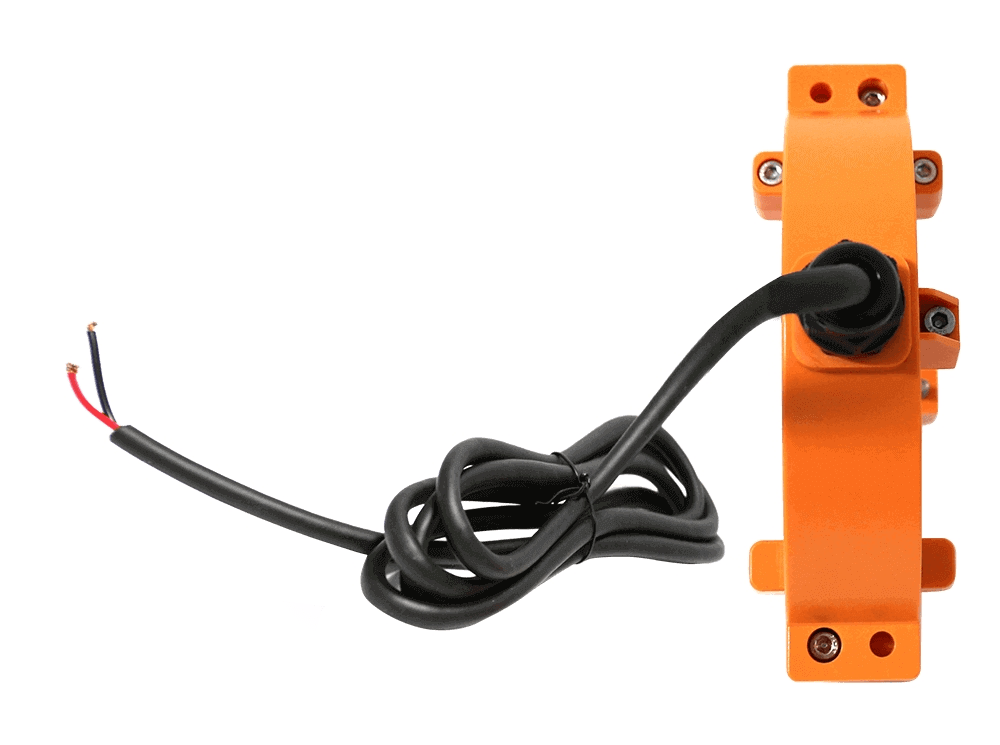

The model LZCK-80 outdoor split core current measurement transformer are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. And the transformer is compatible with distribution transformer monitor and provides high quality power parameter quality signal for the monitor to control, measure and monitor the energy quality and so on in grid system. The LZCK-80 split core current transformer applies to the outdoor electric power system with frequency 50Hz or 60Hz, its ingress protection is IP67. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case (ABS or PC) which is high accuracy, fire-proof, ultraviolet-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc.

FEATURES:

IP67 level outdoor;

Support dual ratio;

High precision 0.5s;

Holding wire diameter: φ80mm;

Easily installation with electricity;

Measurement range 0-2000A AC;

Distribution transformer power monitoring;

Secondary windings are vacuum poured by insulated resin;

IEC60044-1, IEC 61869-2, NTC 2205, GB1208-2006, ANSI/IEEE C57.13;

300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1000/5A, 1250/5A, 1500/5A, 2000/5A;



APPLICATION:

Power meter;
Meter tester;

Energy meter;

MV switchgears;

Load monitoring;

Distribution boxes;

Power quality analyzer;

Low voltage metering system;

Distribution power transformer monitor system;



TECHNICAL DATA:



Type	LZCK-80 (2.5m cable)
Purpose	Measuring current transformer
Ratio	Accuracy class and rated load (VA)
I1/I2	0.5S	0.5	1	3
100/1		0.1	1.5	2.5
150/1		0.1	1.5	2.5
200/1	2.5	2.5	2.5	2.5
250/1	2.5	2.5	2.5	2.5
300/1	2.5	2.5	2.5	2.5
400/1	2.5	2.5	2.5	2.5
500/1	2.5	2.5	2.5	2.5
600/1	2.5	2.5	2.5	2.5
800/1	2.5	2.5	2.5	2.5
1000/1	2.5	2.5	2.5	5
1200/1	2.5	5	5	5
1400/1	2.5	5	5	5
1500/1	2.5	5	5	5
2000/1	2.5	5	5	5
100/5				2.5
150/5			2.5	2.5
200/5	2.5	2.5	2.5	3
250/5	2.5	2.5	2.5	5
300/5	5	5	5	5
400/5	5	10	10	10
500/5	5	10	10	10
600/5	5	10	10	10
800/5	5	10	10	10
1000/5	5	10	10	15
1200/5	5	10	10	15
1400/5	5	10	10	15
1500/5	5	10	15	20
2000/5	5	10	15	20
