Packaging & Delivery

Package Size 100.00cm * 85.00cm * 88.00cm Package Gross Weight 2600.000kg

Product Description

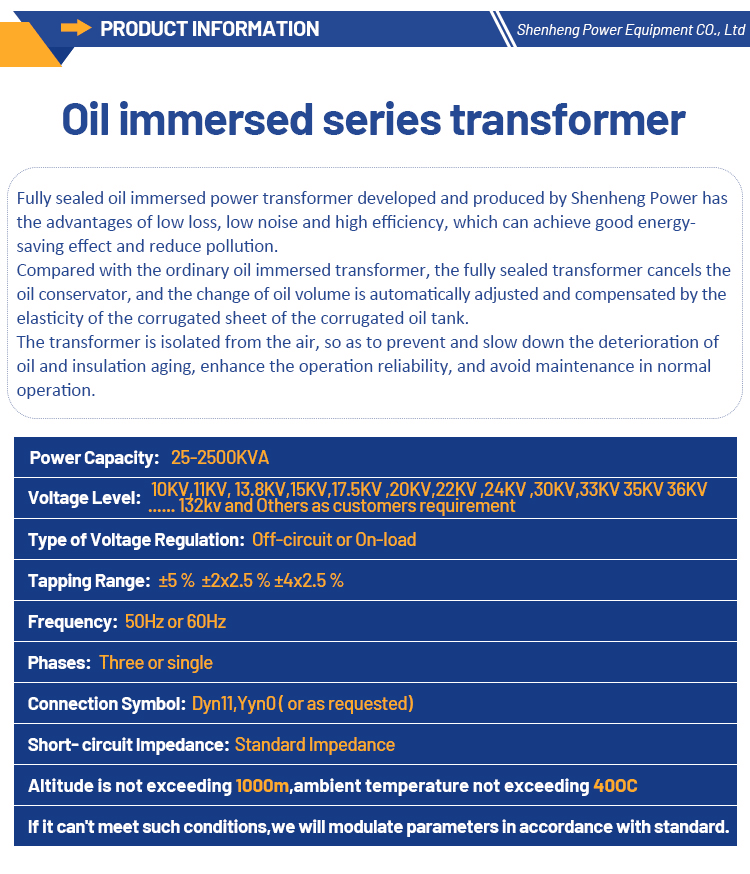

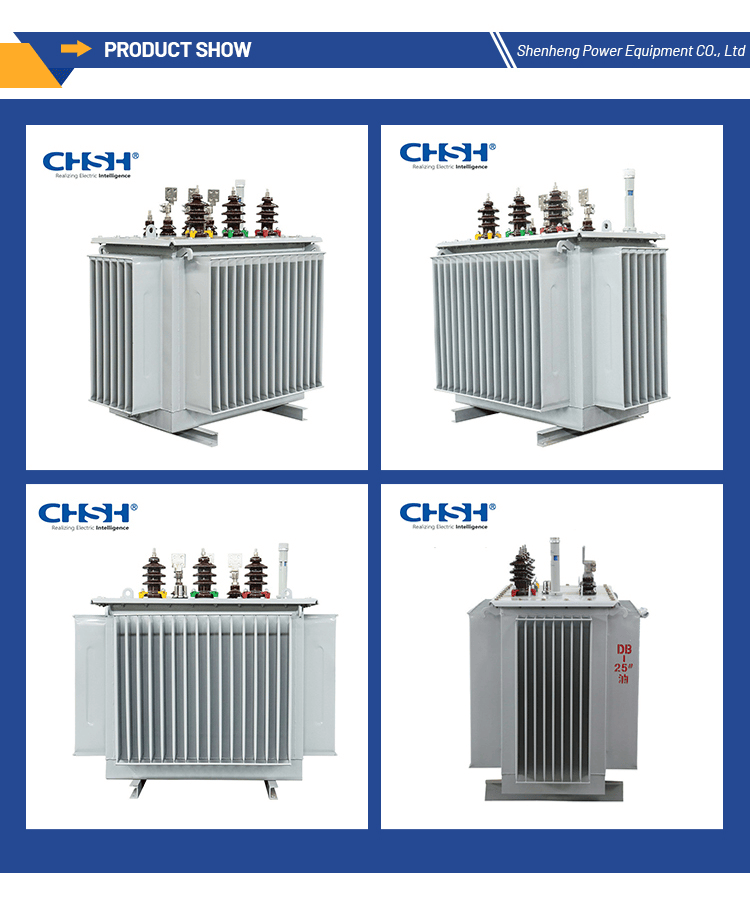

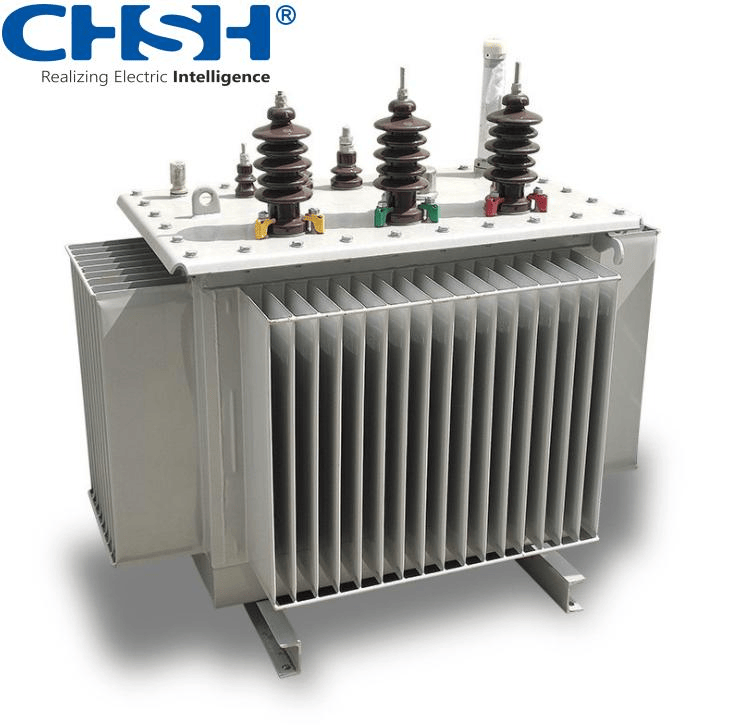

Oil immersed series transformer:

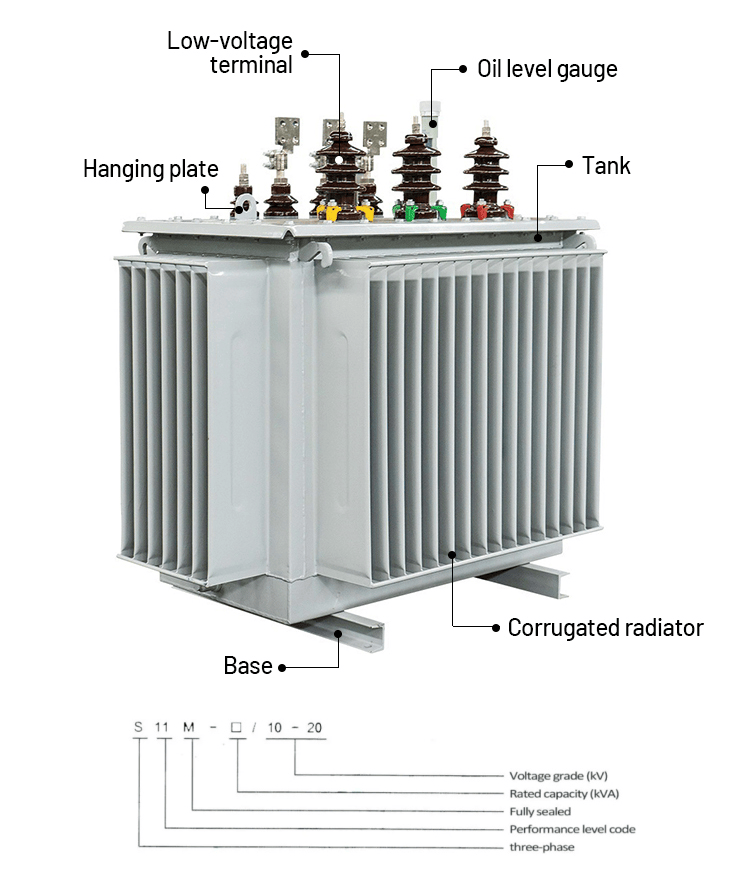

S11-M series fully sealed oil immersed power transformer developed and produced by Shenheng Power has the advantages of low loss, low noise and high efficiency, which can achieve good energy-saving effect and reduce pollution. Compared with the ordinary oil immersed transformer, the fully sealed transformer cancels the oil conservator, and the change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air, so as to prevent and slow down the deterioration of oil and insulation aging, enhance the operation reliability, and avoid maintenance in normal operation.

1.Power Capacity: 25-2500KVA

2.Voltage Level: 10KV,11KV, 13.8KV,15KV,17.5KV ,20KV,22KV ,24KV ,30KV,33KV 35KV 36KV and Others as customers requirement

3.Type of Voltage Regulation: Off-circuit or On-Ioad

4.Tapping Range: ±5 %  ±2x2.5 % ±4x2.5 %

5.Frequency: 50Hz or 60Hz

6.Phases: Three or single

7.Connection Symbol: Dyn11,Yyn0 ( or as requested)

8.Short- circuit Impedance:  Standard Impedance

9.Altiude is not exceeding 1000m,ambient temperature not exceeding 40OC. If it can't meet such conditions,we will modulate parameters in accordance with standard.

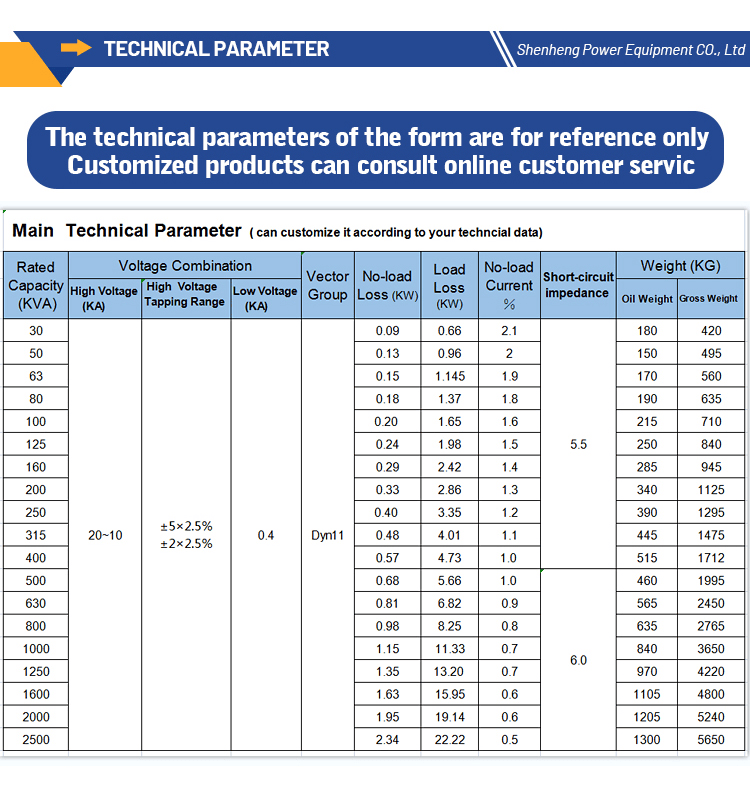

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0px 10px;display:inline-block;line-height:36px;">Product Parameters

1. Are you a trading company or manufacturer ?
We are a professional factory with 10 years experience in the field of High and Low voltage switchgears,Substation,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
Our factory is the excellent supplier of State Grid Corporation of China.
2. Do you accept customized serveice ?
We offer OEM/ODM service , can print your logo on product . our professional technical and quotation team can provice a satisfied project according to your drawing and parameters.
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time ?
It depends on your product requirement and quantity . Generally , 5~10 working days is available
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make a satisfied soluton within 2 days .
6. What is your payment terms ?
30%T/T in advance,70% before shipment . West union , L/C are also acceptable .
