Packaging & Delivery

Package Size 71.00cm * 54.50cm * 84.00cm Package Gross Weight 260.000kg

Product Description

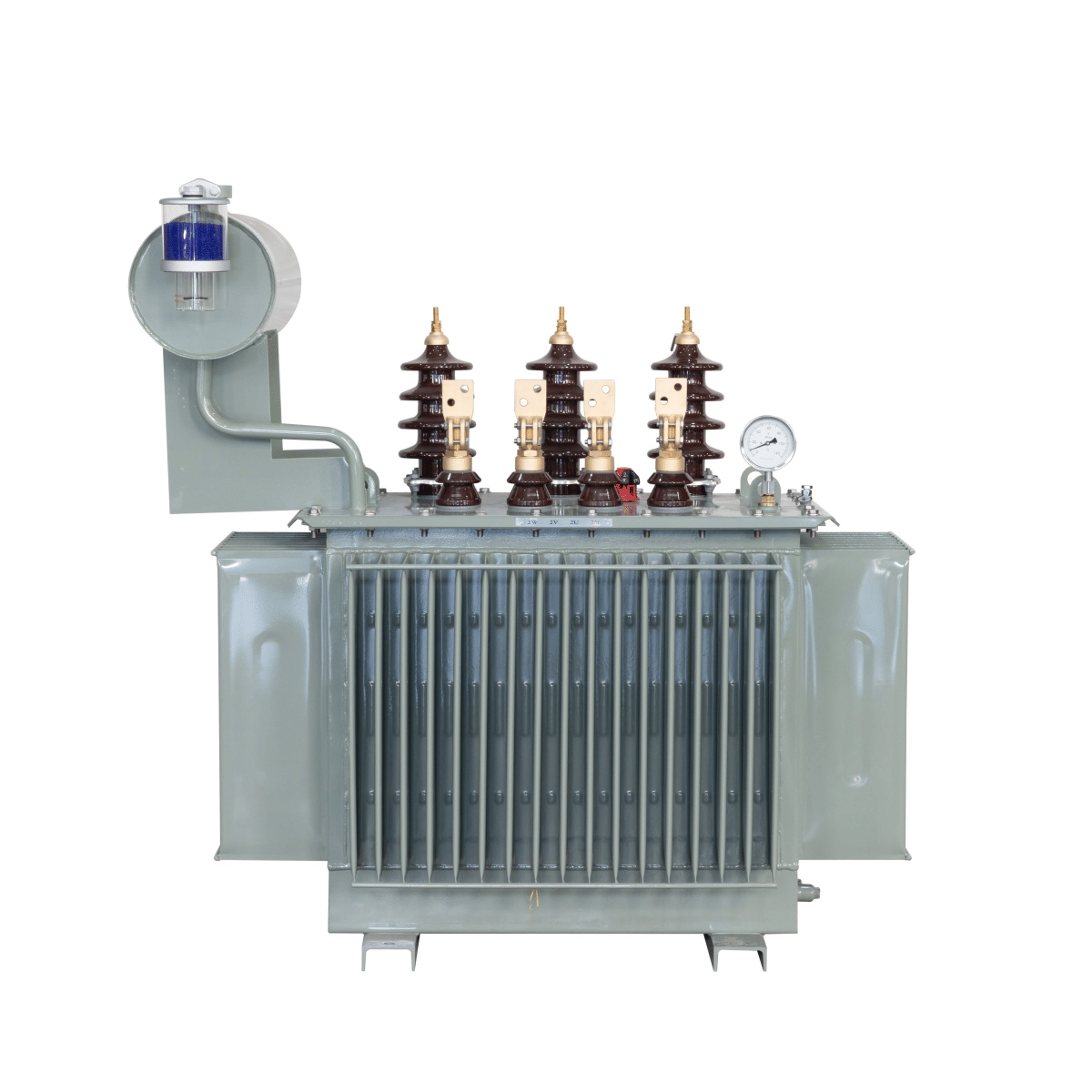

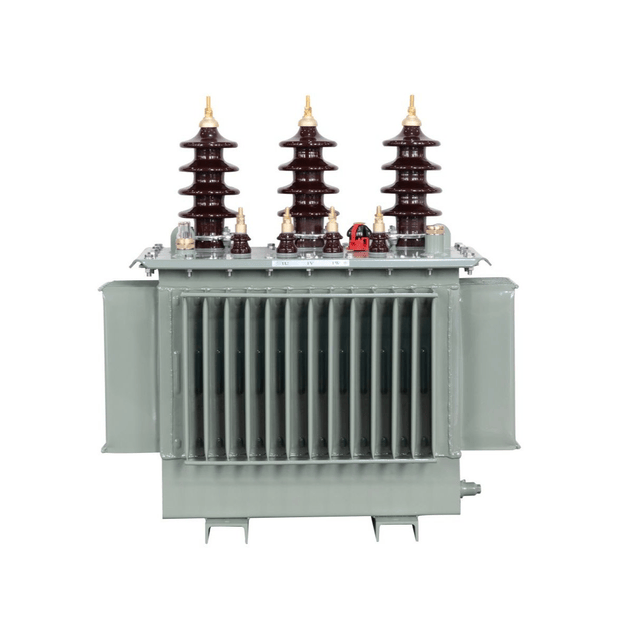

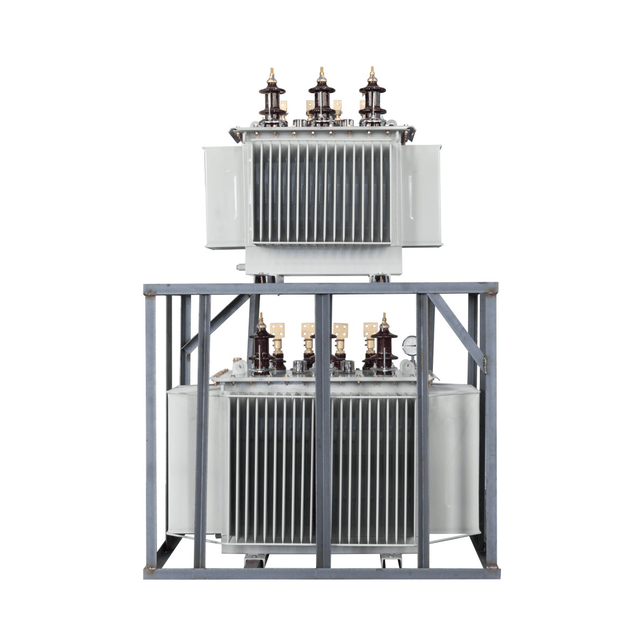

Product Description1.2.3.The  transformer  core  is  made  of  imported  high-quality  cold -   rolled  silicon  steel  sheet ,  which  greatly  reduces  no-load  loss and  no-load  current,  and binds  the   core  to  ensure  the firmness  of  the  core  and   reduce  noise.The  transformer  connection  group  adopts   Dy n11 to  reduce  the  influence  of  harmonics  on  the  power  grid  and  improve  the  quality  of   power  supply. The  transformer  is  fully  sealed  structure ,  extending  the  service  life ,  no  lifting  center,   no  maintenance .The  measured  noise value  is  lower than the  standard. After  the  normal  transportation  of  this  series  of   transformers ,  without  the  need  for   lifting  core  inspection , you    can  install the  relevant  parts,  acceptance  project test,  can  be  put  into  operation  after  passing.4.The high and low voltage  windings  are  wound  with  oxygen  free   copper ,  the  low   voltage  windings  are  500 kVA  and  below  using  double -  layer cylinder three-sex  rated  capacity  electric  structure ,  630kVA and  above  using  double   helix  or  quad ru helix  structure ,  and  the  high  voltage  windings  are  polyphase  can  be  laminated  cylinder  structure . Product ParametersMain ProductWe are a professional power transformer manufacturer in China. Because we have our own factory and trade company, we can provide the best products and services to our customers. We offer our customers comprehensive and considerate services. Our services are primarily reflected in the following aspects: 1.we are available 24 hours a day and always ready to serve you;  2. we have advanced technology and precise equipment;  3.we have experienced researchers and skilled technicians;  4. we use high-quality and brand-new raw materials in our production;  5.every product undergoes rigorous testing and evaluation;  6.we deliver your goods to your destination in the fastest and safest way;  7.we complete the installation seriously and efficiently;  8.we conduct thorough and responsible testing after installation.1.2.Jiangsu Chuangrui  Electric  Power  Equipment  Co.,  Ltd.  is a  high-tech enterprise specializing in the  production,  research and development and sales  of transformers and supporting products. The company covers an area of  more than  50  mu, with a total  investment  of 130 million yuan and a  registered capital  of 100  million yuan.  Recently,  it  has  more than 46 technical  personnel and  more than 200  employees. The company currently holds more than 100 certificates and patents.Daily production reaches 50 pieces. Annual production reaches 18,000 pieces.Since  its establishment, the company  has always followed the  business  philosophy  of "science and technology as the guide, service first,  integrity-based" , adhere to the  best interests of customers as their  own responsibility,  pay  attention to  product  research and development of science and technology,  using computer-aided  design.  In strict accordance with the  ISO9000 quality  management system standard operation,  refinement and pragmatism,  innovation and forging ahead, to  provide customers with  environmental  protection,  energy saving,  low carbon quality  products  in  line with the  characteristics of various  regions,  in order to  meet the fundamental  requirements of the  market and  different  customers. 3.4.At present, S11,S13 series 10KV, 20KV, 35KV  oil-immersed transformers  produced  by the company; SCB10, SCB13 series 10KV, 20KV and 35KV  grade epoxy  cast dry  power transformers;  SH15, SCBH15 amorphous alloy  power transformer; YB  pre-installed substation;  ZGS type combined substation;  Photovoltaic substation,  high overload transformer. The  products passed the quality  inspection of the  National Transformer  Quality supervision and  Inspection Center, the  National  low-voltage transmission and distribution equipment  quality supervision and  inspection center, the  PCCC certification and  energy-saving  product  certification certificate of the  National electric energy  Certification Center, and  obtained the  registered model  record certificate.The  marketing  network and service  network  have  been  improved, and will  be further  promoted to the domestic and foreign  markets, the  company  implemented     the "7*24 service  mechanism", actively  provide customers with timely warm  and thoughtful service, enhance  product  utilization value and value service,  eliminate  customers' worries, so    as to achieve win-win situation  between the supply and  demand  parties and  common development. Jiangsu  Chuangrui  Electric  Power  Equipment  Co.,  Ltd.  is willing to advanced technology, sophisticated equipment, excellent quality, excellent service, flexible  management,  good credit  management, sincerely welcome  people from all walks  of  life at  home and abroad to our company to  negotiate cooperation,  mutual  benefit and win-win, and seek  common development.Xuzhou Chuangrui Import and Export Trade Co., Ltd. is a professional manufacturer of power transformers and related products, with products selling well in both domestic and international markets. The company integrates R&D, production, manufacturing, and sales. Founded in 2003, the company boasts over 20 years of development history and mature technical strength.
The company possesses multi-field technology R&D centers, advanced testing and management technologies, fully automated precision welding technology, and an industry-leading quality control system to ensure product quality.
Simultaneously, the company has comprehensively integrated advanced domestic and international technological resources, established connections with numerous domestic and international power transformer distributors, and expanded product development to the entire industry chain, embarking on a development path of "complete product range, independent R&D, and technological innovation."Packaging & Shipping
