Packaging & Delivery

Package Size 150.00cm * 150.00cm * 150.00cm Package Gross Weight 3000.000kg

Product Description

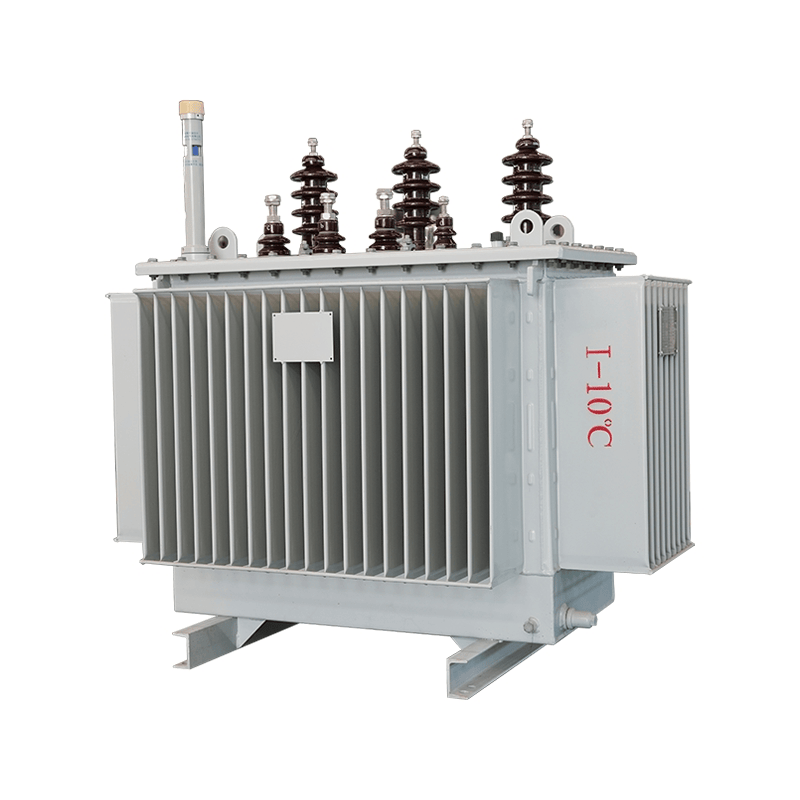

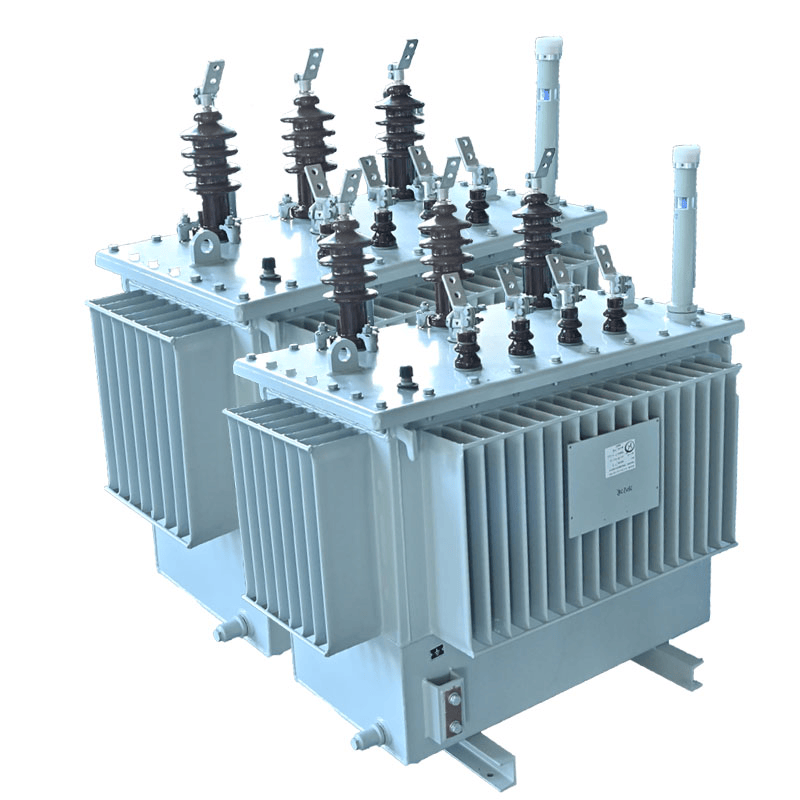

High Voltage Distribution Power Transformer Outdoor Sealed on-Load Oil Cooled Three-Phase Transformer Crafted for exceptional reliability and peak efficiency, this 500kVA 13.2kV three-phase oil-immersed transformer boasts superior aluminum windings. It provides a cost-effective yet robust solution, ideal for medium voltage applications. Complying with IEC or ANSI standards, it delivers outstanding thermal performance, minimal loss, and a prolonged service life, even under the most demanding conditions. Featuring a compact and sturdy design, this transformer is perfect for utility networks, industrial plants, and commercial facilities that demand a stable and continuous power supply. The aluminum windings minimize weight and cost while maintaining impeccable electrical performance and reliability. Specification Key Features: Rated Power: 500 kVA Primary Voltage: 13.2 kV Secondary Voltage: Customized to your needs (e.g., 400/230V) Winding Material: Premium high-conductivity aluminum Cooling Type: Efficient ONAN (Oil Natural Air Natural) Insulation Class: F or tailored to specifications Standard Compliance: Meets IEC 60076 / ANSI C57 standards Applications: Perfect for distribution networks, commercial buildings, and industrial loads Technical Specifications(Custom configurations available upon request.)

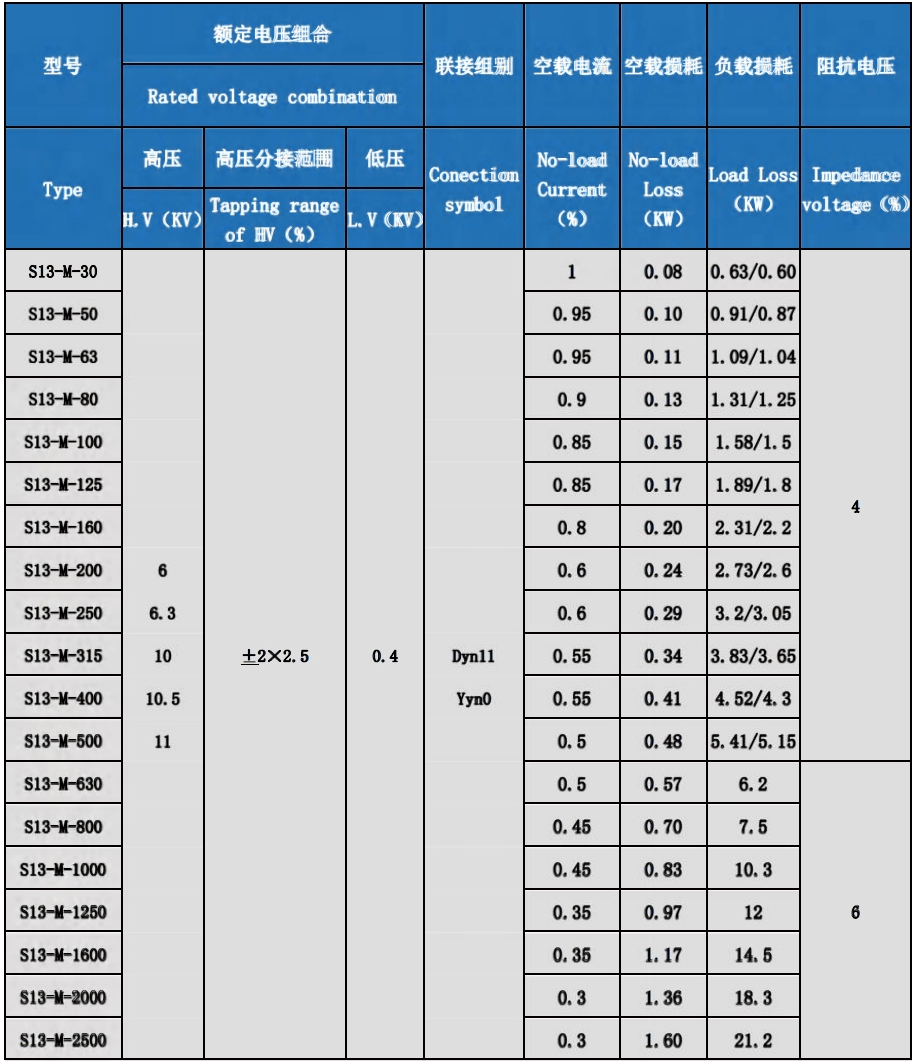

Model	HV (KV)	Tapping Range of HV (%)	LV (KV)	Vector Group	No-load loss (KW)	Load Loss (KW)	Impedance (%)
S13-M-400	6 6.3 10 10.5 11 13.2	±2*2.5	0.4	Dyn11 Yyn0	0.41	4.52/4.3	4
S13-M-500					0.48	5.41/5.15
S13-M-630					0.57	6.2	6
S13-M-800					0.7	7.5

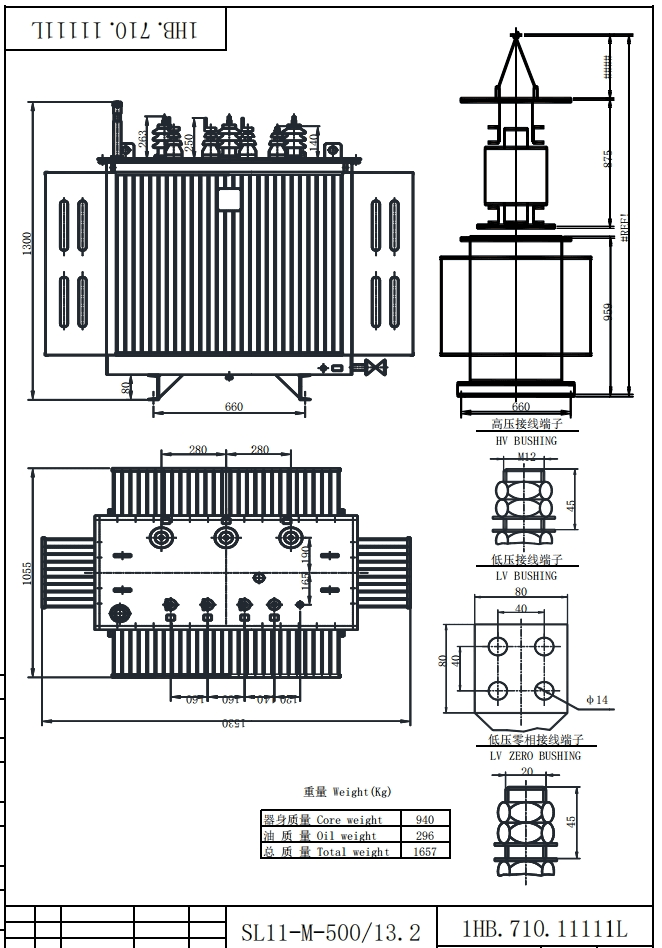

Drawings & DimensionsAccess detailed CAD drawings and dimensional diagrams upon inquiry. Our expert engineering team is ready to provide customized designs to meet your specific project needs.After Sales ServiceStandard Warranty: Enjoy peace of mind with our 12 months or 2,000 operating hours warranty (whichever comes first).
Global Support: Benefit from 24/7 technical assistance and a reliable spare parts supply.
Training: Choose from on-site or remote operation/maintenance training.Company ProfileJiangsu Beichen Hubang Electric Power Co.,Ltd.As a leading manufacturer with 17 years of expertise, we specialize in high-quality power transformers. Our commitment is to deliver dependable and efficient power solutions across the globe.Why Choose Us?Other ProductsLeverage our OEM/ODM capabilities for tailored solutions.
Benefit from competitive pricing and attractive bulk discounts.
Experience fast shipping with seamless customs clearance support.

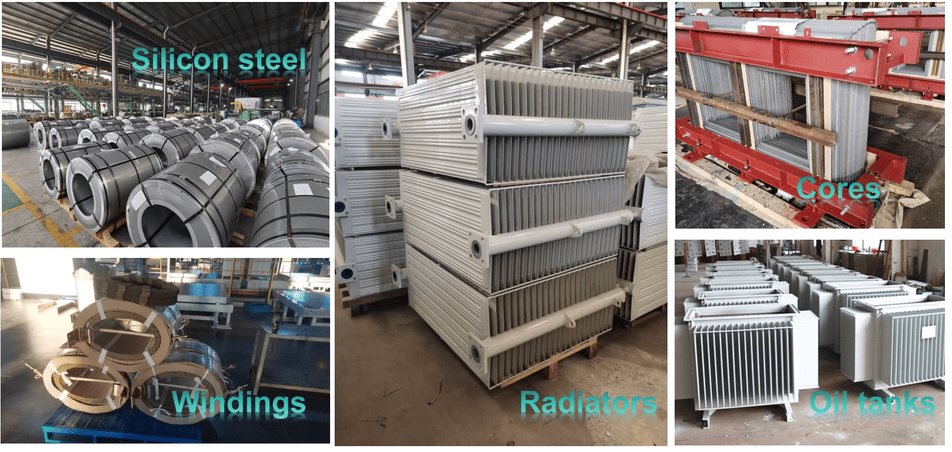

Access comprehensive turnkey project solutions.Electric Steel CRGO
Transformer Cores
Oil Tanks and Radiators
Padmount Substation
Prefabricated SubstationFAQQ: What's the lead time for orders?
A: Standard models are ready in 30 days; customized units take 45 days.Q: Do you provide after-sales service overseas?
A: Absolutely, we have partnered service centers strategically located in key regions.Q: Can I request a customized bucket size?
A: Certainly! We offer customized attachments to suit your needs.Q: What documents do you provide for export?
A: We provide a comprehensive export package including Commercial Invoice, Packing List, Bill of Lading, COC, and more.Q: How do I place an order?
A: Simply contact us via email or phone for a quote, and confirm with a Purchase Order (PO). View More
