Packaging & Delivery

Package Size 250.00cm * 230.00cm * 240.00cm Package Gross Weight 2000.000kg

Product Description

Daelim Belefic Group manufactures a full spectrum of medium- and high-voltage transformers, including Pad Mounted Transformers, Substation Transformers, Power Transformers, Distribution Transformers, Dry Transformers, as well as other mainstream international types such as Pole Mounted Transformers, Underground Transformers, Instrument Transformers (Current and Potential Transformers), Encapsulated Transformers, Special Application Transformers (Rectifier, Furnace, and Traction Transformers), Autotransformers, Isolation Transformers, Step-Up/Step-Down Transformers, and Unitized/Compact Substations.

ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Description

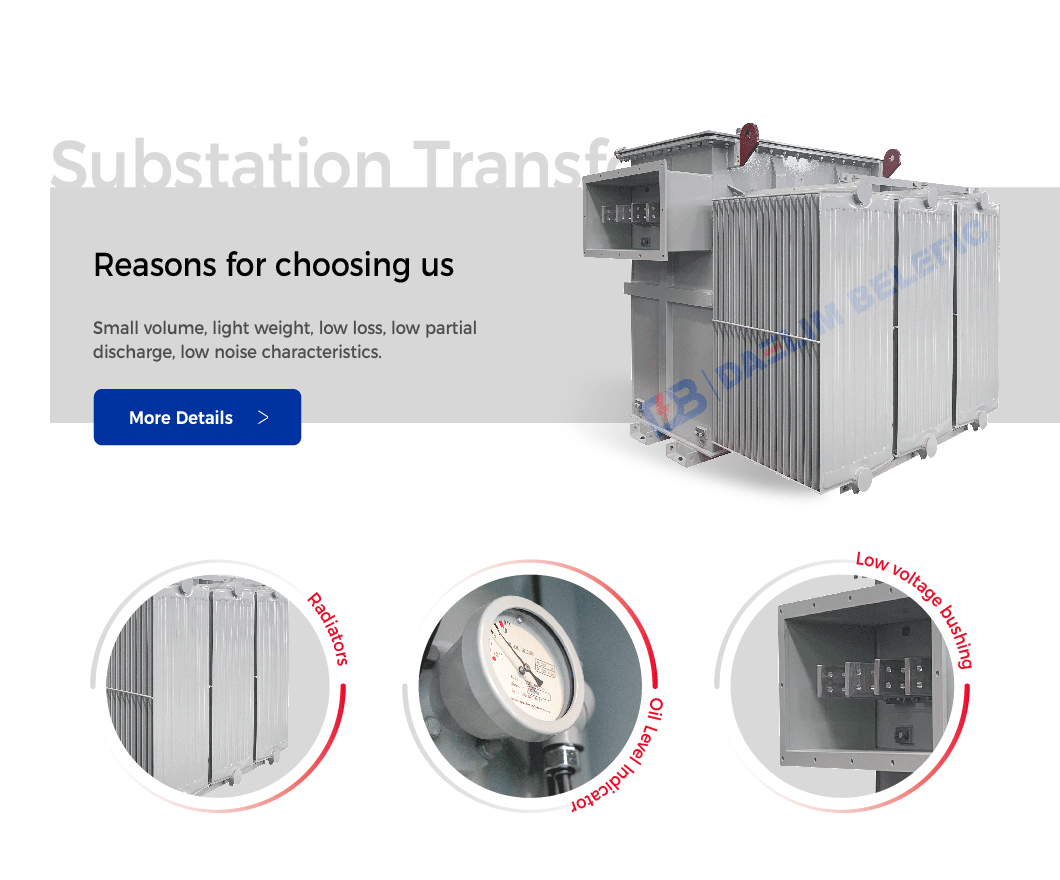

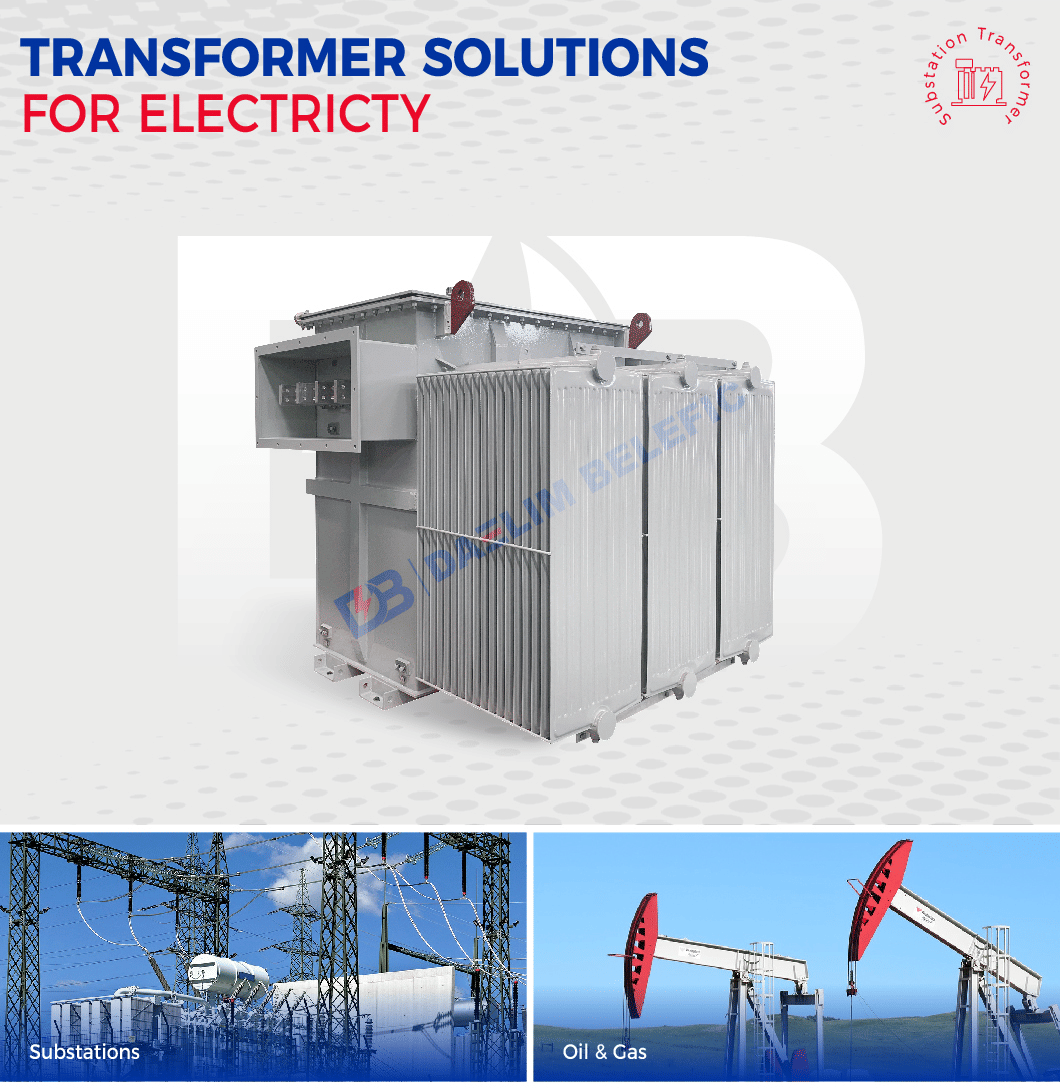

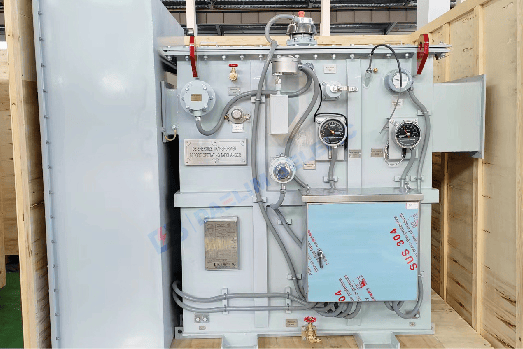

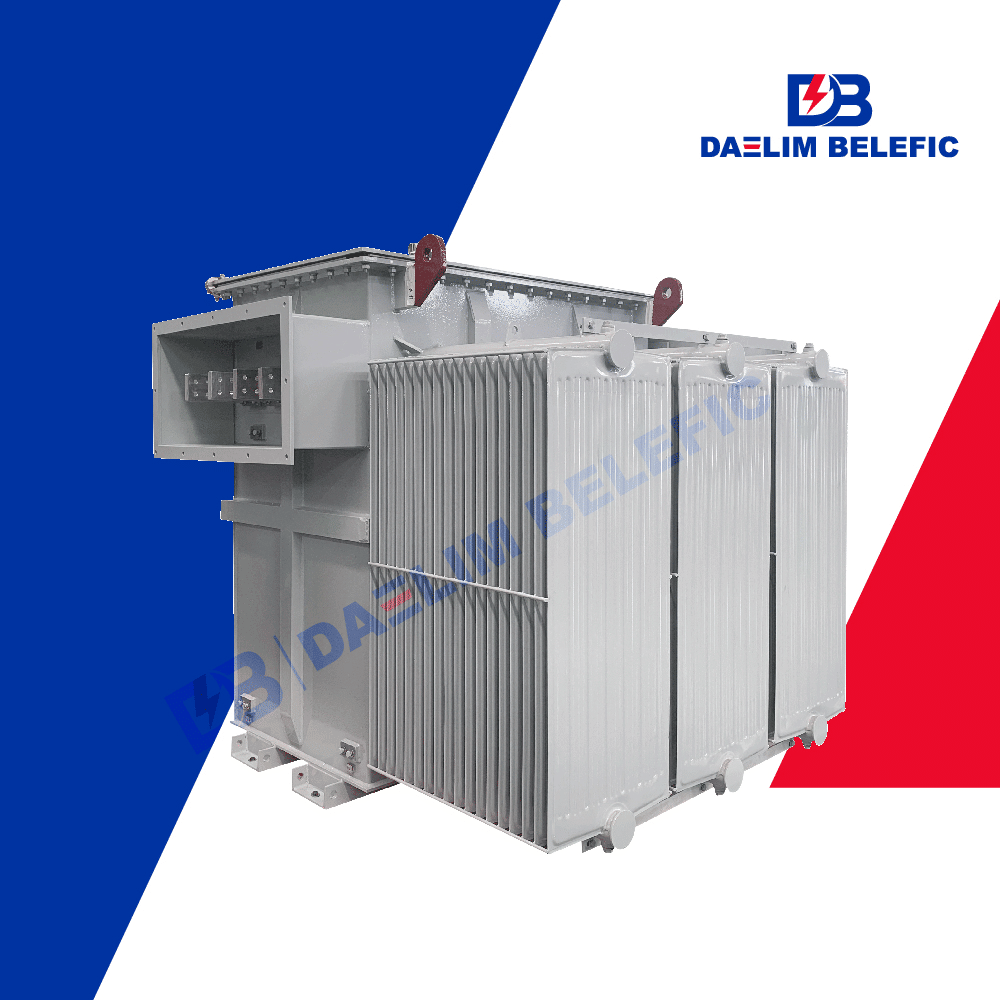

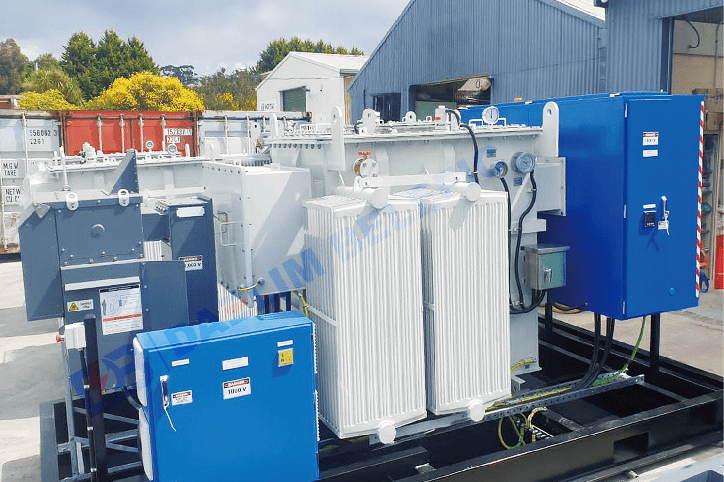

Daelim Belefic three-phase oil-immersed small substation transformer is designed to use in the power distribution system.A substation is a component of a system that generates,transmits, and distributes electricity.Substations convert high to low voltage- or vice versa-and conduct a variety of other critical duties. Electricity may travel through many substations at varying voltage levels between the generating station and the customer.Transformers may be used in a substation to convert voltage levels between high transmission and low distribution voltages or to connect two separate transmission voltages.

ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Our Advantages

1. Certifications
Daelim is a professional transformer manufacturer and supplier. Various international standards can be customized for your transformer, such as: IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, GOST, etc.Daelim produces transformers with UL/cUL, CSA, CESI etc certifications.

2. Transformer Quality
Daelim has a very serious quality control system, strictly controlling every detail from transformer design to raw material procurement, assembly, testing, packaging and delivery.
UL third-party agency regularly inspects the manufacturing process of Daelim transformers. This ensures Daelim maintains high quality standards even after its products have completed initial UL testing.

3. After Sales Service
a. Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, Daelim's after-sales team will solve it promptly and quickly;
b. Local after-sales installation service team. Whether you are in North America, South America or other regions, Daelim's local team can provide you with professional transformer installation, commissioning, maintenance and other services;
c. Daelim provides remote video guidance for transformer installation



ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Parameters



Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Connection  Symbol	Short Circuit Impendence	No-load Loss (W)	On-load Loss (W)	Reference Weight (KG)
800	12.0 12.47 13.2 13.8 14.4 23.0 24.94 34.5 34.8 44 or others	208/210 415/240 480/277 400 600 12000 12470 13200 13800 or others	Dyn1 Ynyn0 Dyn11 Dd0 Ynd11 or others	2.7 3.1 4.35 5.75 6.0	980	9350	2050
1000					1160	11500	2450
1250					1380	13900	2900
1600					1660	16600	3400
2000					2030	18300	4100
2500					2450	19600	4750
3000					3240	26500	6500
5000					4500	27000	9500
7500					7200	32000	13600
10000					8500	35500	15800

  In addition to 15/25/35KV, we also specialize in other models of three-phase oil-immersed transformers, contact me to send you a more detailed parameter table.

ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Standard Features

Δ High-fire point fluid,such as silicone,hydrocarbon or vegetable fluids. (up to 10 MVA)
Δ 55° C 55/65° C average winding rise
Δ Forced air cooling

Δ Forced air cooling with 2 stages (from 7.5 MVA and up to 15 MAVA) Removable radiators
Δ Pressure relief device
Δ Winding temperature device
Δ Sudden pressure relay with or without seal in
Δ Devices with alarm contacts
Δ Top filter press valve
Δ HV & LV air terminal compartments
Δ HV lightning arresters
Δ Current transformers
Δ Neutral grounding resistor
Δ Special impedances
Δ Low losses
Δ Special environment(i.e:classified areas)
Δ Special/low sound level
Δ Retrofit to specific dimensions
Δ Non-standard loading conditions such as harmonic loading or specified K-factor
Δ Stainless steel removable radiators
Δ Galvanized steel removable radiators
Δ Special paint for marine ambient
Δ Special paint thickness
Δ Special colors
Δ CSA compliance
Δ Other special features upon request

A transformer with a capacity ranging from 300kVA to 10MVA is a medium-sized transformer that possesses the following characteristics:

1. High capacity: These transformers are capable of handling a significant amount of power transmission and distribution. They are suitable for medium-sized industrial, commercial, and residential areas.

2. High efficiency: These transformers are designed with efficient mechanisms and high-quality materials to minimize energy losses and maximize energy conversion efficiency.

3. Various cooling methods: Medium-sized transformers can be equipped with different cooling systems such as oil-immersed (commonly used in high-capacity transformers), air-cooled, or water-cooled.

4. Reliability and stability: These transformers are constructed using premium insulation materials and advanced manufacturing techniques to enhance reliability and stability.

5. Overload and short-circuit protection: Medium-sized transformers are often equipped with overload and short-circuit protection devices to safeguard against excessive loads or short-circuit conditions. These protective measures promptly disconnect the power supply, protecting the transformer and associated equipment from damage.

6. Customizability: Medium-sized transformers can be customized based on specific requirements such as input voltage, output voltage, and cooling methods.

ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Packaging & Shipping

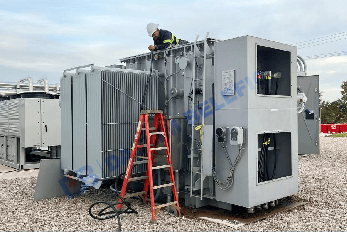

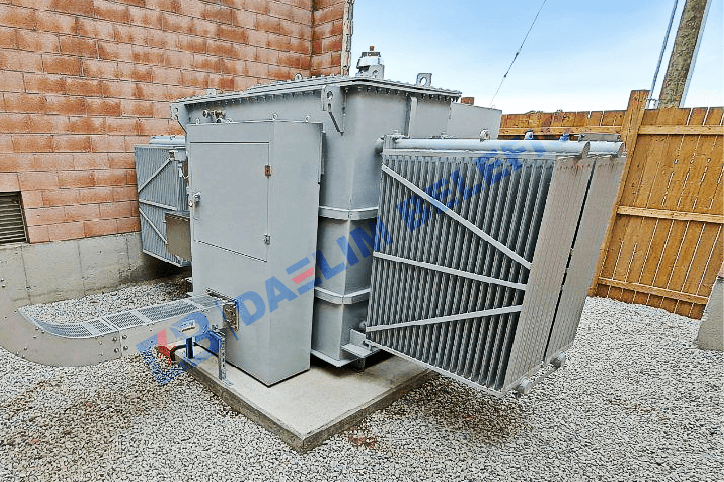

ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Application



ntent="" style="background-color:#b4c6e7;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Company Profile

We're Jiangsu Daelim Electric Co.Ltd. We've been dealing with the design,engineering and manufacturing of high quality electric products and equipment for over 15 years.JIANGSU DAELIM is full of experts and professional,this helps us to solve the customers'problems quickly.Our team had systematic training and is committed to continuous improvement by the quality guidelines and practices.

Our business,experience,and technology is built on a foundation of electric product experise we've built over 15 years.For JIANGSU DAELIM,our mission has always been to meet the customers's needs and win the customers trust by being an trustful partner to them.
Our dedicated customer service,product innovation,engineering ecellence and strong social enviro-nmental responsibility sense have made us to become a valued trusted power solutions partner for globe electric industry.What JIANGSU DAELIM does for clients is special,and we want to share this with you.
