Packaging & Delivery

Package Size 1750.00cm * 1650.00cm * 1900.00cm Package Gross Weight 2000.000kg

Product Description

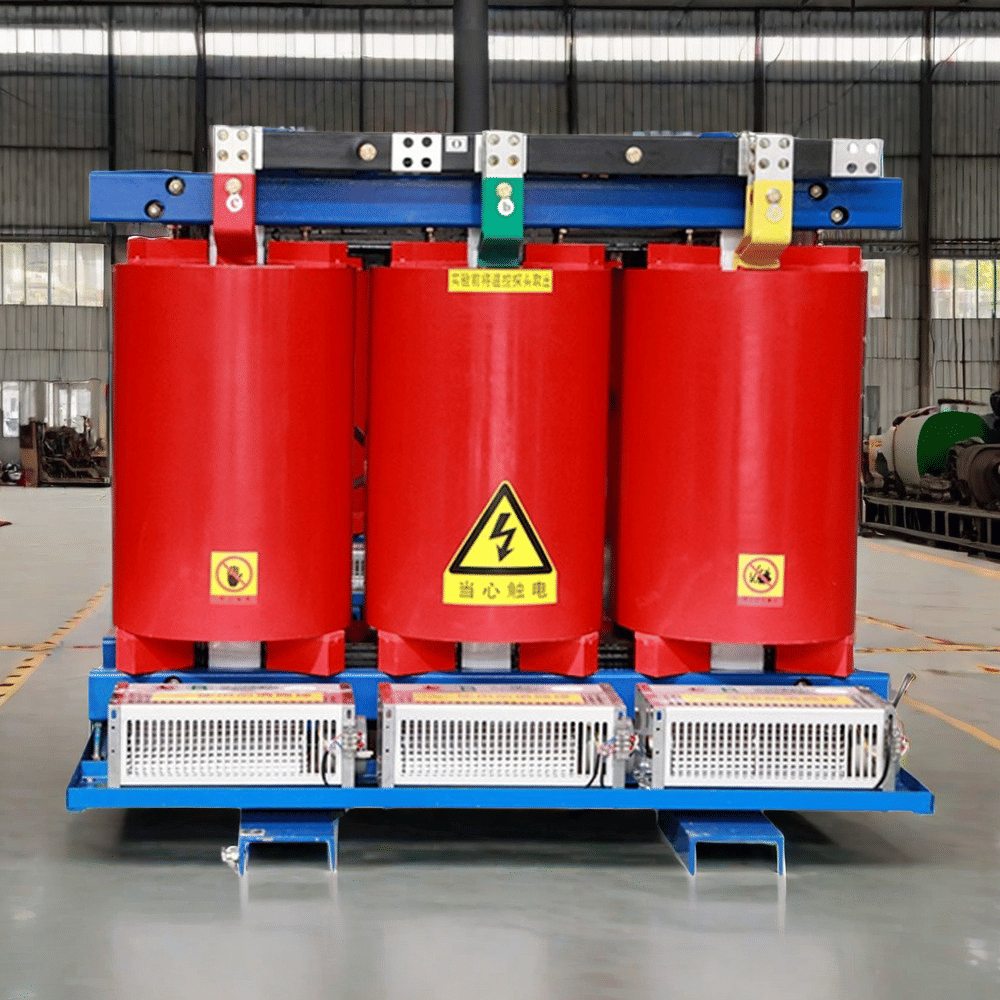

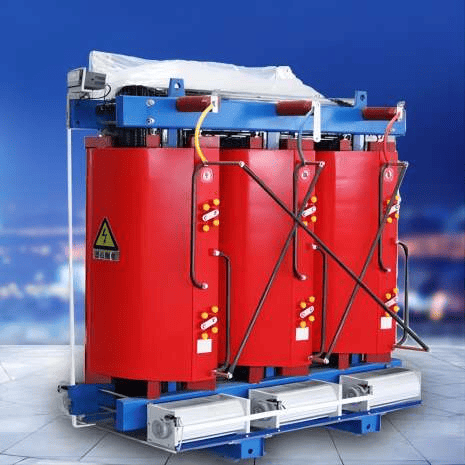

250kva 1000kva 1250kva 2000kva 2500kva Cast Resin Three Phase Distribution Electric Dry Type Power Transmission Transformer  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Parameters

Rated Capacity (KVA)	Junction group labe	Voltage combination(KV)			No-load current (%)	Load loss (W)	No-load loss (W)	Short circuit impedance (%)
		(H.V.)	High voltage tap    range(%)	(L.V.)
30	Dyn11 YynQ	10 6.3 6	±5   ±2×2.5%   or   -1 ×2.5%   +3	0.4	2.00	710	150	4.0
50					2.00	1000	215
80					1.50	1380	295
100					1.50	1570	320
125					1.30	1850	375
160					1.30	2130	430
200					1.10	2530	495
250					1.10	2760	575
315					1.00	3470	705
400					1.00	3990	785
500					1.00	4880	930
630					0.85	5880	1070
630					0.85	5960	1040	6.0
800					0.85	6960	1210
100C					0.85	8130	1410
1250					0.85	9690	1670
1600					0.85	11730	1960
2000					0.70	14450	2440
2500					0.70	17170	2880

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Description Applying Ambient Conditions:
  Installation Height : the atitude should not exceed 1000m
  Ambient temperature: -30ºC-+40ºC

Low loss: The no-load loss of the product is more than 30% lower than that of the ScB10 product, and all losses are lower than the SCB13 dry-tvpe transformer, with excellent eneray-saving effect, economic operation, and maintenance-free.

Low partial discharge: The resin mixture adopts foreign advanced mixing methods and vacuum film degassing technologies to make themixture evenly stired and completely eliminate air bubbles in the mixture.
  Installation environment inclination of installation lace<3, no obvious dirt and corrosive or flammable gas

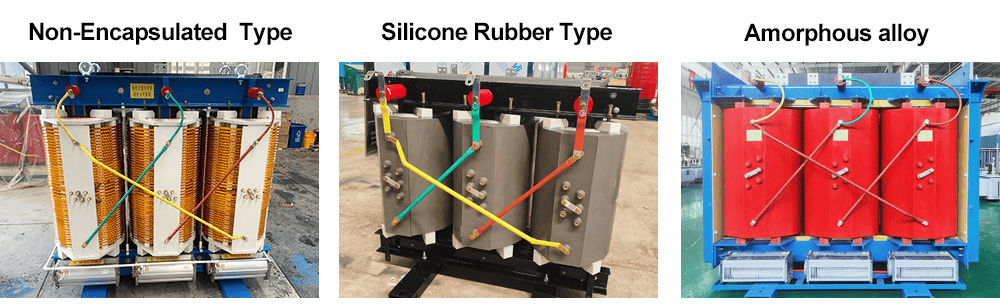

Dry-type transformer has many types you can to choose. They have epoxy resin cast dry-type transformer, non-encapsulated dry type transformer, amorphous alloy dry type transformer, three-dimensional wound core dry-type transformer.

Dry-type transformer is a high-performance electrical equipment. It adopts advanced insulation technology, does not require oil immersion, and is safe and environmentally friendly. It is fireproof and explosion-proof, and its operation is stable and reliable. Compared with oil-immersed transformers, dry-type transformers are more adaptable to various environments and have lower maintenance costs. It is widely used in high-rise buildings, commercial centers, hospitals, factories and other places. It efficiently converts and distributes electrical energy, providing continuous and stable power support for our lives and production. It is an indispensable and important part of the modern power system.

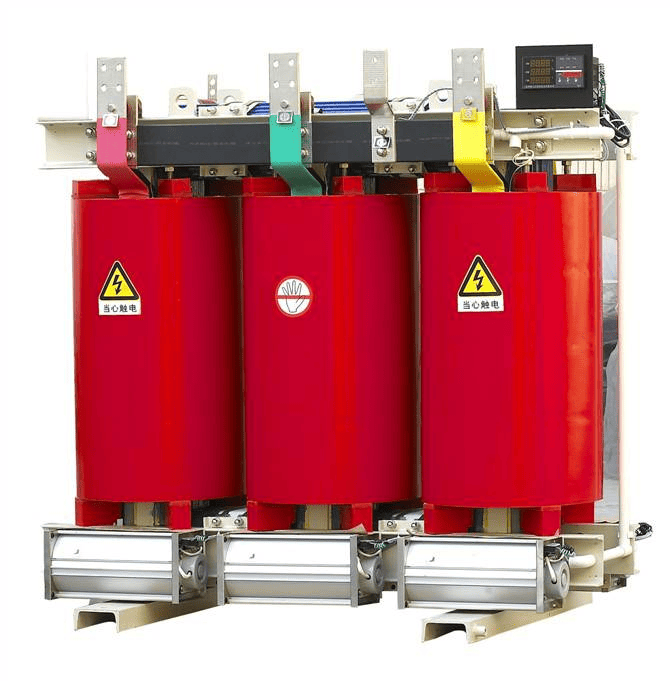

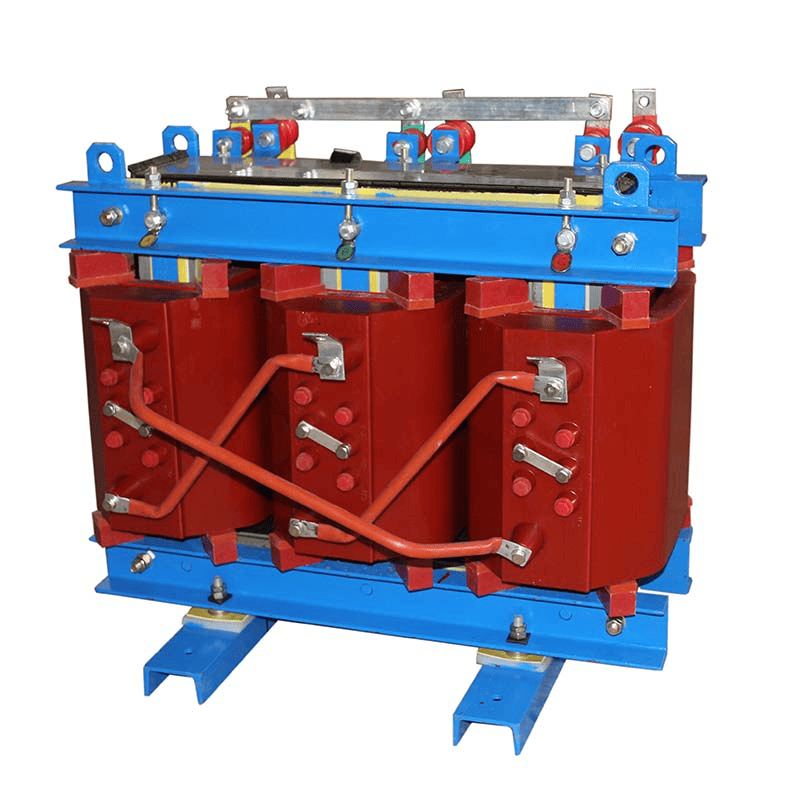

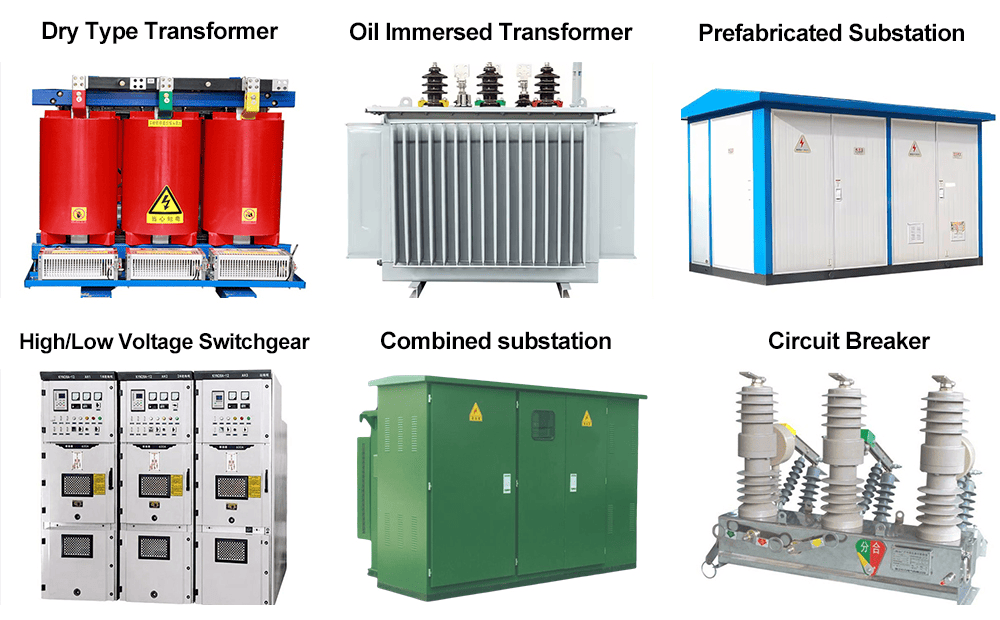

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Main Product

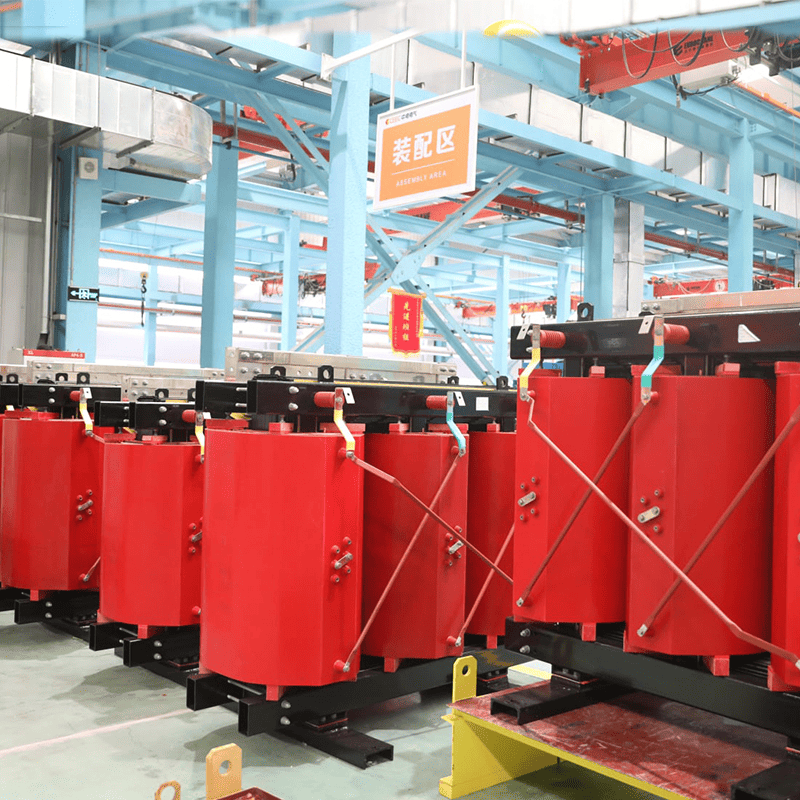

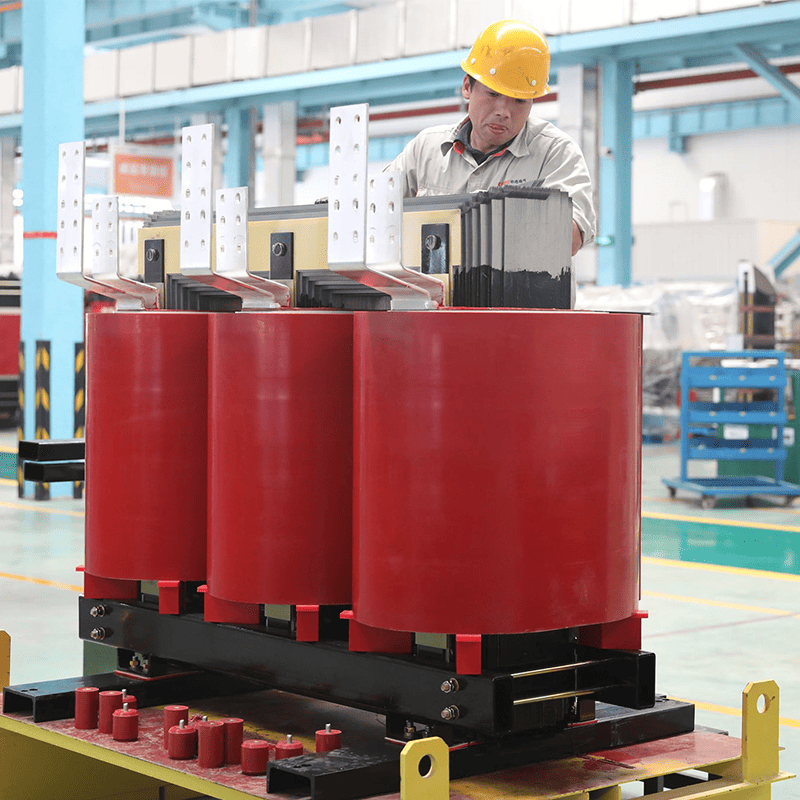

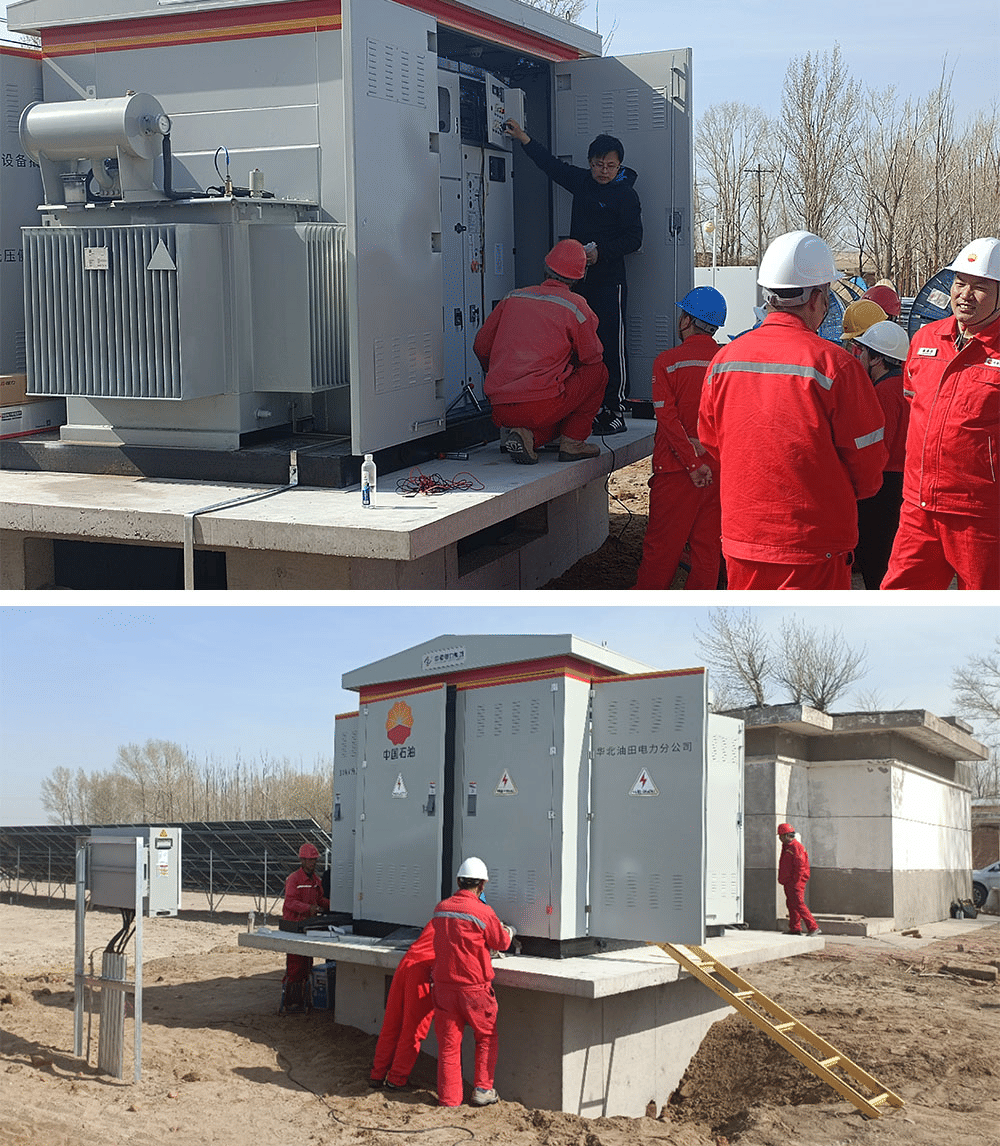

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">On-site Installation

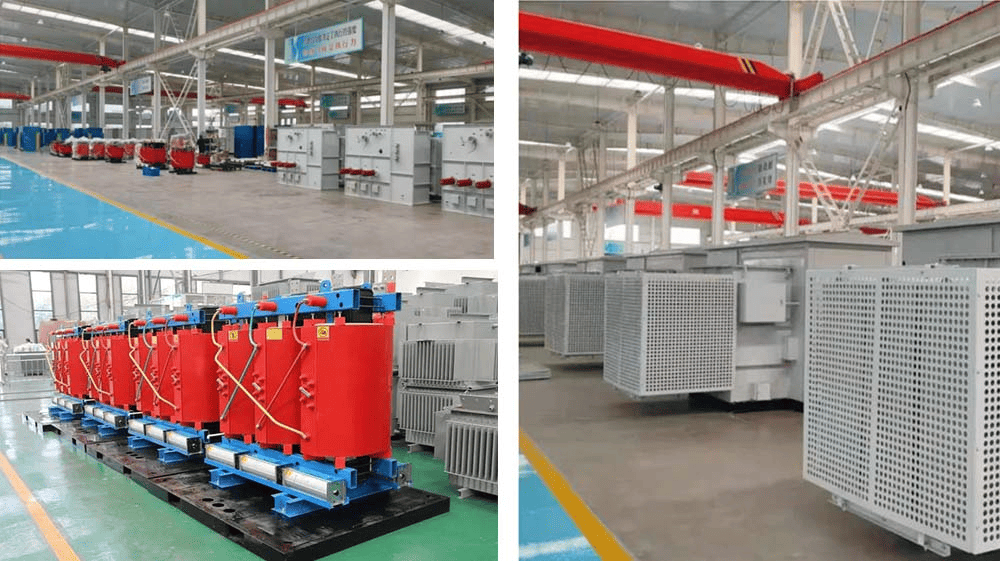

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Company Profile

Global Power Equipment (Xuzhou) Co., Ltd. is anintelligent technology enterprise engaged in R&D manufacturing and sales of power transformers,
high and lowvoltage switch cabinets, box-type substations and supporting products.

The factory covers an area of nearly 100,000 square meters,with a registered capital of 60.6 million yuan. lt has more than 300 employees,20 party branch members,nearly 20engineers, and nearly 50 technical personnel with intermediatetechnical titles.The company relies on domestic advanced technology and production. And testing equipment, inaccordance with the operating standards of the lS09000quality certification system, using computer-aided design, toprovide customers with environmentally friendly, energy-saving,low-carbon and high-quality products that meet thecharacteristics of each region to meet the fundamental requirements of the market and different customers.

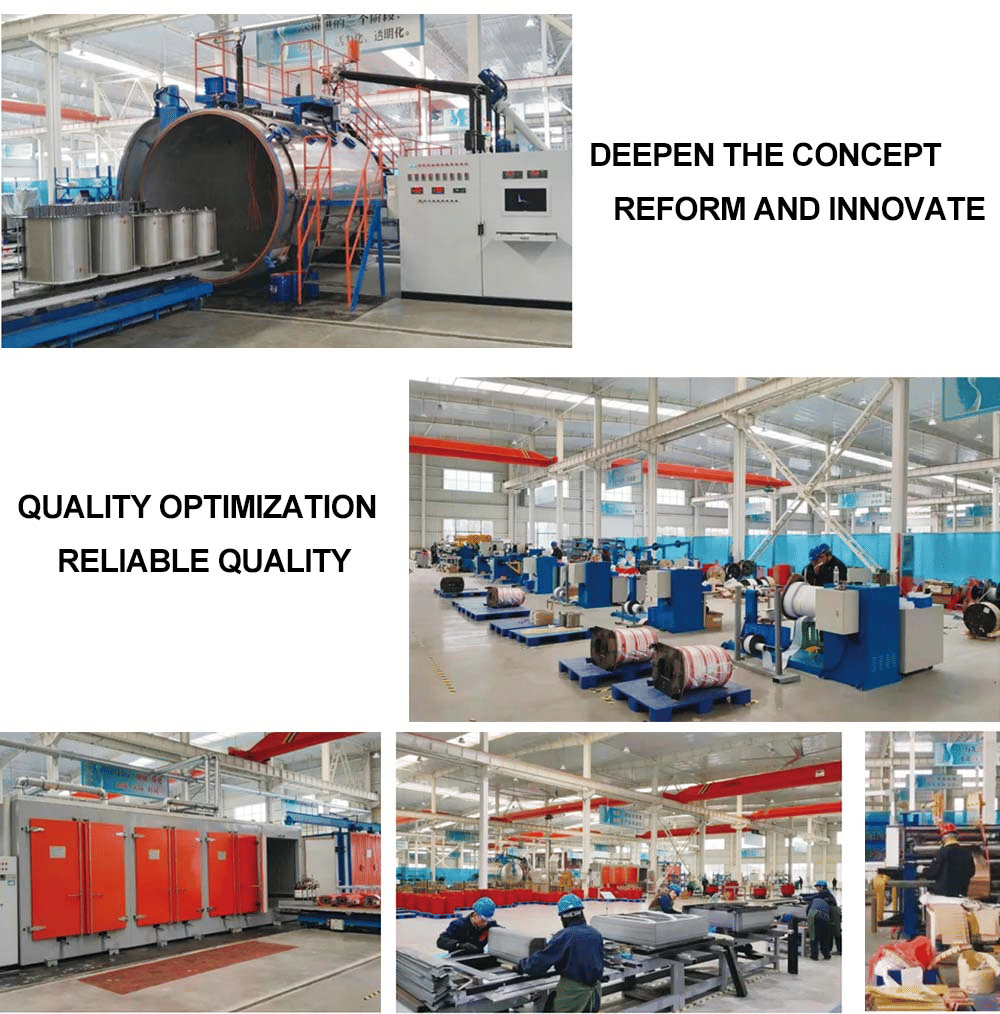

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Workshop

Global Power Equipment always insists on "striving for progresswith science and technology,for survival with quality, forefficiency with management, for market with integrity, and fordevelopment with innovation". Insist on the meticulousness andexcellence of every detail and link, strive to realize thestandardization and systematic management of product quality, and accelerate the innovative application, digestion andabsorption of new technologies. Through extensive technicalexchanges and cooperation, research and development of high-reliability, maintenance-free, intelligent, energy-saving andenvironmentally friendly power transmission and transformationequipment products. To achieve the goal of building a R&D andmanufacturing base for advanced equipment as the medium andlong-term development of the enterprise. Committed tobecoming the world's leading supplier of power equipment,making the "Zhonghao" brand more outstanding due to quality.and comprehensively revitalizing China's national industry.
