Product Description

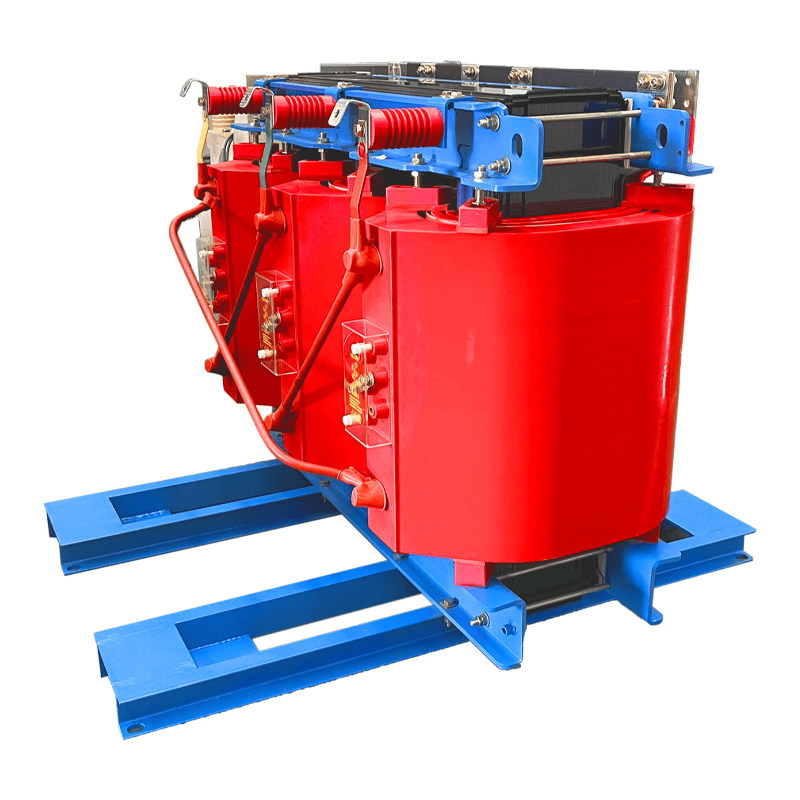

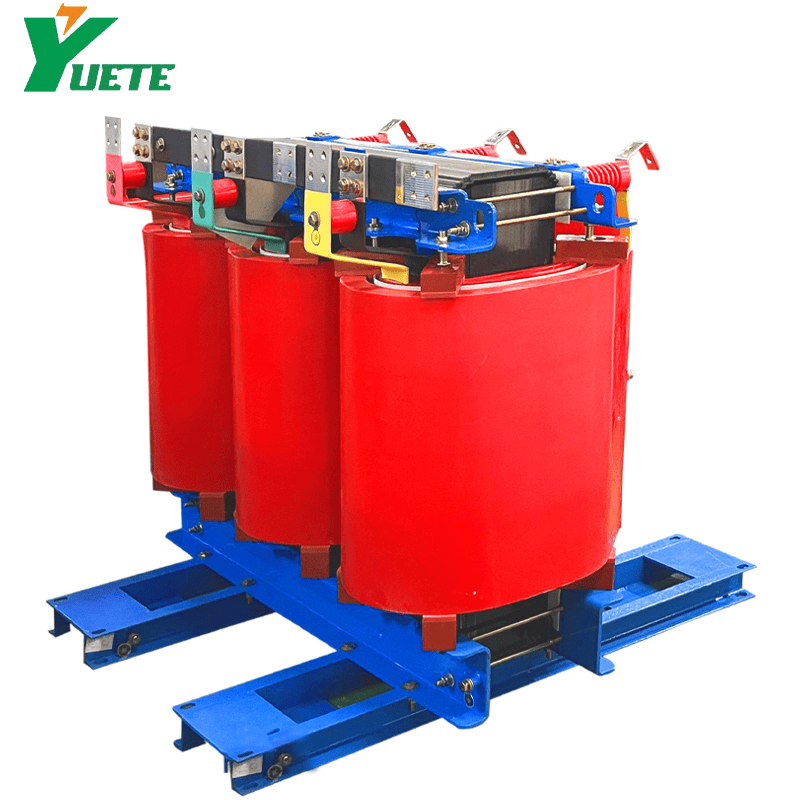

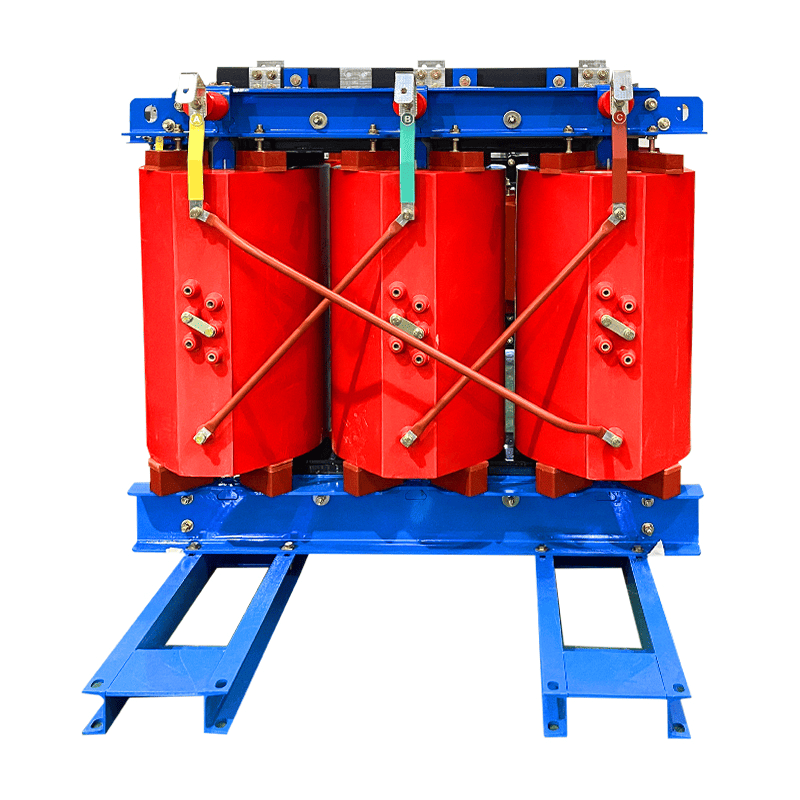

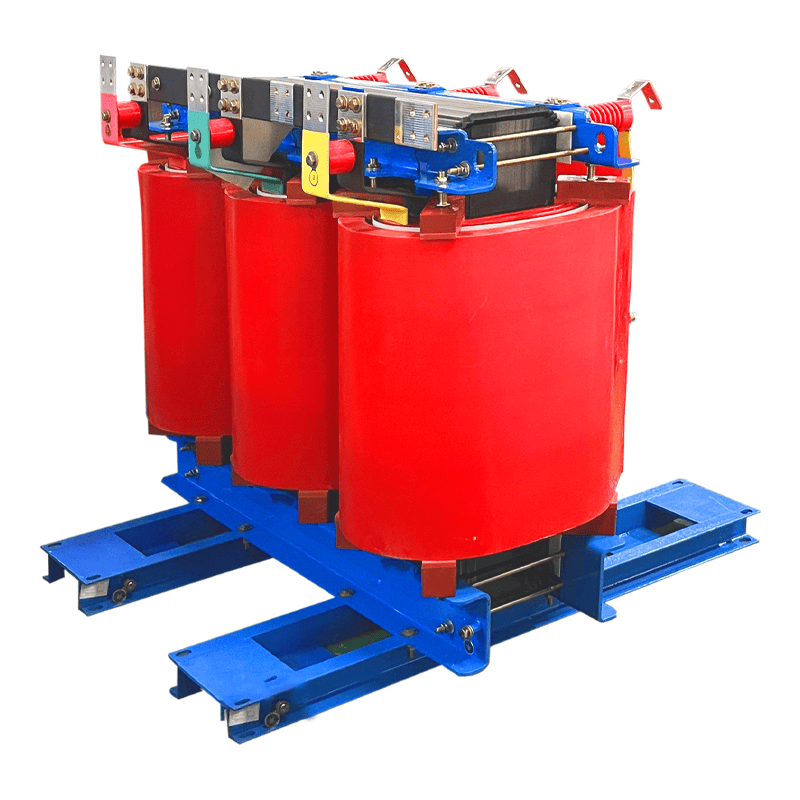

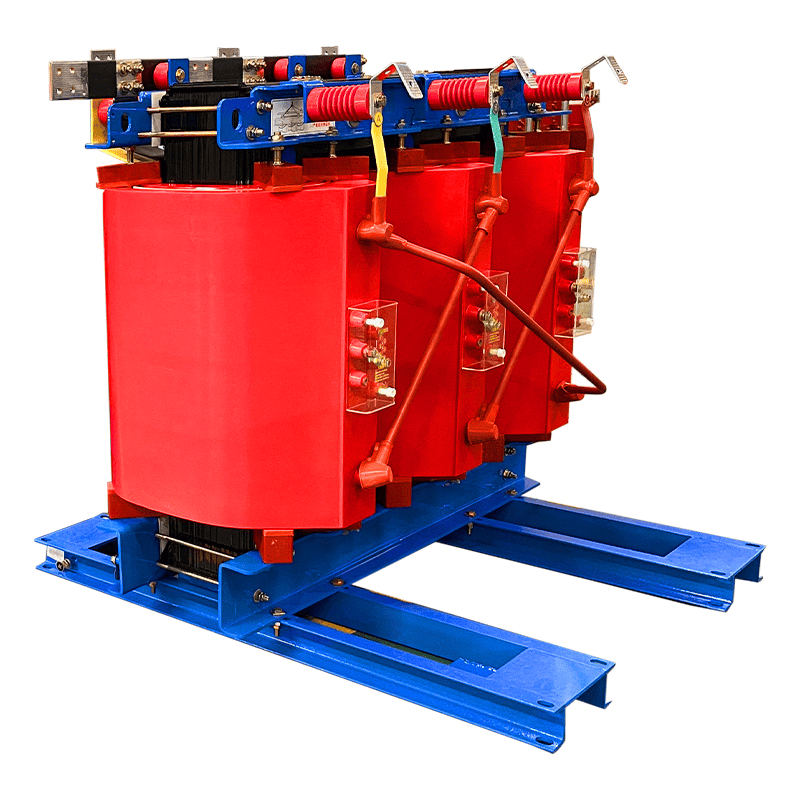

Three Phase 33/34.5/35/38kV Dry Type Transformer Product Features: - Safe, inflammable, fireproof, no pollution, can be directly installed in the load center; - Maintenance free, easy installation, low overall operation cost; - Good moisture-proof performance, can operate normally under 100% humidity; - Low loss, low partial discharge, low noise, strong heat dissipation capacity, forced air cooling conditions;  - Equipped with perfect temperature protection and control system to ensure the transformer to run in a safe and reliable way; - High reliability. The reliability index of the products has reached the international advanced level.

Technical specifications:

Rated Power  (kVA)	Rated Voltage(kV)		Vector Group	No-load loss(W)	Load loss(W)	Impedance(%)
	HV	LV
30	33 34.5 35 38 Tapping range: ±5%; or ±2*2.5%	0.4 0.433 0.415	Dyn11 Yyn0	400	1200	6
50				450	1420
80				510	1750
100				630	2090
125				720	2500
160				790	2810
200				880	3320
250				990	3800
315				1170	4510
400				1370	5410
500				1620	6650
630				1860	7690
800				2160	9120
1000				2430	10400
1250				2830	12700
1600				3240	15400
2000				3820	18200
2500				4450	21800
3150				5280	25200

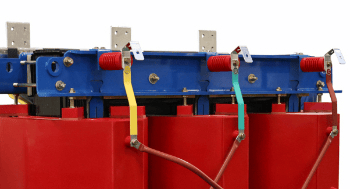

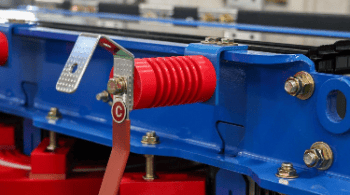

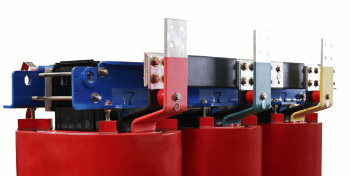

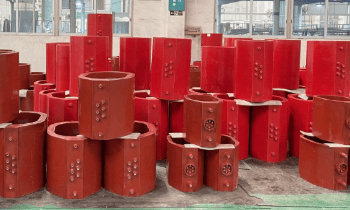

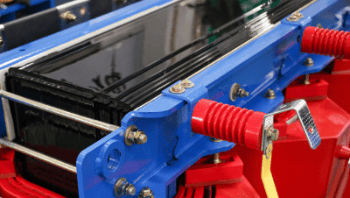

Product Details:     Core                                                                                                                                                    Clamp   HV terminations                                                                                                                                  LV terminations HV winding                                                                                                                                            LV winding

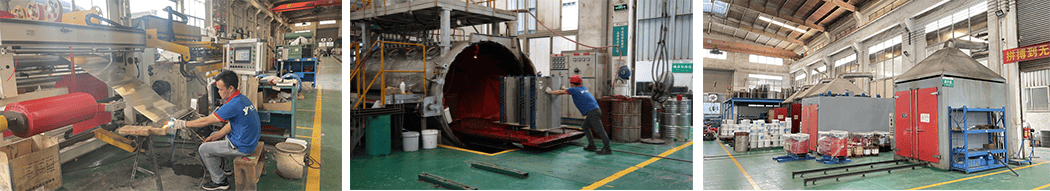

Production Equipment:

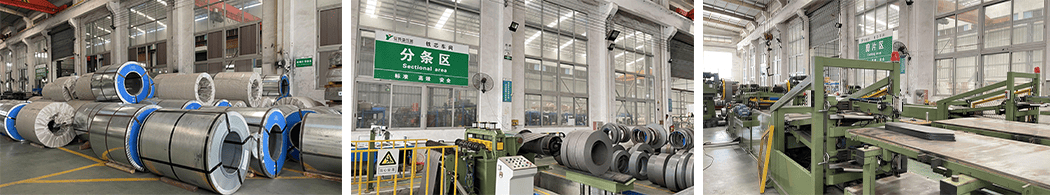

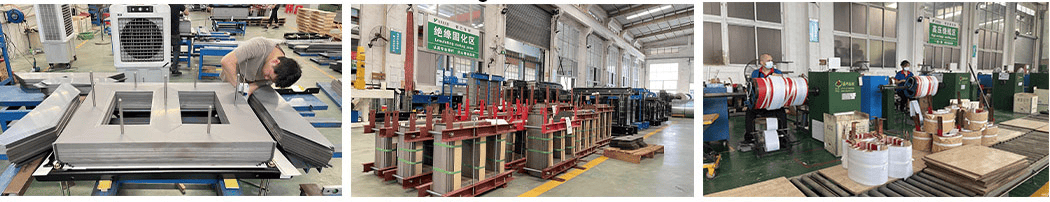

Raw materials                                                       Core slitting                                                         Core cutting
Core stacking                                                               Insulating curing                                                           HV winding

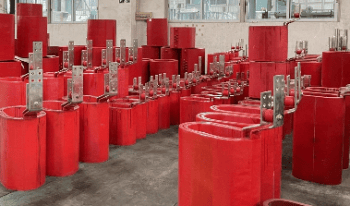

LV winding                                                                      Pouring                                                                          Drying

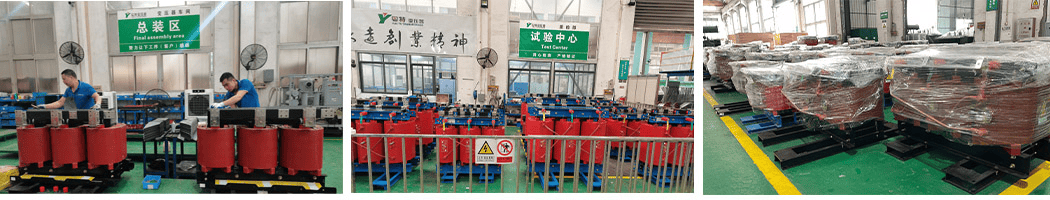

Assembly                                                                       Testing                                                                           Warehouse

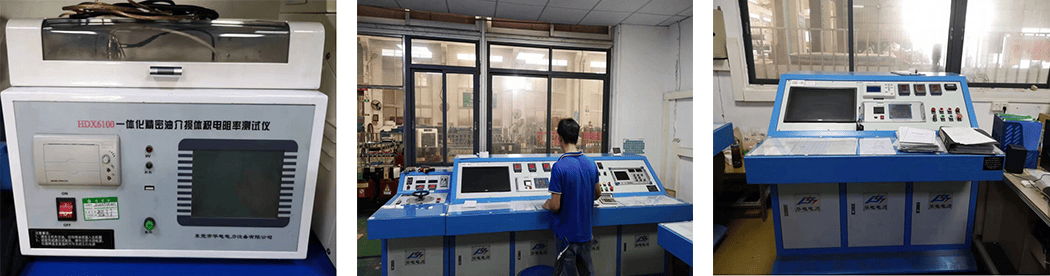

Test Equipment:

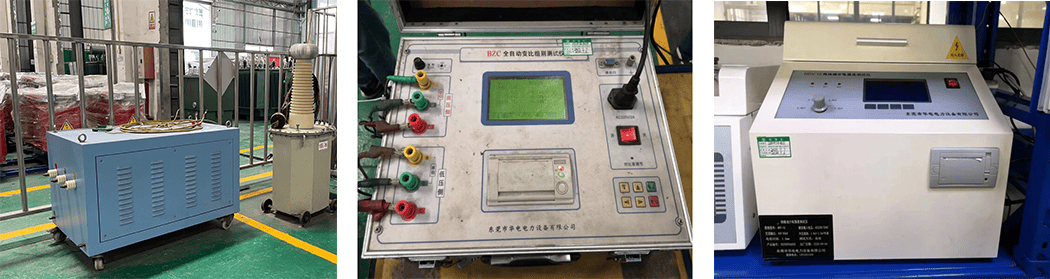

Test transformer                                                           Voltage ratio tester                                                        Oil dielectric strength tester
Oil dielectric resistivity tester                                     Temperature test bench                                               Transformer integrated test bench

  Company Profile:
Guangdong Yuete Transformer Co., LTD, established in 2009, is a professional high-tech enterprise of manufacturing, researching and sales, and is located at No. 5 of Zhiye Road, Songxia Industrial Park, Shishan town, Nanhai, Foshan, Guangdong, China.

Our main products are:
-Power transformers: Oil immersed transformer, Dry type transformer, Rectifier transformer, Furnace transformer, Amorphous alloy transformer, Isolation transformer, etc.
-Box type substation: Pad mounted transformer, Compact transformer substation(Prefabricated transformer), PV substation, New energy storage substation, etc.
-Switchgear: High voltage switchgear, Low voltage switchgear

Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, Middle Asia, etc. We have complete and effective quality control system and test system, strictly based on IEC standard, IEEE standard, ANSI standard. We have ISO, CQC, Type test report, which enhance our company's competitiveness and realize the sustainability of our development.

We have over 300 employees, most of the engineering and technical staff and production staff are senior engineers and production experts who have been working in the industry for more than 10 years. Driven to provide clients with good-quality products and technical support, we offer thoughtful and rapid pre-sales and after-sales one-package services.
Certificates:
