Packaging & Delivery

Package Size 245.00cm * 215.00cm * 225.00cm Package Gross Weight 7500.000kg

Product Description

Product Description

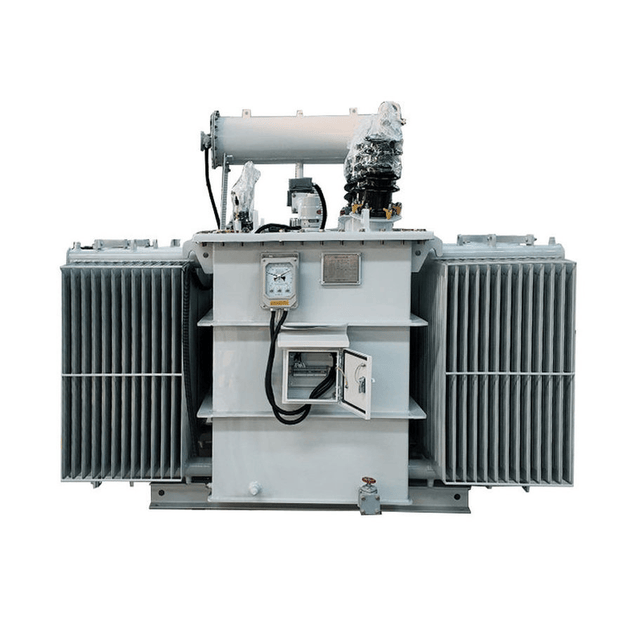

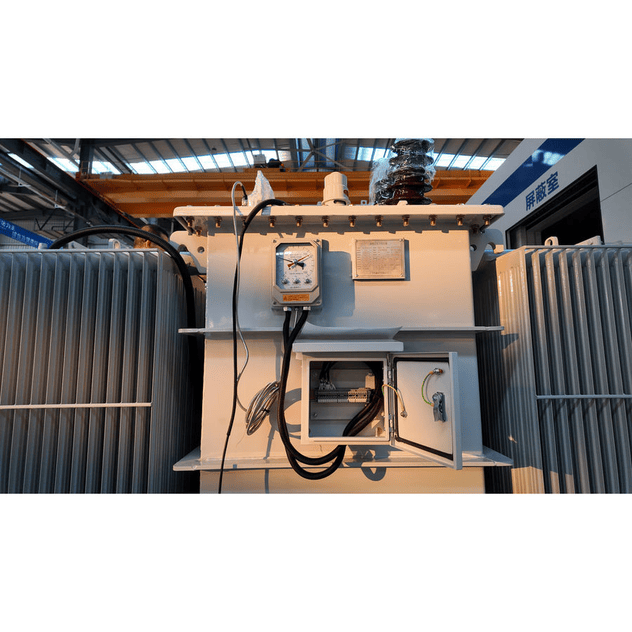

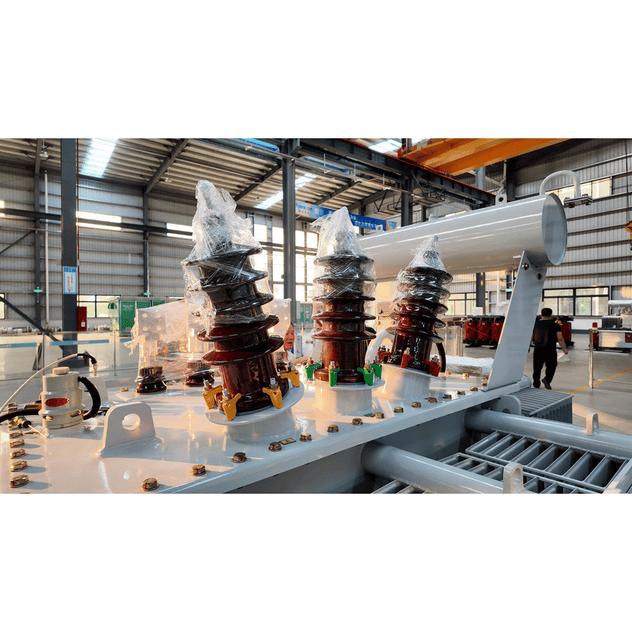

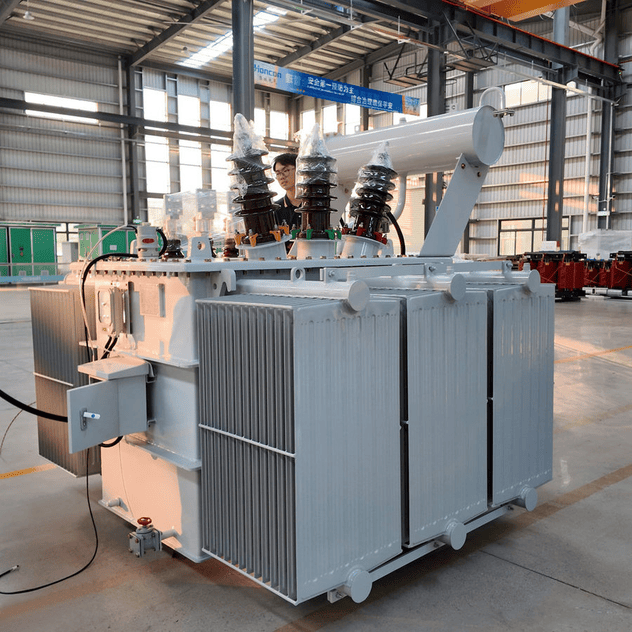

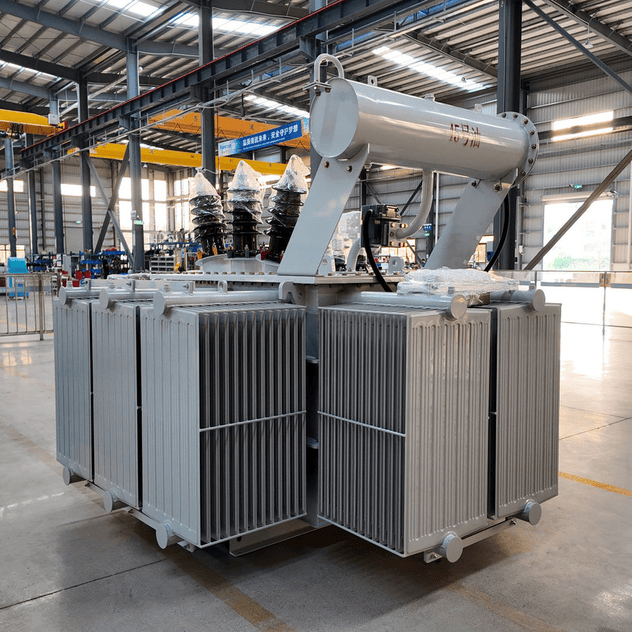

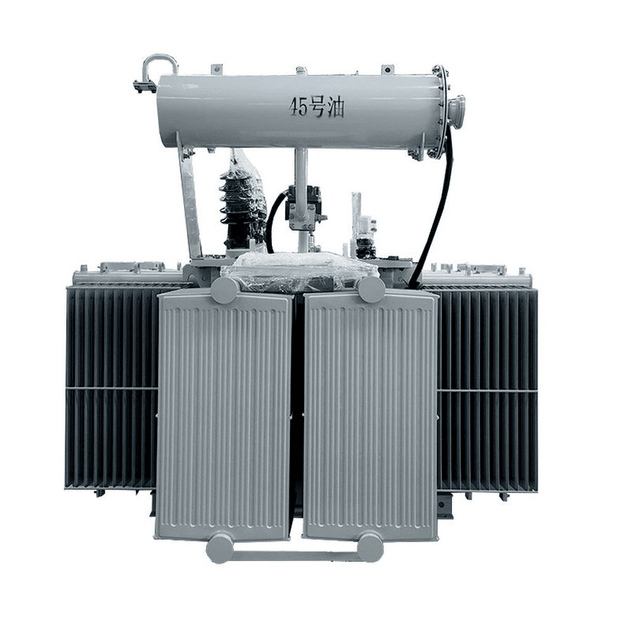

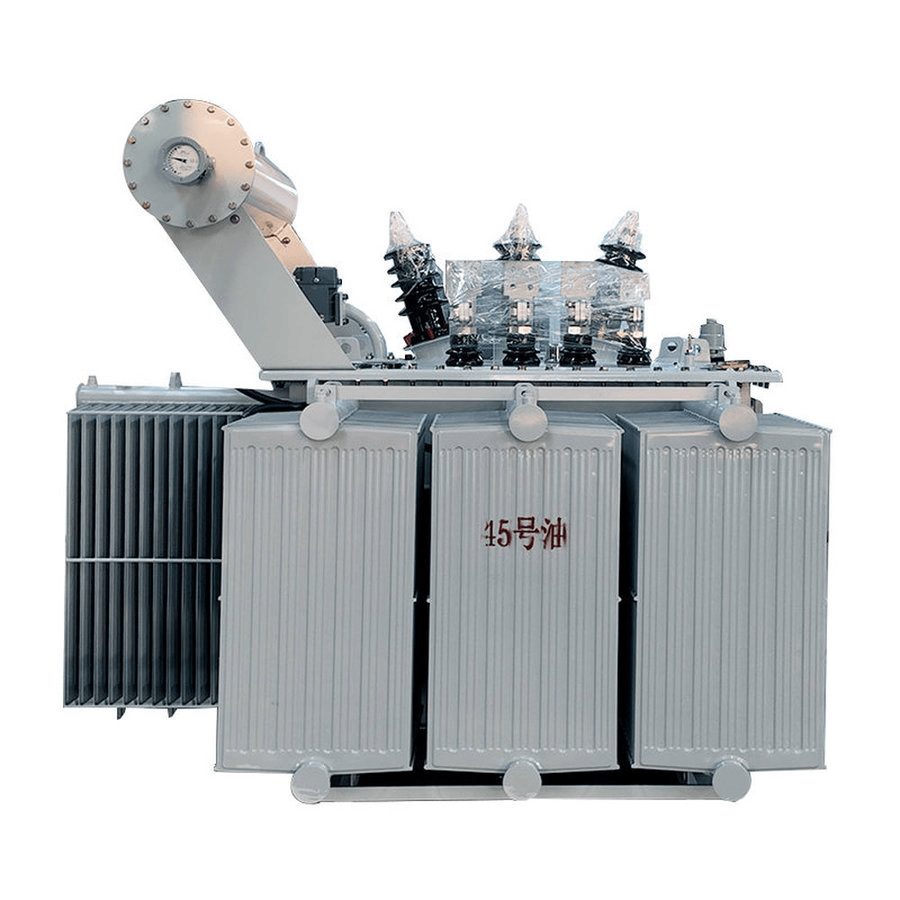

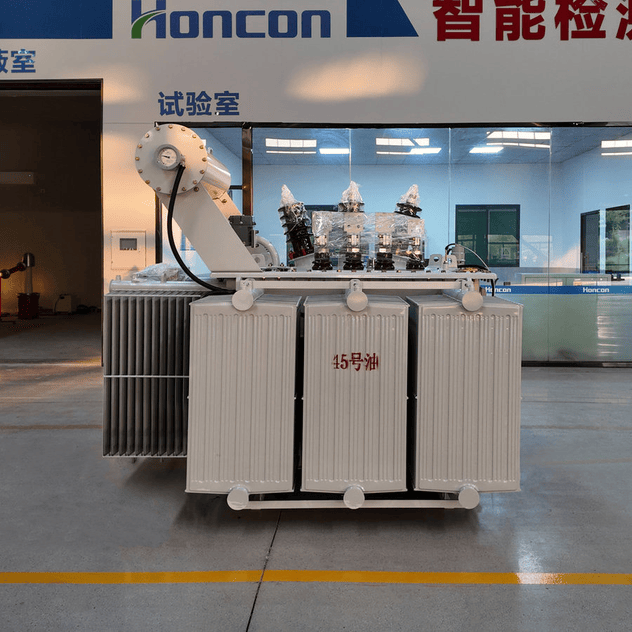

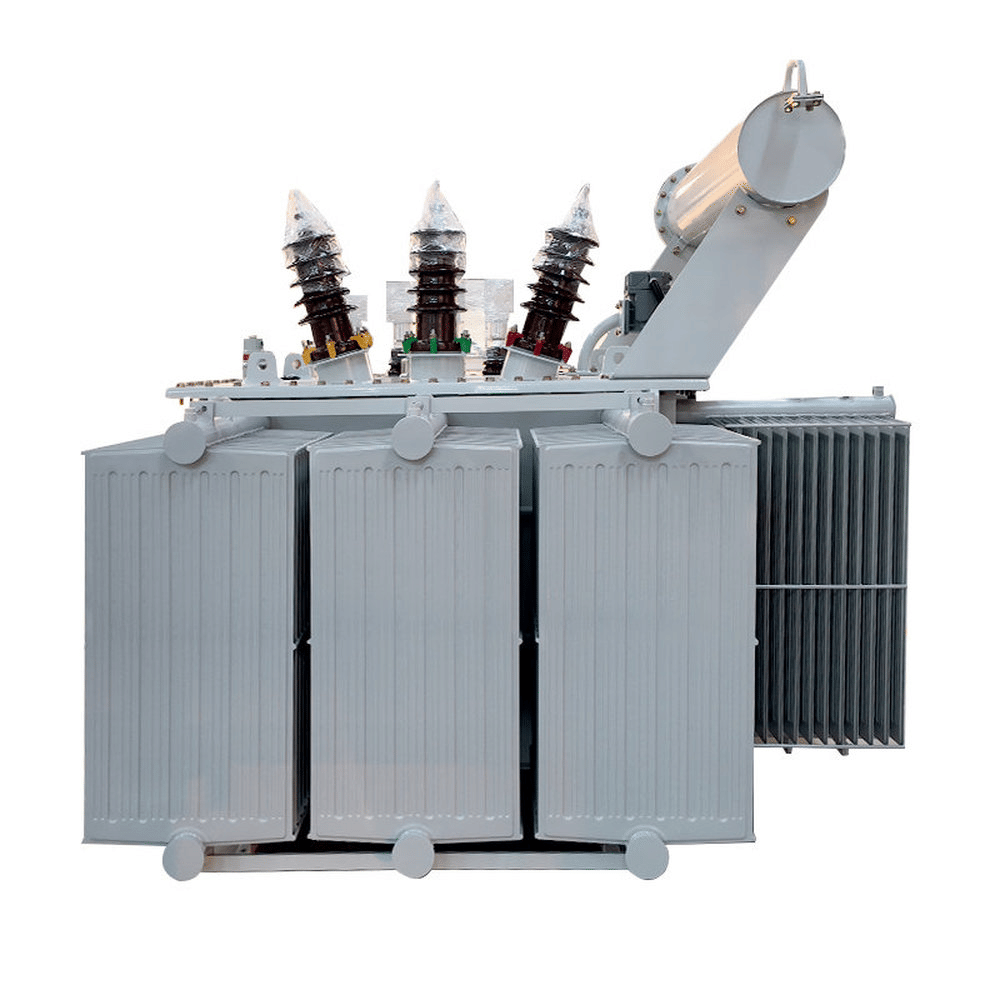

OIL-IMMERSED TRANSFORMER



The oil-immersed transformer is a robust and reliable solution for transferring and distributing electrical power in diverse environments. Built for outdoor use, this transformer features advanced oil-cooling technology, excellent insulation, and a sealed tank structure to ensure long-lasting performance and safety. With proven reliability across utility, industrial, and commercial applications, it guarantees efficient power conversion, minimal noise, and extended service life.Oil-type transformer (also called an oil-immersed transformer or oil-filled transformer) is suitable for outdoor use.

* Adopting the corrugated tank sealing structure to prevent the transformer from the contact with air and water, reducing the degree of aging of the oil and extending the service life of the transformer.

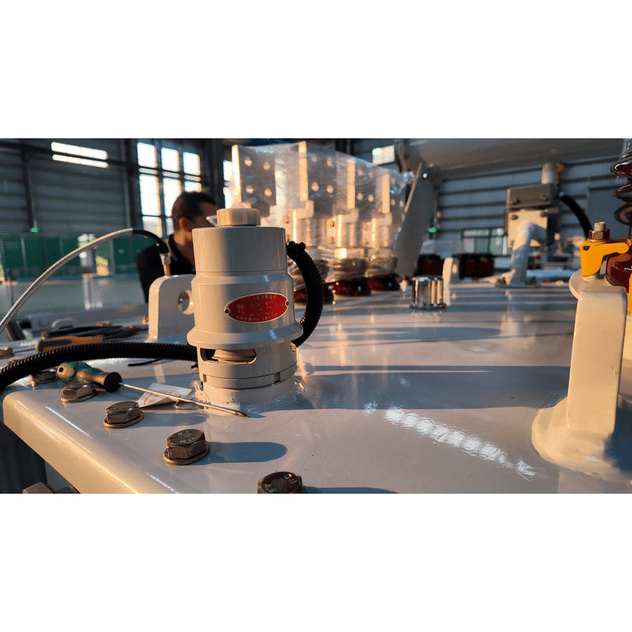

* The product structure is for the outdoor type, and the transformer has pressure release safety devices. When the transformer failure pressure is too high, it can be safely released reliably through the pressure relief valve to prevent the expansion of the accident.

* An oil-type transformer can be an isolation transformer, which is a type of transformer used to transfer electrical power from a source to a device while isolating the powered device from the power source for safety. It helps protect against electric shocks, reduces electrical noise, and is commonly used in medical, industrial, and sensitive electronic applications.

* Due to the oil-type transformer being able to operate outdoors, an oil-type transformer can be a pole-mounted transformer, which is an electrical distribution transformer installed on utility poles to step down high-voltage electricity from power lines to a lower voltage suitable for residential or commercial use. Commonly used in rural and suburban areas, these transformers are compact, cost-effective, and essential for local power distribution.Detailed PhotosProduct Parameters

Type	Rated Voltage (KV)	Vector Group	Loss(W)		Short-Circuit Impendance (%)	No-Load Current (%)	Weight (Kg)
			No-Load	Load (75℃)
S11-M-30/10	6,6.3, 10, 10.5,11/0.4	Yyn0 Or Dyn11	100	630	4	1.5	355
S11-M-50/10			130	910		1.3	420
S11-M-63/10			150	1090		1.2	480
S11-M-80/10			180	1310		1.20	510
S11-M-100/10			200	1580		1.1	600
S11-M-125/10			240	1890		1.1	690
S11-M-160/10			280	2310		1	780
S11-M-200/10			340	2730		1	950
S11-M-250/10			400	3200		0.90	1100
S11-M-315/10			480	3830		0.90	1350
S11-M-400/10			570	4520		0.8	1450
S11-M-500/10			680	5410		0.8	1670
S11-M-630/10			810	6200	4.5	0.6	2050
S11-M-800/10			980	7500		0.6	2450
S11-M-1000/10			1150	10300		0.6	3000
S11-M-1250/10			1360	12000		0.5	3300
S11-M-1600/10			1640	14500		0.5	4050
S11-M-2000/10			1940	18300	5.0	0.4	4910
S11-M-2500/10			2290	21200		0.4	6570

KEY FEATURES

EXCELLENT COOLING PERFORMANCE

Transformer oil acts as an efficient cooling medium, effectively reducing the temperature rise of windings and the core.

HIGH INSULATION RELIABILITY

The combination of oil and solid insulation significantly improves the overall dielectric strength.

LOW OPERATING NOISE

Optimized structural design reduces core vibration and minimizes noise.

LONG SERVICE LIFE

Sealed tank design prevents oil deterioration, ensuring a service life of over 20 years under normal conditions.

WIDE CAPACITY RANGE

Suitable for projects ranging from tens of kVA to hundreds of MVA.
