Product Description

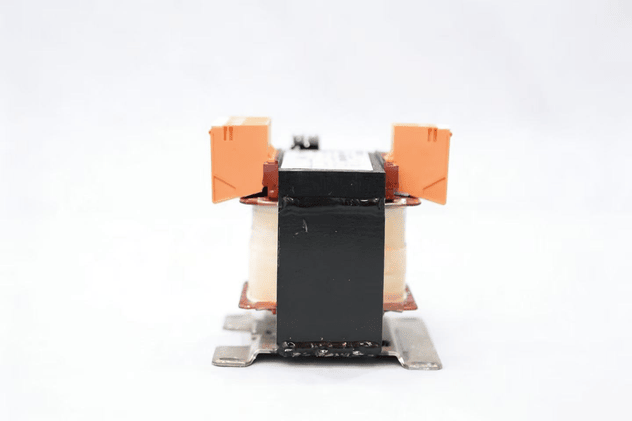

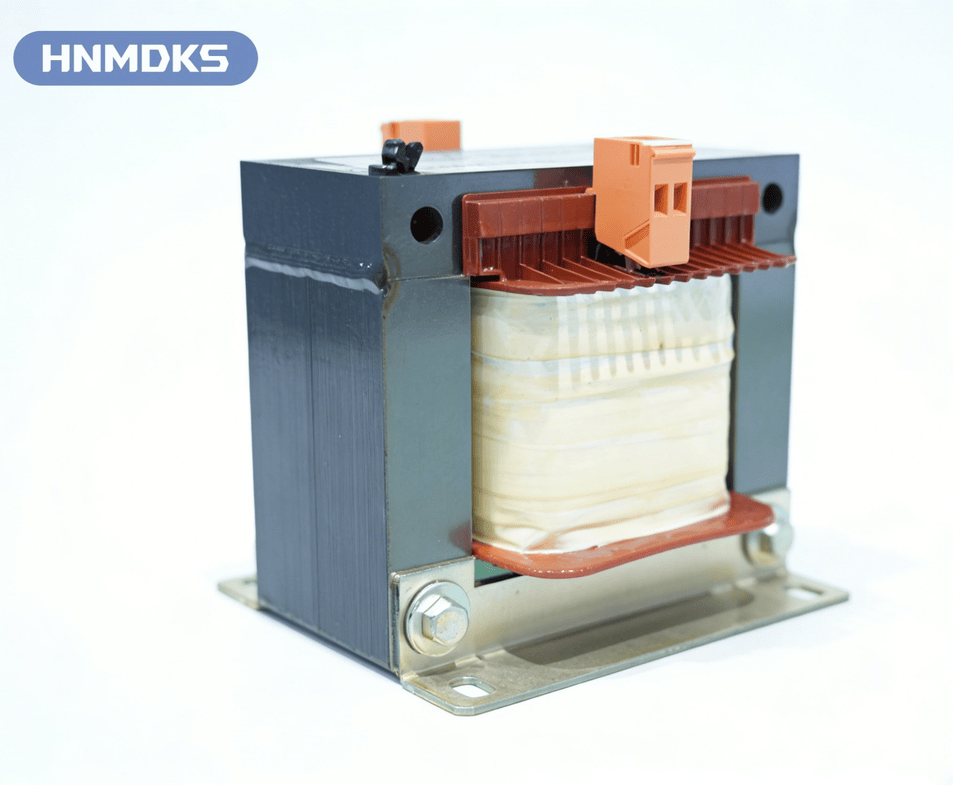

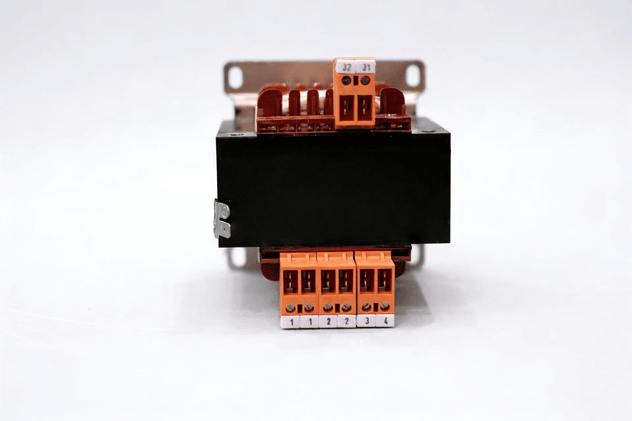

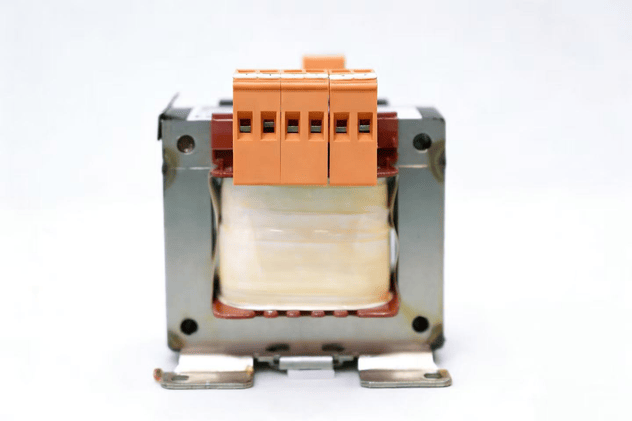

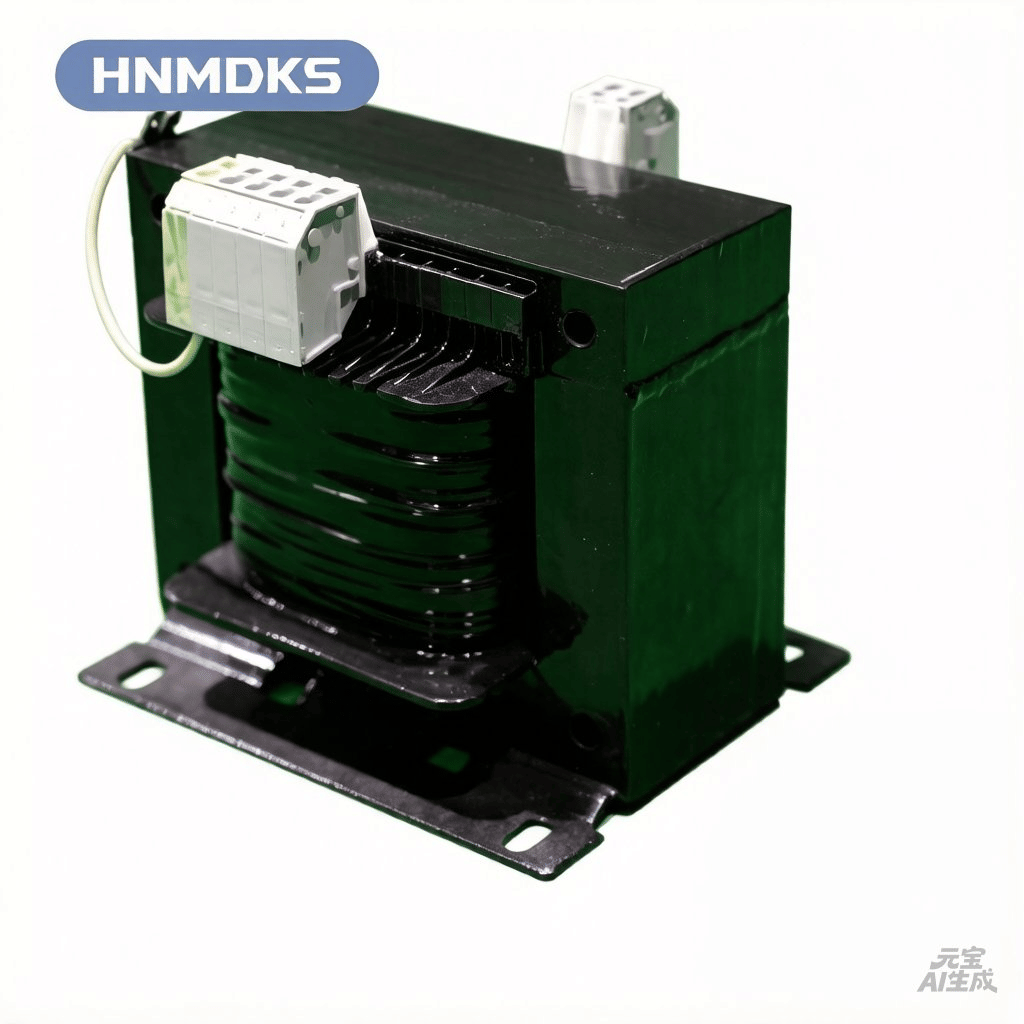

Product DescriptionEI Type Single-Phase Transformer    EI type single-phase transformer comes with a high-quality laminated silicon steel sheet core—simple structure, compact size, low loss, high efficiency. It's mainly used for voltage conversion and electrical isolation in single-phase circuits, turning 220V/380V input into various output voltages to fit different power needs. It can effectively stabilize output voltage, cut down grid fluctuation interference, and boost electrical equipment reliability. Widely used in residential buildings, small stores, small industrial equipment, home appliances and precision electronic instruments. It's the core supporting part for low-voltage power distribution and small electrical devices.Specification

Phases	1
Capacity	0 - 5000 VA
Input Voltage	0 - 1000 V
Output Voltage	0 - 1000 V
Frequency	50 / 60 Hz
Insulation Class	B
Protection Class	IP00 / 20 / 23 / 54
Standard	EN 61558, UL 5085
Cooling	AN
Noise	≤ 65 dB(A)
Material	Copper / Aluminum
Ambient Temperature	-5 ~ 40 ℃
Storage Temperature	-5 ~ 50 ℃

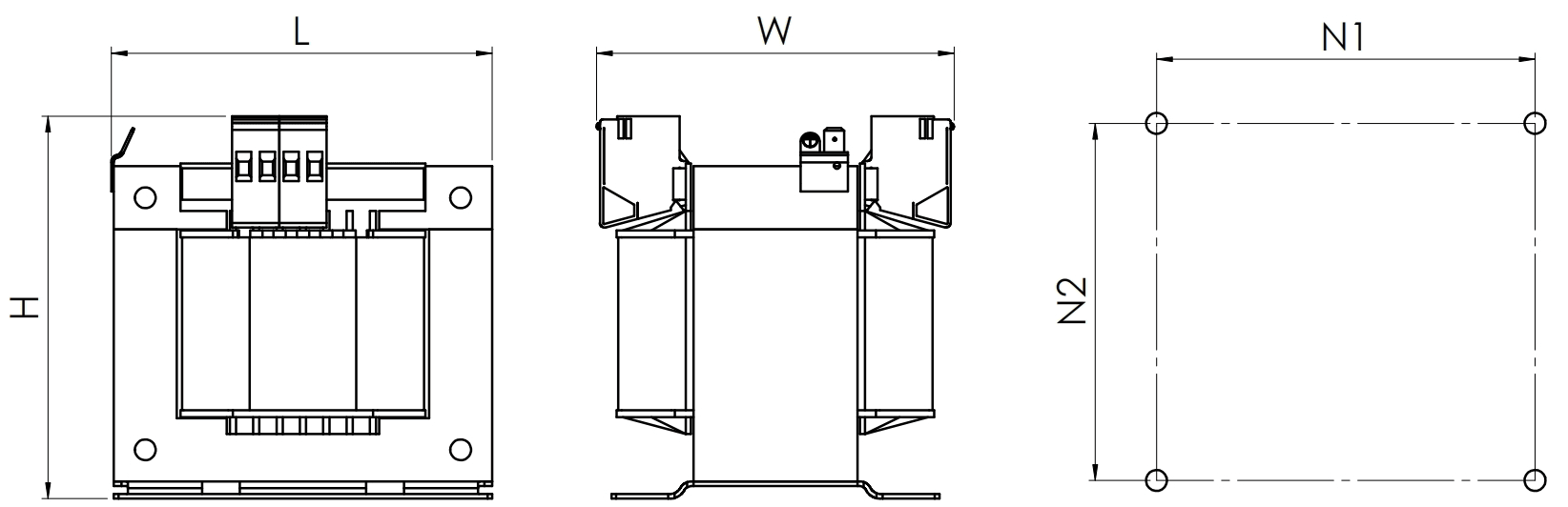

Type	UL Capacity /VA	Max Capacity /VA	Length L /mm	Width W /mm	Height H /mm	Mounting Hole N1 /mm	Mounting Hole N2 /mm
LA20	30	50	62	80	75	50	42
LA22	50	75	68	82	80	50	42
LA23	55	80	68	94	80	50	54
LA25	60	90	77	94	88	58	56
LA26	70	100	77	100	88	58	64
LA28	80	120	86	90	97	64	64
LA29	125	150	86	102	97	64	64
LA32	150	200	98	102	106	84	86
LA33	200	250	98	110	106	84	86
LA34	315	350	98	120	106	84	86
LA35	400	450	107	120	111	80.5	86
LA40	500	550	121	114	121	90	85
LA41	520	575	122	134	121	90	103
LA45	550	600	137	110	135	110	68
LA46	580	630	137	120	135	110	78
LA47	600	650	137	136	135	110	90
LA50	630	700	152	114	150	122	90
LA51	800	900	152	126	144	122	106
LA52	1000	1100	152	152	144	122	134
LA58	1250	1350	176	125	164	145	104
LA59	1300	1500	176	140	164	145	118
LA60	1600	1750	176	145	164	145	126
LA61	2000	2250	176	160	164	145	138.5
LA62	2250	2500	176	160	164	145	146
LA64	2500	3150	194	176	180	160	164
LA77	3150	4000	231	160	210	189	129
LA78	4000	5000	231	176	210	189	164
Note: The above dimensions are for reference only. Please refer to the actual product for accurate measurements.
