Packaging & Delivery

Package Size 1440.00cm * 1035.00cm * 1130.00cm Package Gross Weight 1274.000kg

Product Description

  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Description
Overview

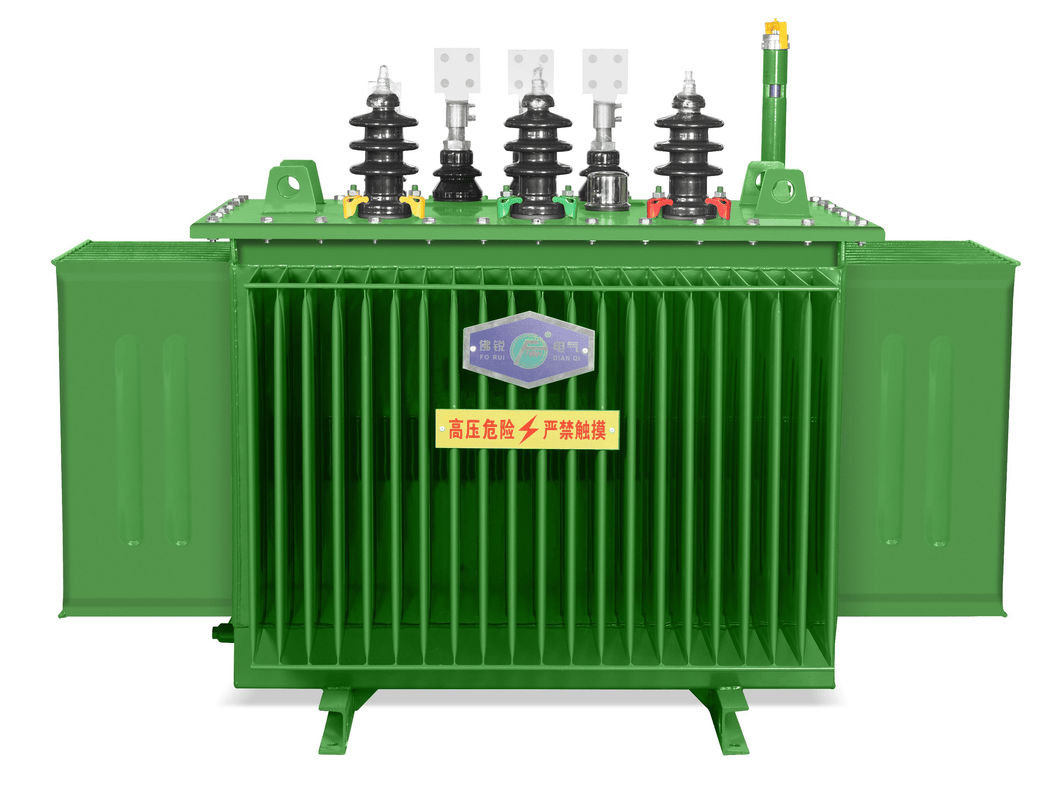

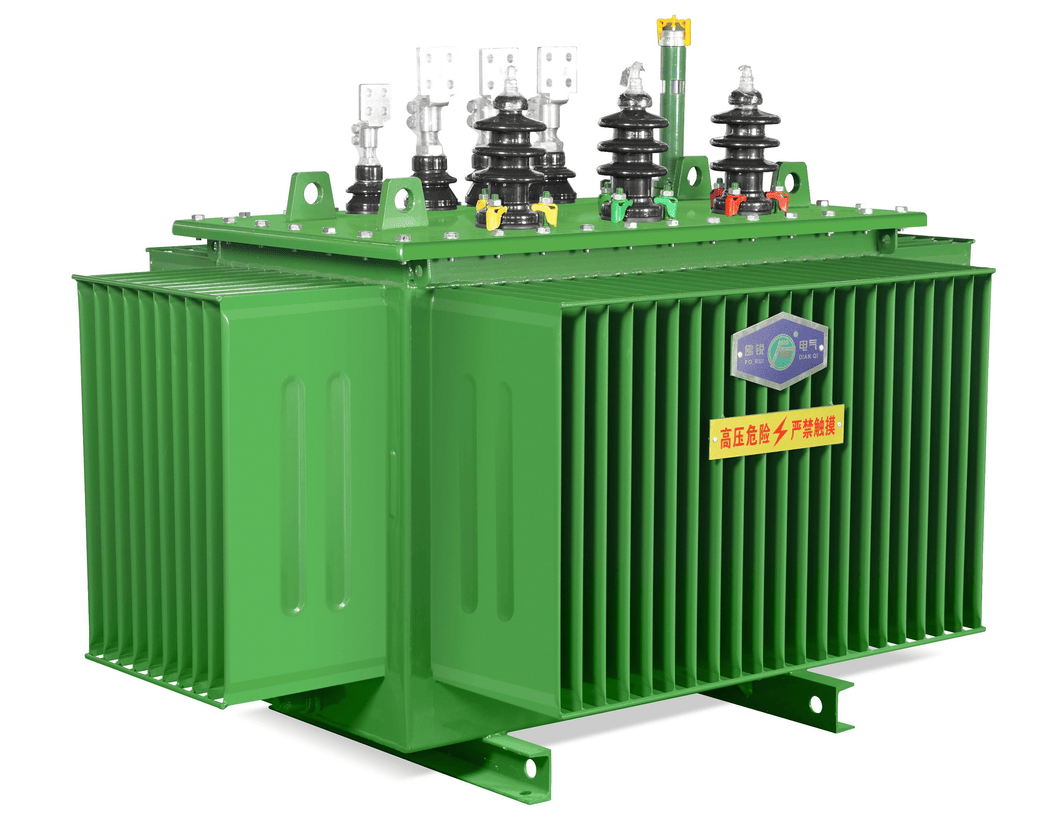

S11 series is advanced designed to upgrade the former transformers in performance.

It has compact structure which requires a much smaller space to install. Its noise has been lowed down and capacity of overloading has been enhanced.

Comparing to S9 series, S11 series product decreased the loss of No-load by 30%. And current of no-load declined to 45-80%.

We have S11,S13, S20, S22 Serie transformers



Features

Low loss and small current in no-load condition. Low noise.

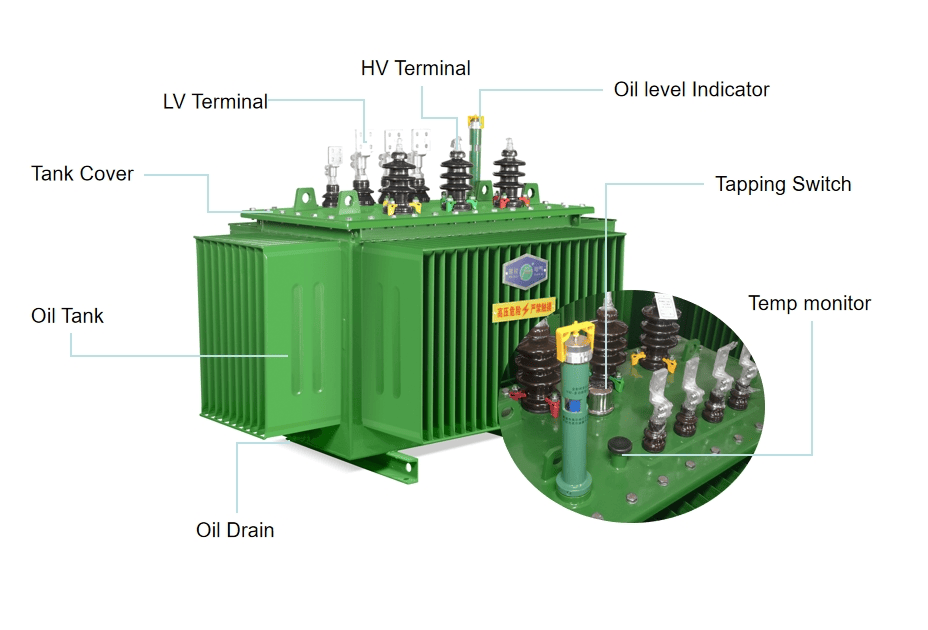

No oil conservator, space-saving for installation
New Oil Guage design makes sure it runs safely
Corrugated oil tank, good cooling performance and flexible in shaping change while its heating.
Cost-save, Long lasting service, Easy to maintain



Technical Specification


Standards	IEC60076, GB 1094, GB/T6451-2023, GB20052-2020	Insulation Level	LI75 AC35/AC5
Capacity Range	30~20,000kVA
Voltage Class	10KV, 35KV	Insulation Grade	A
Tapping Range	±2x2.5% / ±5%	Max. Heat Rise	65K
Voltage Regulation	Non-excitation,	Operation Condition	Environment Temp  ≤40ºC Altitude ≤1000m
Connection	Dyn11 / Yyn0	Cooling	ONAN, Mineral Oil cooling system

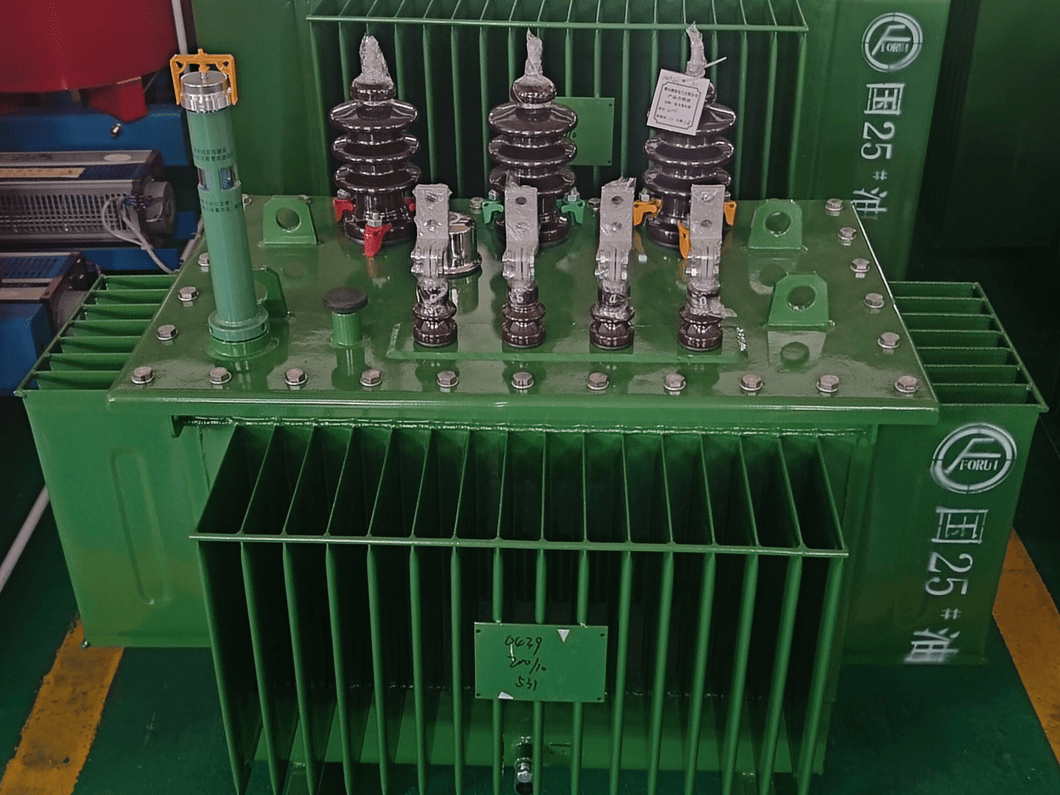

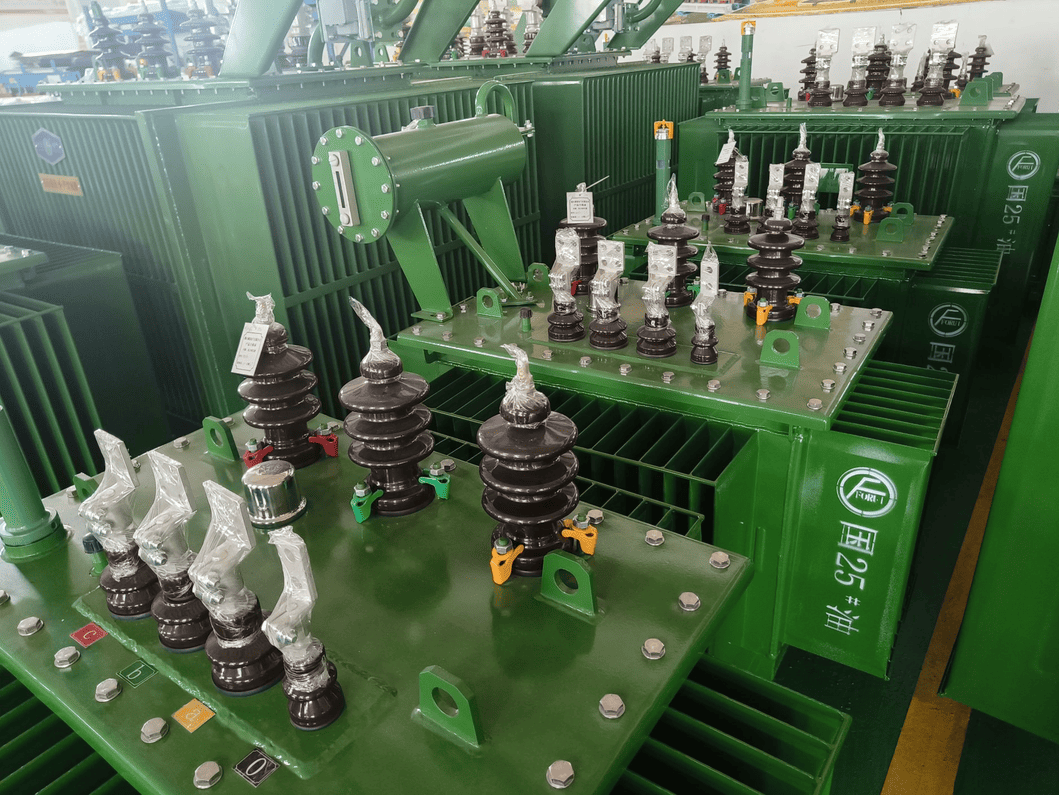

Product Details


  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Our Advantages



REASONS to choose Distribution Transformer from Forui Electric Co., Ltd.
  1. Large Capacity Range to choose. from 30KVA to 2500KVA, or Above.

2. Nice heat dissipation due to oil cooling system and flexible corruged tank.

3. Low operating sound level with respect to the higher rating transformer.

4. Higher standard energy efficiency. 5. Lower operating loss with respect to dry type transformer.

6. Longer life span.

7. Core coil assembly can be easily recycled.

8. higher impulse/surge handling capability

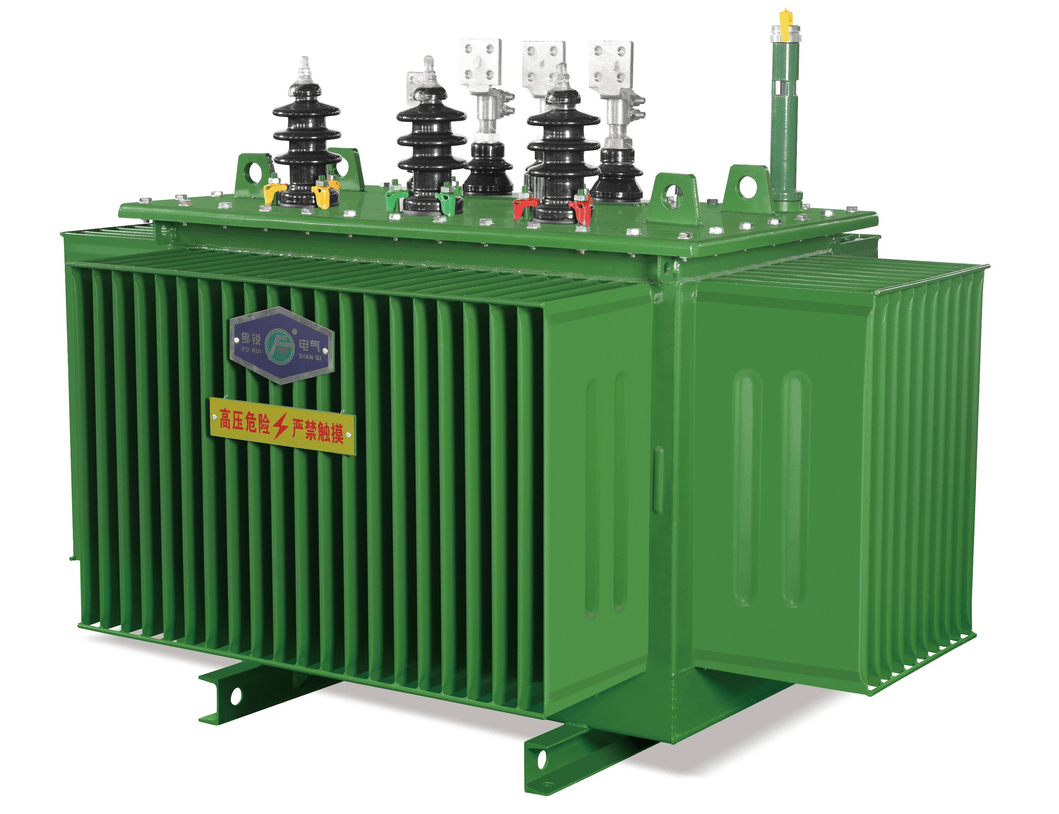

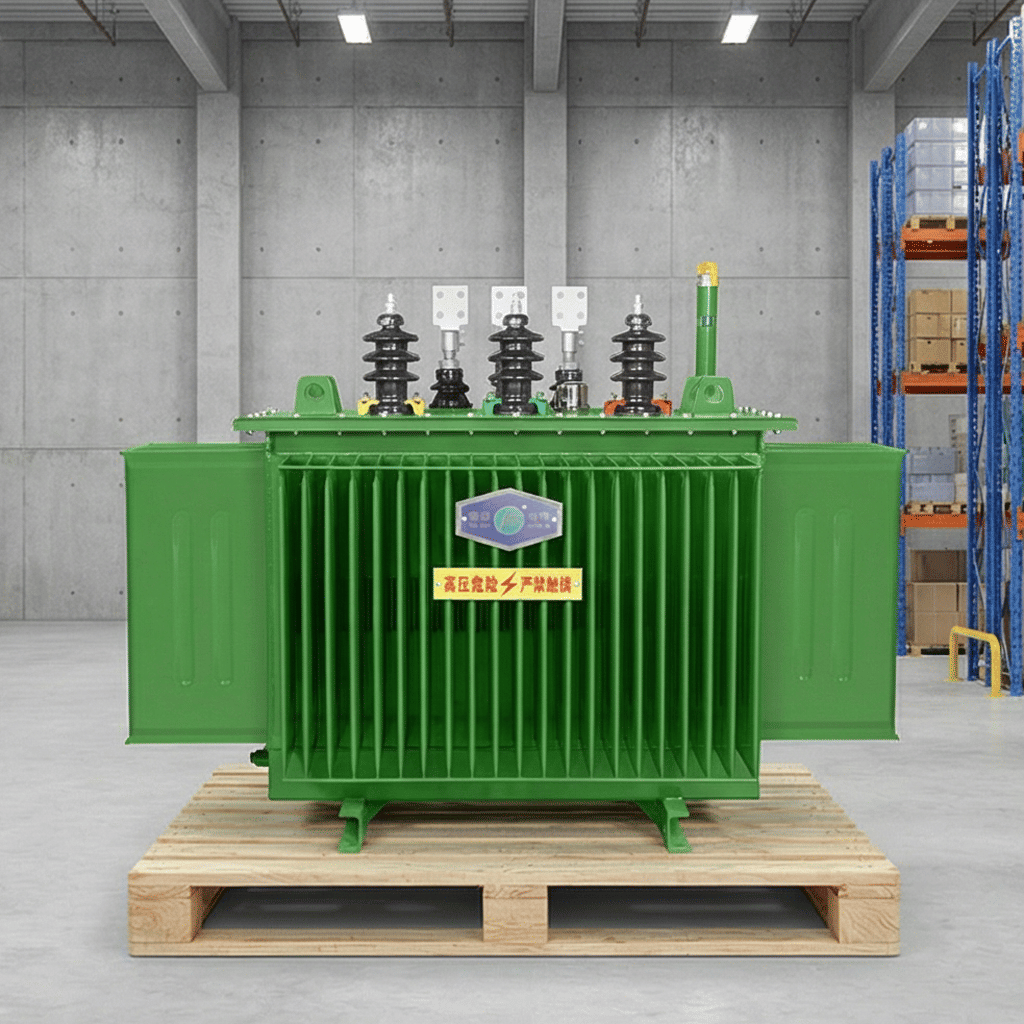

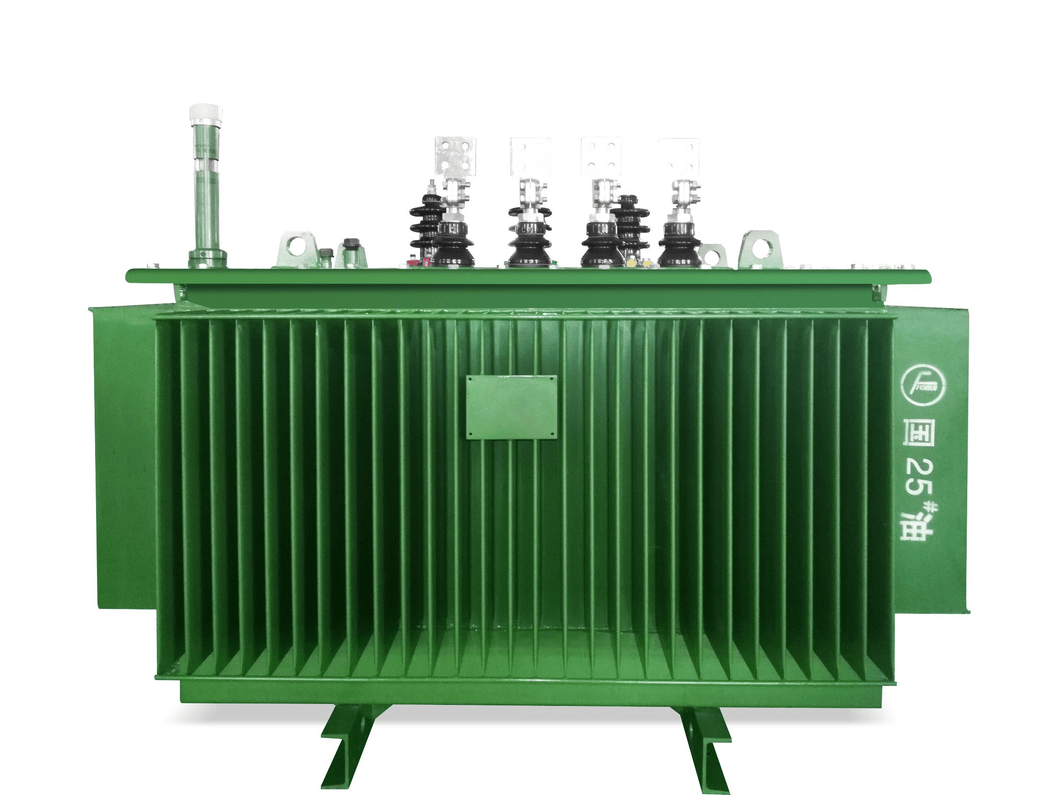

630kva 1000kva 2500kva10kv 35kv three phase step down electric oil immersed power distribution transformer


  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Lines

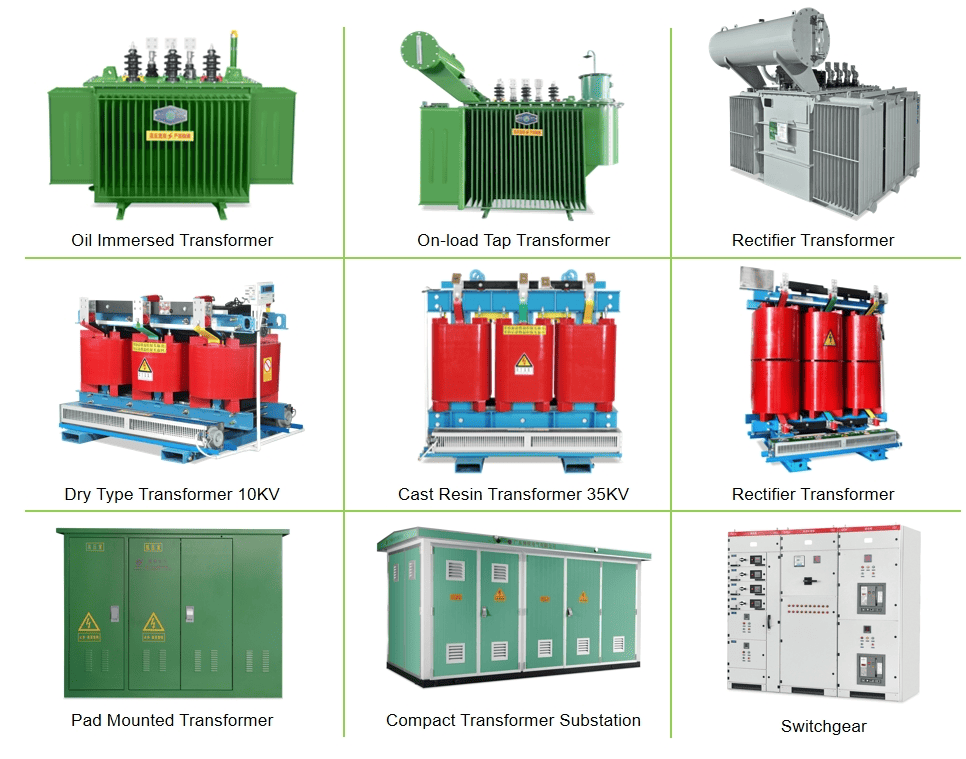

Forui Electric mainly produces and sells all kinds of distribution transformers with capacity from30kVA to 2500kVA(or above) with voltage class of 10KV/35KV.

We have product series including dry-type transformers, oil-immersed transformers, underground transformers, rectifier transformers, prefabricated and combined transformers, wind power and photovoltaic transformers, as well as HV/MV/LV switchgears and other related electric products. Our annual production capacity exceeds 5 million kVA.

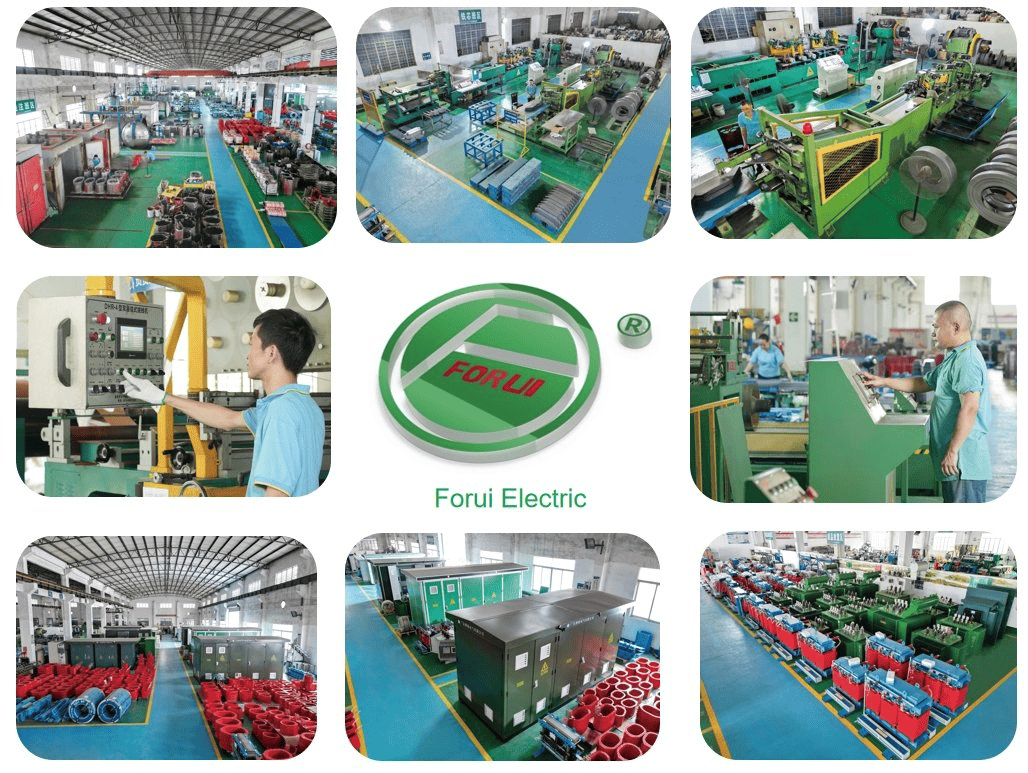

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Factory Workshop

Guangdong Forui Electric Co., Ltd., established in 2007 and located in Guangdong Province, is a professional manufacturer of electric power equipment with integrated R&D, Production, Sales and Service department.

We have more than 10, 000 square meters of production plants and adopts the ISO9001: 2015 quality management system. Forui Electric is a High & New Technology Enterprise which is certificated by government.
