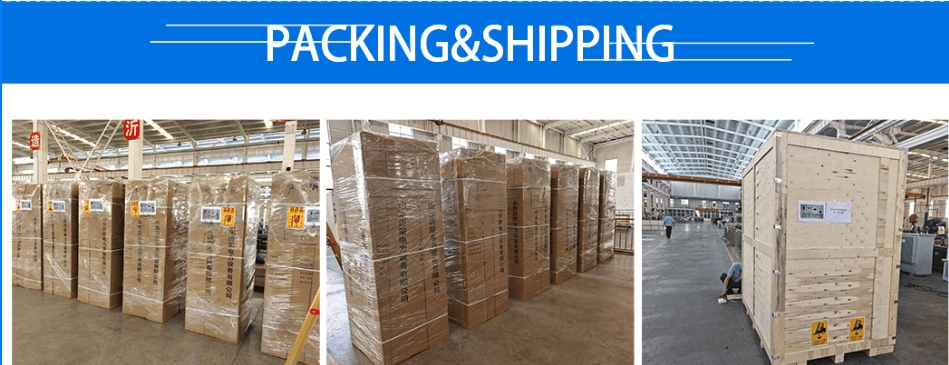

Packaging & Delivery

Package Size 200.00cm * 160.00cm * 160.00cm Package Gross Weight 1800.000kg

Product Description

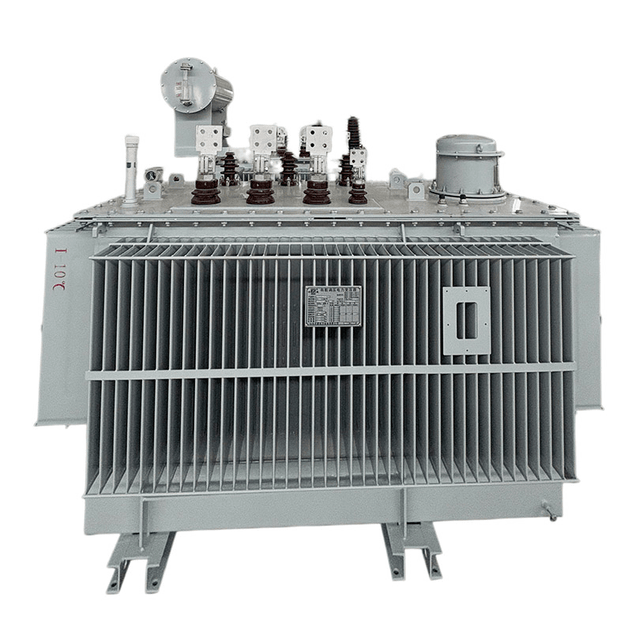

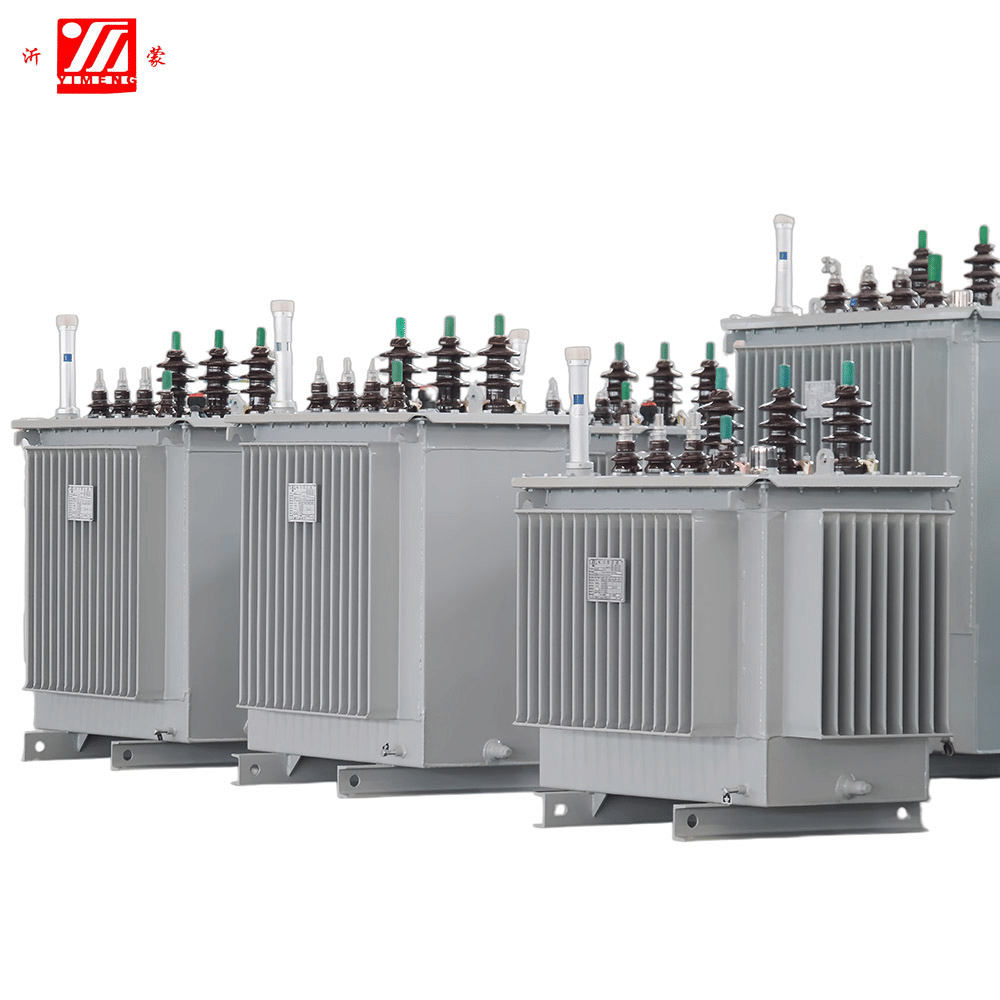

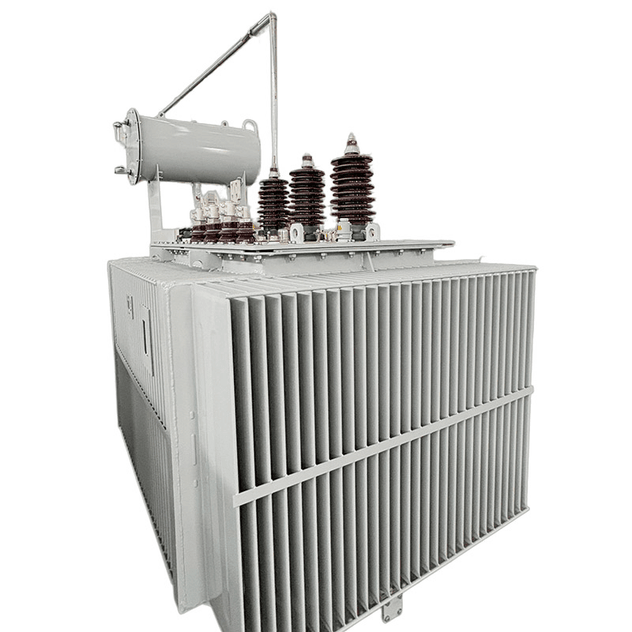

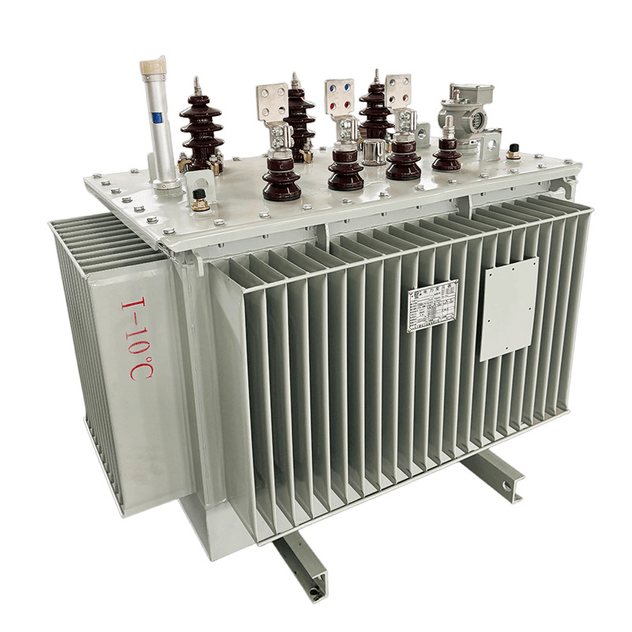

Product DescriptionYimeng oil-immersed transformerwhich is usually pole mounted or installed in distribution station for daily lighting and factory power. The low  output up to 0.4kV.  The corrugated tanks as thermal expansion and contraction component can seprate the transformer oil and the air completely. Oil distribution transformer with primary voltage range of 6-38.5KV. We can accept transformer customization.SpecificationADVANTAGESAPPLICATIONWORKING ENVIRONMENT1. Low losses, low noise, low partical discharge 2. High performance with high-quality cold-rolled silicon steel sheets and copper or Aluminum windings 3. Comprehensive Safety Protection, convenient installation and simple maintenance 4.Excellent Cooling & Insulation Performance 5.Customizable solutions available.1.Industrial: Petroleum, gas, metallurgy, chemical, textile,mining,light industry and so on. 2. Building Infrastructure:Airports, hospitals, factories, shopping malls, hotels, commercial and residential towers. 3.Power system: Generation, transmission, distribution substations and so on.1.  Ambient temperature: -25℃-40℃(can be customized according to the customer' s environment) 2.Altitude: less than 1000 meters.(High altitude products can be customized) 3. Installation environment: No obvious and heavy pollution, no explosive and corrosive gas and dust, with good air ventilation and no severe vibration and shock.

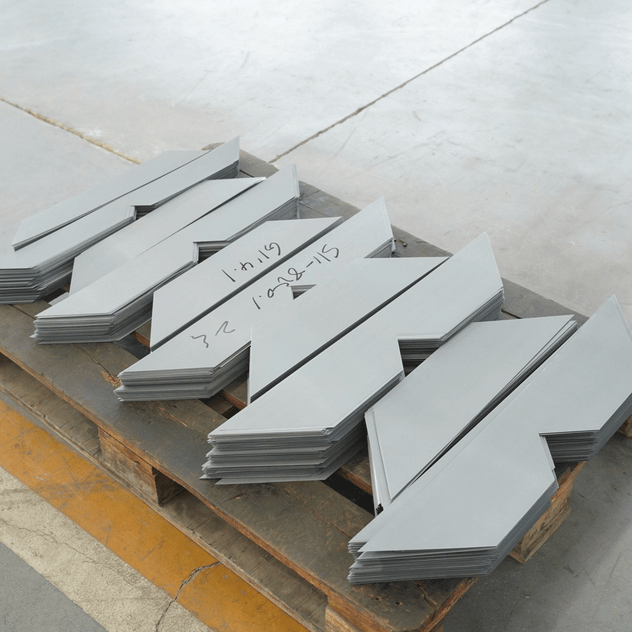

(Note: If the application environment is different from the above standard conditions, please contact for customized designs.)Product FeaturesMain Features1. Core is made of high quality cold-rolled grain-oriented silicon steel sheet which produced in step-lap technology.

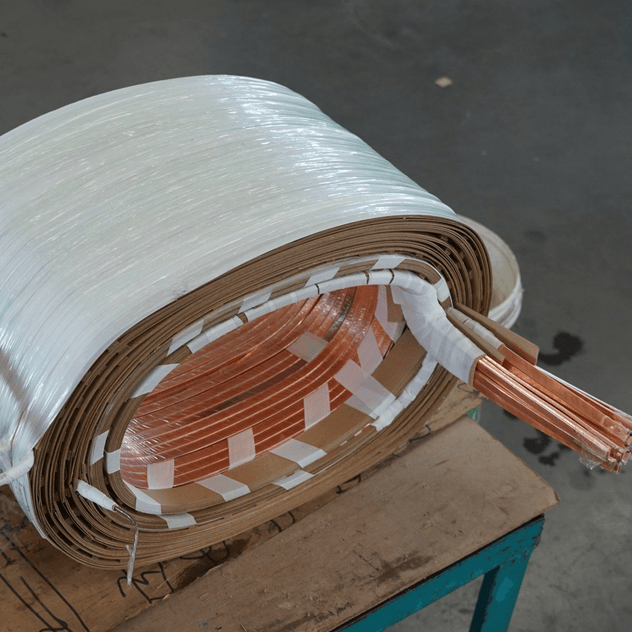

2. Winding is using high strength enameled wire or paper-insulated wire copper or Aluminum belt, which offers uniform distribution of ampere-turns, reasonable insulation structure with high ability to withstand short-circuit.
3. Oil tank is corrugated type with high corrosion resistance.

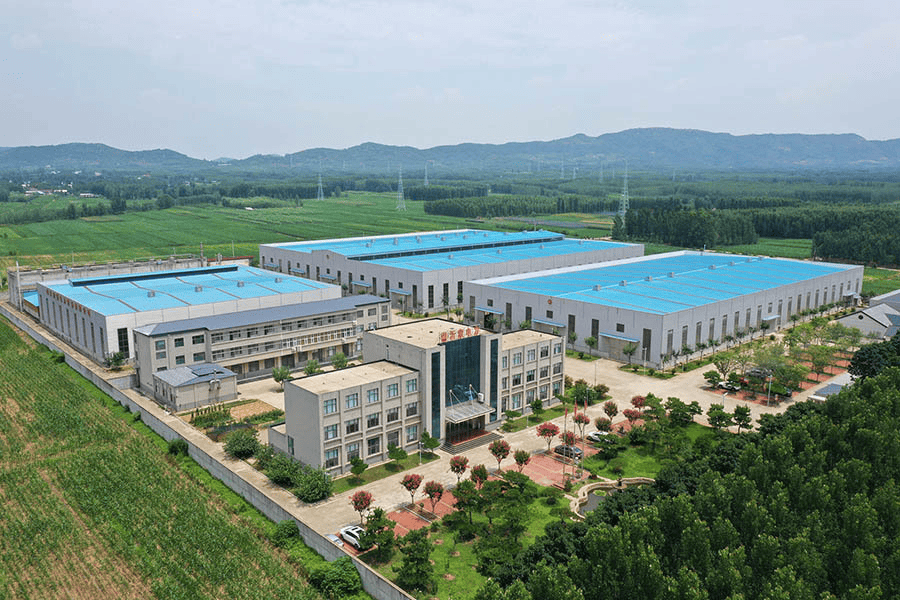

4. The active part applies core free-hanging structure. The gasket is made of high-quality acrylate rubber which can inhibit ageing caused by sun and heat. 5.Accept customisation.WINDINGSCOREACCESSORIESCopper or Aluminum avaliableHigh quality cold-rolled grain-oriented silicon steel sheet Core free-hanging structure and high-qualty accessoriesCompany ProfileShandong Yimeng Electric Power Equipment Co., LTDShandong Yimeng Electric Power Equipment Co., Ltd. is located in Qingtuo Town, Yinan County, Linyi City, Shandong Province. covering an area of more than 100 acres. The company was founded in 1956, It is a new high-tech enterprise with over 50 years of professional experience in transformer production and full of vitality. The company is dedicated to the research and production of new technologies and products in the power industry, and has its own product research and development center and production base. The company's products are sold all over the country and exported to more than 20 countries along the the Belt and Road, such as Southeast Asia and Africa, and has established a complete and systematic sales and service network. The company has an annual production capacity of 2.6 million KVA transformers and 1000 sets of prefabricated substations and complete sets of high and low voltage switchgear. It currently has over 100 employees, including more than 20 engineering and technical personnel, and possesses more than 120 advanced production and testing equipment.The company has passed ISO9001 quality system certification and CCC (self declaration) system certification. The company's leading products include: 1. Power Transformers: Energy saving and environmentally friendly power transformers with a capacity of 20000KVA and below, voltage levels of 10KV, 35KV, oil immersed S11, S13, S20, S22, as well as various models and specifications of dry-type SCB10, SCB11, SCB12, SCB13, SCB14, SCB18, etc; 2. Prefabricated Substation (European Box Transformer): YBW series 12KV prefabricated substation, equipped with transformer capacity according to customer requirements. 3. High and low voltage switchgear: KYN28, XGN, GGD, MNS, GCK and other models with voltage levels of 12kV and 0.4kV; GGJ low-voltage reactive power compensation device; There are models of ring main units such as YM-12 (V)/630-20, YM-12 (C)/630-20, YM-12 (F)/125-31.5, etc. 1. Q: Are you a manufacturer, factory, or trading company?
A: We are the original manufacturer and provide customizable services directly.
2. Q: Can l place an order?
A: Considering the differences in voltage, frequency, and other special require
ments for transformer products in different countries and regions, our products
can be customized according to your needs.
3.Q: What are your main products?
A: Oil-immersed and dry-type transformers, substations, high & low voltage
switchgear, mobile smart centralized container systems and so on.
4.Q: What is required for customizing products?
A: lt is best to provide technical drawings and specification documents, or you
can share detailed technical requirements with us.
5.Q:What is the delivery time?
A: Typically, it takes about 15-20 days. The exact timeline will depend on the
design drawings.
6.Q: Are the resin for dry-type transformers and the paint for switchgeal
environmentally friendly?
A: We use the highest-guality eco-friendly resin and water-based paint that does
not pollute the atmosphere.
7. Q: Do you provide installation videos or remote debugging support?
A: Each device comes with illustrated installation instructions. We also offer
online video support or remote debugging with our engineers
8. Q: What are the protection level (lP code) and temperature rise limits for
the containerized substations and switchgear?
A:Containerized substation:lP3X,temperature rise limit 70K
Medium-voltage switchgear: lP4X, temperature rise limit 70K
Low-voltage switchgear:P30,temperature rise limit 70K
9.Q: How do you ensure quality?
A: We provide pre-shipment testing and sealing videos. Backed by decades of
trustworthy operation and market validation, we ensure every product is deliv-
ered with high quality.
10.Q: What functions does the smart centralized container have?
A: We customize solutions based on your actual needs. Currently, the most
widely used is the mobile laboratory series. View More
