Product Description

TRANSMIT THE POWER, LIGHT THE WORLD.TIANYA Electric, Your Reliable Partner For Electrical Equipment!SpecificationProduct Features 1.Safety and Environmental - friendliness 2.High Efficiency and Energy - saving 3.Reliability and Durability
4.Low Noise Operation
5.Flexible Customization We understand that different applications may have different requirements. Therefore, we offer a wide range of customization options: 1.Voltage Ratings
2.Capacity
3.Connection Groups
4.Protection Levels Technical Specifications(Custom configurations available upon request.)

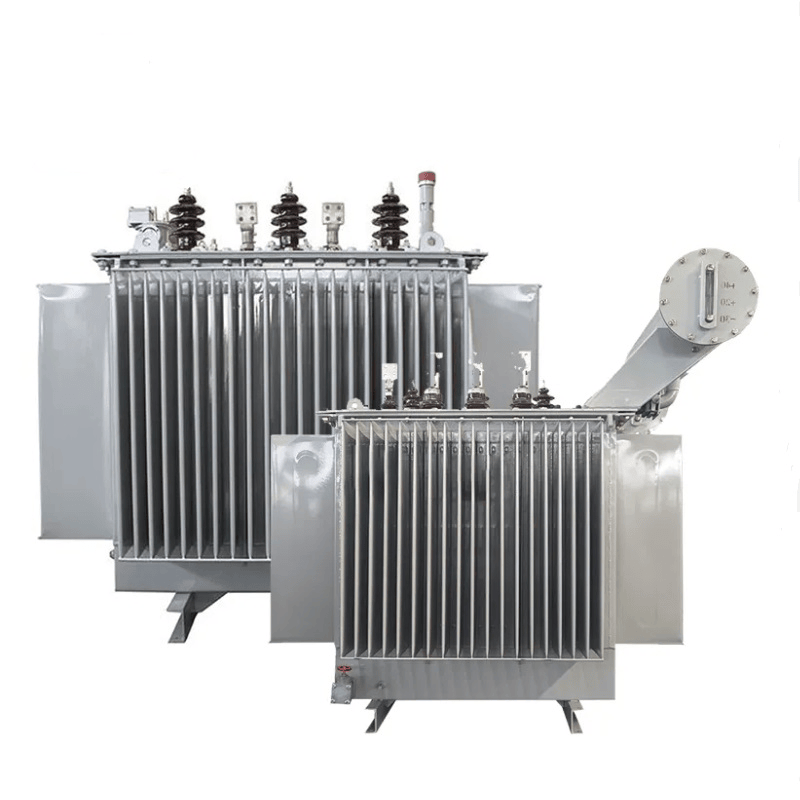

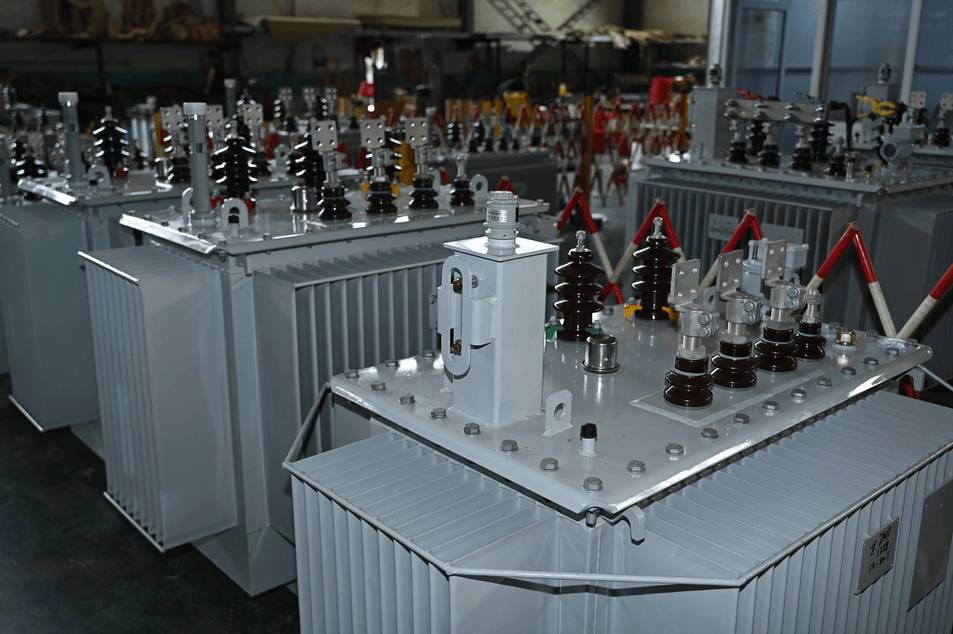

S13 type Oil-Immersed Distribution Transformer Parameters
Rated Power(kVA)	High Voltage(V)	Low Voltage(V)	Connection Symbol	Loss(W)		Short Circuit Impedance (%)
				No-load Loss	On-load Loss
30	6 6.3 10 10.5 11	0.4	Yyn0 Dyn11	70	505/480	4.0
50				90	730/695
63				100	870/830
80				115	1050/1000
100				135	1265/1200
125				150	1510/1440
160				180	1850/1760
200				215	2185/2080
250				260	2560/2440
315				305	3065/2920
400				370	3615/3440
500				430	4330/4120
630				510	4960	4.5
800				630	6000
1000				745	8240
1250				870	9600
1600				1050	11600
2000				1225	14640
2500				1440	14840	5

After Sales ServiceStandard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.

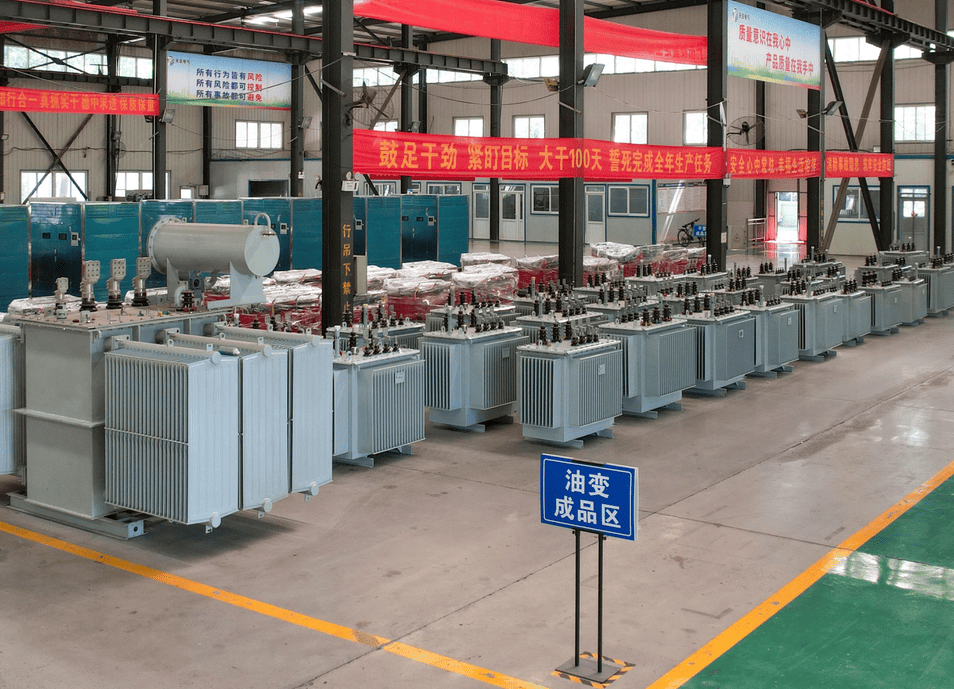

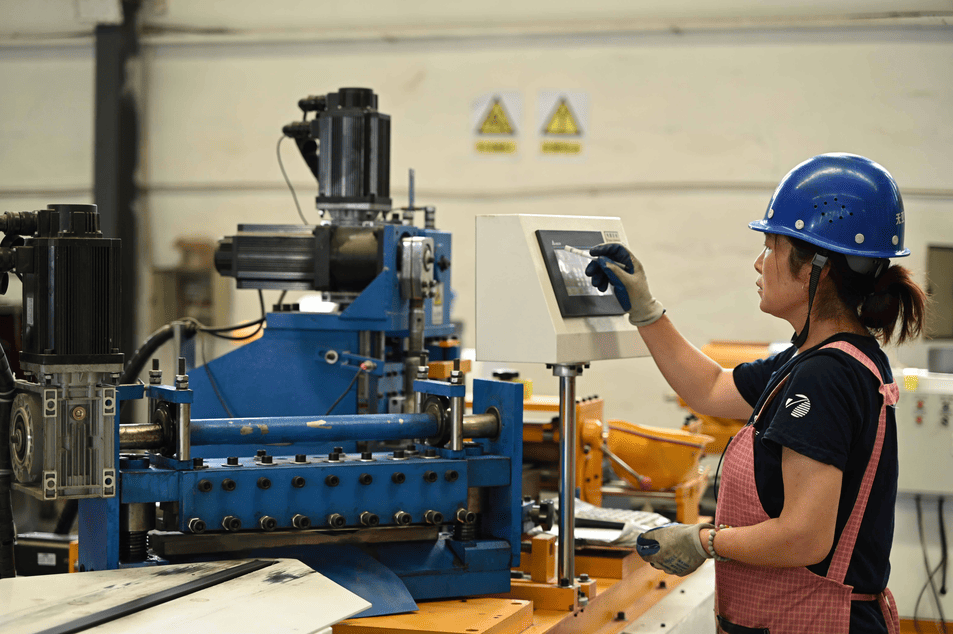

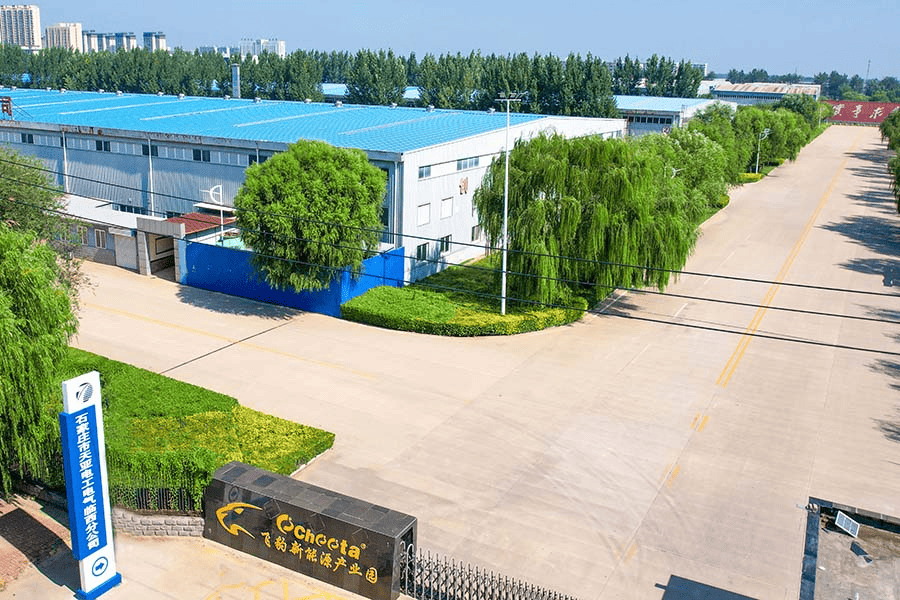

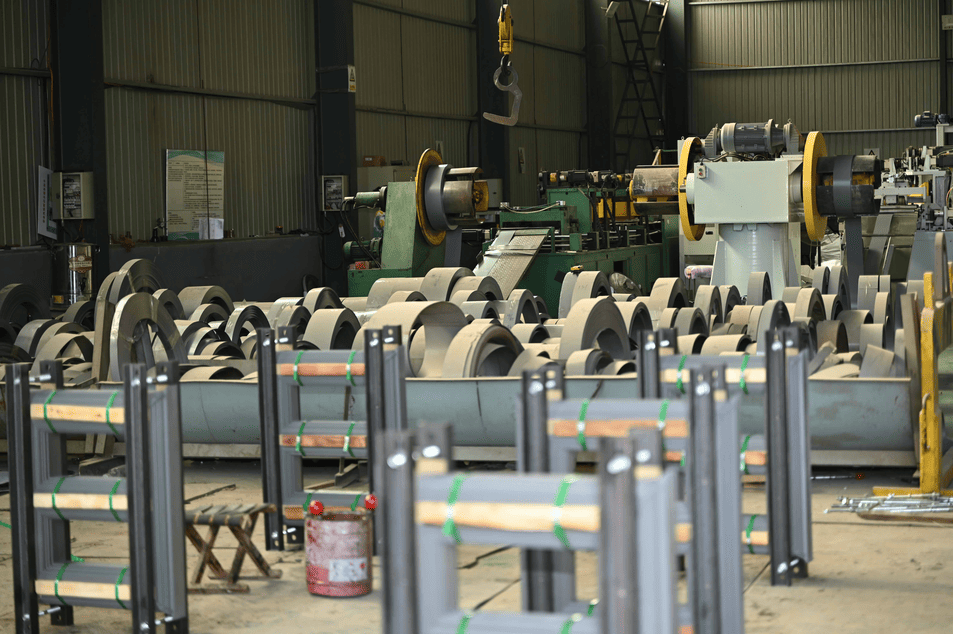

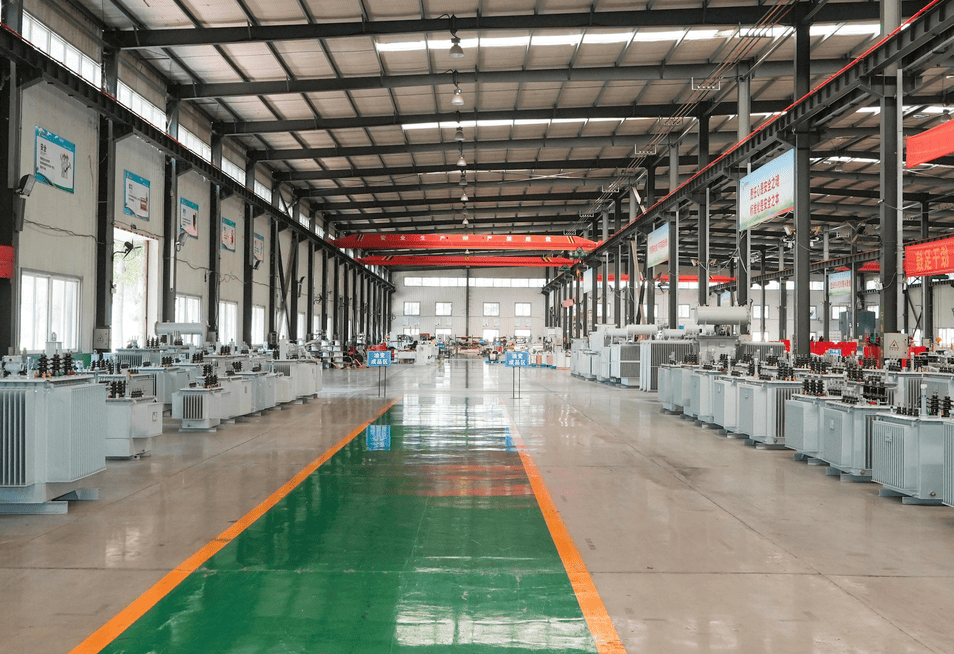

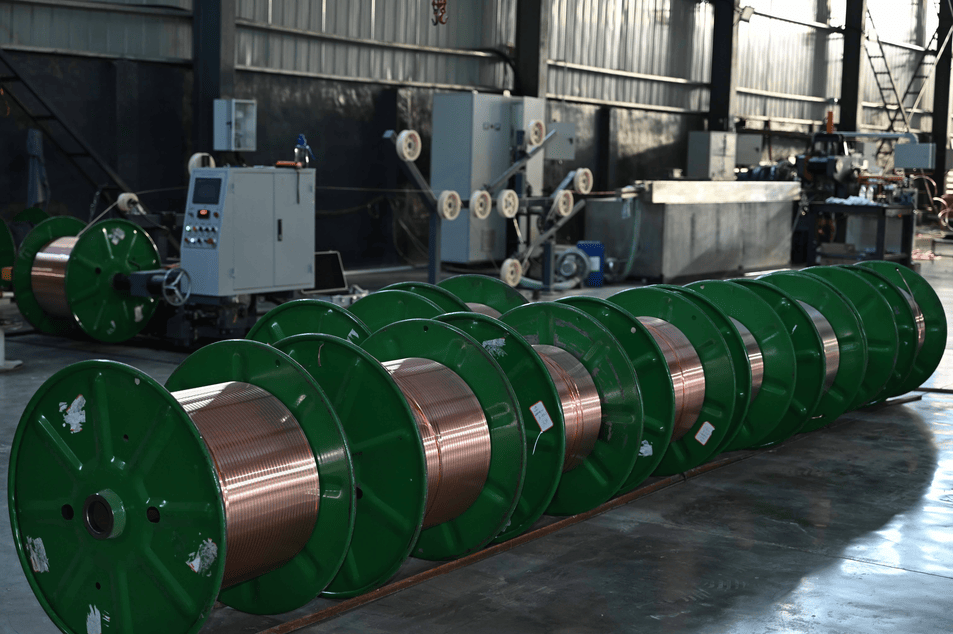

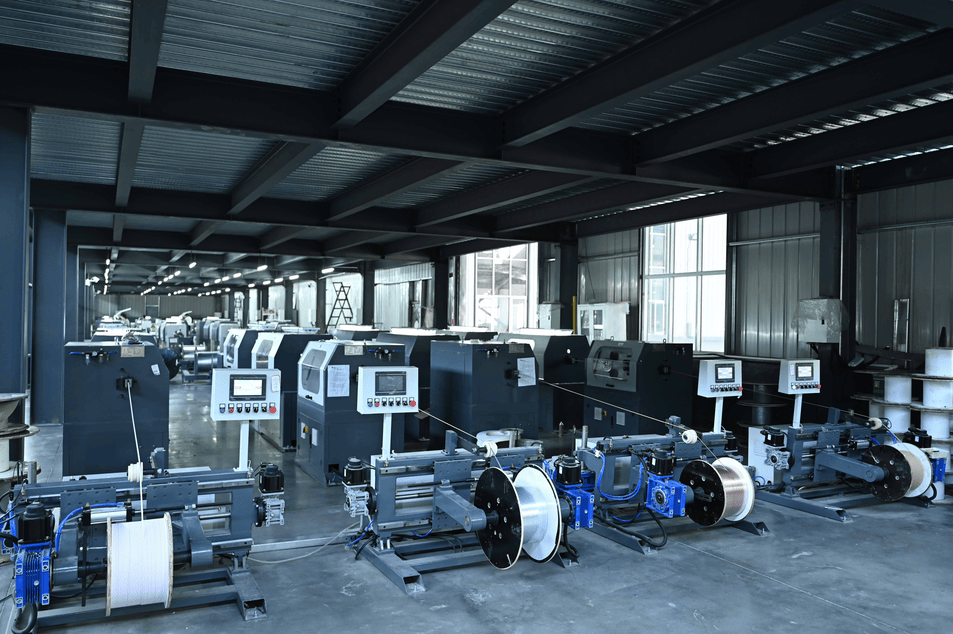

Training: On-site or remote operation/maintenance training.Company ProfileShijiazhuang Tianya Electric Co., LTD.Shijiazhuang Tianya Electric Co., LTD., formerly known as "Tianzi Transformer Core Factory", has been dedicated to the manufacturing of transformers and transmission and distribution equipment since 2007. We have two major production bases with a total area of 7,000 square meters. We have passed ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system. All products we sold have been jointly identified, inspected and certified by the domestic authoritative institutions, The State Electric Power Administration and The State Machinery Industry Bureau.Why Choose Us?Storage ProductsOEM/ODM capabilities
