Product Description

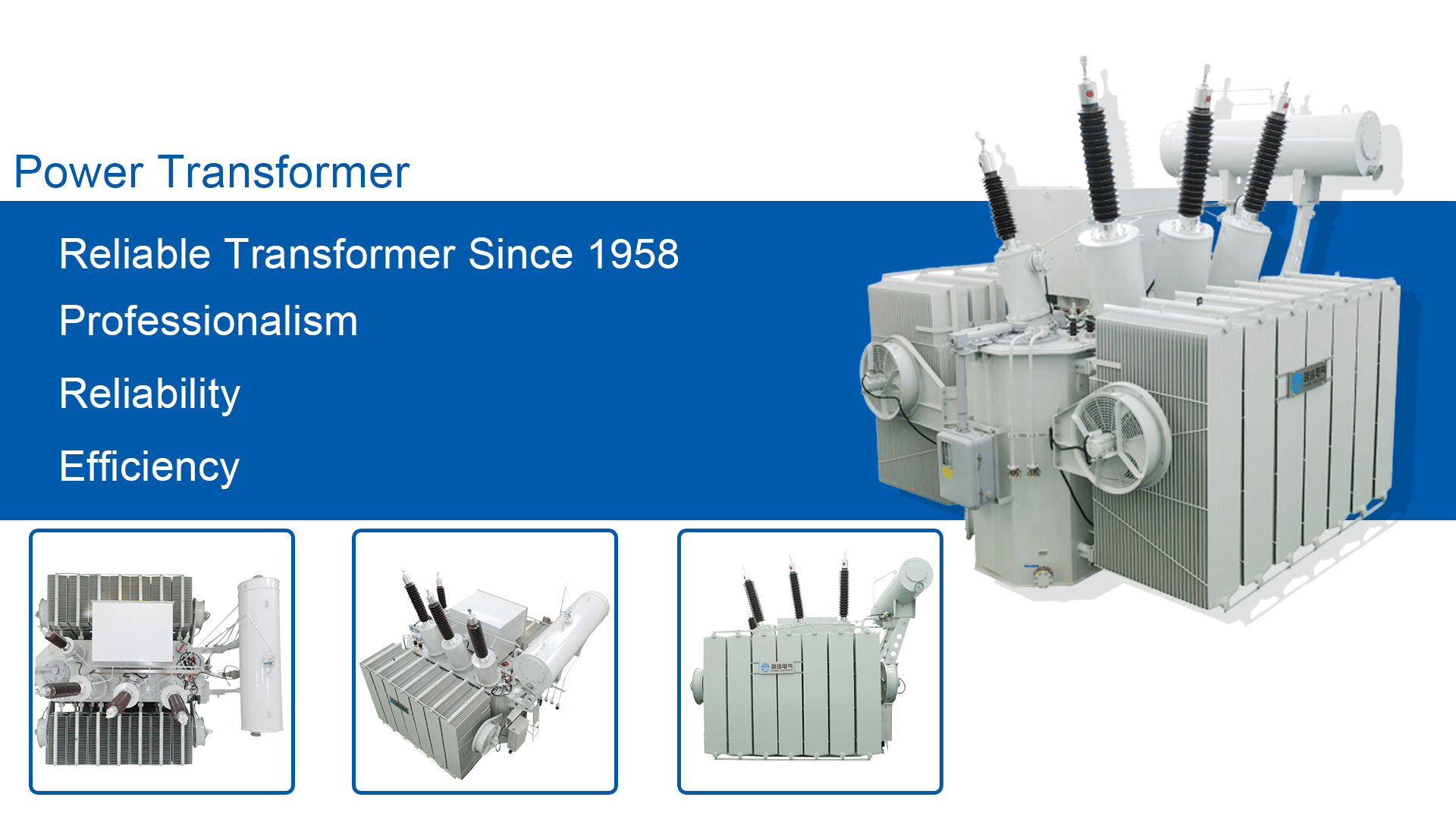

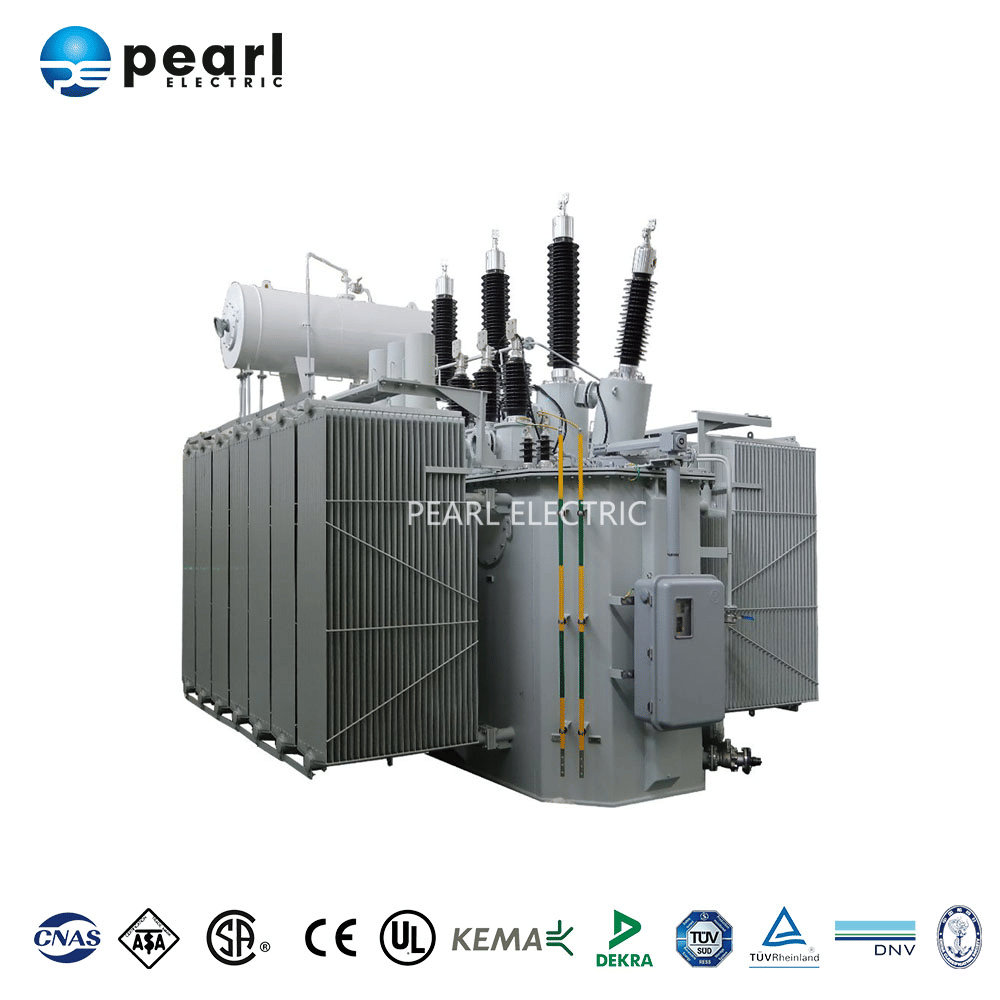

Product DescriptionDescription about Three Phase Oil Immersed Power TransformerOil-immersed power transformers are critical components in electrical power systems, widely used for voltage conversion, energy transmission, and distribution across grids.  These transformers employ mineral oil or synthetic ester fluid as both an insulating and cooling medium, enabling efficient operation under high-voltage conditions.
According to the customer's project requirements, we provide customized transformer services.
According to the different insulation materials, Pearl Electric can provide mineral oil distribution transformers without PCB, environmentally friendly FR3 vegetable oil immersed power transformers, and NINAS oil power transformers.
According to the different requirements of iron core materials, Pearl Electric can provide oil-immersed transformers with silicon steel sheet iron cores and oil immersed transformers with amorphous alloy iron cores. Among them, amorphous alloy oil immersed transformers are ultra-high efficiency transformers with losses only 20-30% of silicon steel sheet transformers, which are very suitable for projects with high energy efficiency requirements.

Items	Oil Immersed Transformer
Origin	China
Manufacturer	Pearl Electric Co., Ltd.
Brand	Pearl Electric
Production Descriptions	Three Phase Oil Immersed Power Transformer
Reference standards	IEC 60076
Capacity	Up to 150 MVA or Customized
Frequency	60 / 50Hz
Voltage (HV)	Up to 230 KV or Customized
Voltage (LV)	Customized
Impedance	10%-18%
Connections (Vector Group)	Dyn11
On load tap changer/off-load tap changer	±8×1.25%/±2×2.5%
Core materials	Silicon Steel
Winding materials	Aluminum or Copper
Lightning Impulse Withstand Voltage	IEC standard
AC withstand voltage	IEC standard
Temperature Rise class	A-class
Temperature Rise	60/65K
Cooling method	ONAN/ONAF

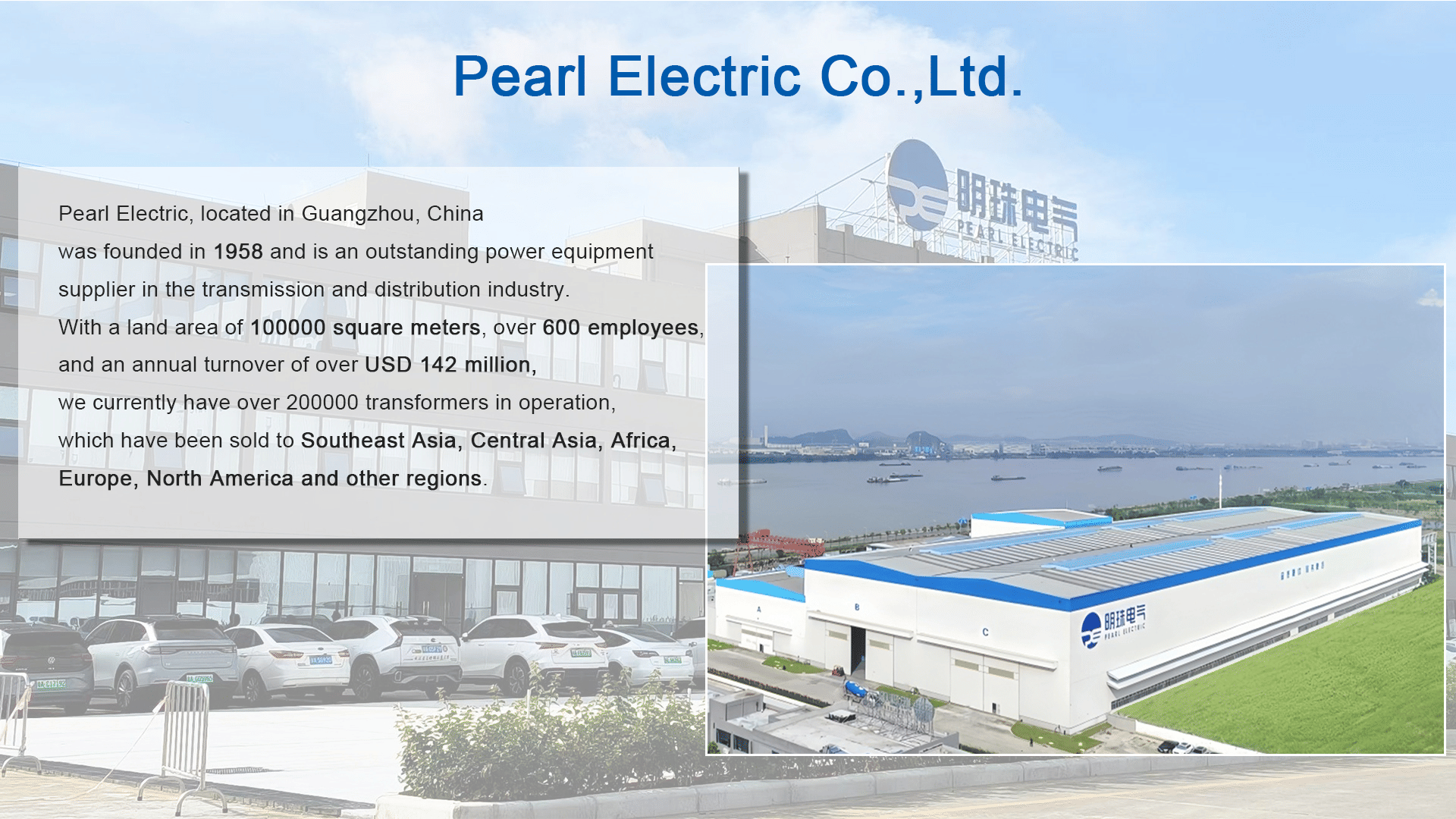

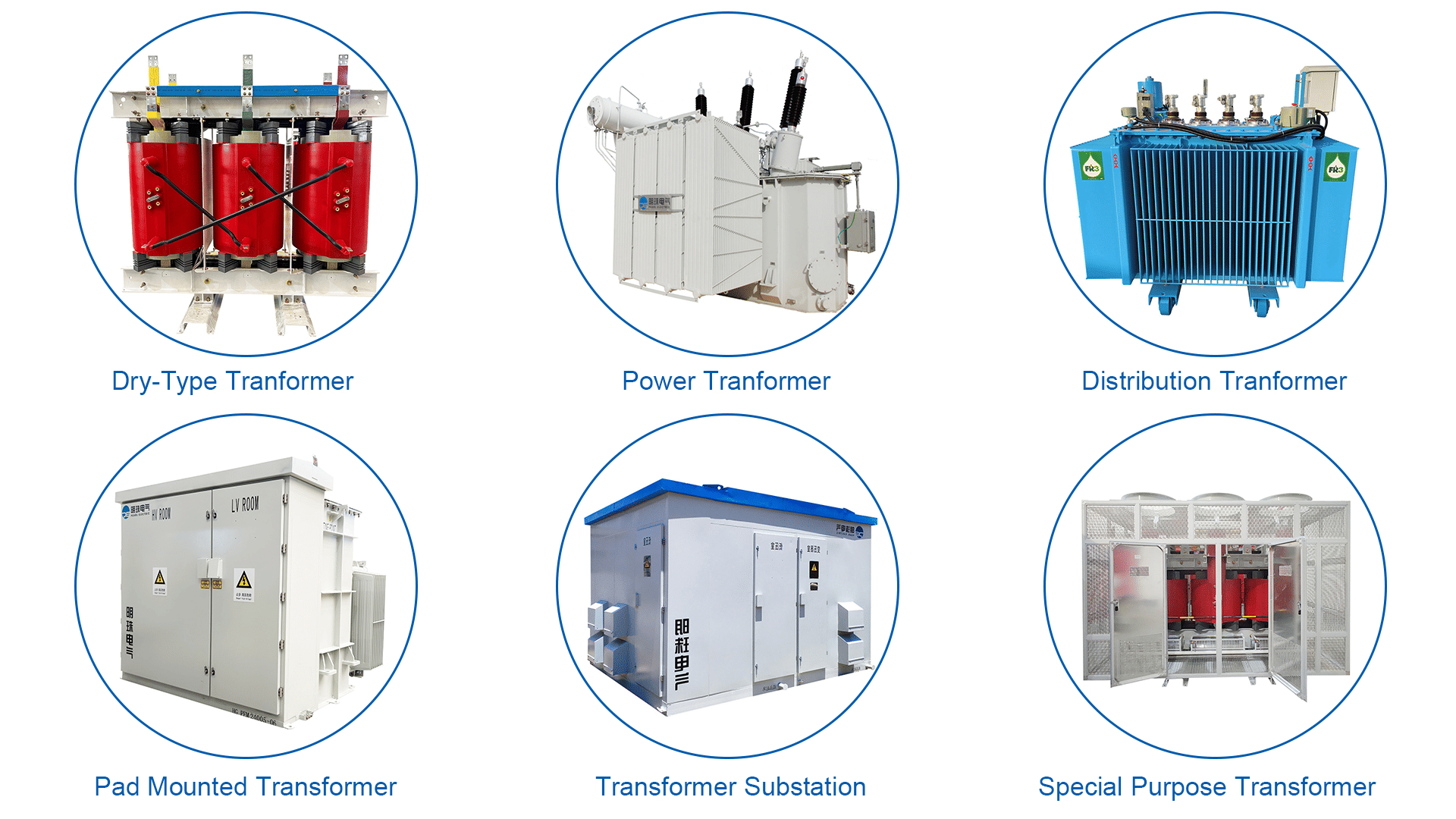

Main ProductCertificationsApplicationCompany Profile

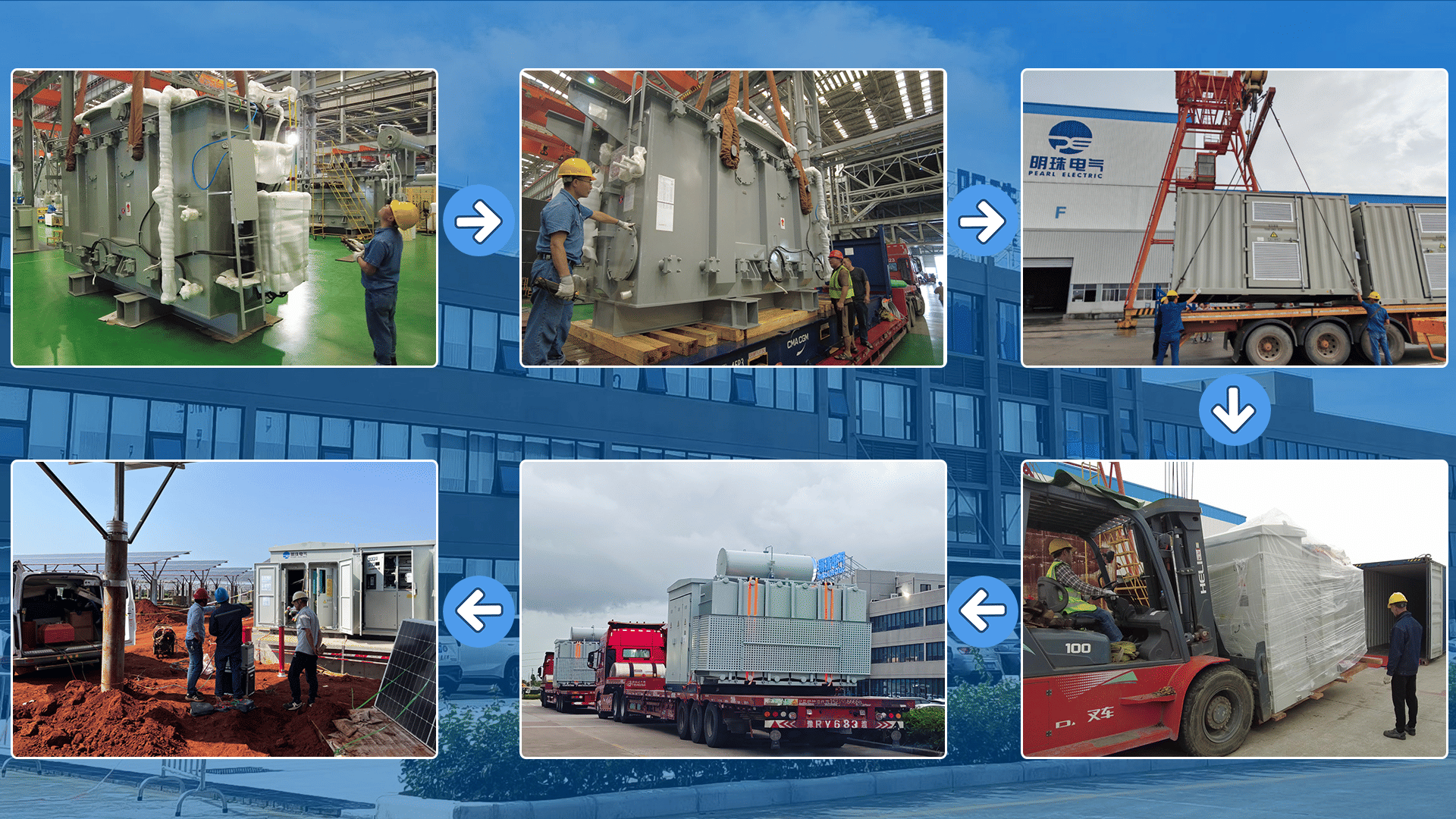

Our CustomerPackaging & ShippingFAQFAQ:1.Q: Are you manufacturer?

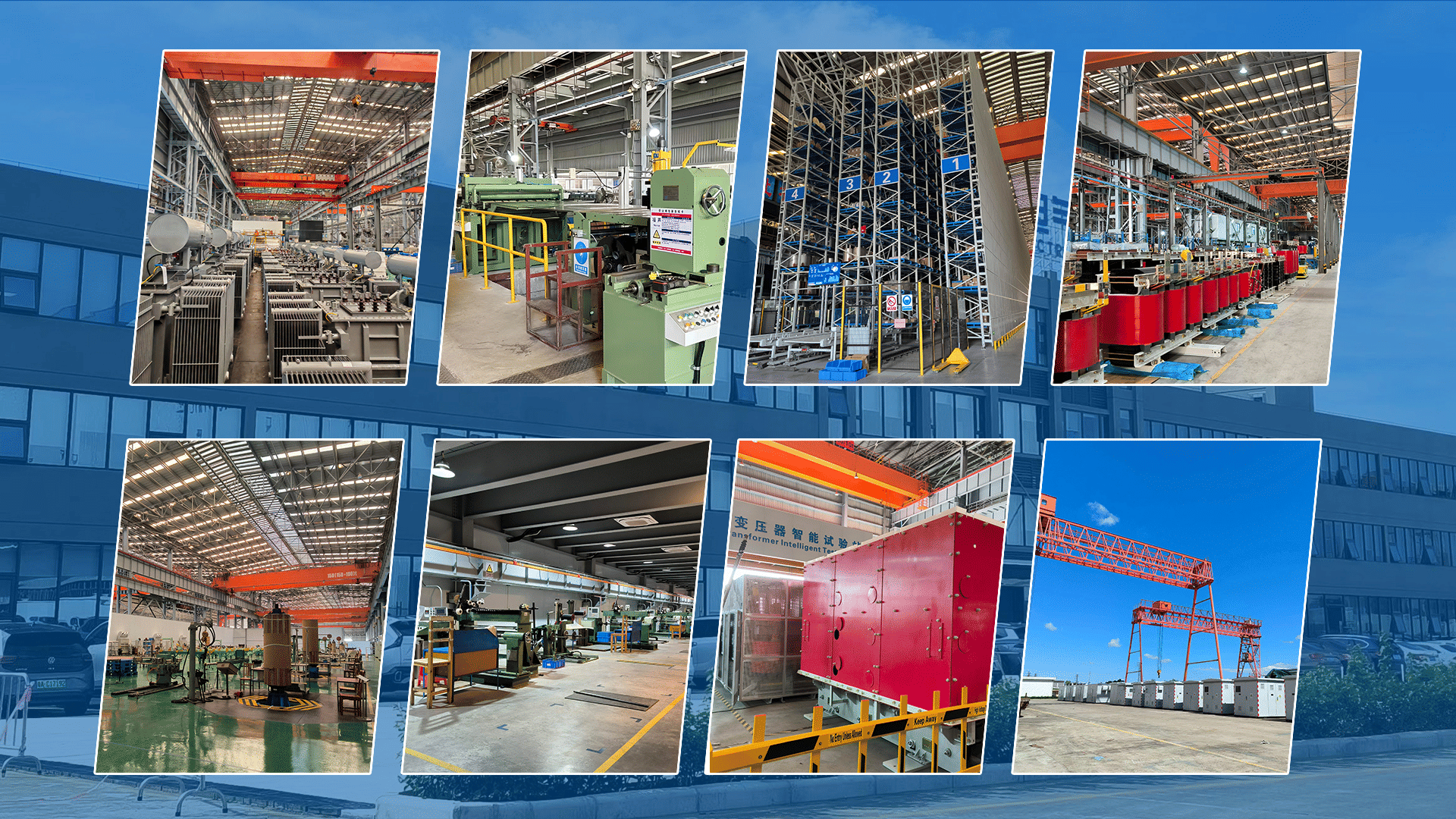

    A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Do you have any Certificate?
    A: Yes. Our transformer has awarded CE, UL, KEMA certificate. If you need any other Certificate, we can help you to apply it.
3.Q: How can I pay you?
    A: Pay by T/T and  L/C is acceptable.
4.Q: What about the production?
    A: In general,  it take 4~6weeks and it depend on the different style.
5. Q:How contact us to get quick inquiry ? Follow us in our company website. View More
