Packaging & Delivery

Package Size 200.00cm * 150.00cm * 100.00cm Package Gross Weight 3000.000kg

Product Description

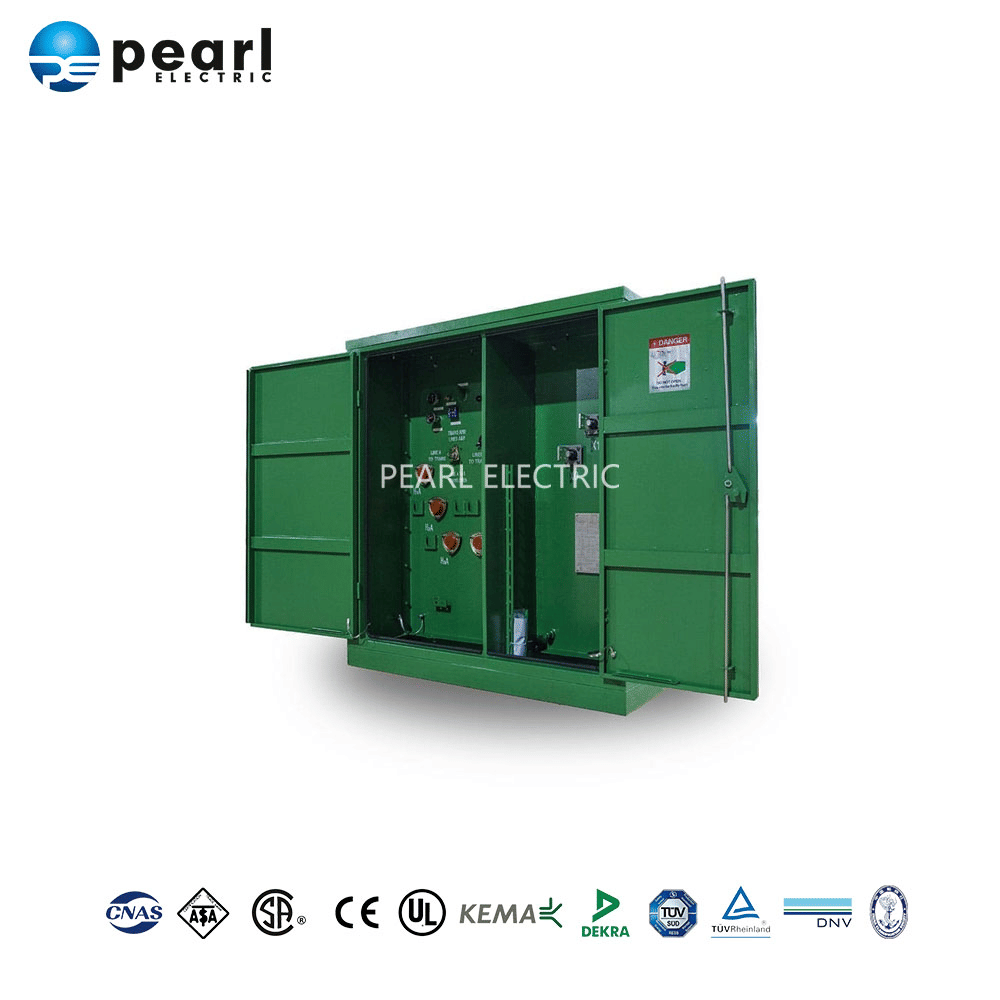

UL Listed Three Phase Pad Mounted Distribution Transformer   ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Product Description

Description about Three Phase Pad Mounted Transformer

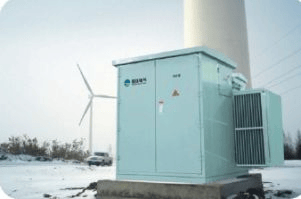

A pad-mounted type power transformer is a specific type of transformer designed for installation at ground level on a concrete or steel pad. These transformers are used in electrical distribution systems to step down high-voltage electricity from the distribution grid to lower voltages suitable for use in homes, commercial buildings, and industrial facilities.
Pearl Electric provide 13.2KV, 13.8KV, 22KV, 34.5KV, 40.5KV three phase pad mounted transformer up to 10MVA and most apply to the below area:
Urban and Rural Power Distribution:
Pad-mounted transformers are ideal for urban and rural power distribution systems, especially where space is limited.
They can be placed directly outdoors, on streets, in greenbelts, or other suitable locations, making them a versatile solution for power distribution.
Industrial and Commercial Facilities:
They are commonly used in industrial parks, commercial centers, mines, oil fields, and other industrial and commercial facilities.
Their compact design and ease of installation make them suitable for these environments.
Residential Areas:
Pad-mounted transformers are also used in residential areas, providing power to homes and buildings.
Their small size and low noise levels make them suitable for use in residential neighborhoods.


https://pearl-electric.en.made-in-china.com/product-group/KbdtjsNciLWM/Pad-mounted-transformer-catalog-1.html?pv_id=1if701vn493&faw_id=null



ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Product Parameters
Technical Datasheet for Three Phase Pad Mounted Transformer:


Items	Specifications
Origin	China
Manufacturer	Pearl Electric Co., Ltd.
Brand	Pearl Electric
Production Descriptions	Three Phase Pad mounted Transformer
Reference standards	IEC 60076/ IEEE Std
Capacity	Up to 10MVA
Frequency	60 Hz or 50Hz
Voltage (HV)  (kV)	6KV, 13.2kV,13.8KV, 34.5KV
Voltage (LV)  (kV)	0.415kV
Impedance	4%
Connections (Vector Group)	Dyn1
Tapping Range	off-load Tap Changer, ±2*2.5% on HV side
Core materials	Silicon Steel
Winding materials	Aluminum or Copper
Service	Outdoor
Certification	UL, cUL, CSA, SGS
Insulation Class	A-class
Temperature Rise	OIL TEMPERATURE / WINDINGS: 60°C /65°C
Cooling method	ONAN in PCB-free mineral oil

  ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Certifications

Certifications and Test Reports

1. ISO 9001:2015 Quality Management System Certificate
2. ISO 14001:2015 Environmental Management System Certificate
3. ISO 45001: 2018 Occupational Health and Safety Management System Certificate
4. CE Certifications for dry type transformer and oil-immersed power transformer
5. KEMA Test Report for Cast Resin Dry Type Transformer and Oil-filled Distribution transformer

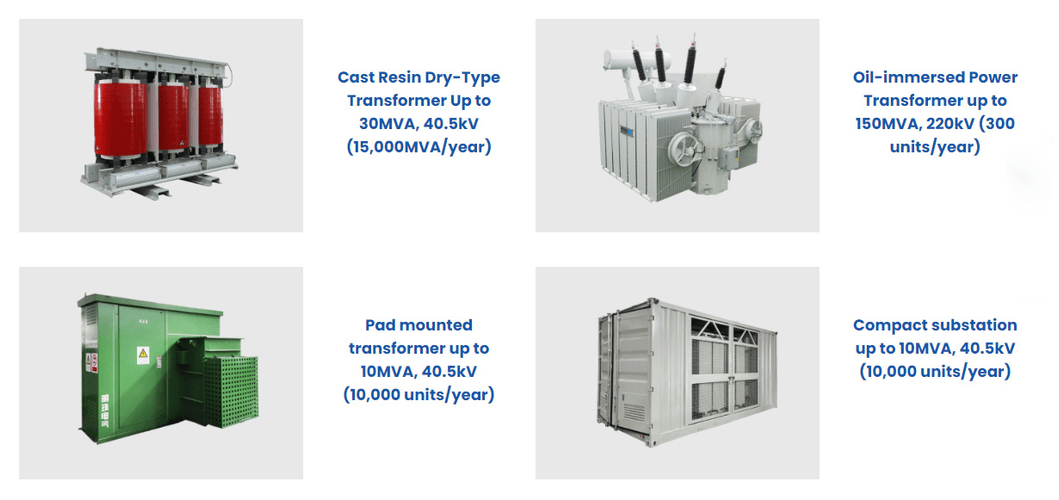

6. DEKRA TYTE TEST CERTIFICATES for Prefabricated Substation ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">Company Profile   PEARL ELECTRIC CO., LTD.  Pearl Electric, located in Guangzhou, China, was founded in 1958 and is an outstanding power equipment supplier in the transmission and distribution industry. With a land area of 100000 square meters, over 600 employees, and an annual turnover of over USD 142 million, we currently have over 200000 transformers in operation, which have been sold to Southeast Asia, Central Asia, Africa, Europe, North America and other regions   Pearl Electric is devoted to providing safe, highly efficient and intelligent power transformation and distribution solution, focusing on R&D, manufacturing, sales and service as below: ★ Cast Resin Dry Type Transformer Up to 30MVA, 66kV
★ Oil-immersed Power Transformer Up to 150MVA, 220kV
★ Pad-mounted Transformer Up to 10MVA, 40.5Kv
★ Compact Substation Transformer Up to 10MVA, 40.5kV
Reactors and other power transformation/transmission equipment.     ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;text-align:left;">
