Product Description

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;text-align:left;">Product Description

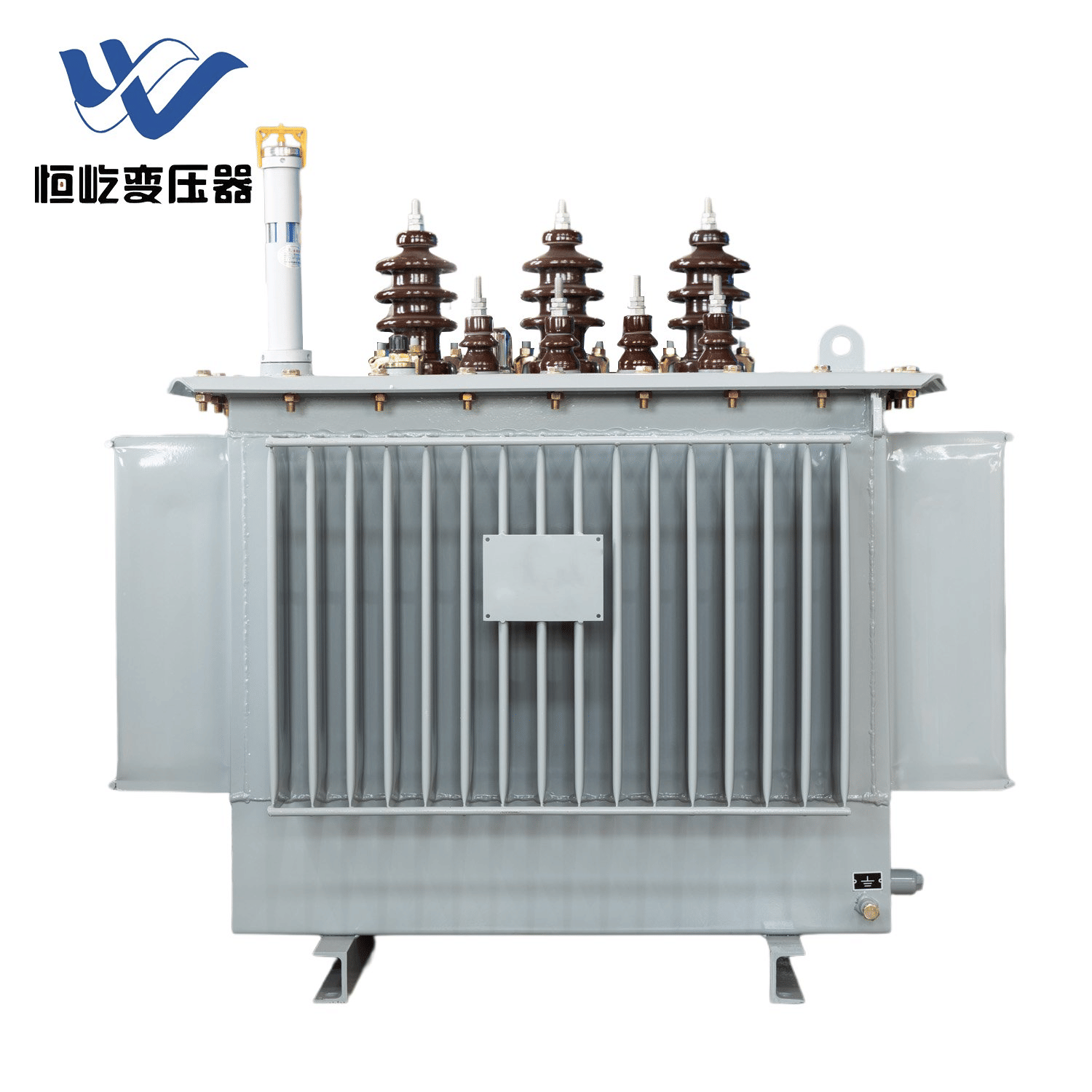

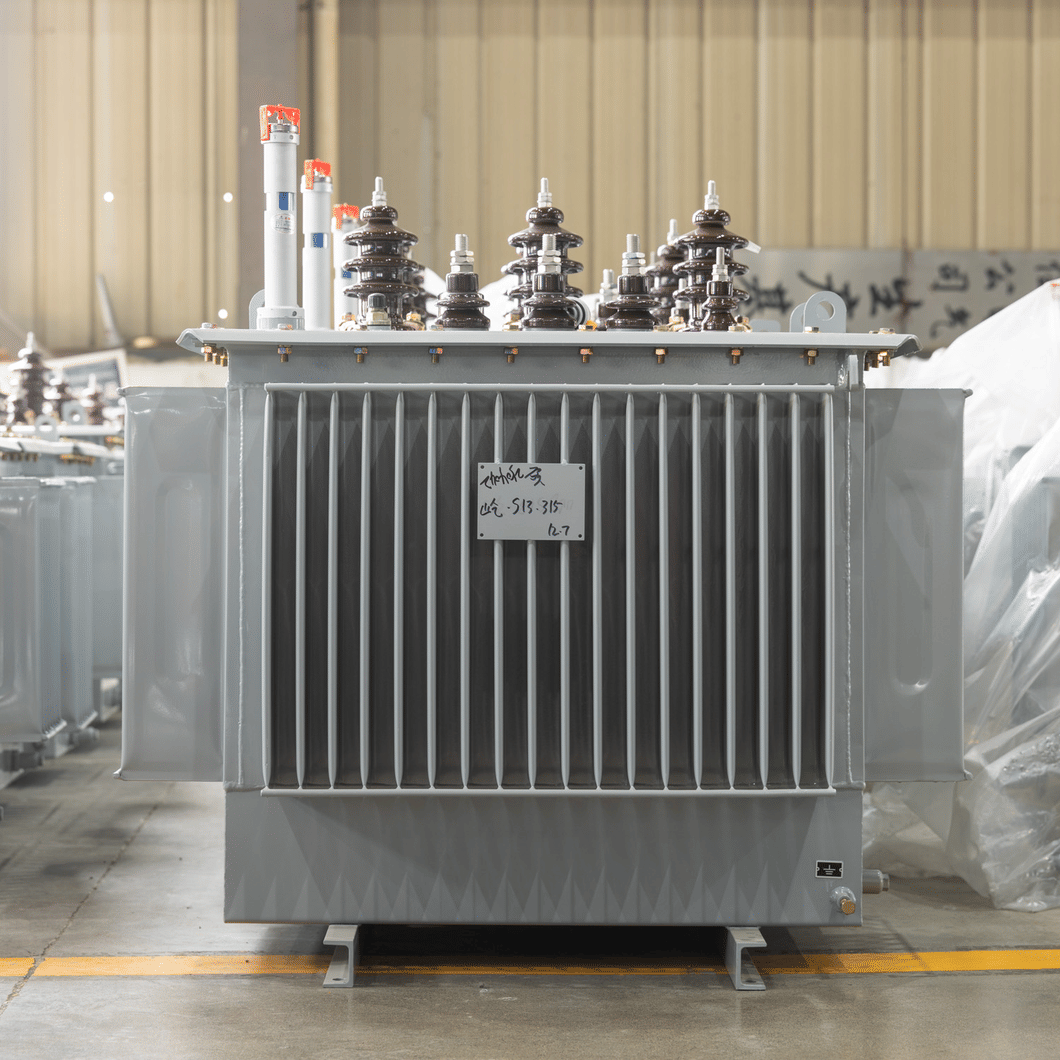

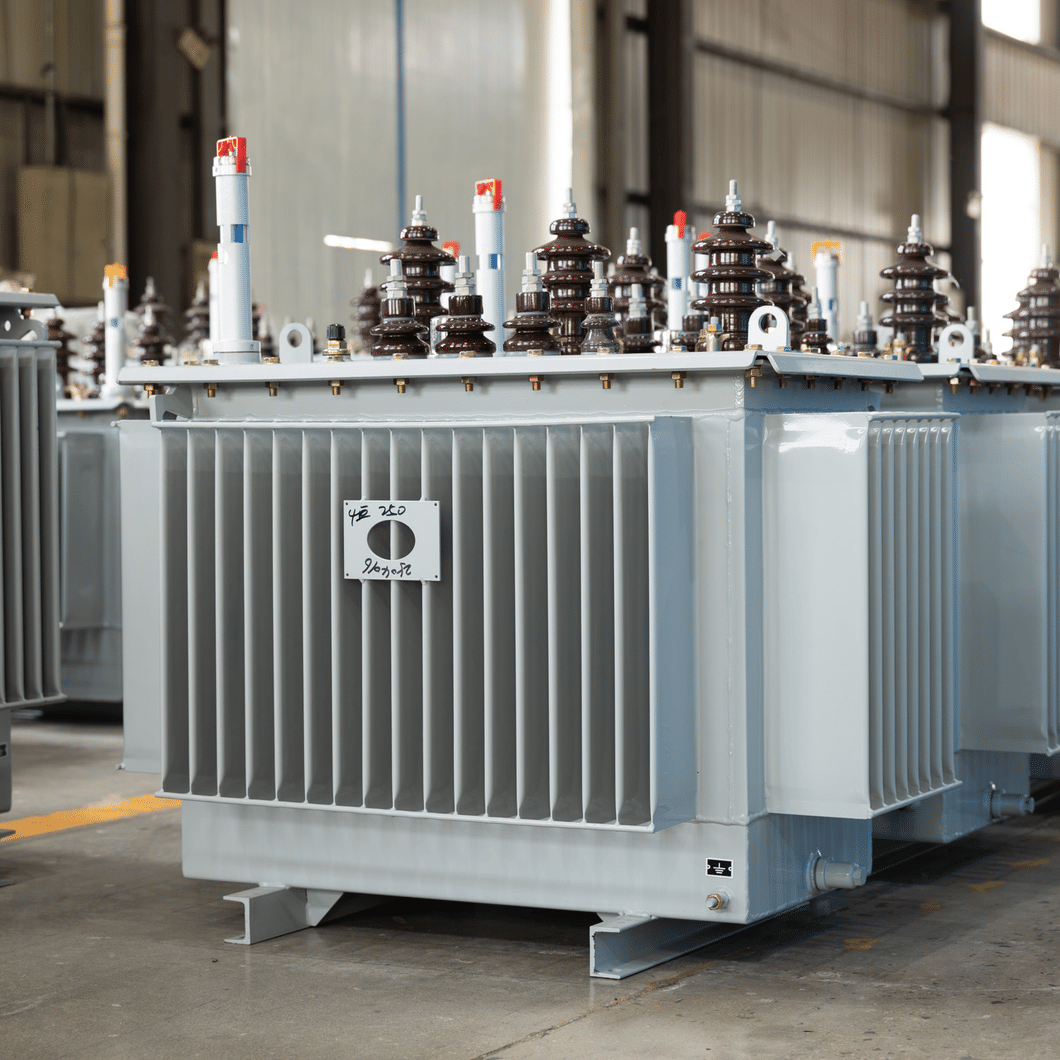

Fully sealed distribution transformer is applicable to 10kV / 0.4kV, 50Hz distribution and transformation system, and widely used in various residential, commercial buildings, public facilities, industrial and mining enterprises, power generation enterprises and urban and rural power grids The product conforms to GB1094 power transformer standard.


Use  Condition
 Maximum ambient temperature: + 40 ºC .
 Minimum ambient temperature: - 25 ºC .
 Altitude: < 1000m.
 Maximum monthly average temperature: 90% (20 ºC ).
Installation location: it is installed in the place, indoor and  outdoor without fire, explosion, serious pollution, chemical  corrosion and severe vibration.

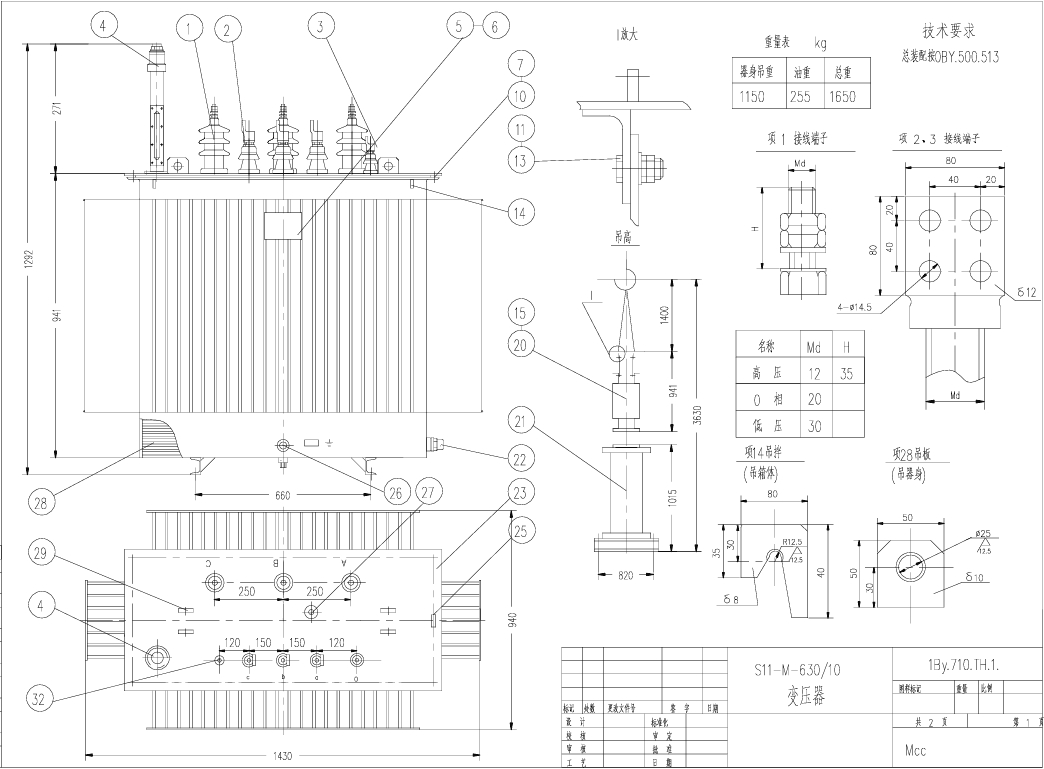

Technical data of S11-M  10kV three-phase full seal non excitation voltage regulating distribution transforme

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
30	6 10 10.5 11	±5(or) ± 2 × 2.5	0.4	Dyn11( or) Yyn0	100	630/600	2.3	4
50					130	910/870	2
80					180	1310/1250	1.9
100					200	1580/1500	1.8
125					240	1890/1800	1.7
160					280	2310/2200	1.6
200					340	2730/2600	1.5
250					400	3200/3050	1.4
315					480	3830/3650	1.3
400					570	4520/4300	1.2
500					680	5410/5150	1.1
630					810	6200	1	4.5
800					980	7500	1
1000					1150	10300	1
1250					1360	12000	0.9
1600					1640	14500	0.8
2000					1940	18000	0.8
2500					2300	21000	0.6

  Technical data of S11-M  11kV three-phase full seal non excitation voltage regulating distribution transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
30	6 10 10.5 11	±5(or) ± 2 × 2.5	0.4	Dyn11( or) Yyn0	80	630/600	2.1	4
50					100	910/870	1.9
80					130	1310/1250	1.8
100					150	1580/1500	1.6
125					170	1890/1800	1.5
160					200	2310/2200	1.4
200					240	2730/2600	1.3
250					290	3200/3050	1.2
315					340	3830/3650	1.1
400					410	4520/4300	1.0
500					480	5410/5150	1.0
630					570	6200	0.9	4.5
800					700	7500	0.8
1000					830	10300	0.7
1250					970	12000	0.6
1600					1170	14500	0.6
2000					1360	18000	0.5
2500					1610	21000	0.4

  Technical data of S11-M type 20kV three-phase full seal non excitation voltage regulating distribution transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
30	20	±5(or) ± 2 × 2.5	0.4	Dyn11( or) Yyn0	100	690/660	2.1	5.5
50					130	1010/960	2.0
63					150	1200/1150	1.9
80					180	1440/1370	1.8
100					200	1730/1650	1.6
125					240	2080/1980	1.6
160					280	2540/2420	1.4
200					340	3000/2860	1.3
250					400	3520/3360	1.2
315					480	4210/4010	1.1
400					570	4970/4730	1.0
500					680	5940/5660	1.0
630					810	6820	0.9	6
800					980	8250	0.8
1000					1150	11330	0.7
1250					1360	13200	0.7
1600					1640	15950	0.6
2000					1940	19140	0.6
2500					2300	21000	0.5

Technical data of S13-M type 20kV three-phase full seal non excitation voltage regulating distribution transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
30	20	±5(or) ± 2 × 2.5	0.4	Dyn11( or) Yyn0	80	690/660	2.0	5.5
50					100	1010/960	1.9
63					110	1200/1150	1.8
80					130	1440/1370	1.7
100					150	1730/1650	1.5
125					180	2080/1980	1.5
160					200	2540/2420	1.3
200					240	3000/2860	1.2
250					280	3520/3360	1.1
315					340	4210/4010	1.0
400					400	4970/4730	0.9
500					480	5940/5660	0.9
630					570	6820	0.8	6
800					680	8250	0.7
1000					810	11330	0.6
1250					980	13200	0.6
1600					1150	15950	0.5
2000					1360	19140	0.5
2500					1640	22220	0.4

  Main technical parameters of 800kVA ~ 31500kVA three-phase double winding non excitation voltage regulating power transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
630	33	± 5%	3.15 6.3 10.5	Yd11	830	7870	1.1	6.5
800					980	9410	1
1000					1150	11540	1
1250					1410	13940	0.9
1600					1700	16670	0.8
2000					2180	18380	0.7
2500					2560	19670	0.6
3150	33~38.5				3040	23090	0.56	7
4000					3620	27360	0.56
5000					4320	31380	0.48
6300					5250	35060	0.48	7.5
8000		± 5% or ± 2 × 2. 5%	3.15 3.3 6.3 6.6 10.5 11	YNd11	7200	38500	0.42
10000					8700	45300	0.42
12500					10080	53900	0.4	8
16000					12160	65800	0.4
20000					14400	79500	0.4
25000					17020	94100	0.32
31500					20220	112900	0.32

Main technical parameters of 2000 kVA ~ 20000 kVA three-phase double winding on load voltage regulating power transformer

Rated capacity(kVA)	Voltage Combination			Connection Symbol	No-Load Loss (W)	Load Loss (W)75ºC	No-Load Current  (%)	Short Circuit Impedance (%)
	High Voltage (kV)	High Voltage Tapping Range(%)	Low Voltage (kV)
2000	33	± 3 × 2. 5%	6.3 10.5	Yd11	2300	19240	0.8	6.5
2500					2720	20640	0.8
3150	33~38.5				3230	24710	0.72	7
4000					3870	29160	0.72
5000					4640	34200	0.68
6300					5630	36800	0.68	7.5
8000			6.3 6.6 10.5 11	YNd11	7870	40600	0.6
10000					9280	48100	0.6
12500					10940	56900	0.56	8.0
16000					13170	70300	0.54
20000					15570	82800	0.54
