Packaging & Delivery

Package Size 10.00cm * 10.00cm * 10.00cm Package Gross Weight 2.000kg

Product Description

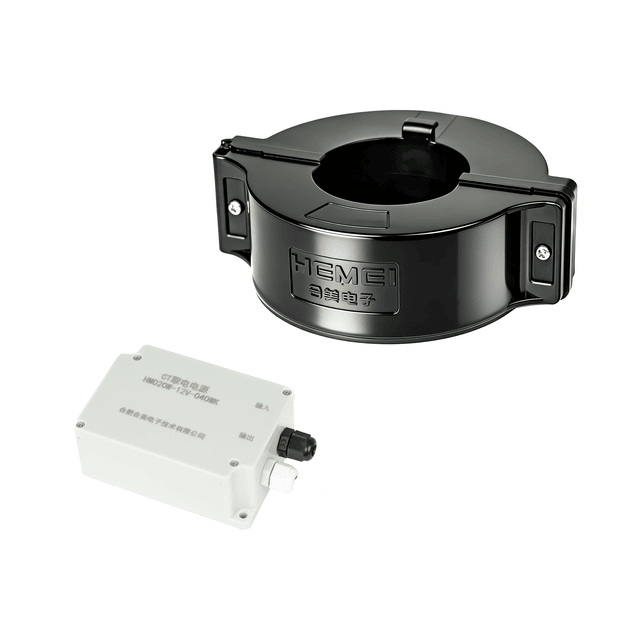

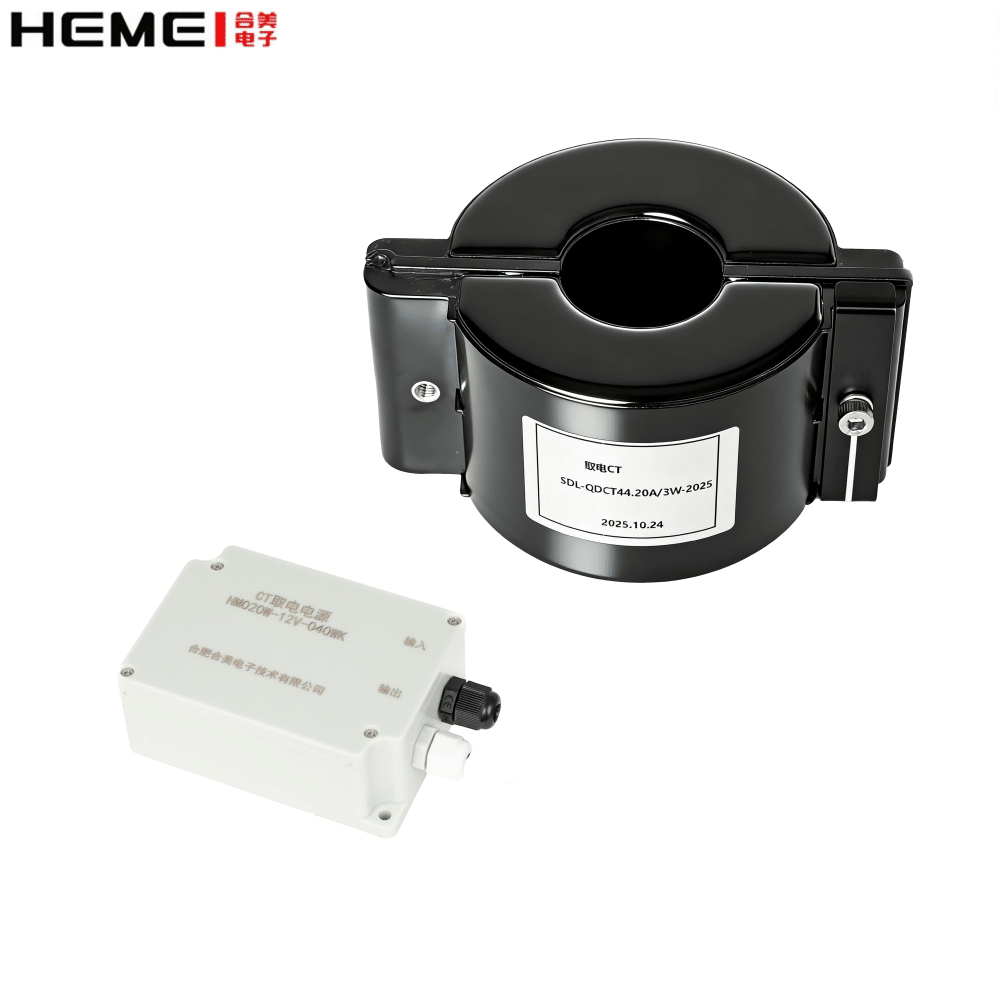

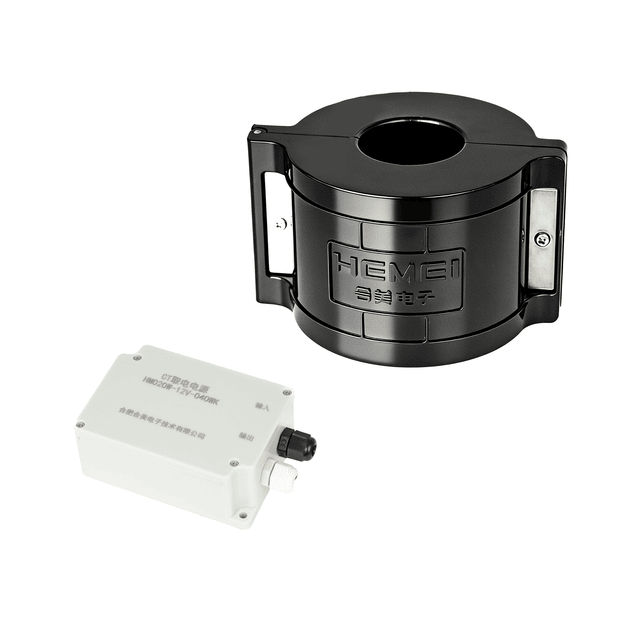

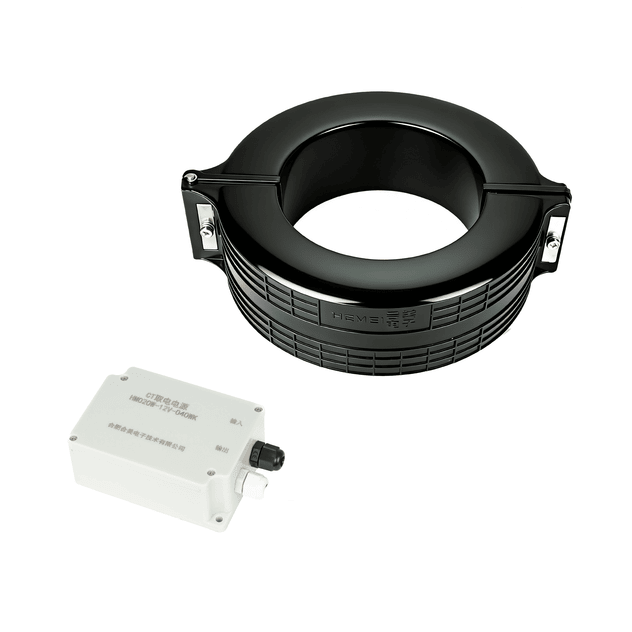

Product DescriptionPower Supply Current TransformerThe split harvesting energy current transformer is easy to install and replace, and can provide power to other components.Product Parameters

Harvesting Energy CT can be customised
Rated output power	Rated output currrent	Inner diameter	Max work current	Max current	Waterproof level	Voltage
24mW	5A	26mm	1000A	25KA/2s	IP67	5~550KV
100mW	10A	26mm	1000A	25KA/2s	IP67	5~550KV
3W	20A	45mm	1250A	25KA/2s	IP66	5~550KV
5W	30A	45mm	1250A	25KA/2s	IP66	5~550KV
1W	20A	60mm	1250A	25KA/2s	IP68	5~550KV
2W	30A	60mm	1250A	25KA/2s	IP68	5~550KV
2W	20A	160mm	2000A	25KA/2s	IP68	5~550KV
4W	30A	160mm	2000A	25KA/2s	IP68	5~550KV

Energy Harvester With Silicon Steel Core
No	Specification(mm)	sectional area(mm²)	Input Current(A)	Output Power(W)	No-load voltage(V)
1	55*78*28	322	20	1.3	38.8
			30	2.4	46.2
2	49*77*25	350	20	1.7	50.8
			30	3	60
3	48*86*21	399	20	1.8	47.8
			30	3.1	56.7
4	54*86*40	640	20	3.6	96.2
			30	6.2	113.8
5	60*90*50	750	20	4	104.5
			30	6.6	120.7
6	58*88*53	795	20	3	76.2
			30	5.7	94.1
7	55*80*68	850	20	4.7	123.8
			30	7	146.4
8	59*89*58	870	20	4.5	116.9
			30	6.8	138
9	53*90*64	1184	20	5.3	157.2
			30	7.3	187
10	53*130*60	2310	20	10	126
			50	34	162

CT Based Energy Harvester With Permalloy Core
No	Specification(mm)	Sectional area(mm²)	Input Current(A)	Output Power(W)	No-Load Voltage (V)
1	55*65*5	25	10	25.6	5.19
2	55*75*10	100	5	45	8.6
3	55*75*12	120	5	54	10.3
4	54*78*12	144	5	52	12.5
5	48*68*15	150	5	49	9.64
6	55*75*20	200	3	40	8.1
7	86*107*20	210	5	72	8
8	55*79*28	336	5	118	14.1
9	76*106*27	405	5	88	11.7
10	64*106*20	420	5	163	19.5
11	58*89*40	620	5	200	18.4

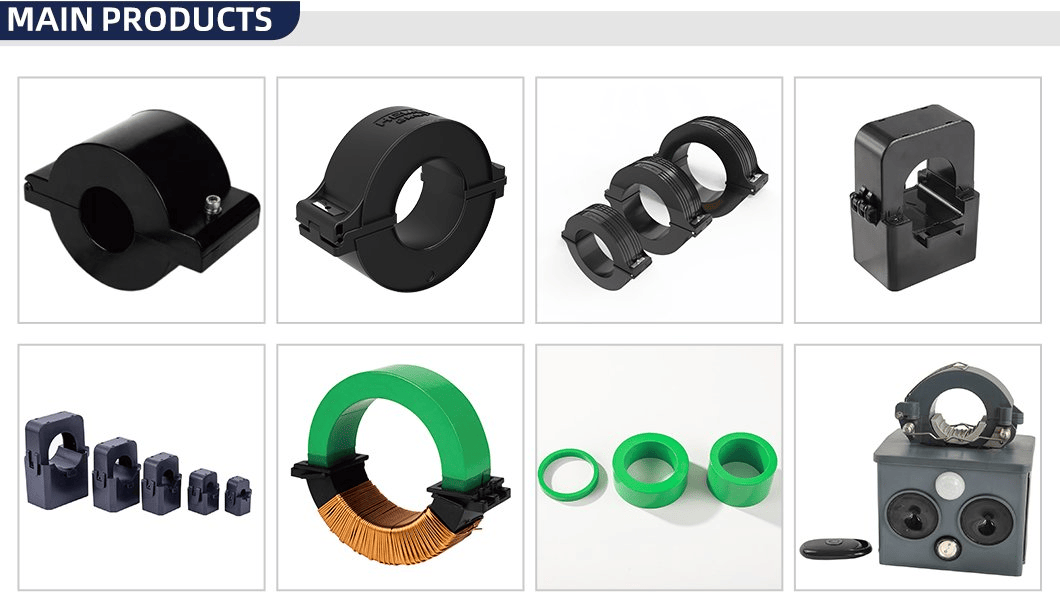

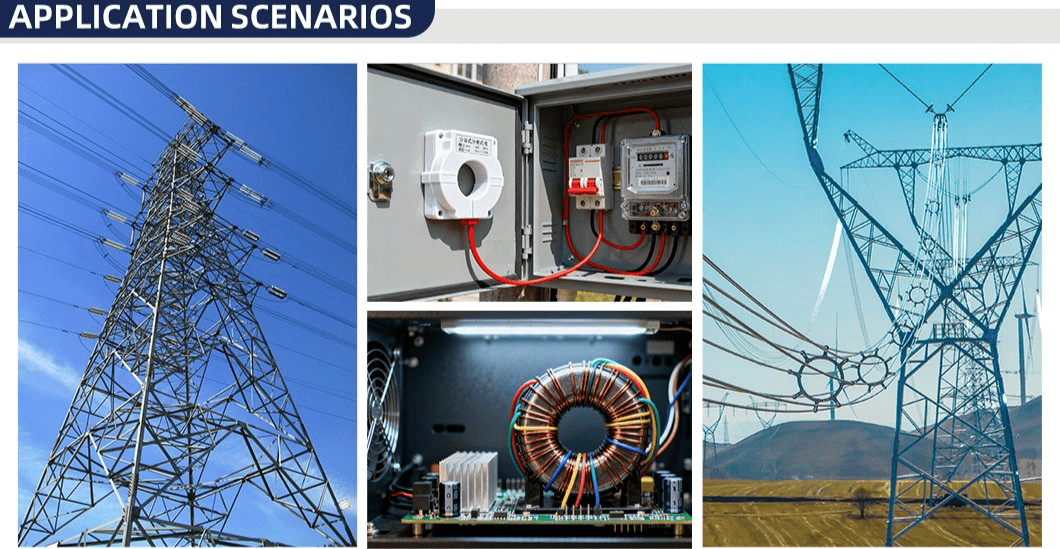

Application ScenariosMain ProductsCompany ProfileCertificationsPackaging & ShippingFAQ 1.Q:Are you trading company or manufacturer?    A:we are manufacturer.   2. Q: Can I have a sample order?     A: Yes, we welcome sample order to test and check quality,and you need to pay the sample fee and freight.   3. Q: Does your factory have the design and development capabilities, can you factory accept customized products?      A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years' experience.HEMEI also           offer customers personal services contains OEM, ODM and OPM.   4. Q: How long could I get my order?     A: Customized products: usually 10-15 days. It depends on your design and quantity.   5. Q: How is your production management and quality control system?     A: All our product process follows up ISO9001. Each process has technical instructors.The QC supervisors will regularly inspect the      production. We will do products performance tests during production, and comprehensive quality tests when the products is                  completed. View More
