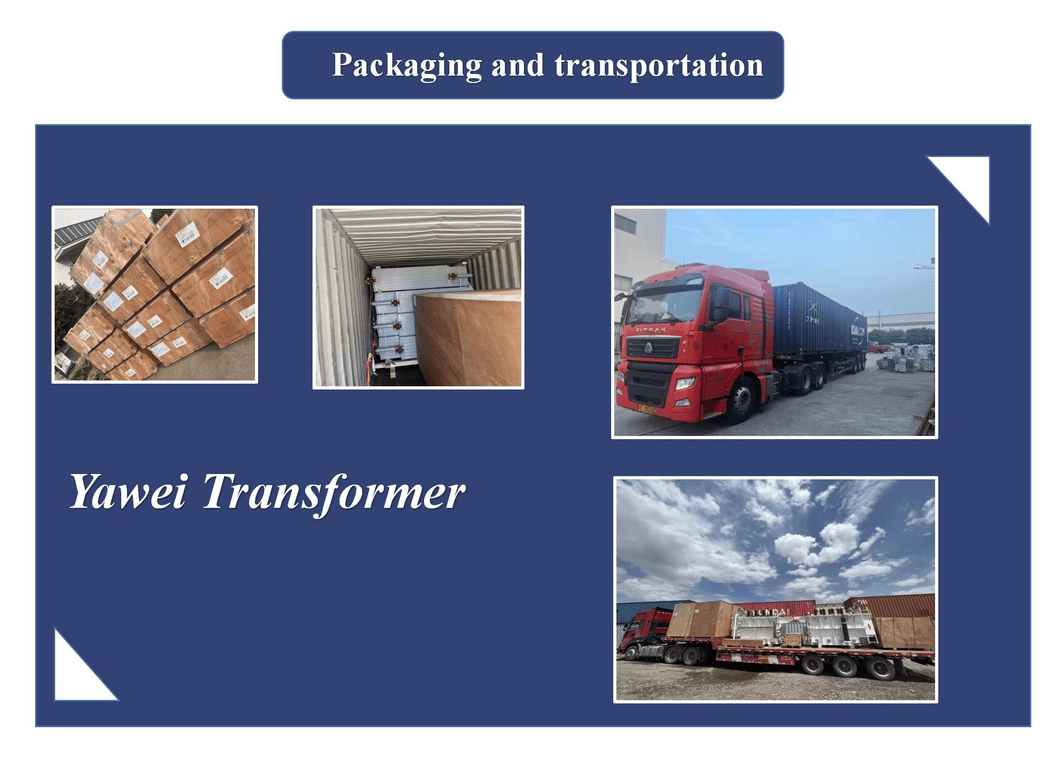

Packaging & Delivery

Package Size 1500.00cm * 1500.00cm * 2000.00cm Package Gross Weight 1000.000kg

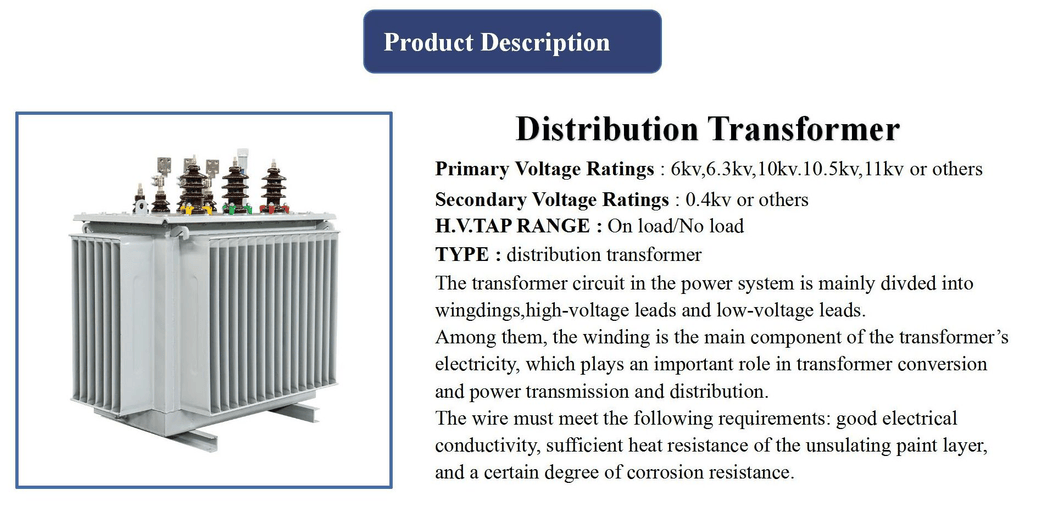

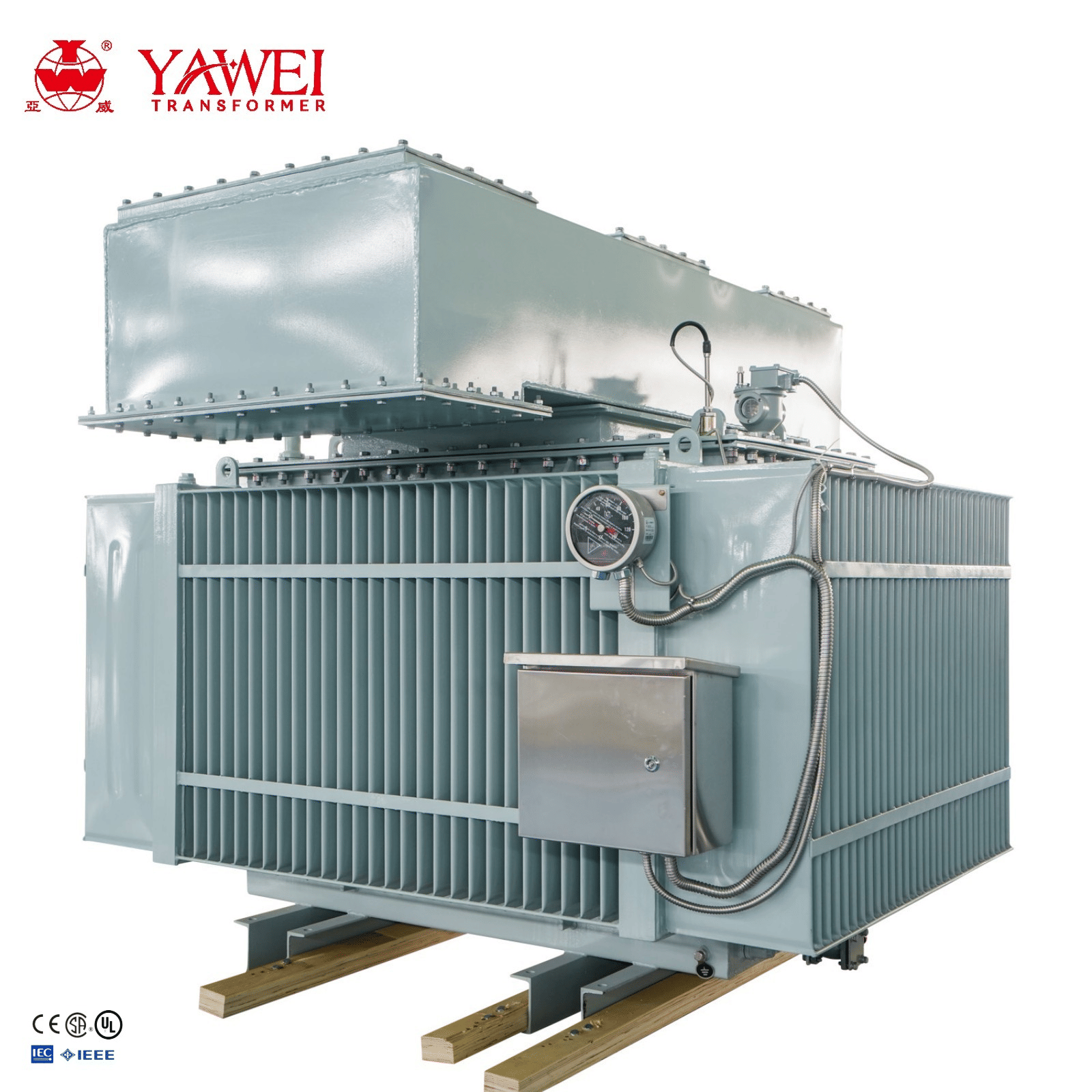

Product Description


     Product features:

1.	Excellent Heat Dissipation
2.	Superior Insulation Performance
3.	Long Lifespan & Reliability
4.	Adaptability to Harsh Environments
5.	Cost-Effectiveness
6.	High Capacity & Voltage Suitability
7.	Noise Reduction

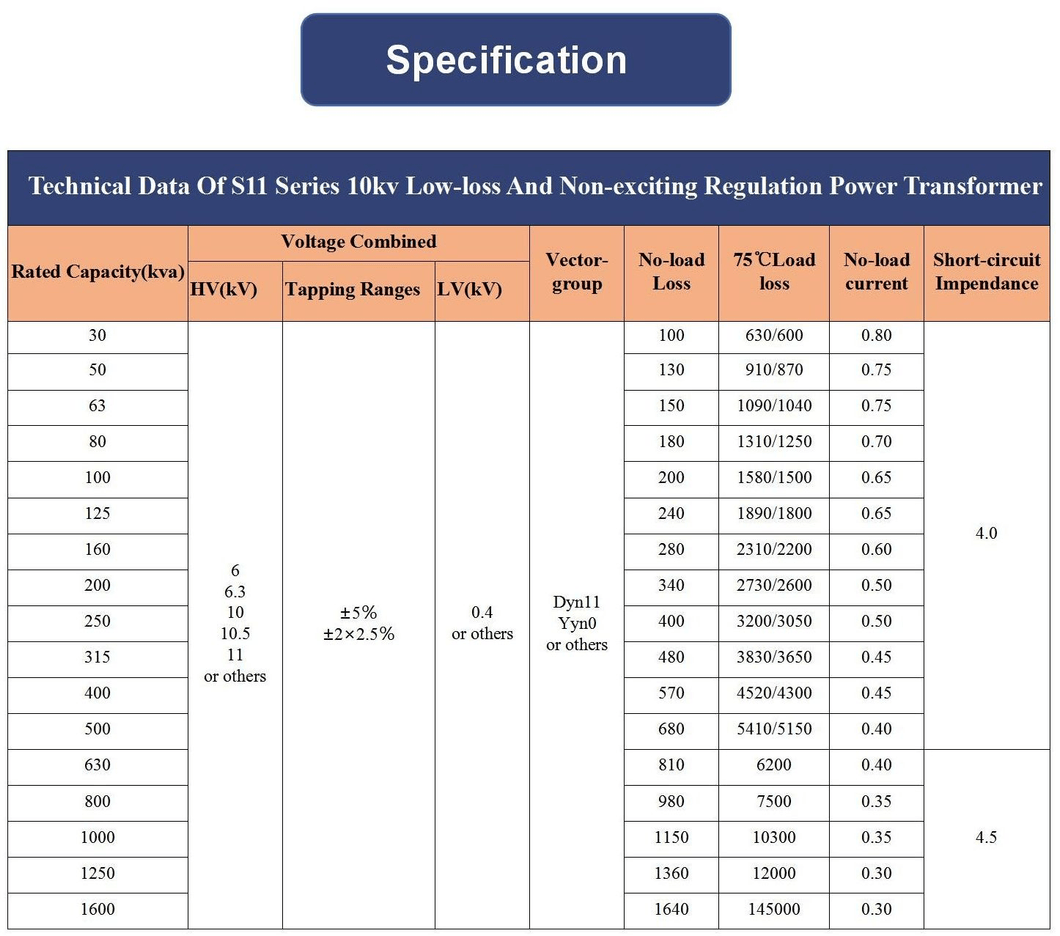

Model	Rated Capacity(kVA)	Voltage Combined			No-load Loss(W)	75ºC Load loss(W)	No-load current(%)
		H.V.(kV)	Tap Range	L.V.(kV)
S11-30	30	20	±2×2.5%  ±5%	0.4	90	660	2.1
S11-50	50				130	960	2.0
S11-63	63				150	1145	1.9
S11-80	80				180	1370	1.8
S11-100	100				200	1650	1.6
S11-160	160				290	2420	1.4
S11-200	200				330	2860	1.3
S11-250	250				400	3350	1.2
S11-315	315				480	4010	1.1
S11-400	400				570	4730	1.0
S11-500	500				680	5660	1.0
S11-630	630				810	6820	0.9
S11-800	800				980	8250	0.8
S11-1000	1000				1150	11330	0.7
S11-1250	1250				1350	13200	0.7
S11-1600	1600				1630	15950	0.6
S11-2000	2000				1950	19140	0.6
S11-2500	2500				2340	22220	0.5

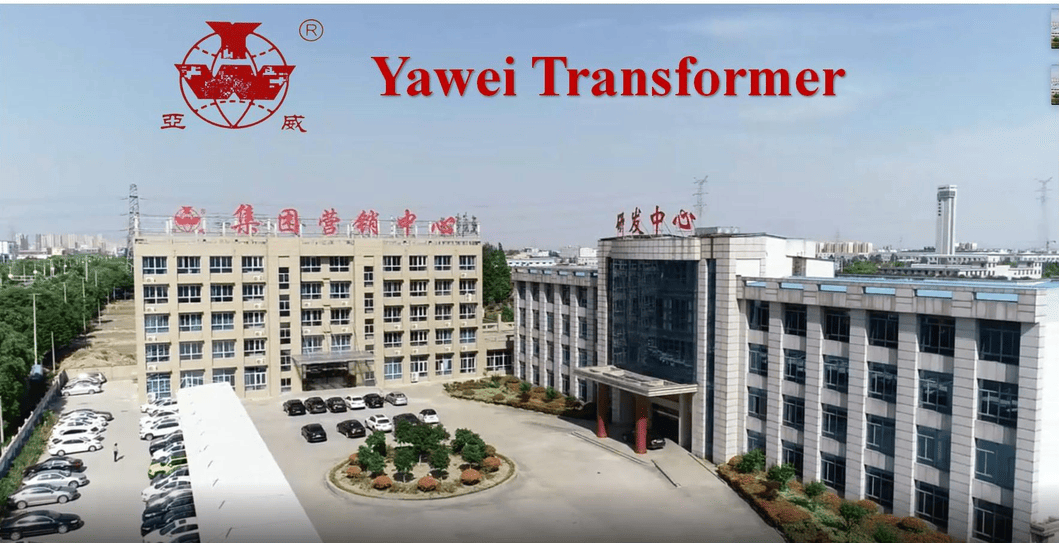

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;font-weight:normal;display:inline-block;line-height:36px;height:36px;">Company Profile
