Product Description

ZGS11-H(Z) Combined transformer

ZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply. What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.
Product features

1.	Fully sealed and insulated structure  can guarantee the security of person.
2.	It  is not only used for ring network but also terminal.
3.	Low loss,low noise, superior performance.
4.	Low temperature,overload ability.
5.	Transformer adopts special structure and its outstanding advantages is high quality.

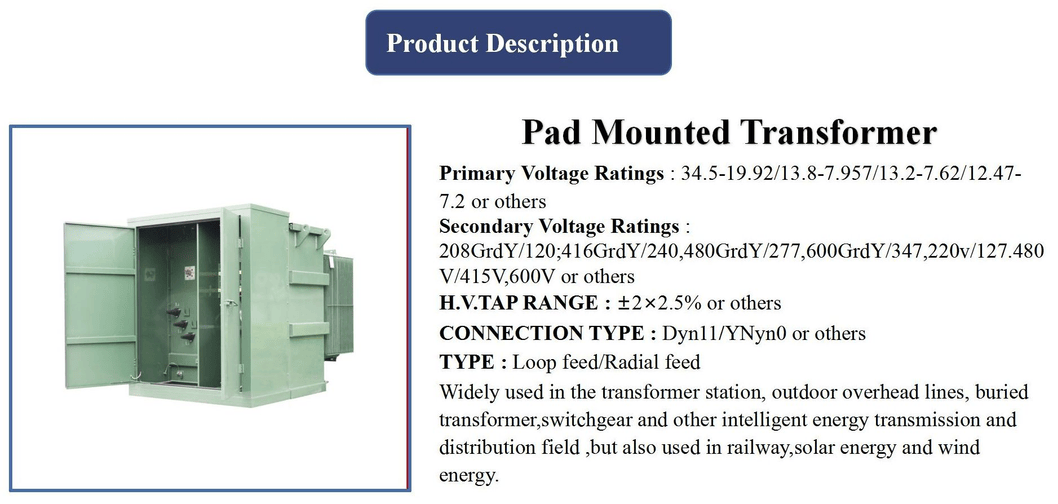

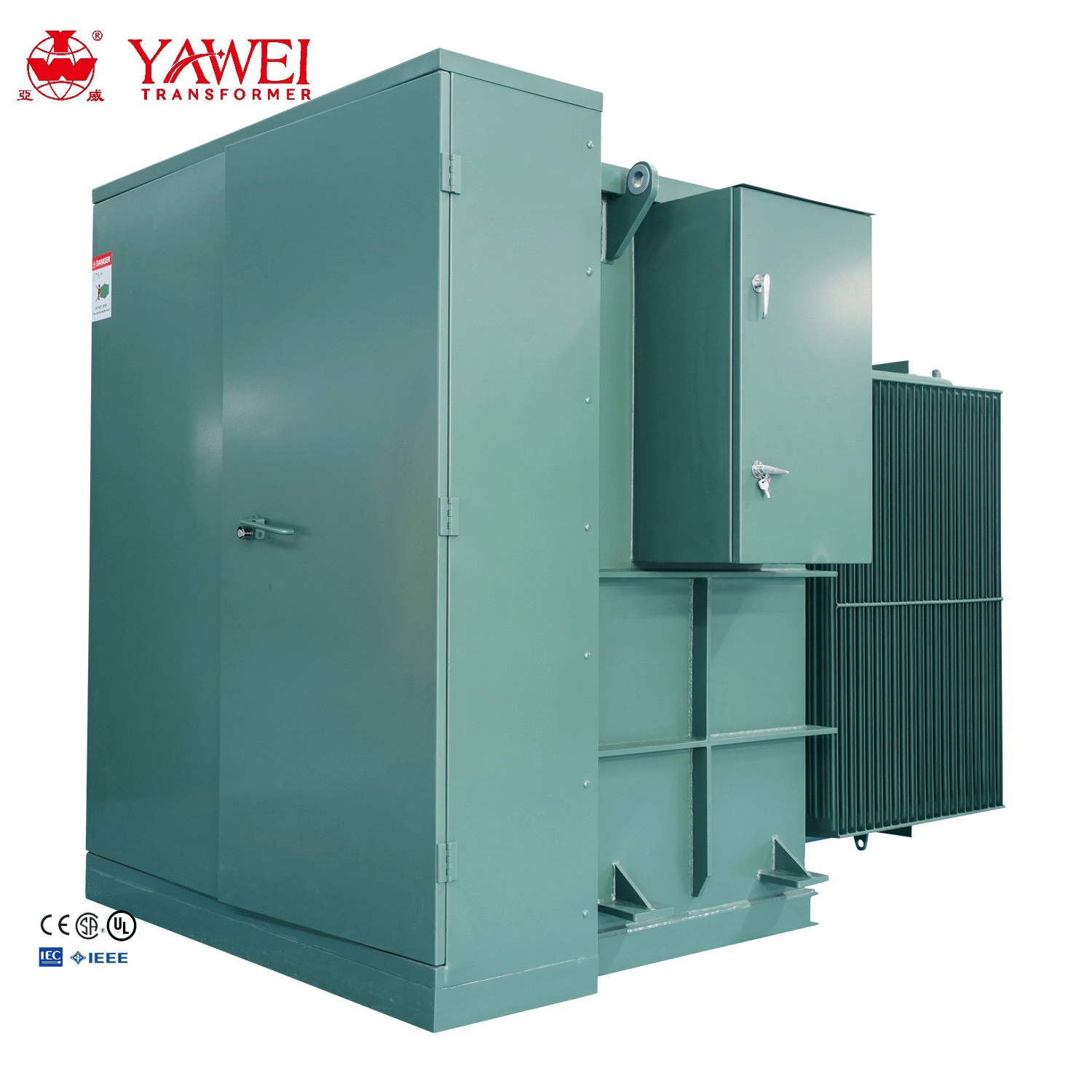

Pad Mounted Transformer
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
			No-load Loss (W)	On-load Loss (W)
75KVA	34.5KV/ 19.92KV/ 13.8KV/ 79.57KV/ 13.2KV/ 7.62KV/ 12.47KV/ 7.2KV  or others	240V 480V 277V 600v 347V	180	1250
112.5KVA			200	1500
150KVA			280	2200
225KVA			400	3050
300KVA			480	3650
500KVA			680	5100
750KVA			980	7500
1000KVA			1150	10300
1200KVA			1320	12120
1500KVA			1640	14500
2000KVA			2160	20645
2500KVA			2680	27786
3000KVA			3300	30300
3750KVA			4125	37875

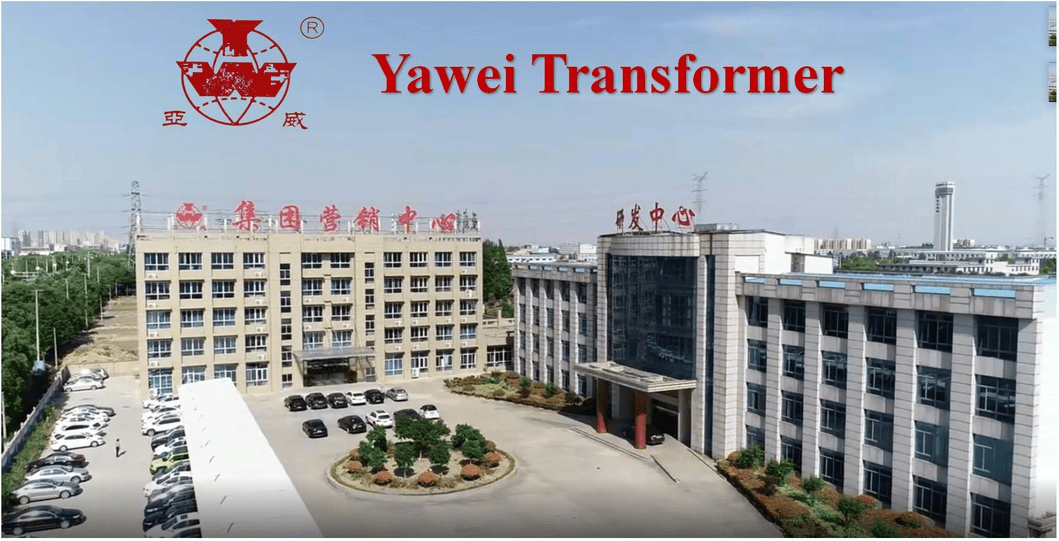

ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Company Profile
