Product Description

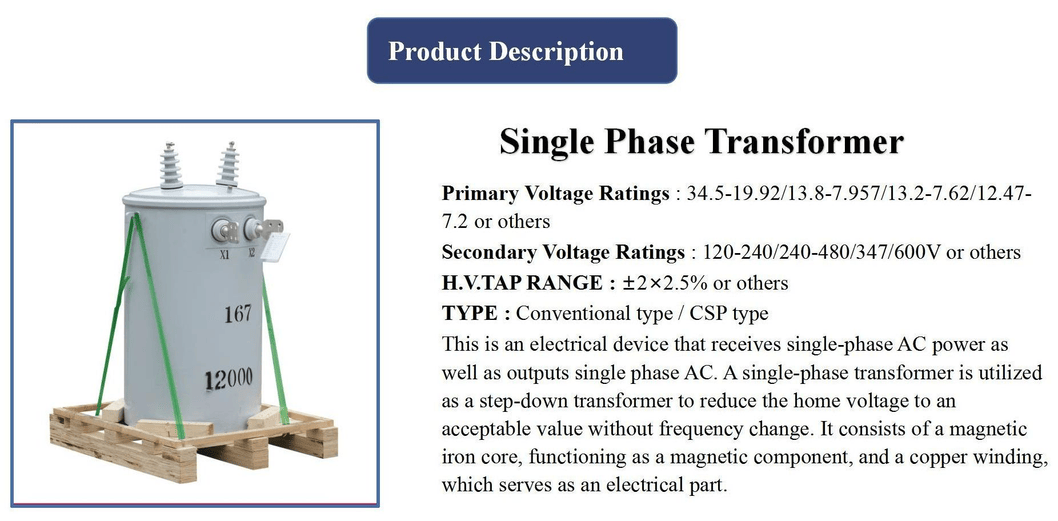

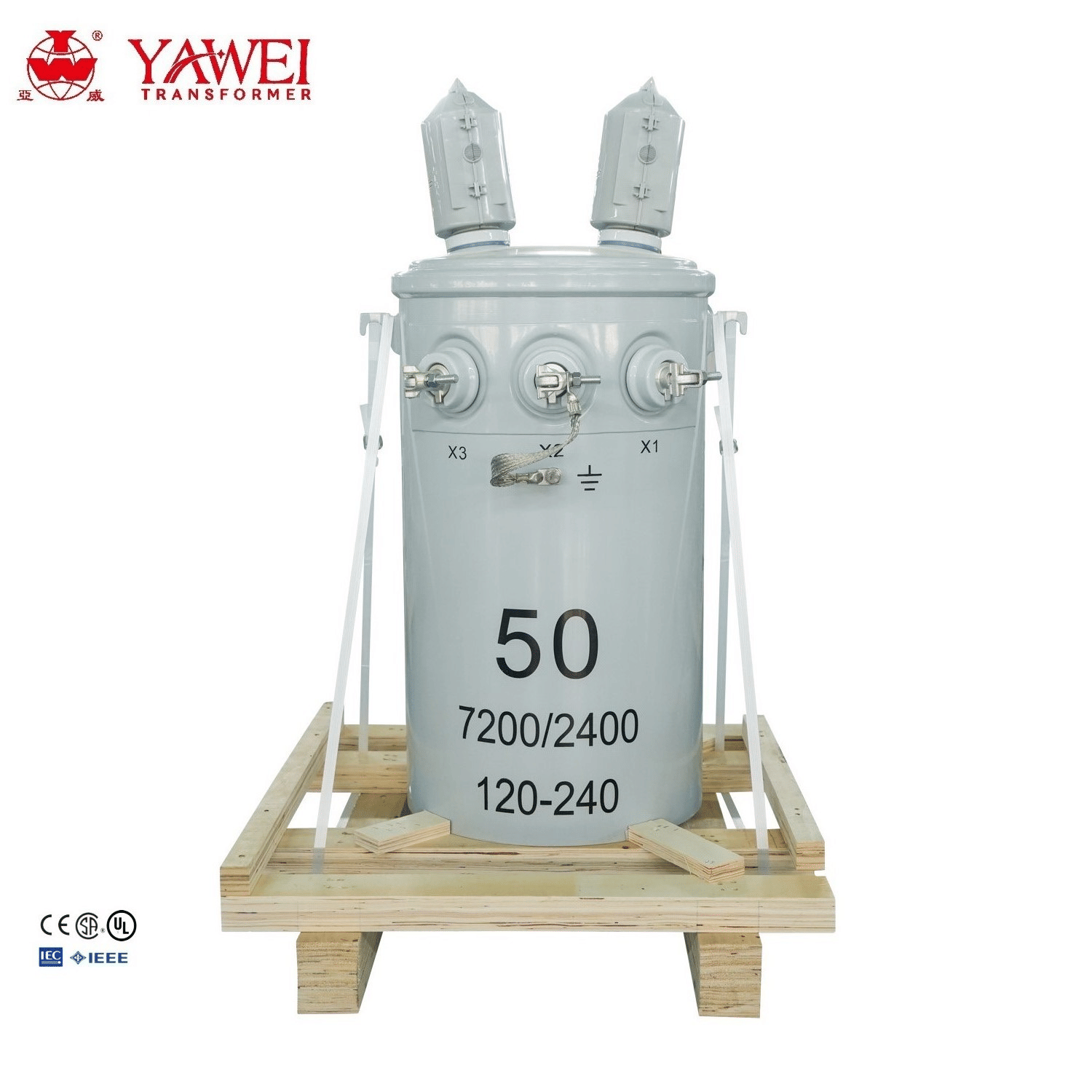

Types of Single-Phase Pole-Mounted Transformers

YAWEI Transformer provides a wide range of single-phase pole-mounted transformers, also referred to as overhead transformers. Their product lineup includes both standard models and advanced Completely Self-Protected (CSP) transformers, designed for efficiency and reliability.

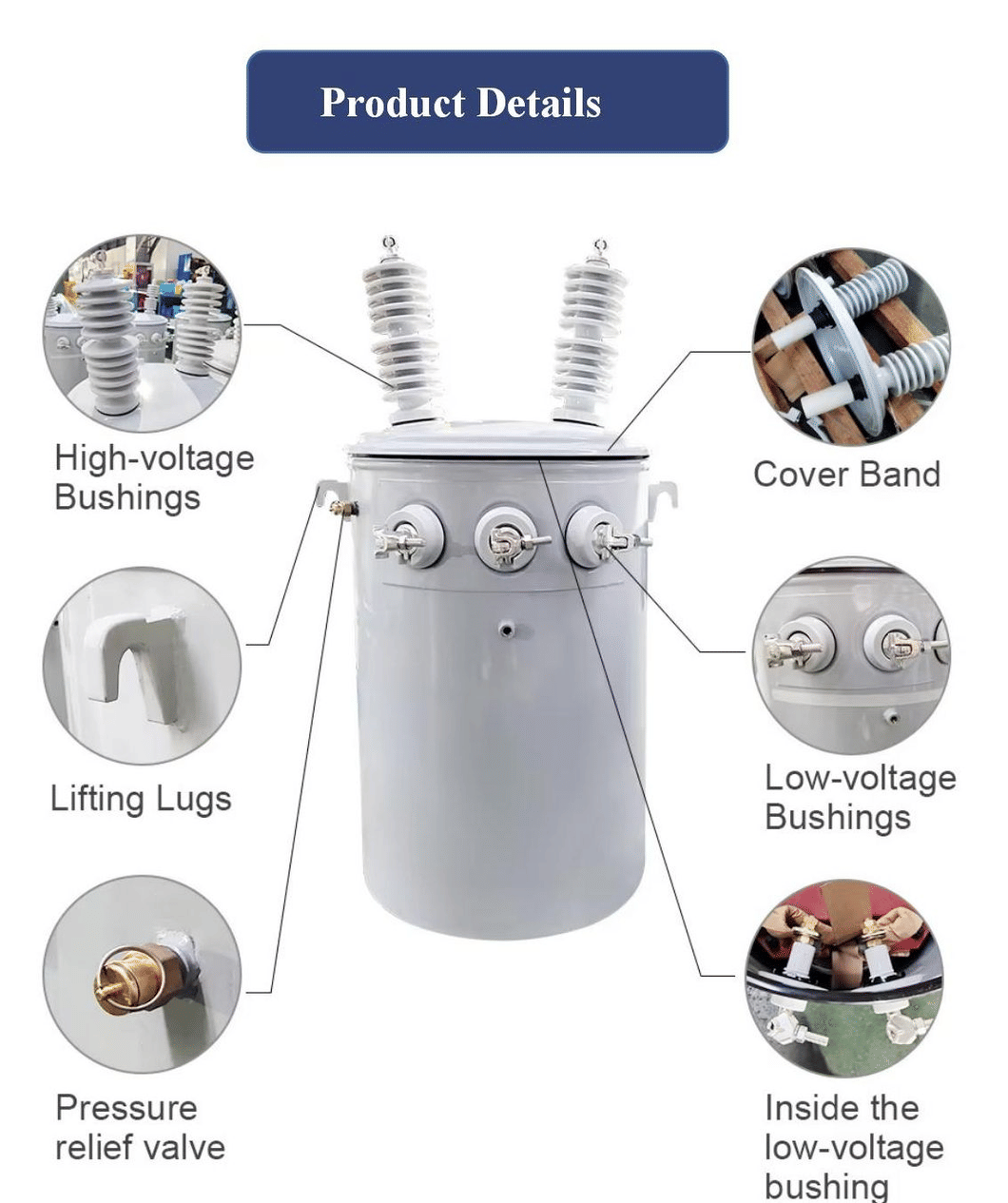

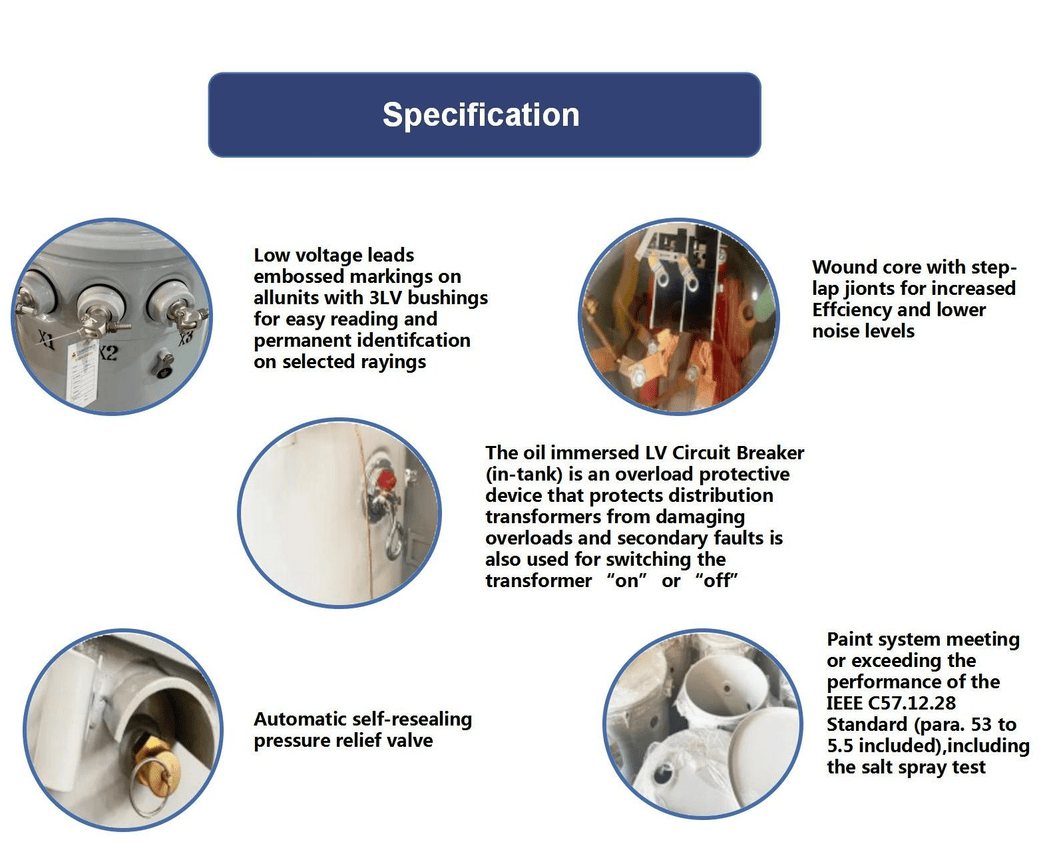

Key Features of YAWEI's CSP Transformer:
-Built-in surge arrester- on the high-voltage side for lightning and overvoltage protection.
-Integrated circuit breaker- on the low-voltage side to prevent overloads and short circuits.
-Internal protective fuse- for added safety.

This all-in-one CSP design reduces the need for external protection devices, lowering installation costs and simplifying setup. YAWEI Transformer's innovative solution ensures safer operation, easier maintenance, and cost-effective performance, making it an ideal choice for overhead power distribution systems.

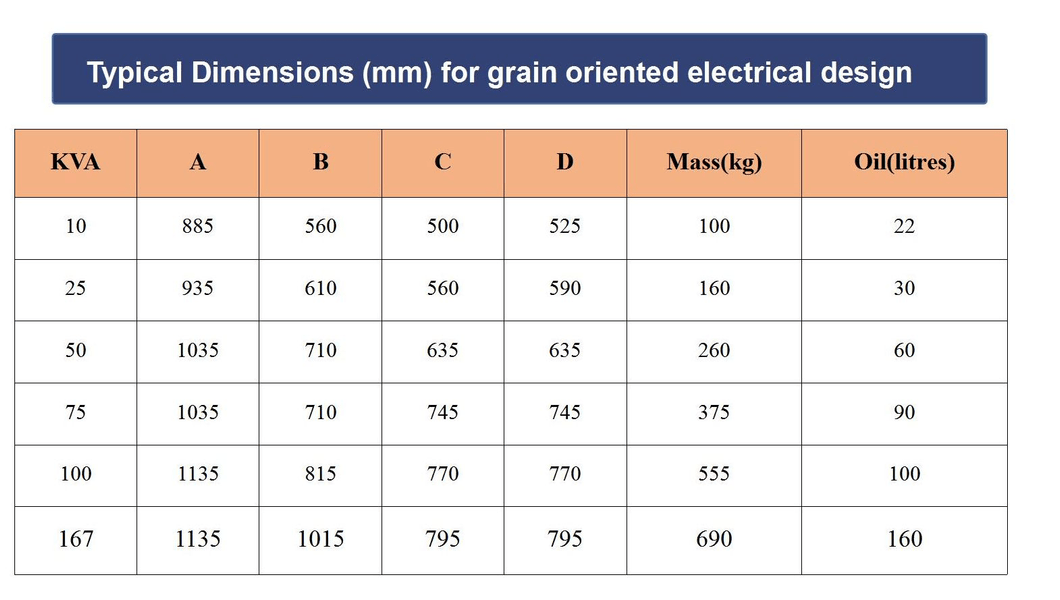

Parameters of single phase pole mounted distribution transformer (silicon steel sheet iron core)
Model	Rated Capacity(kVA)	Voltage(V)			Loss(W)		Dimensions(mm)				Weight(kg)
		H.V.	Tap Range	L.V.	No-load	On-load	A	B	C	D	Oil Weight	Total Weight
D11-3	3	33000 30000 17321 11547 13800 7967 7620 6350 or others	±2×2.5%	120 220 240 250 or others	9	45	800	400	500	300	10	70
D11-5	5				19	75	860	430	510	340	15	92
D11-10	10				36	120	910	470	550	380	22	150
D11-15	15				50	195	970	500	580	410	30	210
D11-25	25				80	290	1025	550	630	450	45	258
D11-37.5	37.5				105	360	1225	630	680	520	50	340
D11-50	50				135	500	1235	630	680	520	62	395
D11-75	75				190	650	1300	680	720	550	88	480
D11-100	100				210	850	1350	780	810	610	94	530
D11-167	167				350	1410	1460	830	890	660	138	680
D11-250	250				500	2000	1570	960	950	660	250	990
D11-333	333				650	2500	1660	960	960	660	300	1160
